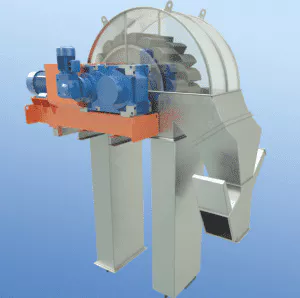

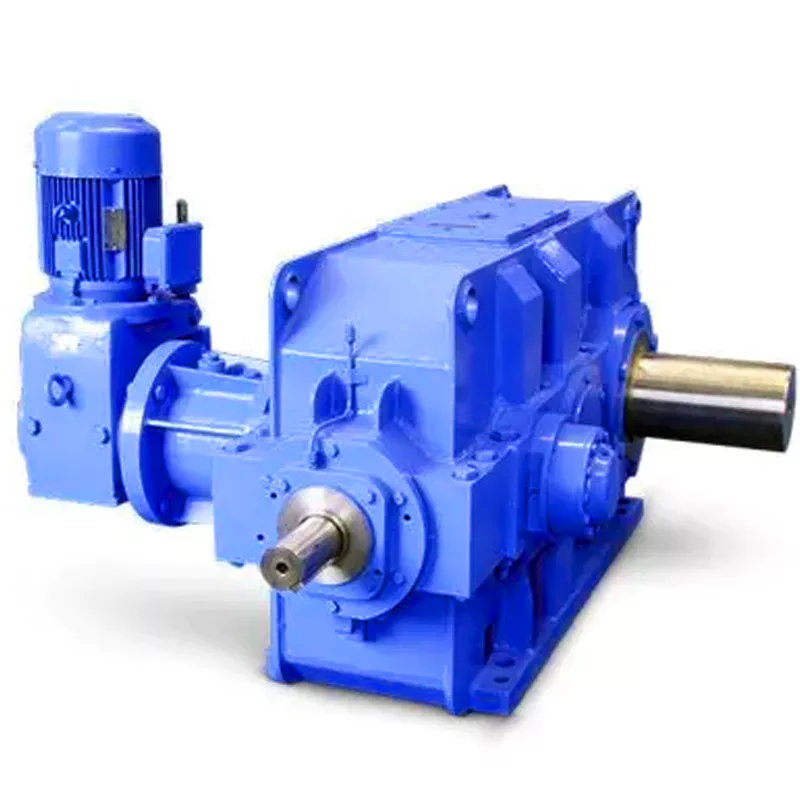

BK Series Bucket Elevator Gearbox Reducer

Bucket Elevator Gearbox

1. The bk high-power gear reducer adopts a general design scheme, which can be transformed into an industry-specific non-standagearboxbox according to customer needs.
2. Reality ze parallel axis, orthogonal axiand s, vertical and horizontal universal box, reduce the types of parts, and increase the specifications and models.
3. High power gear reducer adopts sound absorbing box structure, large box surface area, and advanced gear grinding technology for large fan, cylindrical gear, and spiral bevel gear, which can improve the temperature rise, noise reduction, operation reliability and transmission power of the whole machine.
4. Input mode: motor connecting flange and shaft input.
5. Output mode: solid shaft with flat key, hollow shaft with flat kea y, a hollow shaft connected by expansion Plate, a hollow shaft connected by spline, a solid shaft connected by spline, and a solid shaft connected by the flange.
6. Installation mode of reducer: horizontal type, vertical type, swing base type, and torsion arm type.
7. bk series products have 3~26 specifications, reduction drive stages have 1~4 grades, and speed ratio is 1.25~450; It is combined with R, K, S series reduction motors of our factory to obtain greater speed ratio.

Main Drive Gear Units	B Series Bevel Helical Gearbox
Auxiliary Drive	K Series Bevel Helical Gear Motor
Input Configurations	Keyed Solid Shaft InputAuxiliary Drive
Output Configurations	Keyed Solid Shaft Output (Types: B3S…)Keyway Hollow Shaft Output (Types: B3H…)Shrink Disc Hollow Shaft Output (Types: B3D…)
Main Options	Backstop Freewheel Clutches(Overrunning Clutches) Dip Lubrication Compensation Oil Tank Forced Lubrication Oil Pump Cooling Fan, Cooling Coils External Cooling Devices Fluid Coupling(Hydraulic Coupling)
Installation	Horizontal Mounted
Lubrication	Oil Dip and Splash LubricationForced Lubrication
Cooling	Natural CoolingAuxiliary Cooling Devices

Gearbox in Bucket Elevator

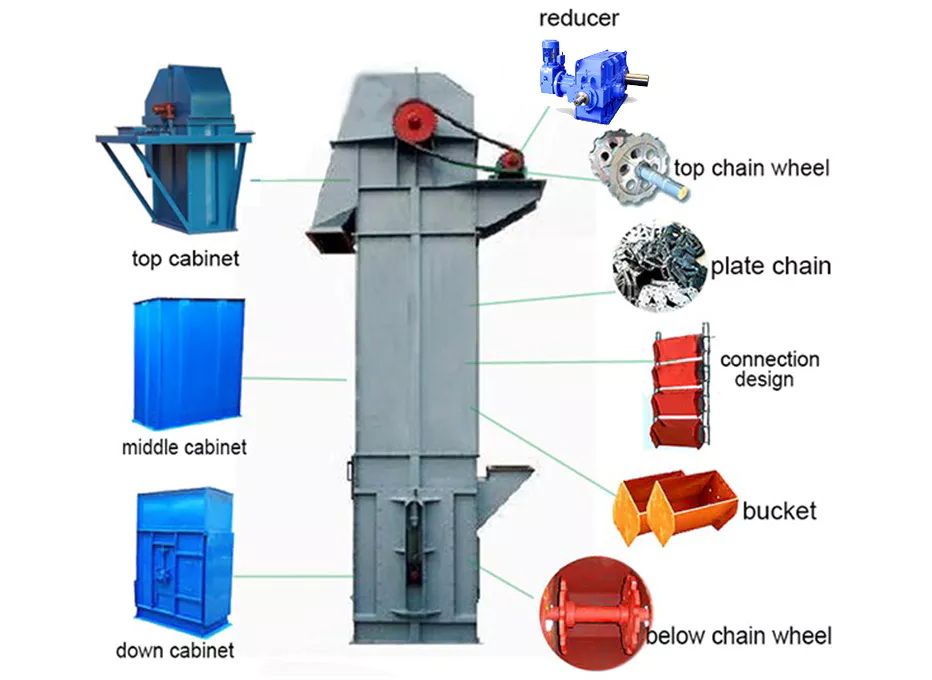

Chain bucket elevator is used to vertically lift powder, granular materials and small pieces of materials, and grind small pieces of materials, such as coal, cement, stone, sand, clay, ore, etc. Or other dry mortar for construction, chemical and food industries.Bucket elevators are used to transport large quantities of bulk materials vertically to different heights without generating dust, and then dump them. The height to be overcome usually exceeds 200 meters. The weight to move is enormous.The bearing element in bucket elevator is the center or double chain strand, chain link chain or belt connecting the bucket. The drive is in the upper station.The characteristics of the drives specified for these applications are similar to those of the jerk belt conveyors. Bucket elevators require relatively high input power.Due to the high starting power, the driving device must be soft started, which is realized through the fluid coupling in the transmission system.Bevel and helical gear units are commonly used as single or double drives on base frames or oscillating bases.

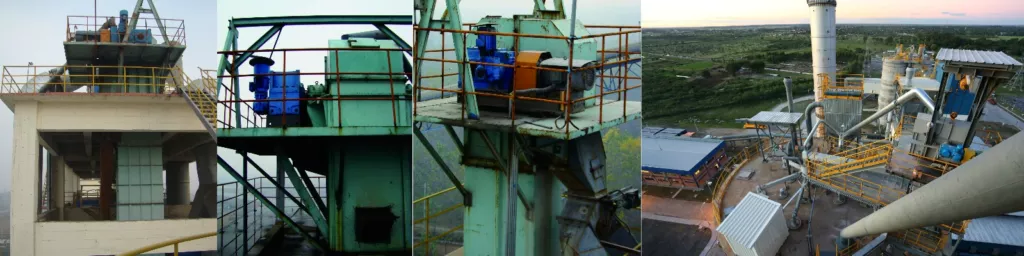

BK Series gearbox Application

Cement, mining, fodder, agriculture…

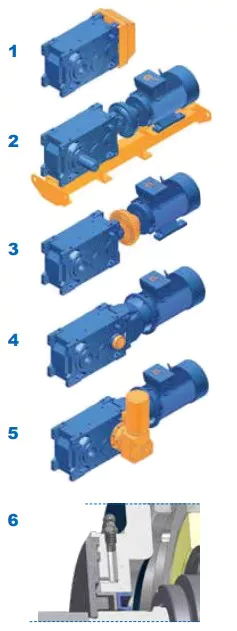

Recommended options for high capacity bucket elevators

Raydafon industrial gear units are based on themodular system from Raydafon and provide many individual options such as:

1. Axial fanHigh performance axial fan is directly installed on the drive shaft to provide high cooling power and heat reserve.
2. Base frame/motor rocker armAll mechanical and electrical components are mounted on the motor rocker arm or motor frame, which simplifies the installation of the drive train.
3. Hydraulic fluid couplingThe hydraulic coupler allows the belt to start slowly, preventing excessive tension on the belt and high torque in the gear unit. In addition, it reduces the starting current.
4. Backward stopThe back stop prevents backflow of the inclined conveyor belt. All rear stops are mounted externally and can be replaced without removing the gear unit. The rear stop is also lubricated with gear oil.
5. Auxiliary driveAuxiliary drive, including overrunning clutchOperate the system at low speed or "inch" final drive.
6. Taconite sealTaconite seals prevent damage to the shaft seal ring in an abrasive or dusty environment. It consists of a labyrinth seal that can be re lubricated to prevent abrasive dust from entering the seal
