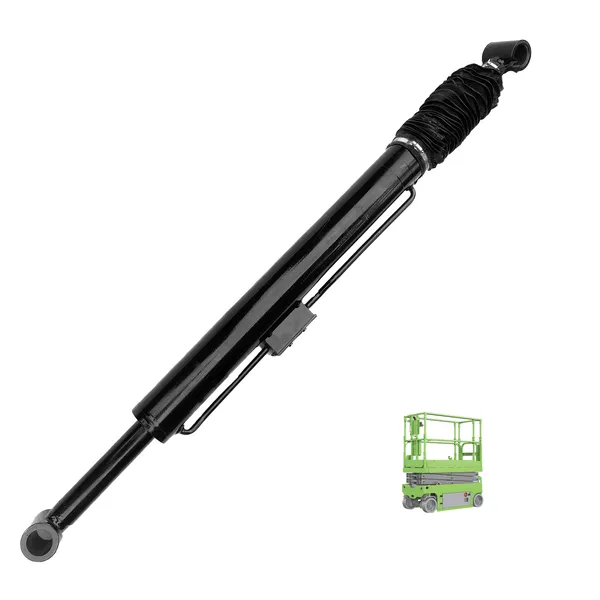

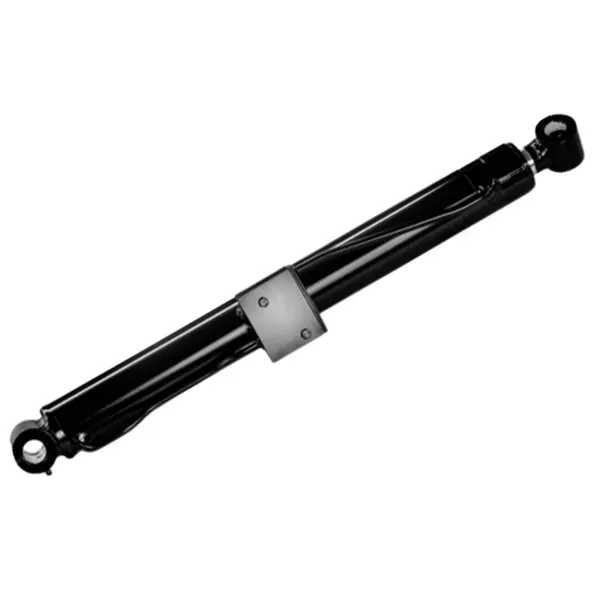

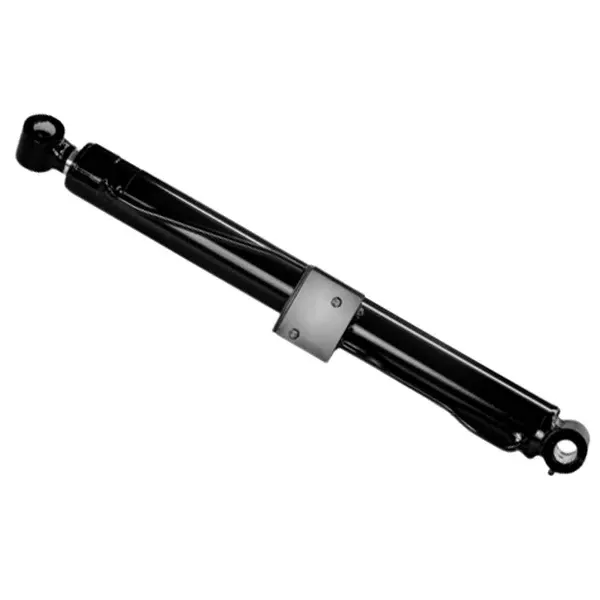

Boom Aerial Work Vehicle Upper Arm Hydraulic Cylinder

Boom Aerial Work Vehicle Upper Arm Hydraulic Cylinder

The boom aerial work vehicle upper arm hydraulic cylinder is a critical component of aerial work platforms, also known as bucket trucks, cherry pickers, and aerial lifts. It is responsible for lifting and extending the upper arm of the aerial work platform, which allows the operator to reach higher and more difficult-to-access areas.

The boom aerial work vehicle upper arm hydraulic cylinder is typically a double-acting cylinder, which means that it can extend and retract. The extension stroke is powered by hydraulic fluid being pumped into the cylinder, while the retraction stroke is powered by hydraulic fluid being pumped out of the cylinder.

The boom aerial work vehicle upper arm hydraulic cylinder is made of a number of components, including:

• A piston: The piston is a cylindrical rod that moves back and forth inside the cylinder. It is attached to the upper arm of the aerial work platform.
• A piston rod: The piston rod is a long, slender rod that extends from the piston. It is connected to the boom of the aerial work platform.
• A cylinder barrel: The cylinder barrel is a hollow tube that houses the piston and piston rod. It is made of a strong, durable material, such as steel or aluminum.
• Seals: Seals are used to prevent hydraulic fluid from leaking out of the cylinder.
• Bushings: Bushings are used to reduce friction between the piston and cylinder barrel.

The boom aerial work vehicle upper arm hydraulic cylinder is a critical component of aerial work platforms. It is subject to a lot of wear and tear, so it is important to regularly inspect and maintain it. If the cylinder fails, it can be a serious safety hazard.

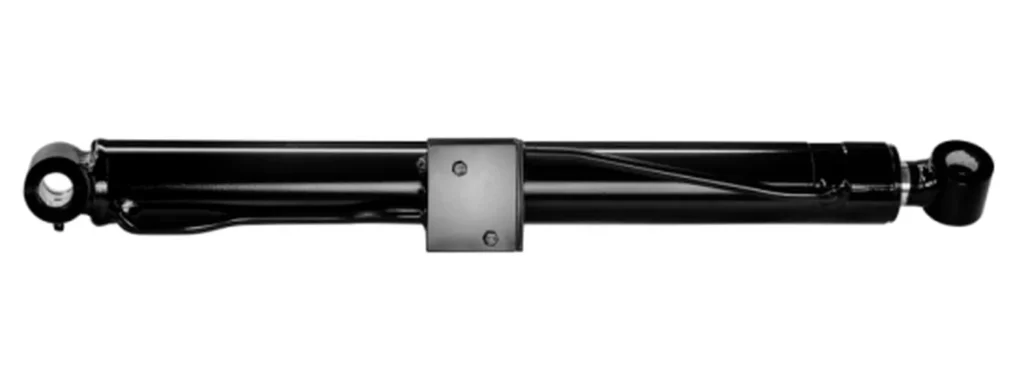

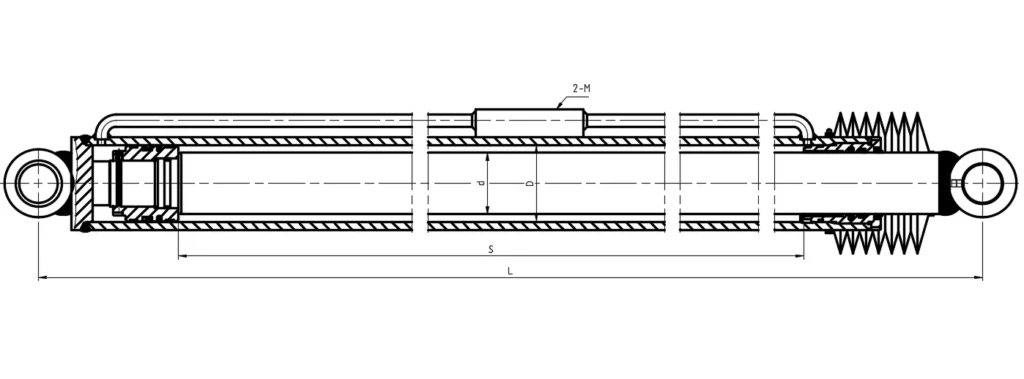

Boom Aerial Work Vehicle Upper Arm Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Upper arm cylinder	GTHZ210C-620500-000	Φ110	Φ75	815	1433	23MPa	2-Φ9	100kg

Boom Aerial Work Vehicle Upper Arm Hydraulic Cylinder Advantages:

The advantages of boom aerial work vehicle upper arm hydraulic cylinders include:

1. Smooth and precise operation:  Boom aerial work vehicle upper arm hydraulic cylinders use oil to transmit power, which results in smooth and precise operation. This is important for boom aerial work vehicles, which need to be able to move and position their booms with great accuracy.2. High lifting capacity:  Boom aerial work vehicle upper arm hydraulic cylinders can lift heavy loads, which is essential for boom aerial work vehicles that need to lift people, materials, or equipment.3. Long lifespan: Boom aerial work vehicle upper arm hydraulic cylinders are made from durable materials and are designed to last for many years. This can save businesses money on maintenance and repairs.4. Easy maintenance:  Boom aerial work vehicle upper arm hydraulic cylinders are relatively easy to maintain. This is because they have few moving parts and are not exposed to the elements.5. Environmentally friendly:  Boom aerial work vehicle upper arm hydraulic cylinders do not use harmful emissions, making them a more environmentally friendly option than other types of cylinders.

Overall, boom aerial work vehicle upper arm hydraulic cylinders offer a number of advantages for boom aerial work vehicles. They are smooth, precise, and powerful, and they can last for many years with proper maintenance.

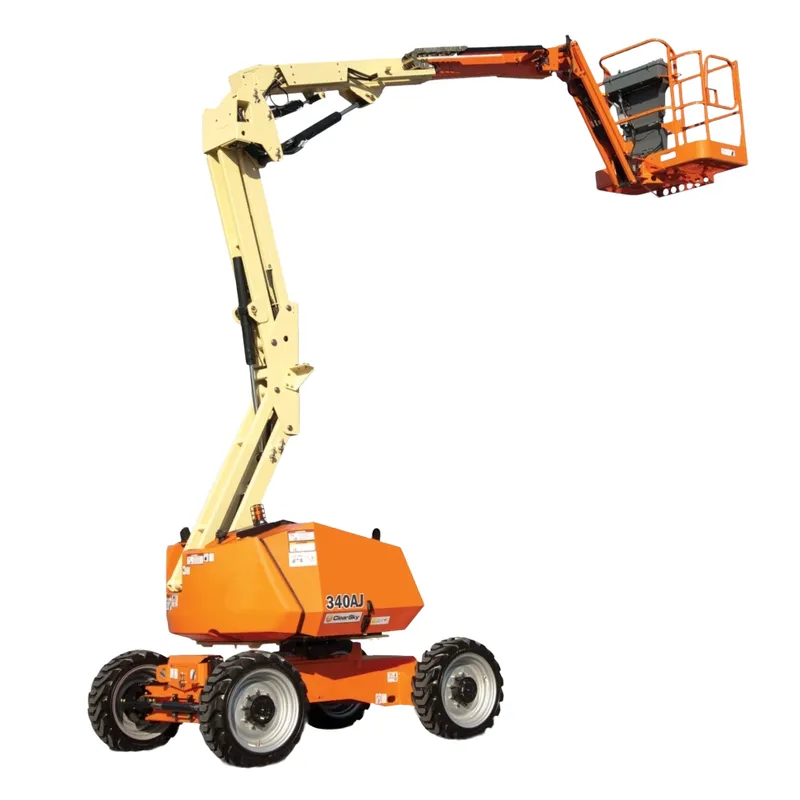

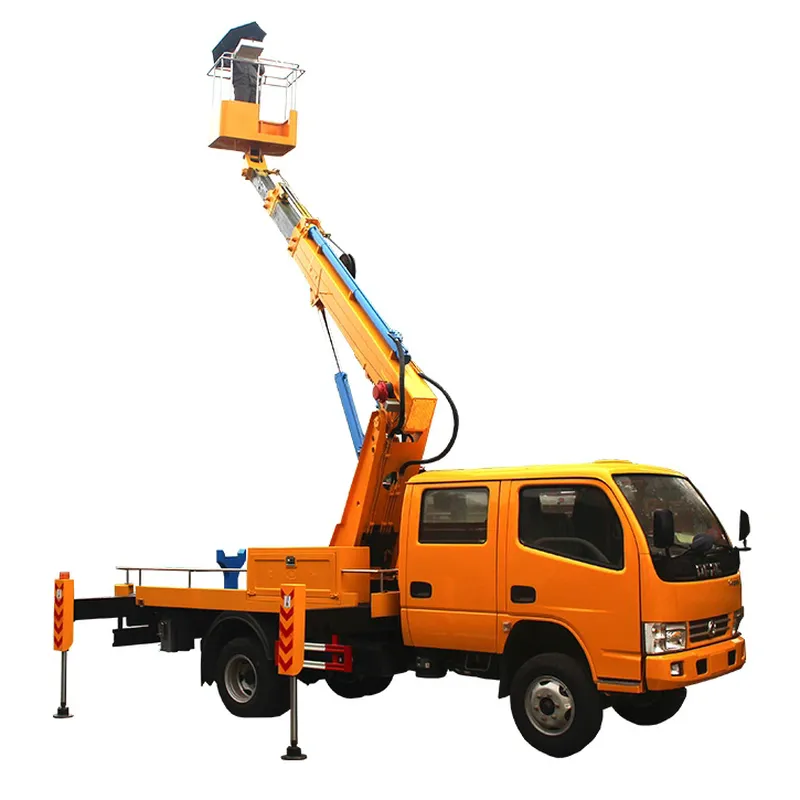

Boom Aerial Work Vehicle Upper Arm Hydraulic Cylinder Uses:

The upper arm hydraulic cylinder on a boom aerial work vehicle is used to extend and retract the upper arm of the boom. The upper arm is the part of the boom that supports the platform or bucket. The hydraulic cylinder is a long, cylindrical tube with a piston inside. When hydraulic fluid is pumped into the cylinder, it pushes the piston and extends the arm. When the fluid is pumped out of the cylinder, the piston retracts the arm.

The upper arm hydraulic cylinder is a critical component of the boom aerial work vehicle. It allows the operator to position the platform or bucket at the desired height and reach. The cylinder must be strong enough to support the weight of the platform or bucket, and it must be able to extend and retract smoothly and reliably.

Here are some of the specific uses of the upper arm hydraulic cylinder on a boom aerial work vehicle:

• To extend the upper arm and raise the platform or bucket to the desired height.
• To retract the upper arm and lower the platform or bucket.
• To tilt the platform or bucket to the desired angle.
• To stabilize the platform or bucket when it is extended.
• To provide a smooth and controlled movement of the platform or bucket.

The upper arm hydraulic cylinder is a vital part of the boom aerial work vehicle. It allows the operator to safely and efficiently perform a variety of tasks at heights.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.

Hydraulic Cylinder Available Brand & Models:

KOMATSU (PC)	PC30,PC40,PC50,PC56,PC60,PC78,PC100,PC110,PC120,PC130,PC160,PC200-3/5/6/7/8/8MO,PC210,PC220-5/6/7/8/8MO,PC240,PC300/350/360-5/6/7/8/8MO,PC400/450-5/6/7/8/8MO,PC800,PC850
CATERPILLAR (E)	E301.5,E302,E305.5,E306,E307V1/V2/B/C/D/E/F,E308B/C,E120B,E312V1/V2/B/C/D,E313D2,E312D2,E315D,E200B,E320V1/V2/A/B/C/D,E324D,E325C/D,E329D,E330/336C/D,E345C,E349D,E365C,E374,E390
KOBELCO (SK)	SK60-3/5/8,SK75-8/SR, SK100 ,SK120-3/5, SK135-8/SR, SK140-8, SK200-3/5/6/6E, SK210-3/5/6/6E,SK230/250-6E,SK250-8,SK260-8,SK350-8/S8,SK460/480-8
HYUNDAI (R)	R55-5/7, R60-5/7, R80, R110,R130, R200-5, R210-5, R215-5/7,R220-5/7/9, R225-5/7/9, R250,R260,R265,R290,R305,R445,R485, R505
HITACHI (EX.ZX)	EX60,EX100-1/2/3,EX120-1/3/5/6,EX200-1/3/5,EX230-5,EX300-1,EX400ZAX60,ZAX70,ZA120-6,ZAX200/210-1/3/5/5K,ZAX240,ZAX250,ZAX260,ZAX330-3/5/6,ZAX450/470,ZAX650/670,ZAX850/870
DOOSAN (DH/DX)	DH55, DH60, DH80,DH150, DH215-5/7,DH220-5,DH225-5/7,DH258,DH300-5/7, DH370,DH420,DH500DX55,DX60,DX75,DX130,DX225-9,DX300,DX380,DX420,DX500
VOLVO (EC)	EC55 ,EC60,EC75,EC80,EC140 ,EC210B/D,EC220D,EC240 ,EC250,EC290,EC300, EC360 EC380,EC460,EC480,EC700,EC750,EC950
KATO (HD)	HD307/308,HD450,HD512,HD700-5/7,HD820-1/2/3/5/R,HD1023-1/3,HD1430-1/3
OTHER BRAND	XCMG,LIUGONG,KUBOTA,CASE,YANMAR,SUNWARD,ZOOMLION,LISHIDE,LIEHERR
