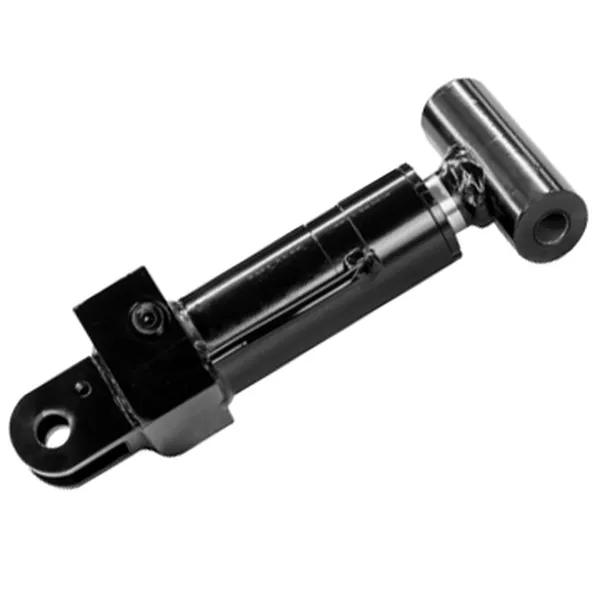

Boom Aerial Work Vehicle Floating Hydraulic Cylinder

Boom Aerial Work Vehicle Floating Hydraulic Cylinder

The boom aerial work vehicle floating hydraulic cylinder is a type of hydraulic cylinder that is used to lift and support the boom of an aerial work vehicle. It is a floating cylinder, which means that it is not attached to the ground or any other structure. This allows the cylinder to move freely and support the boom in any position.

The cylinder is made of high-strength steel and is filled with hydraulic fluid. The hydraulic fluid is pressurized by a pump, which allows the cylinder to extend and retract. The boom aerial work vehicle floating hydraulic cylinder is a critical component of the aerial work vehicle and is essential for its safe operation.

Here are some of the key features of a boom aerial work vehicle floating hydraulic cylinder:

• It is a floating cylinder, which means that it is not attached to the ground or any other structure. This allows the cylinder to move freely and support the boom in any position.
• It is made of high-strength steel, which makes it durable and resistant to wear and tear.
• It is filled with hydraulic fluid, which is pressurized by a pump to extend and retract the cylinder.
• It is a critical component of the aerial work vehicle and is essential for its safe operation.

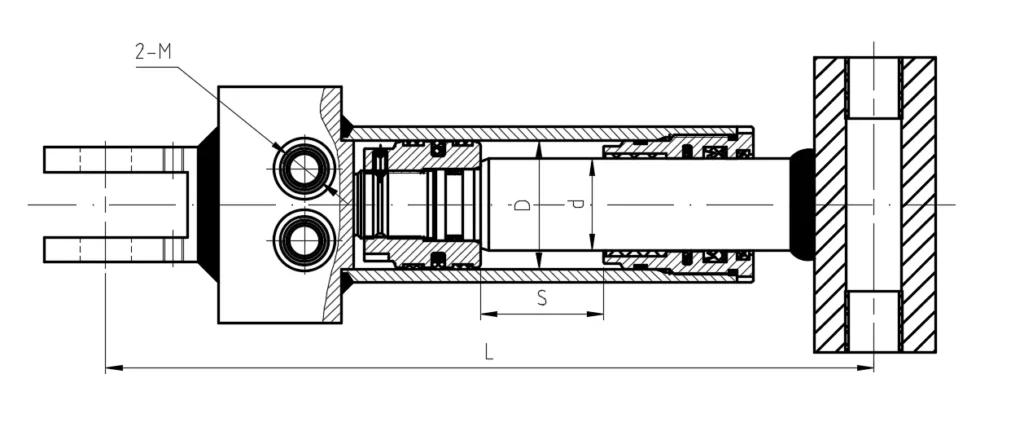

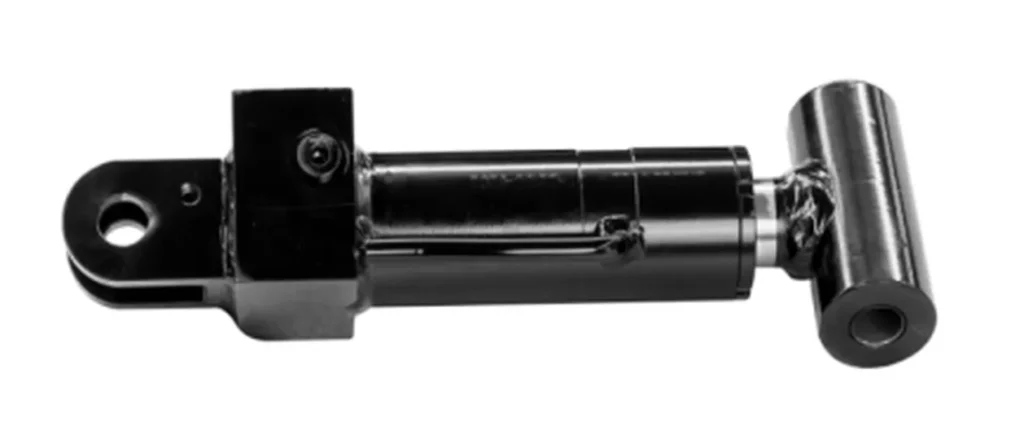

Boom Aerial Work Vehicle Floating Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Floating Cylinder	GTHZ210C-620200-000	Φ63	Φ45	60	375	25MPa	2-7/8-14UNF	16kg

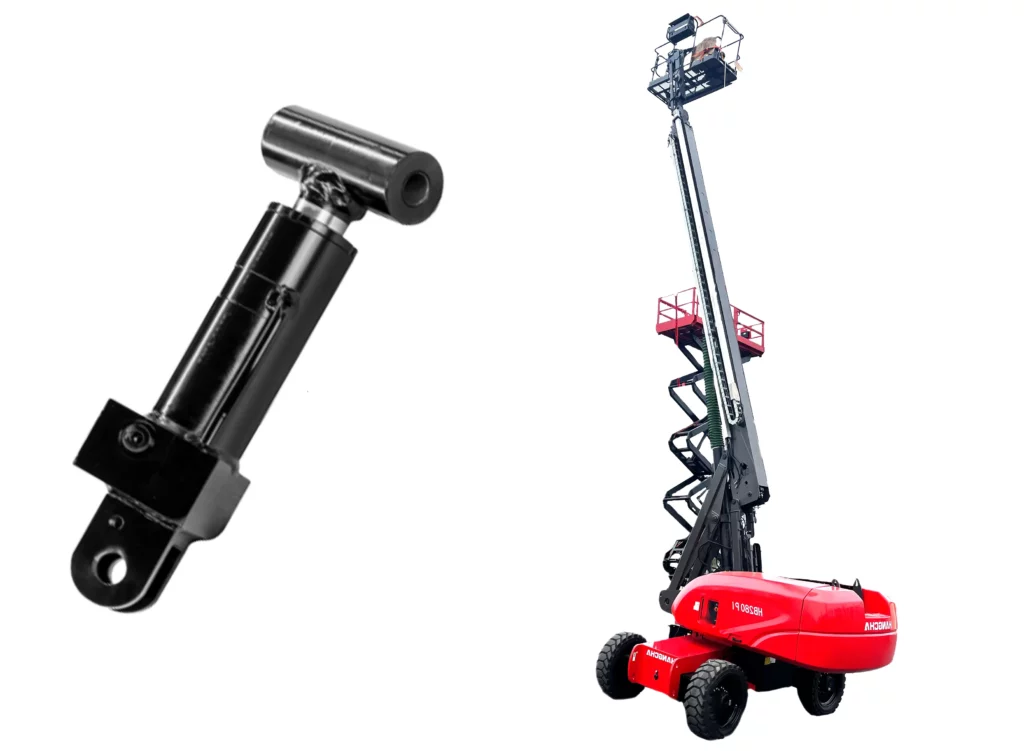

Boom Aerial Work Vehicle Floating Hydraulic Cylinder Applications:

Here are some of the specific applications of boom aerial work vehicle floating hydraulic cylinder:

1. Lifting and moving heavy objects: The boom aerial work vehicle floating hydraulic cylinder provides the power and control needed to lift and move heavy objects safely and efficiently.2. Extending and retracting the boom: The boom aerial work vehicle floating hydraulic cylinder allows the boom to be extended and retracted smoothly and easily, without the need for manual intervention.3. Stabilizing the vehicle: The boom aerial work vehicle floating hydraulic cylinder helps to stabilize the vehicle, even when it is carrying heavy loads or operating in rough terrain.4. Providing a smooth ride: The boom aerial work vehicle floating hydraulic cylinder helps to provide a smooth and comfortable ride for the operator and passengers, even when the vehicle is moving over uneven surfaces.5. Reducing noise and vibration: The boom aerial work vehicle floating hydraulic cylinder helps to reduce noise and vibration, which can be a nuisance to people working nearby and can also damage the vehicle's components.

Overall, the floating hydraulic cylinder is an important component of boom aerial work vehicles. It provides a number of benefits, including smooth operation, increased safety, and reduced noise and vibration.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
