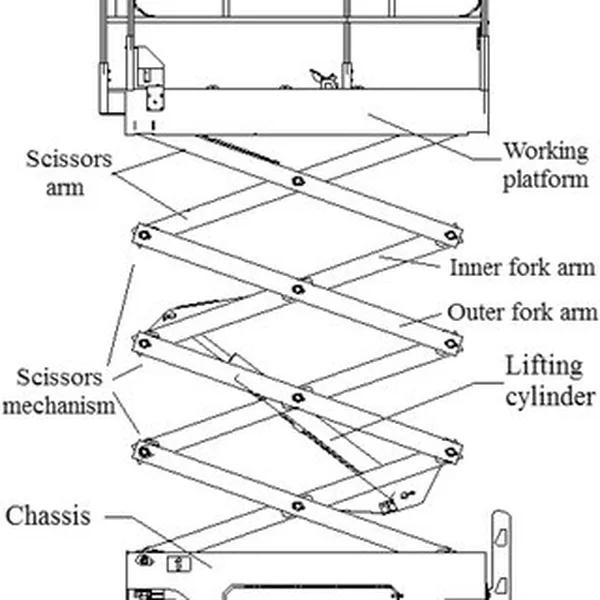

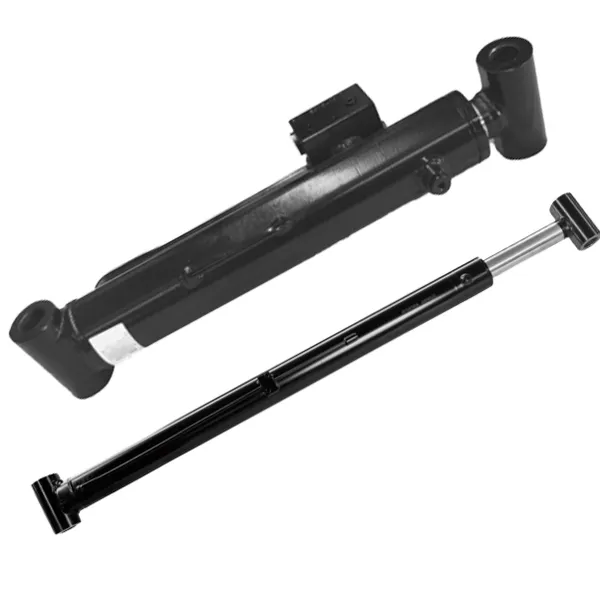

A scissor fork aerial work vehicle lifting hydraulic cylinder is a type of hydraulic cylinder that is used to lift the platform of a scissor fork aerial work vehicle (AWP). The cylinder is typically made of steel and has a piston that moves up and down within a cylinder barrel. The piston is connected to the platform of the AWP, and as the piston moves up, the platform is lifted.

The hydraulic cylinder is powered by a hydraulic pump, which is typically driven by an engine. The pump pressurizes the hydraulic fluid, which is then passed to the cylinder. The pressure of the hydraulic fluid forces the piston to move up, lifting the platform.

The scissor fork aerial work vehicle lifting hydraulic cylinder is a critical component of the AWP. It is responsible for lifting the platform to the desired height, and it must be able to support the weight of the platform and any workers or equipment that are on it.

The cylinder is typically rated for a certain lifting capacity, which is the maximum weight that it can safely support. The cylinder must also be able to withstand the forces that are exerted on it during lifting, such as the weight of the platform and the force of gravity.

The scissor fork aerial work vehicle lifting hydraulic cylinder is a complex component, and it is important to choose a cylinder that is designed for the specific application. The cylinder must be the right size and have the right lifting capacity for the AWP. It is also important to make sure that the cylinder is made from high-quality materials and is properly installed.

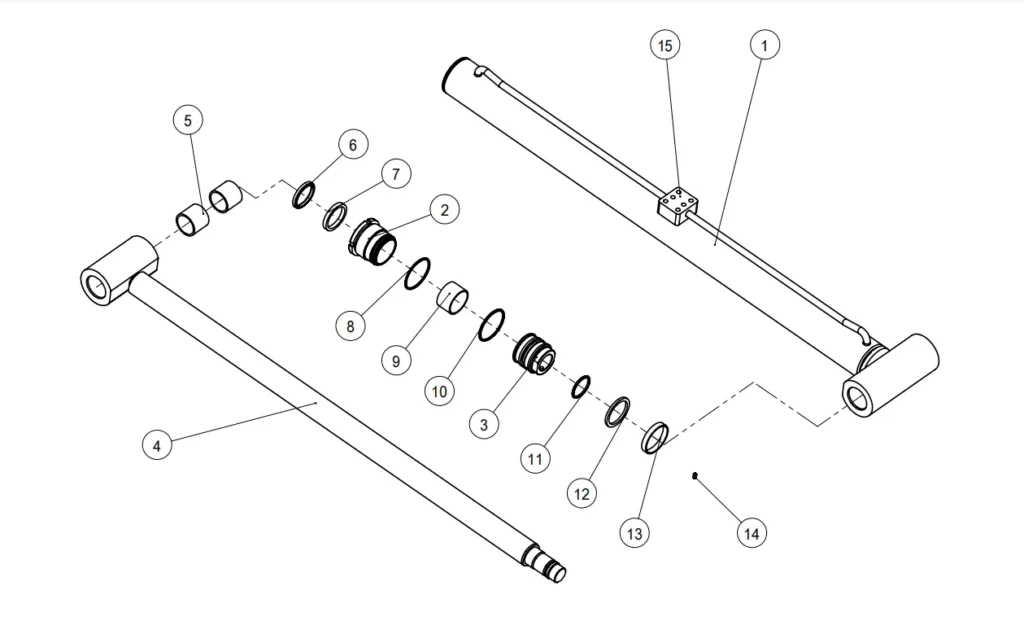

Scissor Fork Aerial Work Vehicle Lifting Hydraulic Cylinder Parts:

1	Cylinder Housing assy	9	Du Bush
2	Guide Bush	10	O-Ring
3	Piston	11	O-Ring
4	Piston Rod	12	Hole Seal
5	Composite Bearing	13	Wear-Ring
6	Dust Wiper	14	Set Screws
7	U-Ring	15	Dust Cover
8	O-Ring

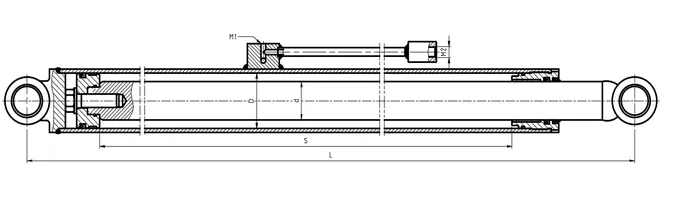

Scissor Fork Aerial Work Vehicle Lifting Hydraulic Cylinder Dimensions:

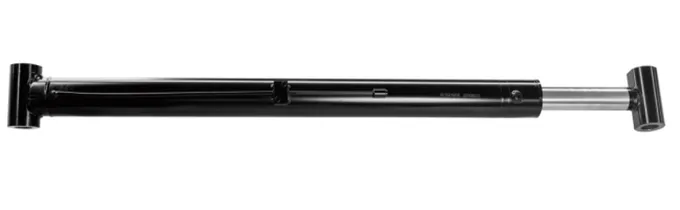

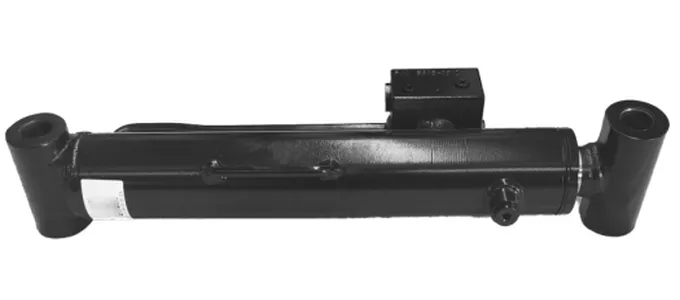

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Lifting cylinder	78XEN-620100-001	Φ65	Φ45	840	1075	18MPa	G1/4；Φ6；M14*1.5	27kg

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Lifting cylinder	JCPT1212HD-531000-00A	Φ75	Φ63	1269	1530	25MPa	G1/4;M18*1.5	60kg
Lifting cylinder	JCPT0607DCS-531000-00A	Φ63	Φ40	563	812	20MPa	G1/4;M18*1.5	17kg

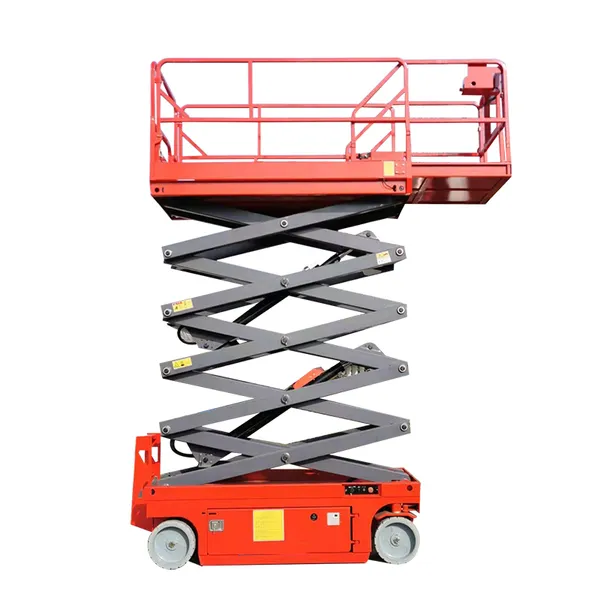

Scissor Fork Aerial Work Vehicle Lifting Cylinder Applications:

Scissor fork aerial work vehicle lifting cylinders are hydraulic cylinders that are used to raise and lower the platform of a scissor lift. They are typically made of steel and have a piston rod that is connected to the platform. When the cylinder is extended, the piston rod pushes the platform up. When the cylinder is retracted, the piston rod pulls the platform down.

Scissor fork aerial work vehicle lifting cylinders are used in a variety of applications, including:

• Construction: Scissor fork aerial work vehicle lifting cylinders are used to access high-up areas in construction projects, such as buildings, bridges, and power lines.
• Maintenance: Scissor fork aerial work vehicle lifting cylinders are used to maintain and repair equipment and structures, such as air conditioning units, billboards, and street lights.
• Telecommunications: Scissor fork aerial work vehicle lifting cylinders are used to install and maintain telecommunications equipment, such as cell phone towers and cables.
• Manufacturing: Scissor fork aerial work vehicle lifting cylinders are used to inspect and maintain machinery and equipment in factories.
• Agriculture: Scissor fork aerial work vehicle lifting cylinders are used to harvest crops and apply pesticides.

The lifting capacity of a scissor fork aerial work vehicle lifting cylinder depends on the size and weight of the platform. The larger and heavier the platform, the larger and stronger the cylinder needs to be.

The working pressure of a scissor fork aerial work vehicle lifting cylinder is also important. The working pressure is the maximum pressure that the cylinder can withstand without being damaged. The working pressure is typically specified by the manufacturer.

Scissor fork aerial work vehicle lifting cylinders are an important part of many different types of equipment. They are used to safely and efficiently lift and lower platforms, allowing workers to access high-up areas and perform a variety of tasks.

Here are some additional benefits of using scissor fork aerial work vehicle lifting cylinders:

• They are relatively easy to operate.
• They are safe and reliable.
• They can be used in a variety of applications.
• They are relatively affordable.

If you are looking for a way to safely and efficiently lift and lower platforms, then a scissor fork aerial work vehicle lifting cylinder is a good option.
