Boom Aerial Work Vehicle Lower Arm Hydraulic Cylinder

Boom Aerial Work Vehicle Lower Arm Hydraulic Cylinder

A boom aerial work vehicle lower arm hydraulic cylinder is a type of hydraulic cylinder that is used to extend and retract the lower arm of a boom aerial work vehicle. The cylinder is typically made of steel and has a piston that moves back and forth inside a cylinder bore. The piston is connected to the lower arm of the vehicle by a rod. When hydraulic fluid is pumped into the cylinder, the piston moves forward, extending the lower arm. When the hydraulic fluid is drained from the cylinder, the piston moves backward, retracting the lower arm.

The boom aerial work vehicle lower arm hydraulic cylinder is a critical component of the vehicle's lifting mechanism. It is responsible for providing the force necessary to extend and retract the lower arm. The cylinder must be strong and durable enough to withstand the forces involved in lifting and lowering the vehicle. It must also be able to operate reliably in a variety of environmental conditions.

The boom aerial work vehicle lower arm hydraulic cylinder is typically a double-acting cylinder. This means that it can be extended and retracted by pumping hydraulic fluid into either end of the cylinder. This allows for more precise control of the lower arm.

The boom aerial work vehicle lower arm hydraulic cylinder is a complex component that requires regular maintenance and inspection. The cylinder should be inspected for leaks and damage on a regular basis. The hydraulic fluid should also be changed periodically to prevent contamination.

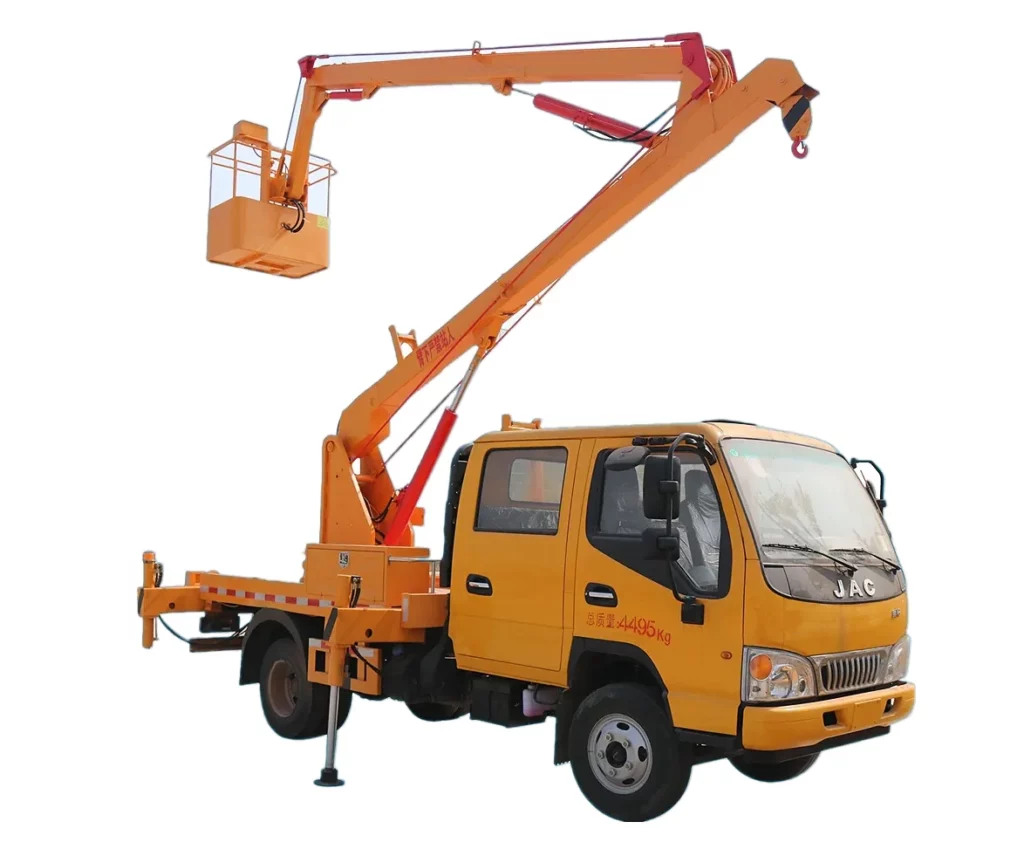

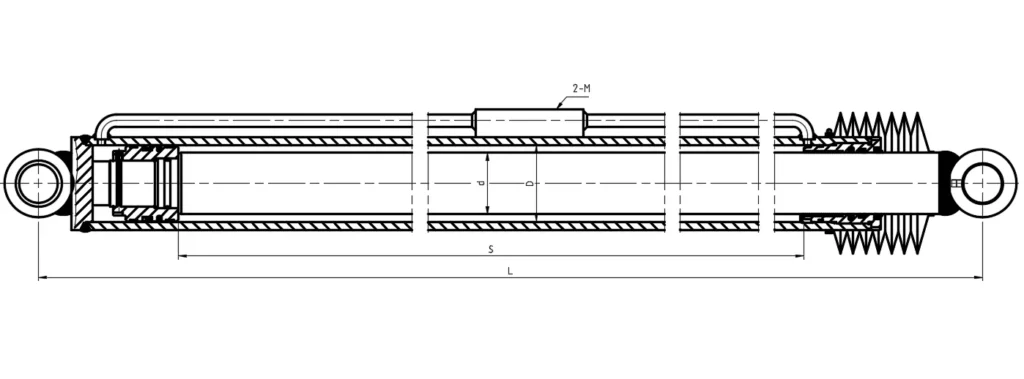

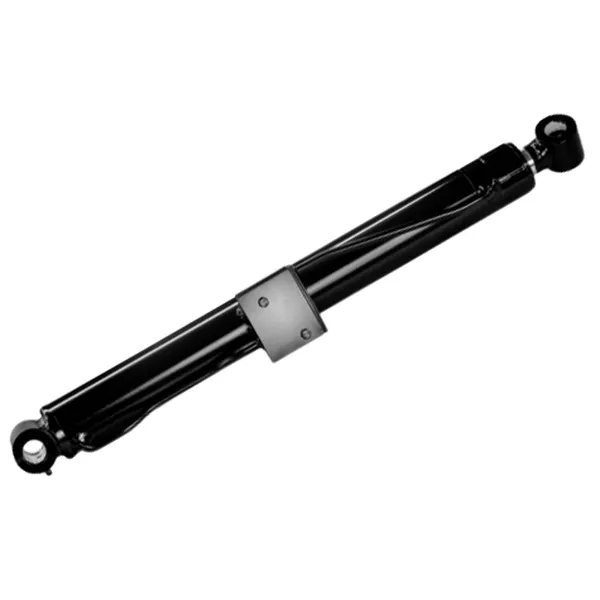

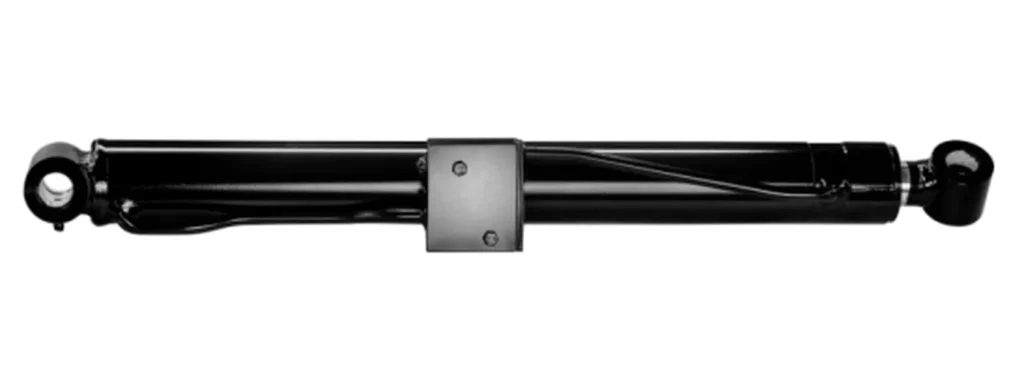

Boom Aerial Work Vehicle Lower Arm Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Lower arm cylinder	GTHZ210C-620400-000	Φ100	Φ80	1458	1899	21MPa	2-Φ9	137kg

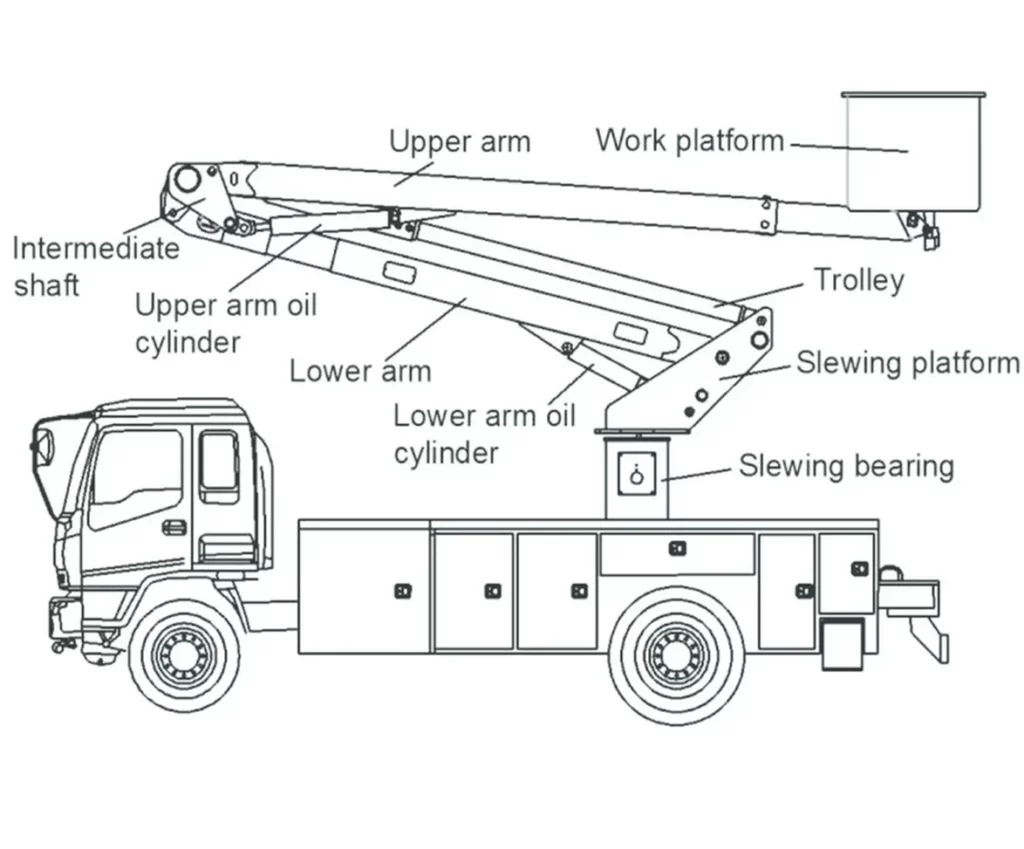

Boom Aerial Work Vehicle Lower Arm Hydraulic Cylinder Installation:

Here are the steps on how to install the boom aerial work vehicle lower arm hydraulic cylinder:

1. Disconnect the power. Make sure to disconnect the power to the aerial work vehicle before you begin any work on it. This will help to prevent accidents.
2. Remove the old cylinder. Use a wrench to remove the bolts that secure the old cylinder in place. Once the bolts are removed, you can carefully lift the cylinder out of the boom.
3. Install the new cylinder. Carefully align the new cylinder with the mounting holes in the boom. Once it is aligned, use the wrench to secure the bolts in place.
4. Reconnect the power. Once the new cylinder is installed, you can reconnect the power to the aerial work vehicle.
5. Test the cylinder. To test the cylinder, operate the boom to make sure that the cylinder is working properly.

Here are some additional safety tips to keep in mind when installing the boom aerial work vehicle lower arm hydraulic cylinder:

• Always wear safety glasses when working on the aerial work vehicle.
• Make sure that the aerial work vehicle is properly supported before you begin any work on it.
• Do not overtighten the bolts that secure the cylinder in place.
• If you are not comfortable installing the cylinder yourself, take it to a qualified mechanic.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
