Bottle Washer Conveyor Chains for Glass Bottles Cleaning Production Line

Bottle Washer Conveyor Chains for Glass Bottles Cleaning Production Line

A bottle washer conveyor chain is a type of conveyor chain that is specifically designed for use in bottle washing machines. These chains are used to move bottles through the various stages of the washing process, which typically includes pre-rinsing, cleaning, sterilizing, and rinsing.Bottle washer conveyor chains are typically made from materials such as stainless steel, which is highly resistant to corrosion and can withstand the harsh chemicals and high temperatures used in the washing process. They are also designed with special features to ensure that they can transport the bottles safely and efficiently, such as specialized attachments that grip the bottles securely without damaging them.Bottle washer conveyor chains are available in a variety of sizes and lengths. The size of the chain depends on the size of the bottles that are being washed. The length of the chain depends on the length of the washing machine. Overall, bottle washer conveyor chains are an essential component of modern bottle washing machines, and they play a crucial role in ensuring that bottles are thoroughly cleaned and sanitized before they are filled with beverages or other products.

▍Benefits of Using the Bottle Washer Conveyor Chains

Bottle washer conveyor chains offer a number of benefits that make them a good choice for bottling operations. They are durable, efficient, flexible, and safe. Here are a few benefits of using bottle washer conveyor chains:(1) Efficient bottle washing: Bottle washer conveyor chains are designed to move bottles through the various stages of the washing process quickly and efficiently. This ensures that bottles are thoroughly cleaned and sanitized, which helps to prevent contamination and improve product quality.(2) Durable and long-lasting: Bottle washer conveyor chains are typically made from high-quality materials such as stainless steel, which is highly resistant to corrosion and can withstand the harsh chemicals and high temperatures used in the washing process. This makes them durable and long-lasting, which reduces maintenance costs and downtime.(3) Safe and reliable: Bottle washer conveyor chains are designed with specialized attachments that grip the bottles securely without damaging them. This ensures that bottles are transported safely and reliably through the washing process.(4) Customizable: Bottle washer conveyor chains can be customized to meet the specific requirements of different bottle washing machines. This means that they can be tailored to the size and shape of the bottles being washed, which improves efficiency and reduces waste.(5) Easy to clean: Bottle washer conveyor chains are designed to be easy to clean, which helps to prevent the buildup of residue and bacteria. This improves hygiene and reduces the risk of contamination.Overall, using bottle washer conveyor chains in bottle washing machines can improve efficiency, reduce maintenance costs, and improve product quality and safety.

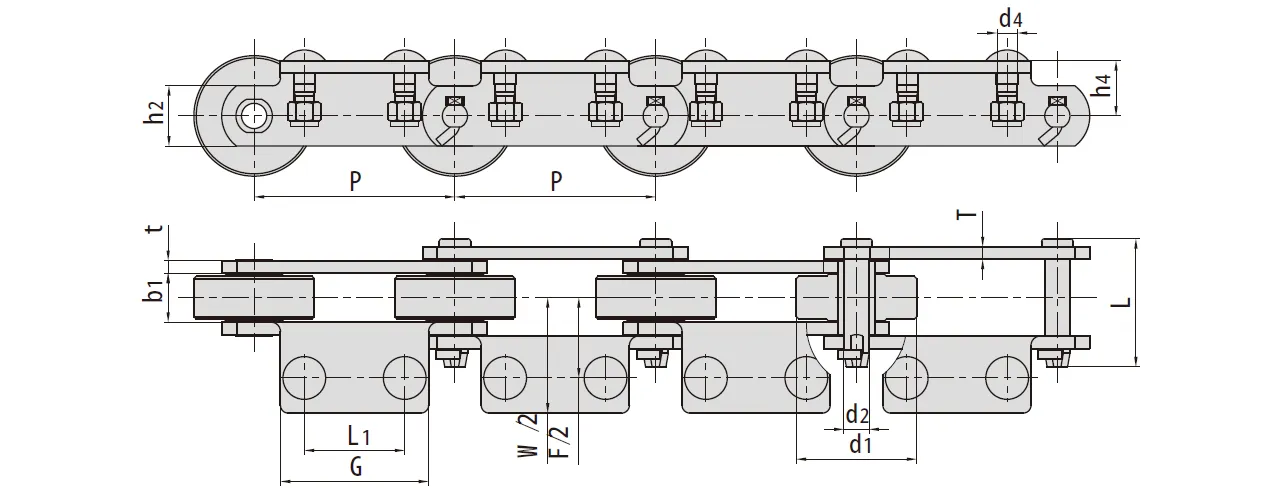

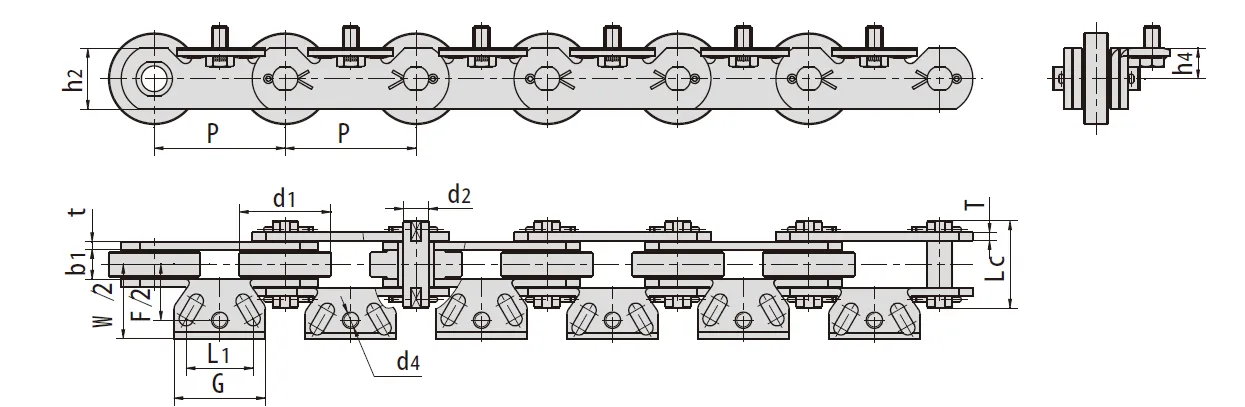

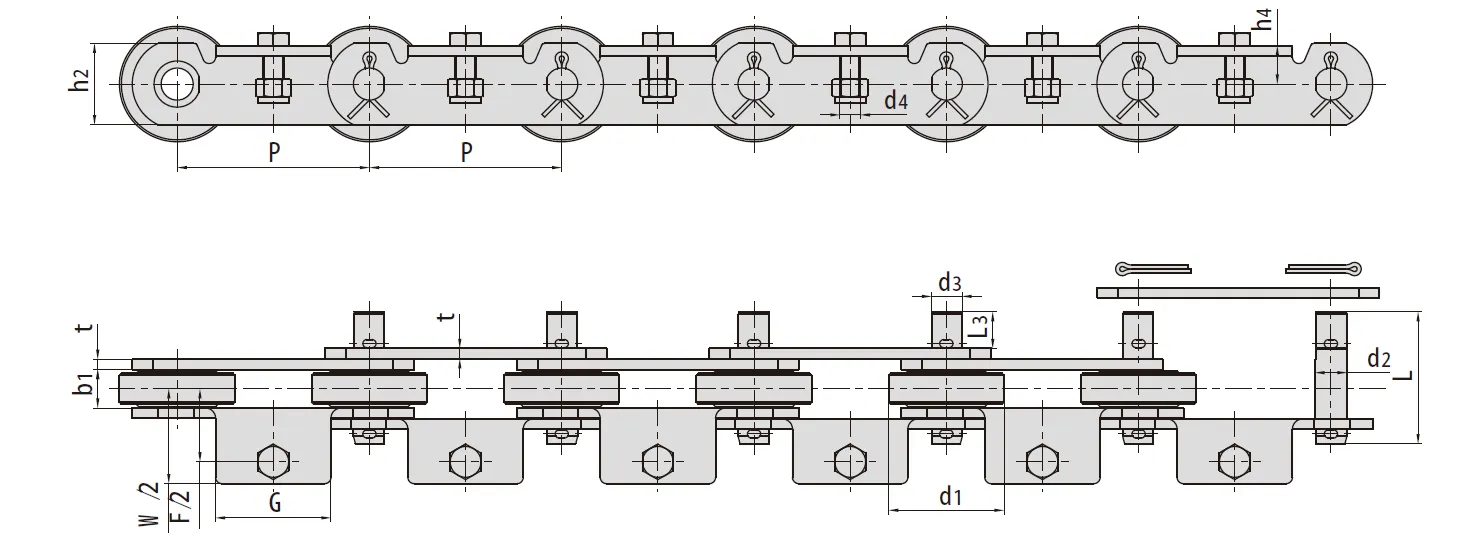

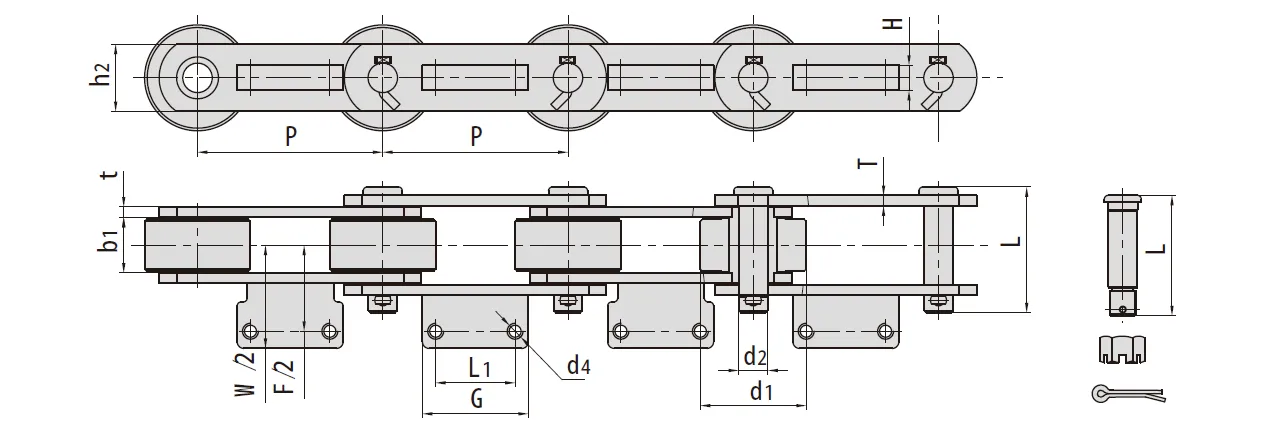

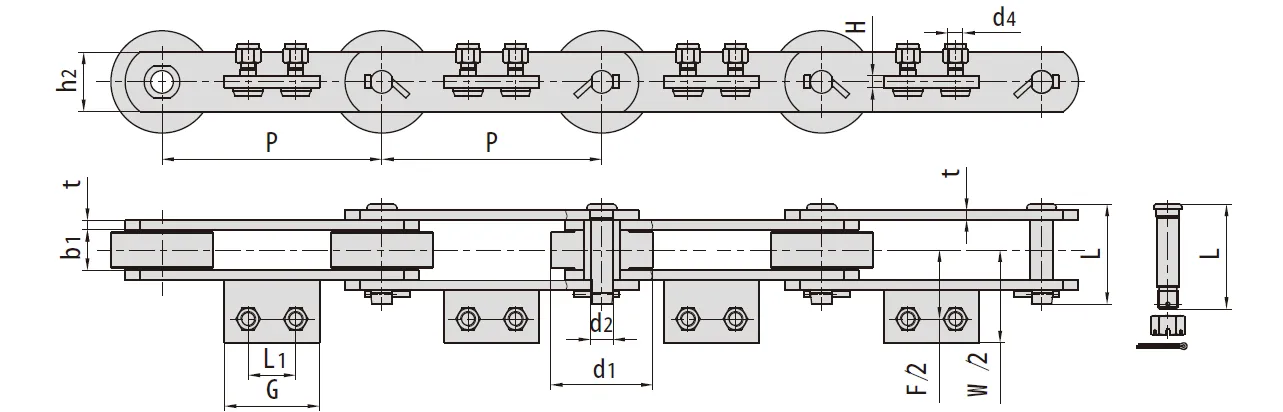

▍Bottle Washer Conveyor Chain Dimensions:

Chain No.

?Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Plate depth

Plate thickness

?Tensile strength

Average tensile strength

Weight per meter

P

d1?max

b1?min

d2?max

Lc max

h2?max

t/T max

Qmin

Q0

q

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kN

kg/m

P129A1F1-P

129.0

90.0

29.0

24.9

86.0

60.0

8.0

350.0/78683

385.0

22.6

Chain No.		L1		G	F	W		h4		d4
		mm		mm	mm	mm		mm		mm
P129A1F1-P		66.0		90.0	110.0	146.0		30.0		M16

Chain No.	?Pitch	Roller diameter		Width between inner plates		Pin diameter	Pin length		Plate depth		Plate thickness	Tensile strength		Weight per meter
	P	d1?max		b1?min		d2?max	Lmax		h2?max		t/T max	Qmin		q
	mm	mm		mm		mm	mm		mm		mm	kN/lbf		kg/m
P125F87A2*	125.0	80.0		42.0		22.23	97.0		50.8		7.9	222.4/49996		25.20
P140F50A2	140.0	80.0		42.0		22.23	95.0		50.8		7.9	222.4/49996		23.69
P173F1A2*	173.0	80.0		32.0		21.85	89.0		50.0		8.0/7.0	280.0/62944		19.20
P173F2A2*	173.0	80.0		43.0		21.85	102.0		50.0		8.0	280.0/62944		21.68

Chain No.	P		G		L1			F		W		H	d4
	mm		mm		mm			mm		mm		mm	mm
P125F87A2*	125.0		71.0		45.0			130.0		156.0		19.1	M12
P140F50A2	140.0		80.0		60.0			130.0		156.0		19.1	M12
P173F1A2*	173.0		90.0		60.0			130.0		158.0		20.0	M12
P173F2A2*	173.0		90.0		60.0			130.0		158.0		20.0	M12

*Each pin with nut

?Chain No.

Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Plate depth

Plate thickness

Tensile strength

Weight per meter

P

d1?max

b1?min

d2?max

Lmax

h2?max

t/T max

Qmin

q

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kg/m

P140F51A2*

140.0

80.0

42.0

22.0

102.0

50.0

8.0

280.0/62944

24.8

P185F3A2

185.0

86.0

34.0

19.0

84.0

50.0

8.0

280.0/62944

17.8

Chain No.

P

G

L1

F

W

H

d4

mm

mm

mm

mm

mm

mm

mm

P140F51A2*

140.0

80.0

60.0

130.0

156.0

20.0

M12

P185F3A2

185.0

80.0

40.0

116.0

156.0

10.0

M12×1.50

*Each pin with nut

?Chain No.

?Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Plate depth

Plate thickness

Tensile strength

Weight per meter

P

d1?max

b1?min

d2?max

Lmax

h2?max

t/T max

Qmin

q

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kg/m

P127F12A2

127.0

76.2

31.0

15.90

81.0

38.1

8.0

180.0/40464

16.50

P152F230A2

152.4

65.0

35.0

15.90

81.6

40.0

7.9

165.0/37092

13.30

?Chain No.

P

G

L1

F

W

h4

d4

mm

mm

mm

mm

mm

mm

mm

P127F12A2

127.0

93.7

63.5

101.6

146

34.9

1/2-13UNC

P152F230A2

152.4

90.0

50.0

100.0

130

30.0

M10

Chain No.

?Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Plate depth

Plate thickness

Tensile strength

Weight per meter

P

d1?max

b1?min

d2?max

Lmax

h2?max

t/T max

Qmin

q

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kg/m

P150F145A1

150.0

90.0
