Brass Worm Wheel

Discover Raydafon Guoup’s Brass Worm Wheel, a durable precision gear ideal for machinery and DIY projects. Crafted from high-quality brass for superior corrosion resistance and smooth operation, it ensures reliable performance in industrial settings or hobbies. Stand out with its unique durability and seamless efficiency, solving wear-and-tear issues while enhancing user satisfaction through long-lasting use. Experience the Raydafon Guoup difference today!

Send Inquiry

Product Description

Description

Specifications
Material	Brass
Color	Yellow
Modulus	0.5
Weight	16g

Size of the worm wheel
Teeth	20
Teeth Dia	11.2mm
Height	12mm/0.47inch
Outer Diameter	11mm/0.43inch
Hole Diameter	4mm/0.16inch
Step Size	9x7mm/0.35x0.27inch ( Dia x H)
Overall Size	12x11x4mm/0.47x0.39x0.12inch( H x OD x ID)

Size of worm gear shaft
Height	20mm/0.79inch
Outer Diameter	9.8mm/0.39inch
Inner Diameter	3.17mm/0.12inch
Size	20x9.8x3.17mm/0.79x0.39x0.12inch( H x OD x ID)

Features:

1. Include one 0.5 modulus brass worm gear shaft and one 20 teeth brass worm gear wheel.2. The transmission structure of the worm shaft is simple, compact, small volume, and lightweight.3. Worm Shaft Z1=1, turn a round of worm gear teeth, can get a large transmission ratio, generally in the power transmission, the transmission ratio I=10-80, like big transmission ratio, if used with gear transmission, will need to take the multi-stage message.4. High-quality material selection and carefully processing create a high-quality product.5. Made of brass, long-time service.

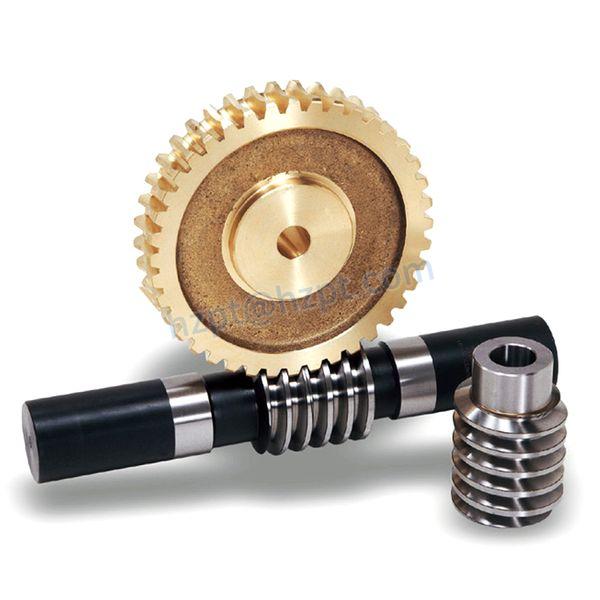

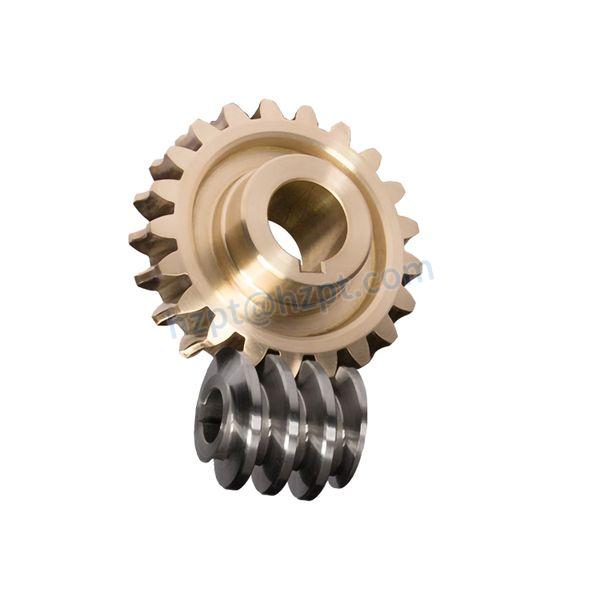

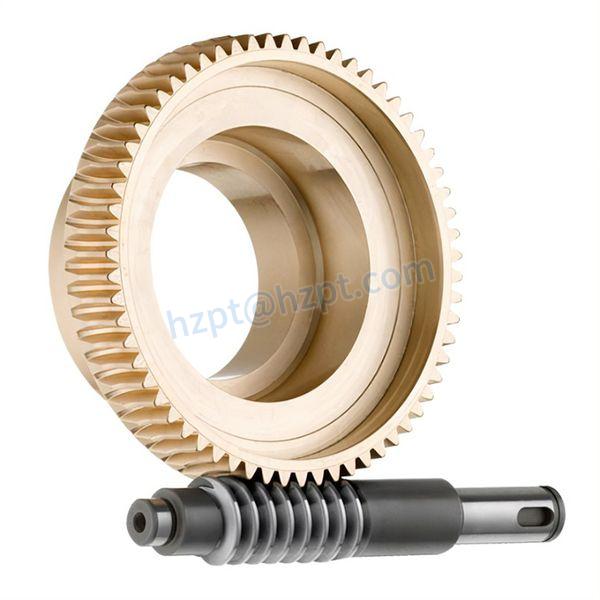

Products Show:

Processing :

1. Material we can work on: Alloy Steel, Carbon Steel, Stainless Steel, Cast Iron, Aluminum, Copper, Brass, and Plastic.2. Processing gear and shaft: Forging, Lathing, Hobbing, Milling, Cutting, Shaping, Shaving, Grinding, Heat treatment, Teeth Grinding, Inspection.3. Heat Treatment Method: Carburizing, Induction, Flame, Nitriding4. Main Machines of Gear and shaft Production we Have: NC gear hobbing machines, NC Gear Shapers(Gleason, Mode), NC lathe, NC gear Shaving machines, NC gear milling, and Nc gear grinding Machines.

Packing:1) Inner packing: oil paper, Polyethylene bag, box2) Outer packing: Wooden case or pallet3) Customized packing is also availableProduction Lead Time:15-35 Days after approval.Payment:L/C, D/A, D/P, T/T, Western Union, Money Gram, PayPalWe provide the terms of payment which other suppliers will never try because we are confident in our quality.After-sales Service:Please get in touch with our after-sales service department in time within 30 days after you receive the productsProcess:Please provide a copy of the PI and describe the problems that appeared.1) Slight Problem:Please send the proof to our After-Sales Department, we will reply within 24 hours2) Serious Problem:1. We will dispatch our Quality and Problems Appraisers to make a confirmation2. Have a negotiation of the compensation and sign agreements3. Our After-Sales Department will perform the duties as the agreements Warranty 12 Months

FAQ:

Q1:What products can Raydafon Group supply?1. High-Quality Bevel Gear.2. Transmission Gears for Tractor/Truck/Agriculture Machinery......3. Construction Machinery Machining PartsQ2:What is the advantage of Raydafon Group?Factory Price; Stable Production; Custom Work; Quality/Delivery Assurance; Small Order AcceptedGear Production Line: Established in the year of 1998.We equipped Gleason and Mould Bevel gear machines, an Automatic gear hobbing machine,Gear Teeth Shaving, Gear Teeth Grinding, and many gear-related machines.Q3:Why Choose Raydafon Group in China?With over 21 years of experience, Raydafon Group has designed, developed, and manufactured large comprehensive machining products. We maintain the belief in "Honesty and serving the customer" in each process and implement the most professionalized quality control. This offers convenience and many cross-merchandising opportunities.1. Excellent Operation: Professional Marketing Team For Customer Drawing and Samples.2. Excellent Quality Control: Equipped with Stick Quality control following with Experienced Engineers.3. Excellent Cost Saving: Small Trial Lot Order Available.4. Excellent After Sales Tracking System: Offer Each photo, Delivery, and Marketing Information sharing.
