BTB140 Electric Bicycle Motor Kit Wireless Button Colorful Display for Electric Bike

[embed]https://www.youtube.com/embedaTq20wxuwho[/embed]

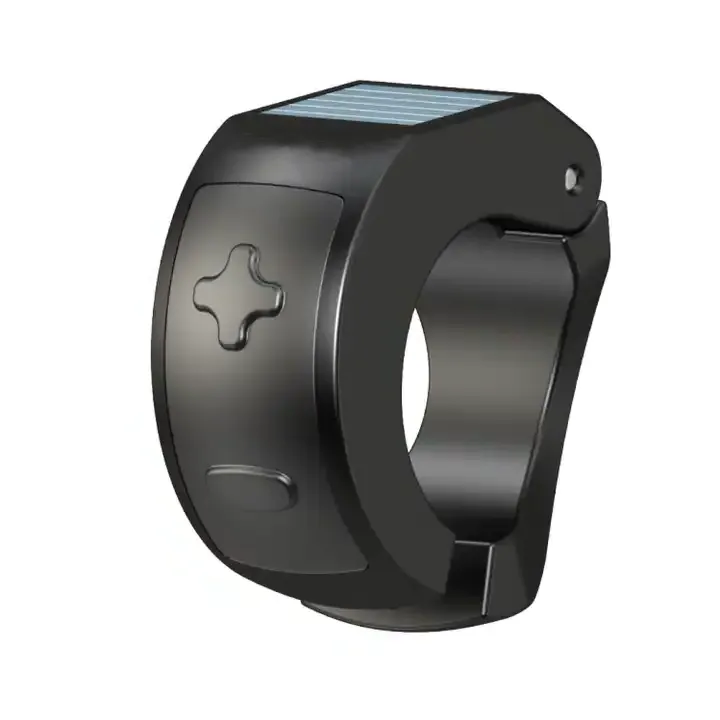

BTB140 Electric Bicycle Wireless Button

The BTB140 Electric Bike Wireless Button combines wireless Bluetooth control, solar charging, long standby time, automatic connection, automatic sleep mode with press-to-wake functionality, and real-time data synchronization with mobile apps. These features contribute to an enhanced riding experience, offering convenient control, sustainability, extended battery life, seamless connectivity, and access to ride data for electric bike riders.

BTB140 Electric Bike Wireless Button Specification

Specification	BTB140
Rated Voltage (V)	3V
Battery Capacity (mah)	20
Charge Time	20000lx: 8h
Support Level	0-5
Communicate Mode	Wireless Low Energy
Wireless Version	Wireless 5.1
Automatic Sleep Time (s)	60s
Working Temperature (℃)	-20℃ ~ 65℃
Waterproof	IP67
Solar Panel Size (mm)	14mm×14mm
Width (mm)	17mm
Holder Diameter (mm)	Φ22mm ~ Φ24mm
Weight (g)	14g

BTB140 Electric Bike Wireless Button Instrument Dimension

Features of BTB140 Electric Bike Wireless Button

1. Wireless Bluetooth Control: The BTB140 utilizes wireless Bluetooth technology to establish a connection between the button and the electric bike's control unit. This wireless control allows riders to conveniently operate various functions of their electric bike, such as power on/off, changing assist levels, activating lights, and more, without the need for physical buttons or wires.2. Solar Charge: The BTB140 is equipped with a solar panel that charges the device using sunlight. This solar charging feature reduces the reliance on external power sources and extends the button's battery life. It offers an eco-friendly and sustainable charging solution for riders.3. 3 Years Standby: The BTB140 is designed with an impressive standby time of up to 3 years. This long standby duration ensures that the button remains ready for use even after extended periods of inactivity. Riders can rely on the button's functionality whenever they need it, without worrying about frequent recharging or battery replacement.4. Auto Connect When Near the Motor: The BTB140 is designed to automatically connect to the electric bike's control unit when it is within proximity. This automatic connection eliminates the need for manual pairing each time the rider begins their ride. It simplifies the setup process and ensures a seamless connection for immediate use.5. Automatic Sleep & Press to Wake Up: The BTB140 features an automatic sleep mode to conserve battery power when not in use. When the button is inactive for a certain period, it enters sleep mode to minimize power consumption. To wake up the button, riders can simply press it, instantly activating the device and making it ready for use.6. APP Data Synchronization in Real Time: The BTB140 supports real-time data synchronization with compatible mobile applications. This feature allows riders to connect their electric bike's button to a smartphone app, enabling them to view and analyze ride data, track fitness progress, set goals, and access additional features provided by the app. The real-time synchronization ensures that riders have up-to-date information at their fingertips.

Functions of BTB140 Electric Bike Wireless Button

The BTB140 Electric Bike Wireless Button offers several functions that enhance the convenience and control of electric bicycles. Here are key functions of BTB140 Electric Bike Wireless Button:(1) Power On/Off: The BTB140 button allows riders to conveniently power on or off their electric bike with a simple press. This eliminates the need to physically interact with the bike's control unit, providing a streamlined and effortless control experience.(2) Assist Level Control: Riders can adjust the assist level of their electric bike using the BTB140 wireless button. By pressing the button, users can toggle between different power assistance modes, customizing the level of motor assistance according to their riding preferences or terrain conditions.(3) Light Activation: The BTB140 button enables riders to activate the lights on their electric bike. Whether it's the front headlight or the rear taillight, users can easily turn them on or off with a press of the button, enhancing visibility and safety during rides.(4) Mode Selection: Some electric bikes offer different riding modes, such as eco mode, sport mode, or turbo mode. The BTB140 electric bike wireless button allows riders to switch between these modes, providing a quick and convenient way to adapt the bike's performance to different riding scenarios.(5) Horn or Bell Activation: The wireless button may also include a horn or bell function, allowing riders to emit an audible signal to alert pedestrians or other cyclists. This feature enhances safety by providing a means to communicate and signal intentions while riding.(6) Battery Level Indication: The wireless button may include a battery level indicator, providing riders with real-time information about the remaining battery charge. This feature allows users to monitor the button's battery status and plan for recharging when necessary.(7) Auto Sleep and Wake Up: The BTB140 electric bike wireless button features an auto sleep mode, which helps conserve battery power when the device is not in use. When the button is inactive for a certain period, it automatically enters sleep mode. To wake up the button, riders can simply press it, instantly activating the device for immediate use.

Applications of BTB140 Electric Bike Wireless Button

The BTB140 Electric Bike Wireless Button offers various applications that enhance the functionality and user experience of electric bicycles. Here are some key applications of the BTB140:Convenient Control: The wireless button provides riders with a convenient and easy-to-use control interface for their electric bikes. Users can access and adjust various functions such as power on/off, assist levels, lights, and modes with a simple press of the button, eliminating the need to interact with the bike's control unit directly.Safety Enhancement: The BTB140 button can contribute to rider safety by allowing the activation of lights, horns, or bells. Riders can easily signal their presence to pedestrians, cyclists, or vehicles, improving visibility and reducing the risk of accidents, particularly in low-light conditions or busy environments.Customization and Personalization: The button enables riders to customize their electric bike experience according to their preferences. With options to adjust assist levels and select different riding modes, users can tailor the bike's performance to suit their riding style, terrain, or energy conservation needs.Mobile App Integration: The BTB140 button can be integrated with compatible mobile applications, expanding its functionality. Riders can connect their electric bike's button to a smartphone app, allowing access to features such as GPS navigation, ride tracking, fitness monitoring, and data analysis. This integration enhances the overall riding experience and provides valuable insights for users.Sustainability and Energy Efficiency: The BTB140 button features solar charging capabilities, reducing the reliance on external power sources. The solar panel on the button harnesses sunlight to charge its battery, promoting energy efficiency and sustainability. This feature is particularly useful for eco-conscious riders and those who frequently ride in sunny environments.Long Standby Time: With a standby time of up to three years, the BTB140 button remains ready for use even after extended periods of inactivity. Riders can rely on the button's functionality whenever they need it, without worrying about frequent recharging or battery replacement.

Why Choose Raydafon's Electric Bike Wireless Button?

Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, water bottle batteries, ALL-IN-ONE rear hub motors, P100/P110 rear hub motors, S100/S110 rear hub motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, down tube battery, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes.Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.

FAQ

Q: Are you a manufacturer?A: Yes. Established in 1993, our company is keeping dedicated to the R&D, manufacturing and worldwide marketing of high-end electric bicycle parts. We provide ODM & OEM services as per your requests. Welcome to our company.Q: Can I get a sample and how long will it take?A: Yes. We'd like to submit a sample for checking at the beginning of our business. Usually it needs take about 2 weeks to produce sample order.Q: What is your MOQ and delivery time?A: Our MOQ is 1 pcs normally. It takes about 30 days to complete an order. The specific delivery time depends on the items and the quantity of your order.Q: How to control the quality of the products?A: We have independent quality inspection department for products quality. The parts are inspected in every production process to prevent bad parts from entering the next process. 100% products are inspected before shipment. Third party detection is welcomed.Q: Do you have customized service?A: Yes, the technical specifications and logo of Motor, and the Raydafon APP both can be customized.Q: What is the warranty period for your products?A: Motor: 2 years. Battery: 1.5 - 2 years. Other Accessories: 1 year.Q: Where is your after-sales service location?A: Germany or China. You can choose a suitable after-sales location according to your convenience.Q: How do I pay for my order?A: We accept your payment through T/T, L/C, D/C, Paypal, Western Union, etc.
