Bucket Elevator Chains P150F47 P152F41 P200F64 P250F6 P300F1 P300F9 for Cement Industry

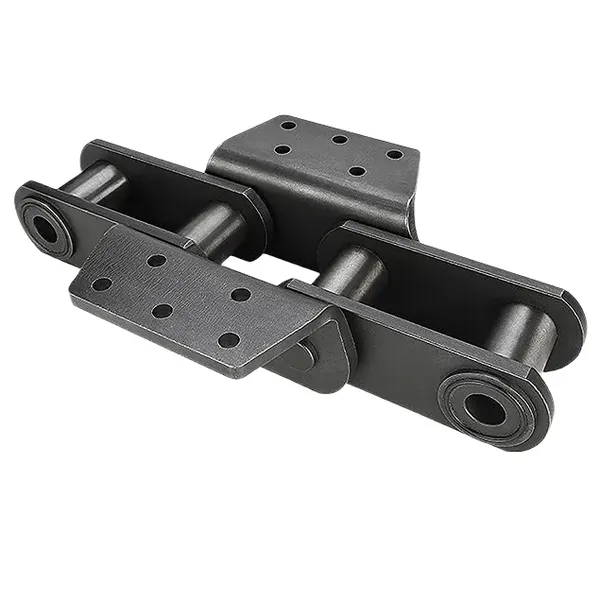

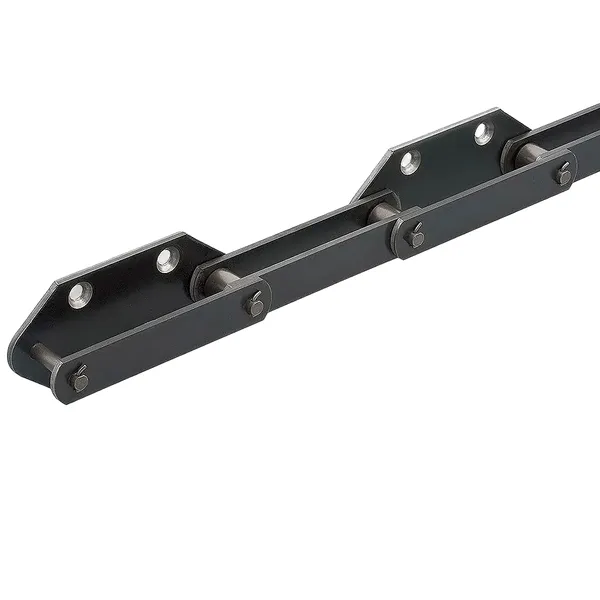

Bucket Elevator Chains for Cement Industry

A bucket elevator chain is a type of conveyor chain commonly used in bucket elevators, which are devices used to vertically transport bulk materials such as grains, fertilizers, and aggregates. The bucket elevator chain is specifically designed to handle the rigorous demands of heavy-duty bucket elevators and is typically constructed from high-strength steel alloys.The bucket elevator chain consists of a series of interconnected links that are designed to support the buckets as they move along the elevator. Each link is typically made up of two or more plates that are connected by pins, and the links are designed to articulate around the sprockets at the top and bottom of the elevator.The buckets themselves are attached to the bucket elevator chain by means of special attachments that are designed to securely hold the bucket in place while still allowing it to move freely along the chain. The design of the bucket elevator chain and the attachments are critical to the safe and efficient operation of the bucket elevator, as any failure of the chain or attachments could result in costly downtime and potential safety hazards.Overall, the bucket elevator chain is an essential component of bucket elevators, and its proper selection, installation, and maintenance are critical to the reliable and safe operation of these important industrial machines.

▍Bucket Elevator Chain Design Features:

Bucket elevator chains are designed to transport bulk materials vertically. They are typically made of high-strength steel and have a number of features that make them well-suited for this application.1. Wear resistance:?The pins and bushings in bucket elevator chains are made of wear-resistant materials, such as hardened steel or bronze. This helps to protect the chain from wear and tear, which can extend its service life.2. Fatigue resistance:?Bucket elevator chains are designed to withstand the high stresses that are generated during operation. The pins and bushings are made of high-strength materials, and the chain is assembled using high-quality components. This helps to prevent the chain from fatigue failure, which can lead to catastrophic failure of the elevator.3. Easy connecting and disconnecting:?Bucket elevator chains are designed to be easy to connect and disconnect. This is important because it allows for easy maintenance and repair of the elevator.Bucket elevator chains are an essential component of many industrial applications. They are used to transport a wide variety of materials, including cement, coal, grain, and other bulk materials. By understanding the features of bucket elevator chains, you can ensure that you select the right chain for your application.

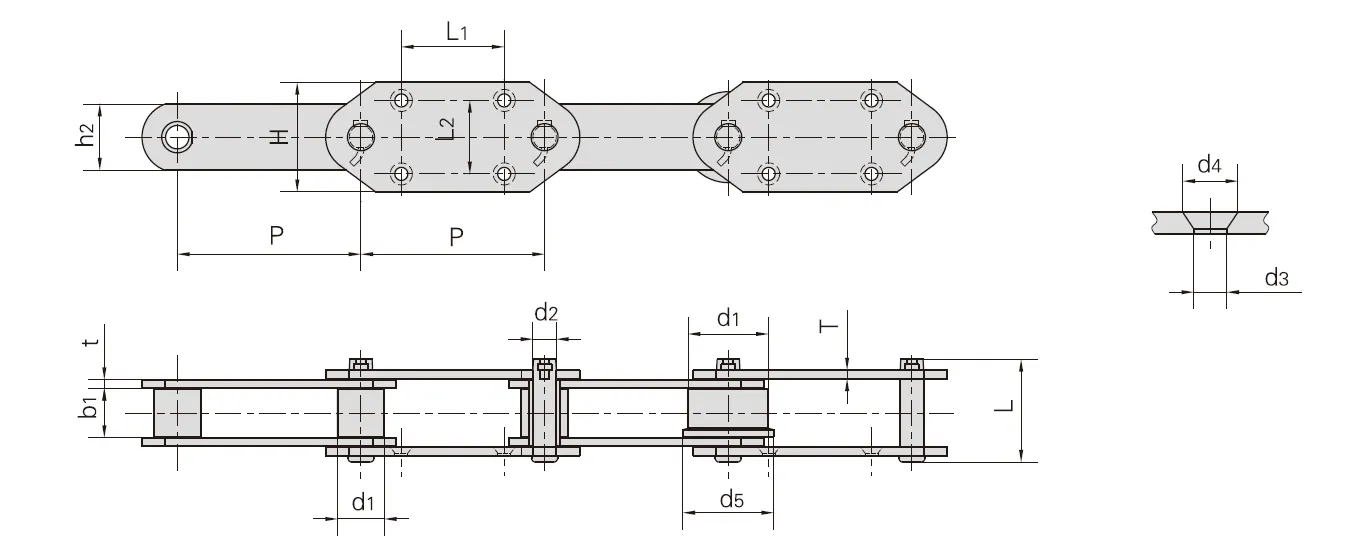

▍Bucket Elevator Chain Specifications:

?Chain No.	?Pitch	?Roller diameter		?Width between inner plates	?Pin diameter	?Pin length	?Plate depth	?Plate thickness	?Tensile strength	?Average tensile strength	Weight per meter
	P	d1?max	d5	b1?min	d2?max	Lmax	h2?max	t/T max	Qmin	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
P95	95.0	50.8	58.0	30.0	13.50	70.0	38.0	6.0	75.0/16871	82.5	9.93
P100F225-G4	100.0	40.0	-	22.0	11.30	53.5	32.0	4.5	69.0/15511	75.9	5.00
P100F269-G4	100.0	48.5	-	57.6	25.40	120.0	75.0	10.0	550.0/123640	605.0	31.10
P125F61-G4	125.0	63.5	-	67.4	32.00	141.0	90.0	12.0	750.0/168600	825.0	47.00
P125F62-G4	125.0	70.0	-	75.0	36.00	168.0	100.0	16.0	1000.0/224800	1100.0	68.60
P150F142-G4	150.0	78.0	-	80.0	39.00	172.0	120.0	16.0	1350.0/303480	1485.0	78.90
RF10150RF1	150.0	50.0	60.0	30.0	14.50	69.0	38.1	8.0/6.3	200.0/44992	220.0	8.64
P150F47	150.0	54.0	-	40.0	27.00	112.0	68.5	12.0	600.0/67487	680.0	25.70
RF10150RF1-G4	150.0	29.0	-	30.0	14.50	69.0	38.1	6.3	200.0/44960	220.0	16.70
P152F41	152.4	38.1	-	36.0	15.50	90.0	50.0	8.0	150.0/33743	165.0	11.91
P152F236-G4	152.4	36.0	-	36.5	18.00	87.0	50.0	8.0	280.0/62944	308.0	12.10
RF17200MF1-G-4	200.0	44.5	-	51.4	19.10	120.0	60.0	10.0	245.0/55114	269.5	17.60
RF17200MF2-G-4	200.0	44.5	-	51.4	19.10	109.5	50.8	9.5	213.0/47916	243.0	15.10
P200F128-G4	200.0	50.8	-	56.6	24.00	120.0	70.0	9.5	450.0/101164	490.0	19.40
P200F130-G4	200.0	44.5	-	51.8	19.10	113.0	60.0	10.0	321.0/72164	353.1	17.80
P250F6	250.0	63.5	-	67.0	31.80	146.0	90.0	12.0	900.0/101230	495.0	31.70
P250F66	250.0	80.0	-	51.4	19.10	109.5	50.8	9.5	329.0/73962	378.0	19.79
P250F71SS	250.0	100.0	125.0	79.0	22.00	120.0	64.0	10.0	320.0/71939	368.0	29.80
P250F87-G4	250.0	80.0	-	51.4	22.00	109.0	50.8	9.5	329.0/73959	361.9	19.60
P250F110-G4	250.0	80.0	105.0	51.5	19.10	110.0	50.0	9.0	356.4/80119	392.0	18.30
P250F163	250.0	70.0	-	76.0	35.00	165.0	100.0	16.0	1100.0/247280	1210.0	44.10
P300F1	300.0	70.0	-	75.0	35.00	174.0	100.0	16.0	1065.0/239580	1118.0	47.47
P350F2-G4	350.0	85.0	-	85.0	41.75	189.5	115.0	16.0	1200.0/269772	1372.0	48.43

Hot Tags: Bucket Elevator Chains Cement Industry, P150F47 P152F41 P200F64 P250F6 P300F1 P300F9, Cement Plant Elevator Chain Supplier

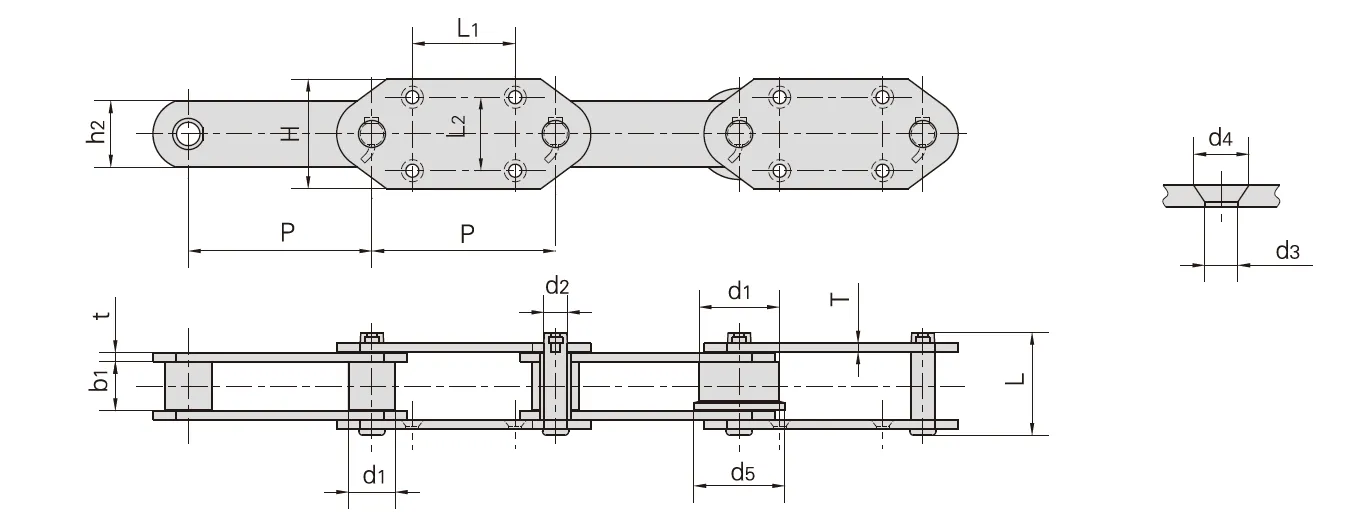

?Chain No.	P	H	L1	L2	d3	d4
	mm	mm	mm	mm	mm	mm
P95	95.0	95.0	50.0	70.0	12.0	21.0
P100F225-G4	100.0	80.0	50.0	50.0	10.0	15.0
P100F269-G4	100.0	75.0	100.0	106.0	18.0	30.0
P125F61-G4	125.0	180.0	125.0	130.0	18.0	33.0
P125F62-G4	125.0	180.0	125.0	130.0	18.0	33.0
RF10150RF1	150.0	100.0	75.0	70.0	11.0	20.0
P150F47	150.0	110.0	75.0	75.0	12.0	22.0
P150F142-G4	150.0	120.0	150.0	170.0	22.0	38.0
RF10150RF1-G4	150.0	110.0	75.0	70.0	11.0	20.0
P152F41	152.4	110.0	75.0	70.0	14.5	25.0
P152F236-G4	152.4	110.0	75.0	70.0	14.0	27.0
RF17200MF1-G-4	200.0	125.0	100.0	80.0	18.0	33.0
RF17200MF2-G-4	200.0	120.0	100.0	80.0	15.0	26.0
P200F128-G4	200.0	130.0	100.0	80.0	18.0	31.0
P200F130-G4	200.0	125.0	100.0	80.0	18.0	30.0
P250F6	250.0	150.0	140.0	100.0	17.7	30.0
