Raydafon Combination Chain is used extensively for elevating and conveying a wide variety of abrasive and non-abrasive materials. While it is not recommended for drive chain.Combination links are symmetrical and may therefore be operated in either direction of travel.

C Class Cast Iron Combination Chains C188CP Specifications

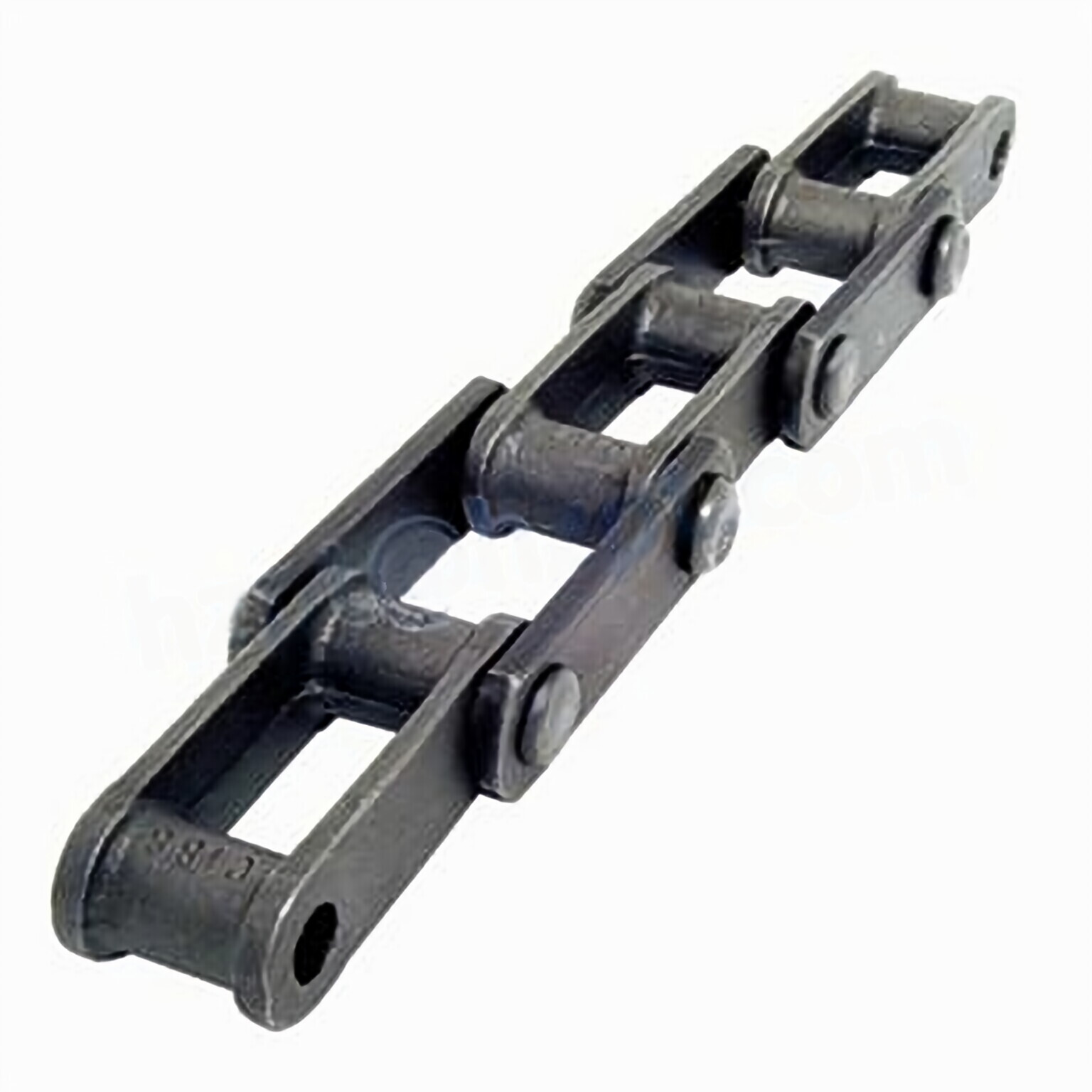

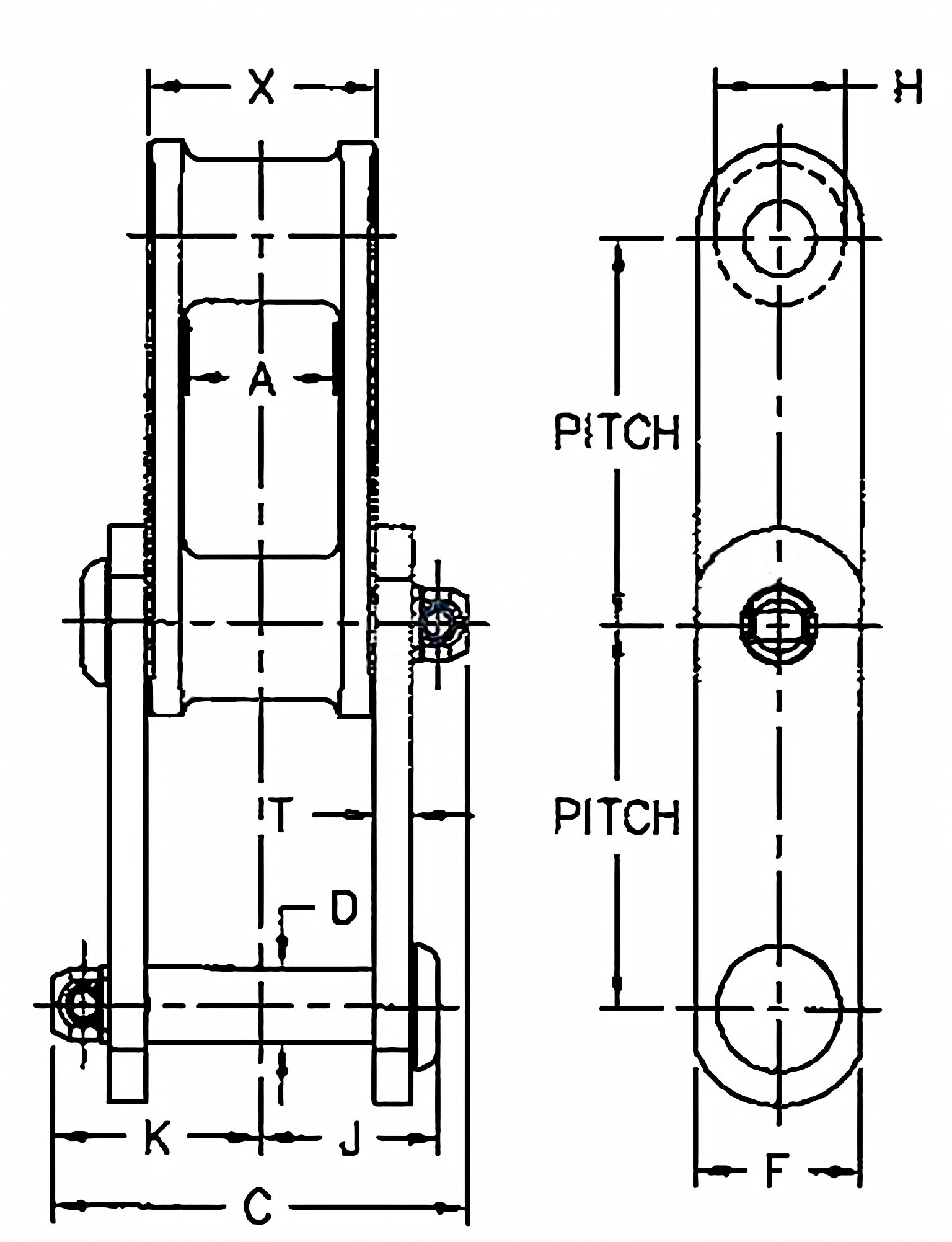

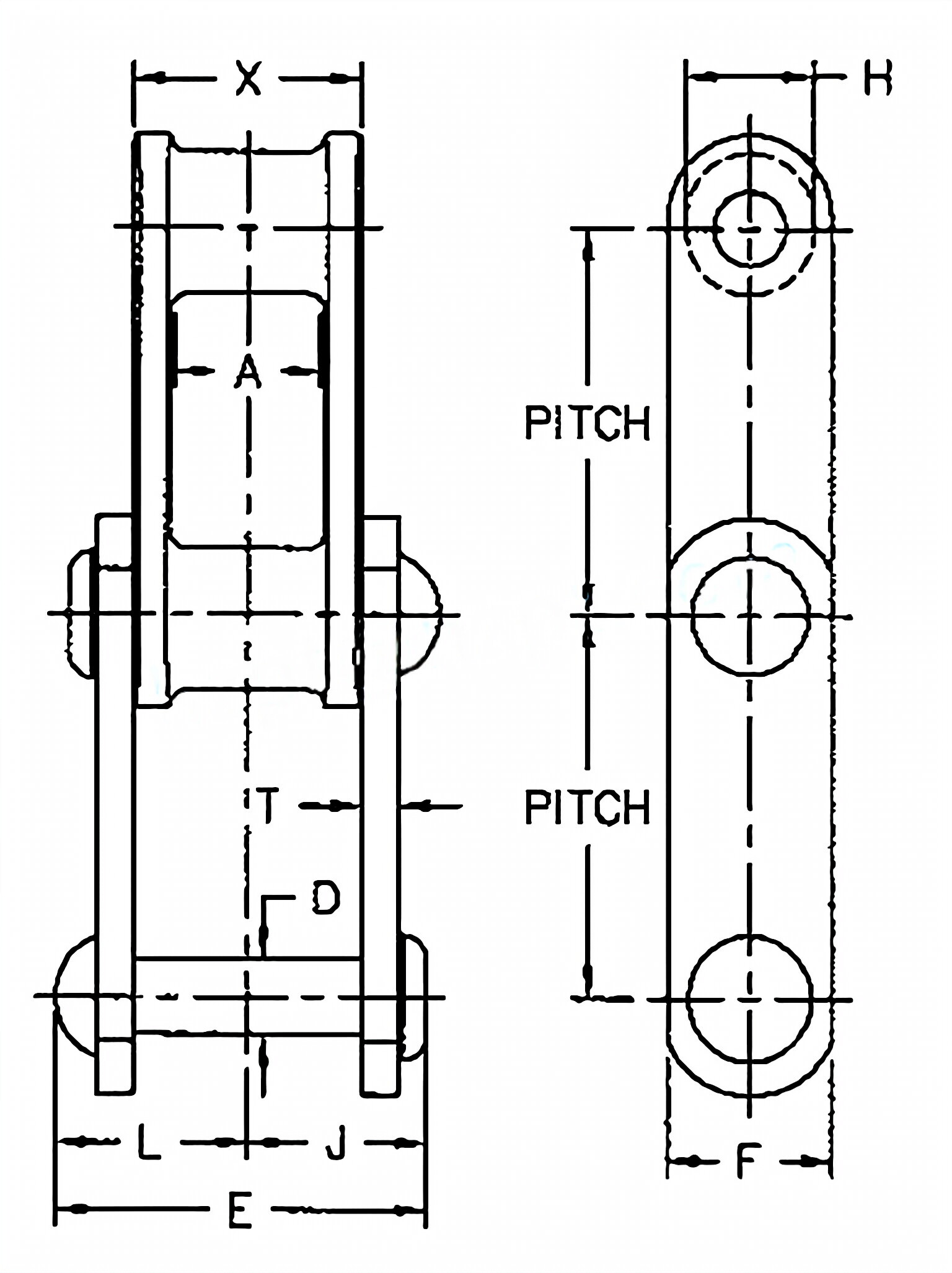

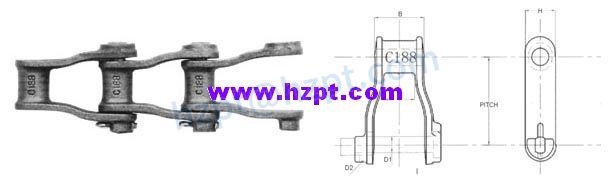

Dimensions are given in inches in the below chart.

Pitch (P)	2.609
Overall Width - Cottered (C2)	2.69
Diameter of Pin (E)	0.500
Overall Width - Riveted (C1)	2.50
Height of Sidebar (H)	1.12
Diameter of Barrel (H)	0.88
Head of Pin to Center Line (J)	1.25
End of Pin to Center Line - Cottered (K)	1.44
End of Pin to Center Line - Riveted (L)	1.25
Thickness of Sidebar (T)	.25
Max. Allowable Sprocket Face (A)	0.94
Overall Length of Barrel (X)	1.56
Avg. Ultimate Strength	18,900 lb
Max. Recommended Working Load	2,350 lb
Links per 10'	46
Weight per 10'	3.6 lb
Sidebars (Outside Links)	Carbon Steel, Heat Treated
Avg. Plain Block Link Weight	0.7 lb
Avg. Steel Pin with Cotter Weight	0.2 lb
Avg. Steel Rivet Weight	0.2 lb
Attachment Available	F2、G6、K1、K2、S1
Note	Alternating pin heads are standard; they can be supplied the same side if specified. Available in riveted and cottered construction. Cottered will be furnished unless riveted is requested.

Cast Combination Chain Features

A cast combination chain combines strength, ductility and wears resistance. The Raydafon cast combination chain is a durable and highly efficient solution for conveyor and drag applications. The chains are manufactured with pearlitic malleable iron block links for exceptional wear resistance and balance toughness. They also feature stainless steel pins for corrosion resistance. In addition to its long life, the cast combination chain is a highly recommended choice for heavy-duty conveyor applications.The steel outer links and cast inner links make up a combination chain. They are widely used for conveying applications, such as in a conveyor or an elevator. They are particularly suitable for abrasive materials and are less expensive than their all-steel counterparts.
