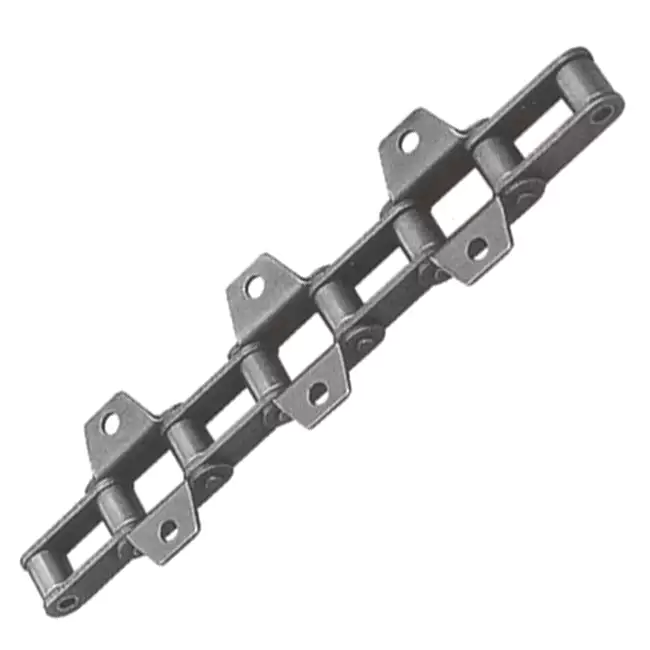

C Type Steel Agricultural Chain Attachments CA550K1 CA550K1F3 CA550F4K19F1 CA550K1F9 CA555K1

These Agricultural Chains for agricultural machinery are fully interchangeable with significant machinery manufacturers and are aimed at the replacement market. Incorporating the most advanced heat treatment processes and a special lubricant, these chains are explicitly engineered to cope with the arduous conditions present within agricultural applications.All chains can be supplied with a full range of sprockets and attachments.

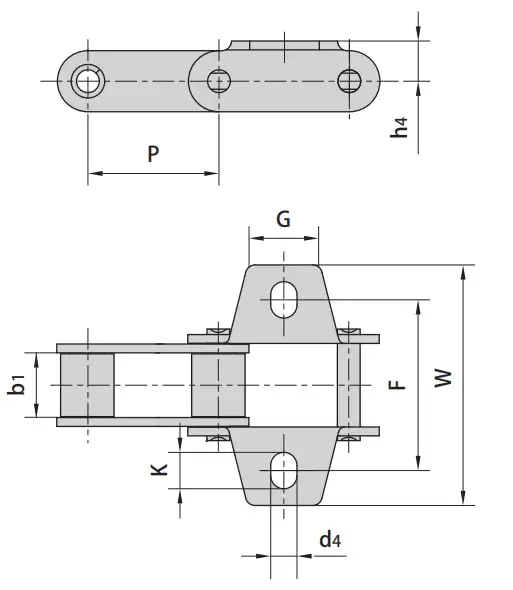

Chain No.	P	b1	G	F	W	h4	d4	K
	mm	mm	mm	mm	mm	mm	mm	mm
CA550K1	41.4	19.81	22.00	52.5	76.2	12.7	8.3	10.0
CA550K1F3	41.4	19.81	22.00	54.0	76.2	12.7	8.3	11.5
CA550F4K19F1	41.4	20.24	22.23	52.5	76.2	12.7	8.3	10.0
CA550K1F9	41.4	19.81	22.00	50.8	76.2	12.7	8.3	11.7
CA555K1	41.4	12.70	22.00	52.5	76.2	12.7	8.3	10.0



Application of C-Type Steel Agricultural Chain

Today, many non-standard and heavy-duty conveyor chains are used throughout the industry. These chains are usually developed to extend service life, increase strength, improve reliability and operation speed, or perform special duties in their service industry. Challenge has recognized experience in many of these industries, including:

?palm oil sugar cement cars

wood and paper steel manufacturing food mining

waste and recycling bulk material handling oven water treatment agriculture

Related Sprockets and Chains

We can meet various special requirements, including but not limited to:

• ?plasma nitriding hardened pins and bushings
• stainless steel (all grades)
• galvanized sheet and accessories
• Molykote dry lubricant
• hot dip vitrification
• galvanized / nickel plated
• food grade oil
• nonstandard chain pitch

Sprockets fit our entire conveyor chain range.The drive chain and the conveying chain are driven by sprockets. The uniform distribution of power depends on the precise transmission between the sprocket teeth and the chain rollers or bushes.Because sprockets significantly impact the chain's life, all challenging sprockets (from casting to precision mechanical cutting) are manufactured according to strict tolerances and quality control. We also recommend that all customers replace the sprocket when replacing the chain to maximize the chain life.
