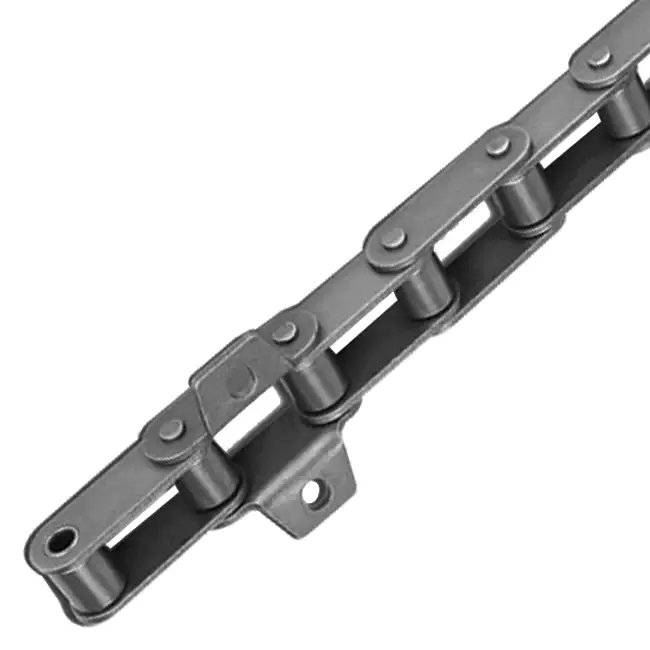

C type Steel Agricultural Chains CA550F2 CA550K1F1 CA550K1F2 CA550K25 CA557K1 CA550VK1

Hzpt chain group is the most professional power transmission manufacturer in China, producing roller chains, industrial sprockets, motorcycle sprockets, cast sprockets, different types of couplings, pulleys, taper sleeves, locking devices, gears, shafts, CNC precision parts, etc.We use high-quality raw materials, strictly comply with DIN, ANSI, JIS, and other standards, and have a professional quality control team, complete equipment, and advanced technology. In 1999, hzpt obtained the ISO9001 quality assurance system certification. At the same time, the company is also committed to environmental protection. In 2002, it also obtained the ISO14001 environmental management system certification.

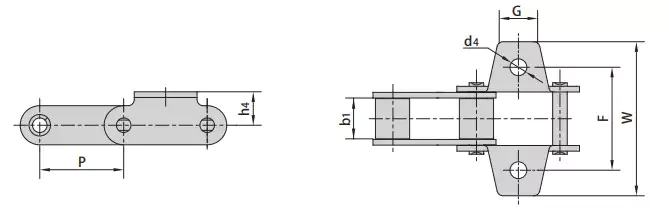

Chain No.	P	b1	G	F	W	h4	d4
	mm	mm	mm	mm	mm	mm	mm
38.4VK1	38.4	18.00	22.00	57.5	82.00	15.4	9.00
38.4RK1F1	38.4	19.05	22.00	58.0	83.00	15.4	9.00
38.4VF3K1	38.4	18.00	20.00	58.0	79.00	15.4	9.00
38.4RK1F2	38.4	19.05	22.00	57.5	82.00	16.0	9.00
CA550F2	41.4	19.50	22.00	50.8	72.00	14.7	8.50
CA550K1F1	41.4	19.81	20.00	54.0	76.20	16.5	8.30
CA550K1F2	41.4	19.81	20.00	50.8	76.20	16.5	8.30
CA550K25	41.4	19.81	22.23	50.8	71.40	12.7	8.70
CA557K1	41.4	20.24	22.00	50.8	72.00	15.9	8.70
CA550VK1	41.4	19.05	27.00	54.0	75.54	16.5	8.50
CA550VK1F1	41.4	19.05	27.00	50.8	75.54	16.5	8.50
CA550F4K19	41.4	20.24	22.23	50.8	77.80	12.7	6.75
CA550K29F1	41.4	19.81	22.20	50.8	75.40	12.7	10.30
CA550AK29M	41.4	19.81	26.20	50.8	75.40	16.5	10.24
CA550K1F7	41.4	19.81	26.20	50.8	75.40	16.5	8.40
CA550A29	41.4	19.81	22.23	50.8	71.40	12.7	9.92
CA550VF2K1	41.4	19.05	27.18	51.0	75.54	16.5	8.33
CA550F5AK29M	41.4	20.24	26.20	50.8	75.40	16.5	10.24
CA550F5K29F1	41.4	20.24	22.00	50.8	75.40	12.7	10.30
CA550F5K1	41.4	20.24	22.20	54.0	71.50	12.7	8.50
CA557K1F2	41.4	20.24	22.00	50.8	72.00	15.9	8.30
38.4RK1F3	38.4	19.05	20.00	58.0	84.40	15.5	8.50
38.4RK1F4	38.4	19.05	20.00	57.0	75.00	16.0	8.50
38.4RK1F7	38.4	19.05	22.00	57.5	82.00	16.0	10.50
38.4VK1F9	38.4	18.00	22.00	56.8	82.00	16.3	8.70
38.4VK1F6	38.4	18.00	22.00	56.8	74.80	16.3	8.50
38.4VK1F7	38.4	18.00	22.00	57.5	82.00	15.4	8.40
38.4RK1F8	38.4	19.05	20.30	57.0	78.00	16.0	8.60
38.4RK1F9	38.4	19.05	20.00	57.0	73.00	10.7	6.50
38.4RK1F10	38.4	19.05	20.00	57.0	78.00	16.0	8.50
38.4VF3K1F2	38.4	18.00	20.00	57.5	79.00	15.4	8.50
CA550K1F15	41.4	19.81	22.00	50.8	76.20	12.7	8.50

China Chain manufacturer & exporter, we specialize in Transmission chain(Driving Chain), Conveyor Chain, Engineering Chain, Stainless Steel Chain, Lifting Chain, Agricultural Chain, Forging Series, and Cast Iron Chain. We can also produce chain products according to customers' drawings or samples. If any inquiries, please feel free to contact us.?

Feature of agricultural chains

These precision roller chains are applied for various workloads and in various weather conditions, which means that the quality of the agricultural roller chain must be optimal.The agricultural roller chains are made of high-quality steel and subjected to various material treatments before assemblage.The complete chain program is varied and consists of:?agricultural roller chains according to?DIN 8189?agricultural roller chains with one-sided or two-sided upright attachment lips?agricultural roller chains with one-sided or two-sided attachment lips bent at right angles
