Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | d1max | blmin | d2max | Lmax | h2max | Qmin | Qo | q | |
| mm | mm | mm | mm | mm | mm | KN | KN | kg/m | |
| C40SS-1 | 12.7 | 7.95 | 7.85 | 3.96 | 16.6 | 12 | 9.8 | 12 | 0.72 |
| C50SS-1 | 15.875 | 10.16 | 9.4 | 5.08 | 20.5 | 15 | 16.2 | 21.3 | 1.22 |
| C60SS-1 | 19.05 | 11.91 | 12.57 | 5.94 | 25.3 | 18 | 21 | 25.3 | 1.8 |
| C80SS-1 | 25.4 | 15.88 | 15.75 | 7.92 | 32.7 | 24 | 36 | 45.7 | 3.1 |
| C100SS-1 | 31.75 | 19.05 | 18.9 | 9.53 | 39.8 | 30.18 | 58.9 | 66.6 | 4.55 |
| C120SS-1 | 38.1 | 22.23 | 25.22 | 11.1 | 50.3 | 35.7 | 92.8 | 98.3 | 6.87 |
| CO8BSS-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.8 | 11.8 | 12 | 12.2 | 0.82 |
| C10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.2 | 14.6 | 14.9 | 16.2 | 1.07 |
| C12BSS-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22 | 16 | 17.4 | 17.7 | 1.33 |
| C16BSS-1 | 25.4 | 15.88 | 17.02 | 8.28 | 35.6 | 21 | 40.6 | 46.7 | 3.1 |
| C20BSS-1 | 31.75 | 19.05 | 19.56 | 10.19 | 40.4 | 26 | 56 | 64.3 | 4.18 |
| C24BSS-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 33.4 | 96 | 115.6 | 7.48 |

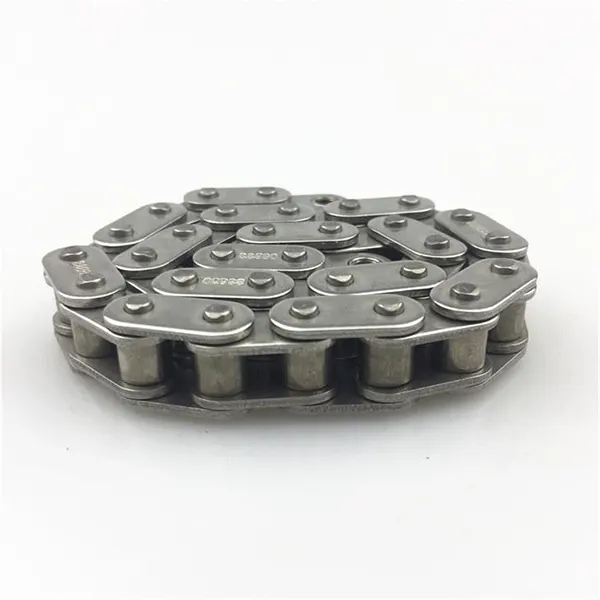

The C10BSS-1 Simplex Stainless Steel Roller Chain with Straight Side Plates is a premium product designed for optimum performance in mechanical transmission systems. This product is defined by its high quality and durability, making it an essential component in various industries. Its key features include its robust construction, ability to reduce friction, and contribution to the efficiency of the machinery it is part of.
The chain plates are the main body of the C10BSS-1 Stainless Steel Chain. They are composed of the inner pin shaft, inner chain plate, outer chain plate, and outer pin shaft. This type of chain features straight chain plates.
The rollers are located on the inner pin shaft of the chain plates. They play an integral part in transferring power and reducing friction.
The pin shafts connect the chain plates and the rollers, transferring the power to the chain wheel.
The C10BSS-1 Stainless Steel Chain is widely used in various industrial machines such as conveyors, cranes, and processing machine tools.
In agriculture, this chain is used in machines like harvesters, tractors, and feed processing equipment.
In the construction industry, this chain is used in machinery like tower cranes, cranes, and concrete mixers.
In transportation, this chain is used in vehicles like cars, motorcycles, and ships.
Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality. In addition to stainless steel chains, we also offer high-quality stainless steel sprockets for sale.
stainless steel sprockets">
Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our stainless steel chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of stainless steel materials. The products are manufactured using high quality alloy steel. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions. We encourage you to explore our products and reach out to us for any purchase inquiries.
