Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | d1max | blmin | d2max | Lmax | h2max | Qmin | Qo | q | |
| mm | mm | mm | mm | mm | mm | KN | KN | kg/m | |
| C40SS-1 | 12.7 | 7.95 | 7.85 | 3.96 | 16.6 | 12 | 9.8 | 12 | 0.72 |
| C50SS-1 | 15.875 | 10.16 | 9.4 | 5.08 | 20.5 | 15 | 16.2 | 21.3 | 1.22 |
| C60SS-1 | 19.05 | 11.91 | 12.57 | 5.94 | 25.3 | 18 | 21 | 25.3 | 1.8 |
| C80SS-1 | 25.4 | 15.88 | 15.75 | 7.92 | 32.7 | 24 | 36 | 45.7 | 3.1 |
| C100SS-1 | 31.75 | 19.05 | 18.9 | 9.53 | 39.8 | 30.18 | 58.9 | 66.6 | 4.55 |
| C120SS-1 | 38.1 | 22.23 | 25.22 | 11.1 | 50.3 | 35.7 | 92.8 | 98.3 | 6.87 |
| CO8BSS-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.8 | 11.8 | 12 | 12.2 | 0.82 |
| C10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.2 | 14.6 | 14.9 | 16.2 | 1.07 |
| C12BSS-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22 | 16 | 17.4 | 17.7 | 1.33 |
| C16BSS-1 | 25.4 | 15.88 | 17.02 | 8.28 | 35.6 | 21 | 40.6 | 46.7 | 3.1 |
| C20BSS-1 | 31.75 | 19.05 | 19.56 | 10.19 | 40.4 | 26 | 56 | 64.3 | 4.18 |
| C24BSS-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 33.4 | 96 | 115.6 | 7.48 |

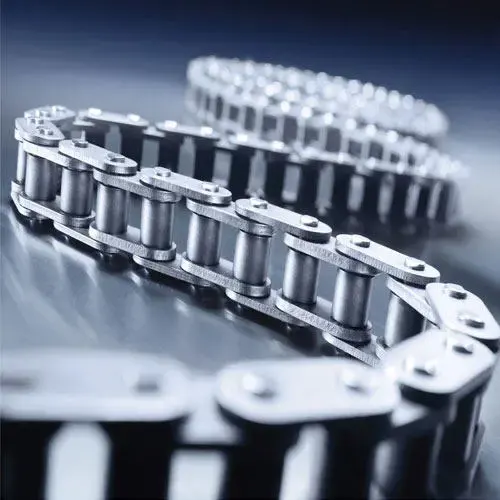

The C12BSS-1 Simplex Stainless Steel Roller Chain with Straight Side Plates is a significant element in the world of mechanical transmission systems. This chain type, as implied by the name, is constructed using stainless steel, known for its corrosion resistance and durability. It is commonly used in a variety of applications that demand high strength, prolonged life span, and resistance to harsh conditions.
The C12BSS-1 stainless steel chain is composed of several key components:
The link plate is the main body of the chain. It consists of inner and outer plates, inner and outer pins. The link plate of this chain type is a straight plate rather than a figure 8 side plate.
The roller is located on the inner pin of the link plate and is used to transmit power and reduce friction.
The pin connects the link plate and the roller and transfers power to the chainwheel.
The C12BSS-1 Stainless Steel Chain is characterized by its straight side plates, which are favored in conveyor applications. Other notable features include:
The C12BSS-1 Stainless Steel Chain is versatile, finding its use in a variety of applications:
It is widely used in industrial machinery such as conveyors, cranes, and processing machine tools.
It is used in agricultural machinery such as harvesters, tractors, and feed processing equipment.
It is used in construction machinery such as tower cranes, cranes, and concrete mixers.
It is used in transportation equipment such as cars, motorcycles, and ships.
Proper maintenance of the C12BSS-1 stainless steel chain is essential for its longevity. It includes:
Stainless Steel Sprockets serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality.
stainless steel sprockets"> Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our stainless steel chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of stainless steel materials. The products are manufactured using high quality alloy steel. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions. We encourage you to explore our products and contact us for any inquiries or purchases.
