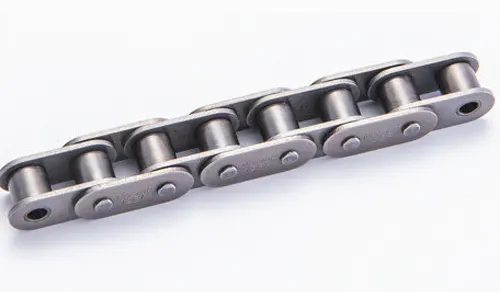

C20BSS-1 Simplex Stainless Steel Roller Chain with Straight Side Plates

Discover Raydafon Group's C20BSS-1 Simplex Stainless Steel Roller Chain with Straight Side Plates—a durable solution for industrial applications and machinery requiring high strength. Crafted from premium stainless steel, this chain offers excellent corrosion resistance, smooth operation, and long-lasting performance in demanding environments. Ideal for engineers, manufacturers, and DIY enthusiasts handling automotive, agricultural, or factory equipment, it ensures reliability and peace of mind with reduced maintenance needs. Outshine competitors with its robust straight side plates and superior build quality that enhances efficiency and durability. Trust Raydafon Group for unmatched value and performance.

Send Inquiry

Product Description

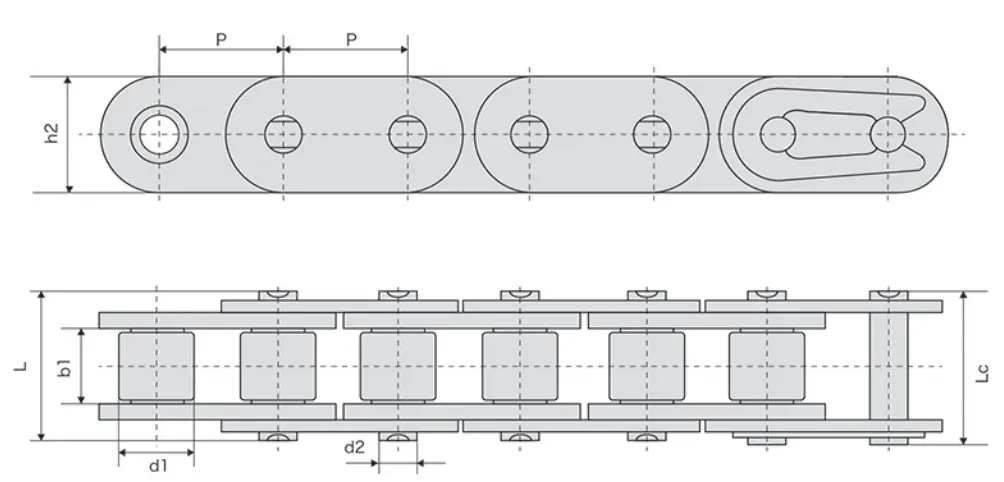

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Inner plate depth	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1max	blmin	d2max	Lmax	h2max	Qmin	Qo	q
	mm	mm	mm	mm	mm	mm	KN	KN	kg/m
C40SS-1	12.7	7.95	7.85	3.96	16.6	12	9.8	12	0.72
C50SS-1	15.875	10.16	9.4	5.08	20.5	15	16.2	21.3	1.22
C60SS-1	19.05	11.91	12.57	5.94	25.3	18	21	25.3	1.8
C80SS-1	25.4	15.88	15.75	7.92	32.7	24	36	45.7	3.1
C100SS-1	31.75	19.05	18.9	9.53	39.8	30.18	58.9	66.6	4.55
C120SS-1	38.1	22.23	25.22	11.1	50.3	35.7	92.8	98.3	6.87
CO8BSS-1	12.7	8.51	7.75	4.45	16.8	11.8	12	12.2	0.82
C10BSS-1	15.875	10.16	9.65	5.08	19.2	14.6	14.9	16.2	1.07
C12BSS-1	19.05	12.07	11.68	5.72	22	16	17.4	17.7	1.33
C16BSS-1	25.4	15.88	17.02	8.28	35.6	21	40.6	46.7	3.1
C20BSS-1	31.75	19.05	19.56	10.19	40.4	26	56	64.3	4.18
C24BSS-1	38.1	25.4	25.4	14.63	53.4	33.4	96	115.6	7.48

C20BSS-1 Simplex Stainless Steel Roller Chain with Straight Side Plates

The C20BSS-1 Simplex Stainless Steel Roller Chain with Straight Side Plates is a high-performance, robust, and reliable mechanical component that plays a crucial role in various kinds of mechanical transmission systems. This roller chain is renowned for its durability, strength, and long lifespan, making it an essential component in many industrial applications.

Structure and Composition

The C20BSS-1 Stainless Steel Chain is made up of several key components:

Chain Plates: These are the main body of the chain, consisting of inner and outer pin shafts, inner and outer chain plates. The chain plates for this type of chain are straight plates.
Rollers: Positioned on the inner pin shaft of the chain plate, they are used for power transmission and friction reduction.
Pin Shafts: These connect the chain plates and rollers, transferring power to the chain wheel.

Features of C20BSS-1 Stainless Steel Chain

This type of roller chain has straight side plates, instead of the 8-shaped side plates typically found on standard roller chains. Its features include:

Heavier weight than standard roller chains
Slightly improved fatigue resistance, strength, and lifespan
Primarily used in conveyor applications where flat side plates are preferable
Available in both ISO British standard and ANSI standard with straight side plates

Applications of C20BSS-1 Stainless Steel Chain

Given its robust nature, the C20BSS-1 Stainless Steel Chain finds applications in:

Industrial Machinery: Widely used in machines such as conveyors, cranes, and processing machines.
Agricultural Machinery: Used in harvesters, tractors, and feed processing equipment.
Construction Machinery: Used in tower cranes, cranes, and concrete mixers.
Transportation Equipment: Used in automobiles, motorcycles, and ships.

Maintenance and Care for Stainless Steel Industrial Chains

Maintenance and care for the C20BSS-1 Stainless Steel Chain include:

Cleaning: Regular cleaning prevents the buildup of dirt and grime that can wear down the chain.
Lubrication: Regular lubrication reduces friction and wear, extending the lifespan of the chain.
Regular Inspections: Regular inspections can identify any potential issues early, preventing unexpected breakdowns and costly repairs.

stainless steel sprockets for Chains

Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality. We also offer high-quality stainless steel sprockets for sale.

About Raydafon

Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our stainless steel chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of stainless steel materials. The products are manufactured using high quality alloy steel. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions. We encourage you to explore our product range and get in touch with us for your purchase requirements.
