CA Type Spherical Roller Bearings

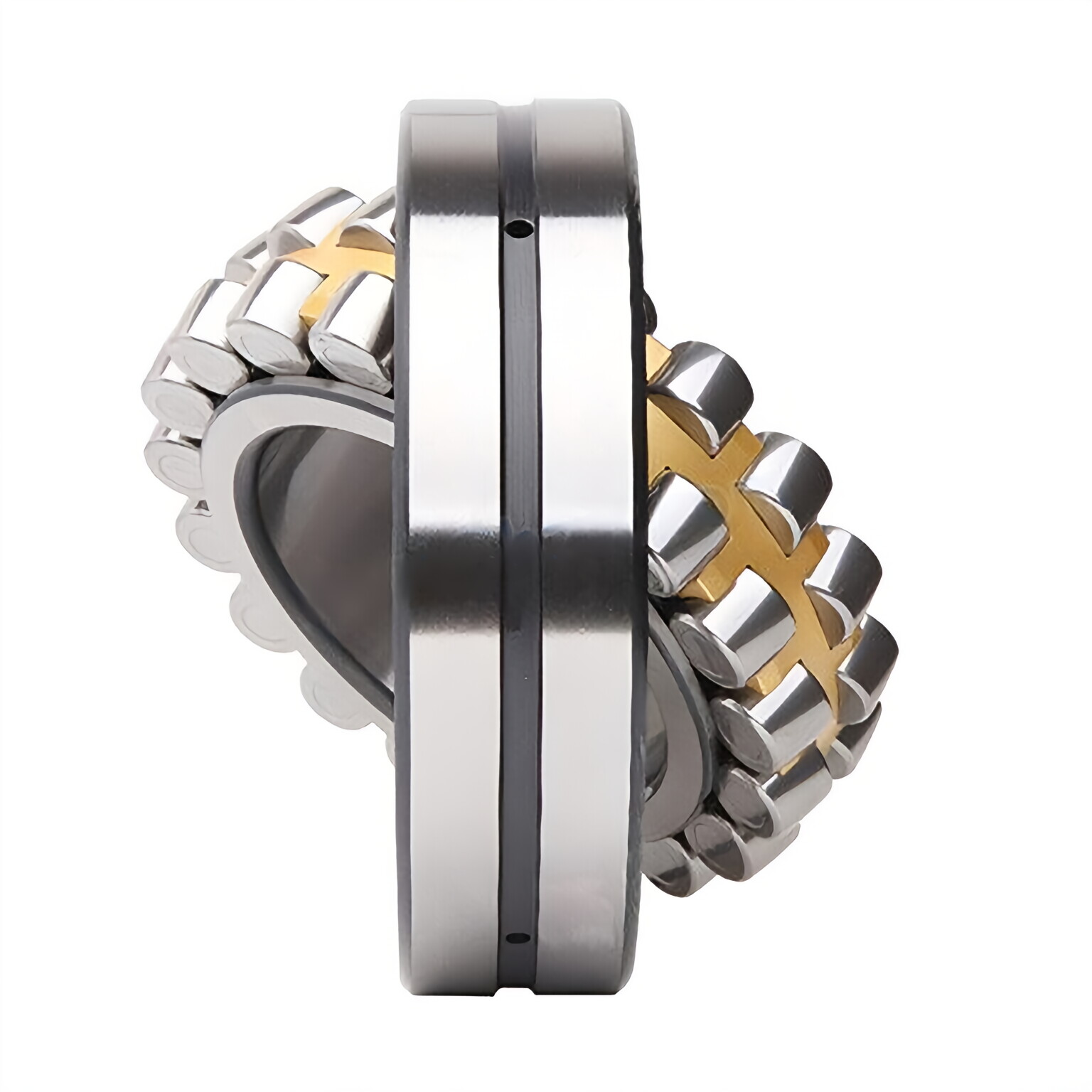

CA Type Spherical Roller BearingsCA type Spherical Roller Bearing is a spherical roller bearing with a holding rib on the inner ring, a floating guide ring between the double-rows of rollers centered on the inner circle, and a brass double prong-type cage fixed on it – suffix. CA Spherical roller bearings are robust, self-restraining construction assemblies with double-rows of symmetrical spherical roller bearings. The axis of the roller rows is inclined at an angle to the turning axis of the bearing. The raceway in the outer ring is spherically formed so that the double-row roller assembly can adjust easily in case of misalignment or shaft deflections. The extremely high load capacity, angle-adjustable self-adjusting roller bearings are used where high impact radial dynamic forces have to be absorbed, and misalignment or more considerable shaft deflections are expected. They exist in many designs – from standard bearings to industry-specific specialized bearings.

Product parameter

Boundary dimensions(mm)			Load ratings(KN)		Limiting speeds(r/min)		Mass(kg)	Bearing NO.
d	D	B	Cr	Cor	Grease	oil		Raydafon
20	52	15	33.7	32.1	9500	12000	0.18	21304 CA/W33
20	52	15	33.7	32.1	9500	12000	0.18	21304 CAK/W33
20	52	18	43.2	45	8500	11000	0.18	22205 CA/W33
20	52	18	43.2	45	8500	11000	0.18	22205 CAK/W33
20	62	17	48	49.3	7500	9000	0.28	21305 CA/W33
20	62	17	48	49.3	7500	9000	0.28	21305 CAK/W33
30	62	20	56	61	7000	8500	0.3	22206 CA/W33
30	62	20	56	61	7000	8500	0.3	22206 CAK/W33
30	72	19	61.1	62.9	6000	7500	0.41	21306 CA/W33
30	72	19	61.1	62.9	6000	7500	0.41	21306 CAK/W33
35	72	23	73.2	83.1	6600	8000	0.45	22207 CA/W33
35	72	23	73.2	83.1	6600	8000	0.45	22207 CAK/W33
35	80	21	70.1	74.7	5300	7000	0.54	21307 CA/W33
35	80	21	70.1	74.7	5300	7000	0.54	21307 CAK/W33
40	80	23	86.9	93.5	6500	7500	0.54	22208 CA/W33
40	80	23	86.9	93.5	6500	7500	0.54	22208 CAK/W33
40	90	23	90	99	5000	6000	0.75	21308 CA/W33
40	90	23	90	99	5000	6000	0.75	21308 CAK/W33
40	90	33	123.6	142.1	6000	7000	1	22308 CA/W33
40	90	33	123.6	142.1	6000	7000	1	22308 CAK/W33

Series of CA type Spherical Roller Bearings

Popular types of CA type Spherical Roller Bearings:

• 21306 CAK/W33
• 22308 CA/W33

Features of CA type Spherical Roller Bearings

• Accommodate misalignment
• High load-carrying capacity
• Long service life
• Low friction
• Robust

Applications of CA type Spherical Roller Bearing

CA-type Spherical Roller Bearings are widely used in gearboxes, turbines, mechanical fans, constructions equipment, mining and drilling equipment, heavy machinery, wind power, port machinery, and so on. CA-type Spherical Roller Bearings can be used for Vibratory applications and also can be used for wind energy and high-speed applications.
