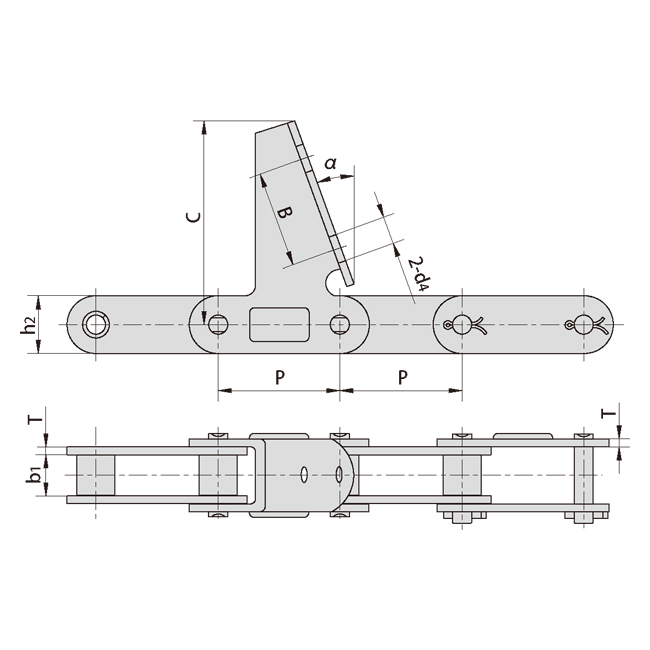

Chain No | P | b1 | h2 | d4 | T | B | C | α |
mm | mm | mm | mm | mm | mm | mm | ||

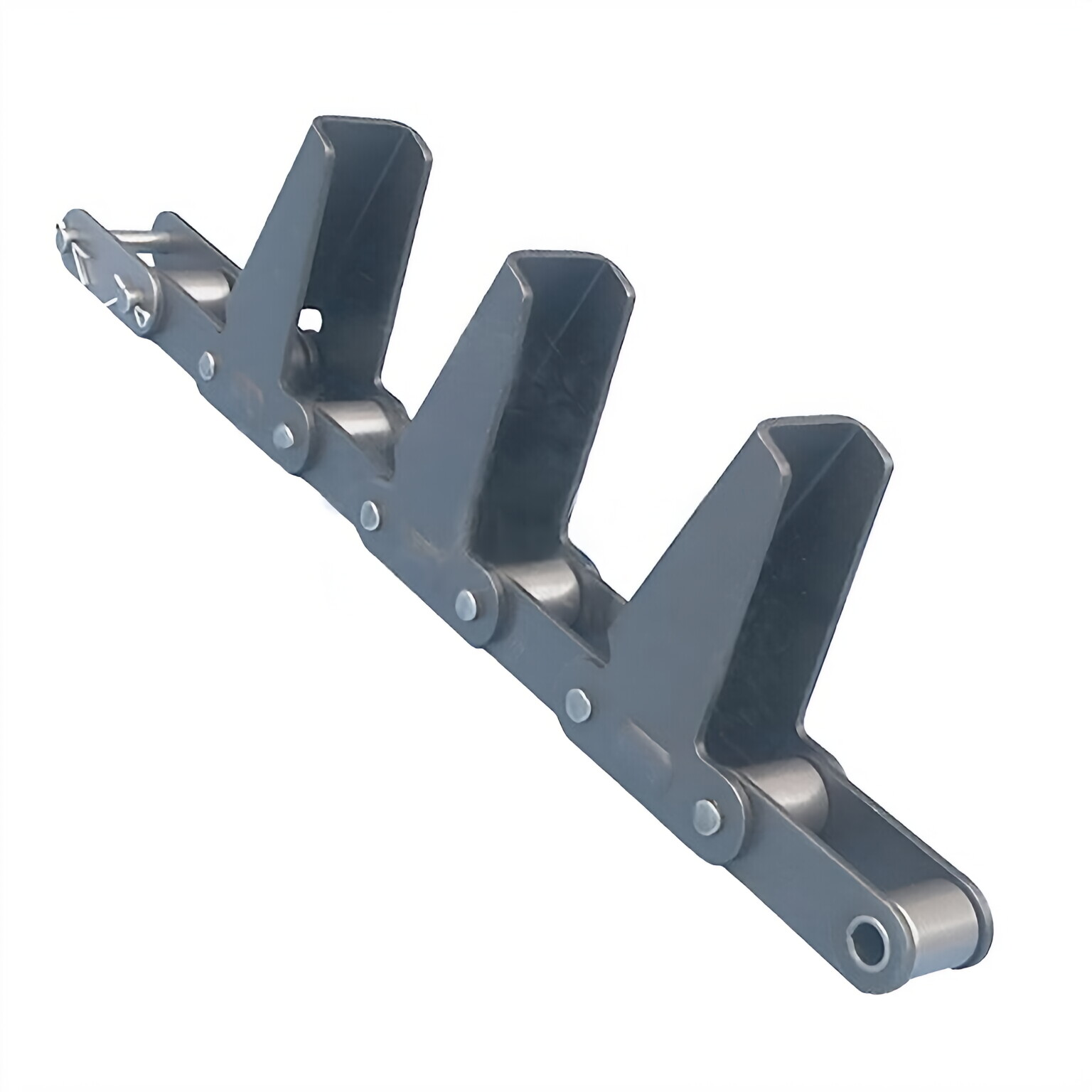

CA2060H-7AUE | 38.1 | 12.57 | 18.0 | 8.50 | 3.25 | 30.0 | 57.2 | 22.5° |
CA550-CPEF1 | 41.4 | 19.81 | 19.3 | - | 2.80 | - | 63.5 | 15.0° |
CA414-CPEF1 | 41.4 | 15.88 | 20.1 | - | 3.00 | - | 66.0 | 20.0° |
CA2060H-CPEF2 | 38.1 | 12.57 | 18.0 | - | 3.25 | - | 57.0 | 22.0° |
CA2060H-CPEF3 | 38.1 | 12.57 | 18.0 | 6.75 | 3.25 | 25.4 | 57.0 | 22.0° |
CA627-CPEF5 | 30.0 | 19.05 | 20.5 6. | 30×6.30 | 3.00 | 30.0 | 62.5 | 22.5° |
CA627-CPEF13 | 30.0 | 19.05 | 20.5 6. | 60×6.60 | 3.00 | 30.0 | 63.5 | 22.5° |
CA627-CPEF16 | 30.0 | 19.60 | 20.5 | 6.50 | 3.00 | 30.0 | 62.5 | 22.5° |
