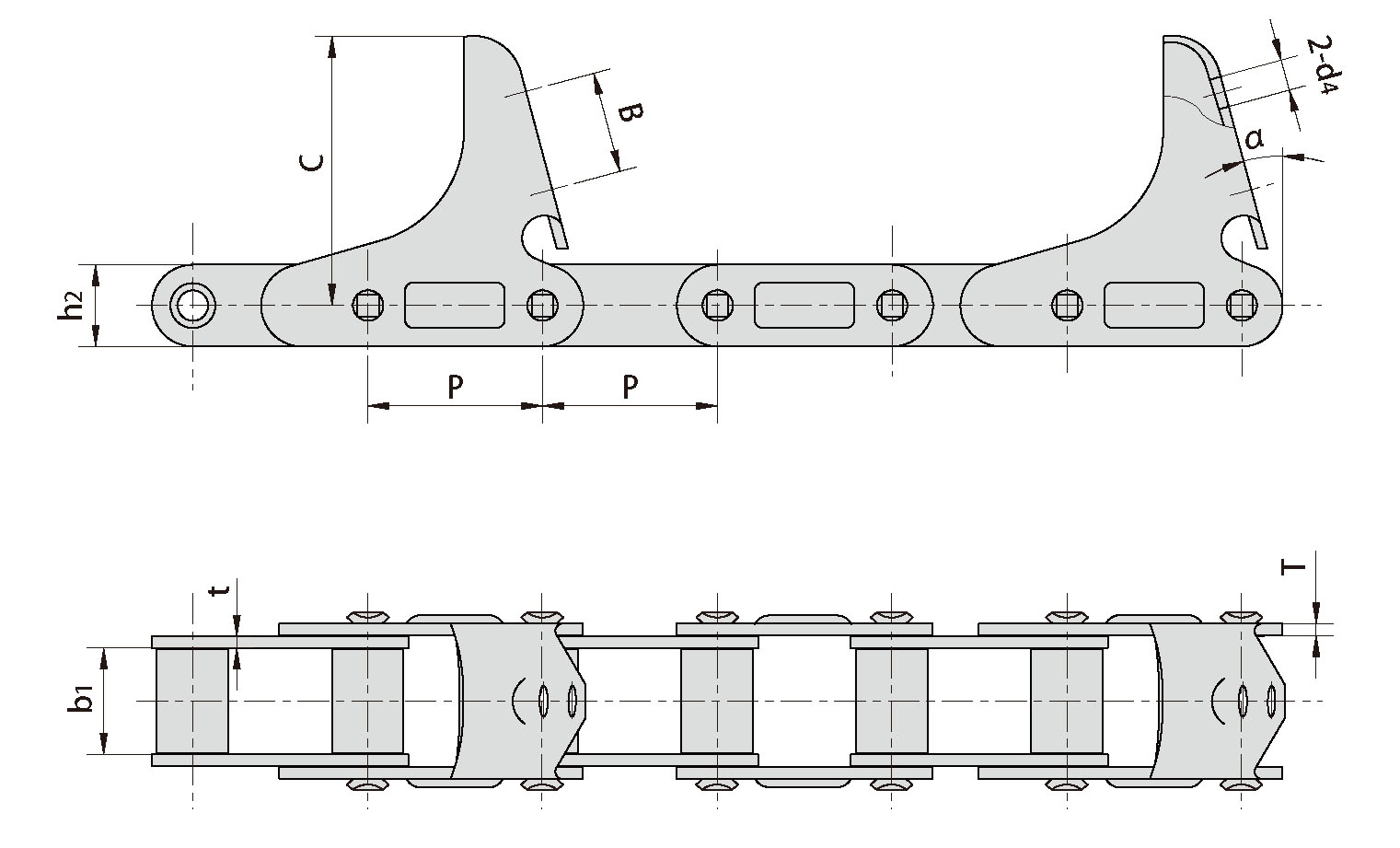

Chain No | P | b1 | h2 | t/T | C | B | d4 | α |
mm | mm | mm | mm | mm | mm | mm | ||
CA555-C6E | 41.40 | 12.70 | 19.30 | 3.10 | 63.50 | - | - | 15° |
CA555-C6EJ | 41.40 | 12.70 | 19.30 | 3.25 | 66.00 | 25.40 | 7.30 | 15° |
CA555-C6EJF1 | 41.40 | 12.70 | 19.30 | 3.10 | 66.00 | 25.40 | 5.50 | 15° |
CA555F3-C6EJ | 41.40 | 12.70 | 19.30 | 3.15 | 66.00 | 25.40 | 7.30 | 15° |
CA620F3-C6EJ | 42.01 | 24.51 | 20.20 | 3.25/3.10 | 66.00 | 24.00 | 6.00 | 15° |
CA620F5-C6EJ | 40.25 | 24.51 | 20.20 | 3.25/3.10 | 66.00 | 24.00 | 6.00 | 15° |
