CA642S103 Special Agricultural Chain With Attachments

CA642S103 Special Agricultural Chain

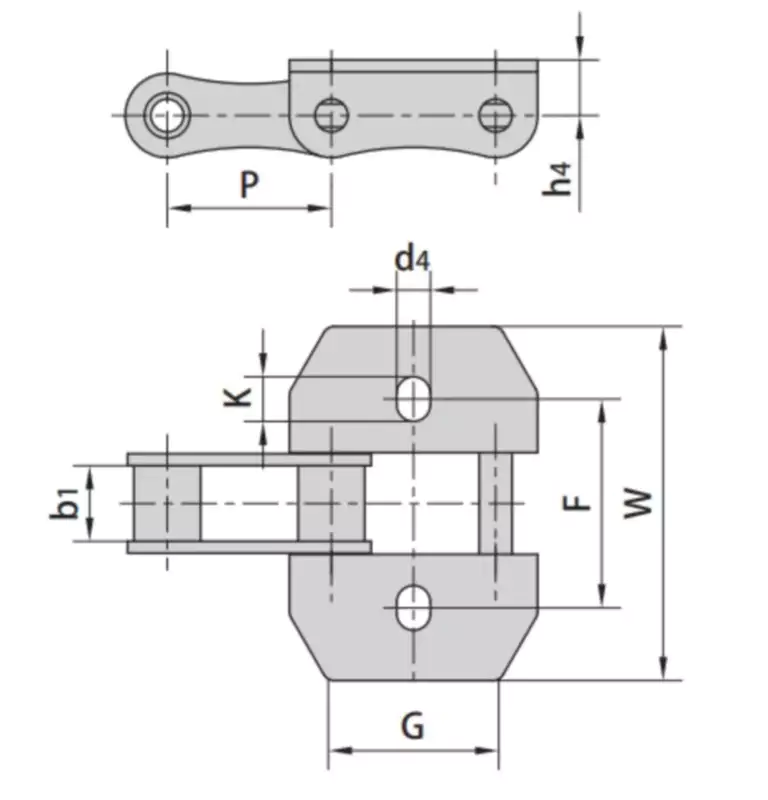

Chain No.	P	b1	G	F	W	h4	d4	K
	mm	mm	mm	mm	mm	mm	mm	mm
CA642S103	41.4	19	40	53	89.6	14.0	8.5	11.25

Various agricultural machinery such as tractors, rotary tillers, harvesters (including combine harvesters), balers, rice transplants, and threshers all adopt the chain drive system method. However, due to the different uses and different application environments of various agricultural machinery, the performance requirements of different agricultural machinery chains are caused. Each has its focus. Generally speaking, wear resistance, impact resistance, life, and high fatigue performance are the core requirements of various agricultural machinery for chains.Since the 1990s, our company has been producing agricultural roller chains. There are currently S-type, C-type, CA type, and other specifications derived from them, as well as complete accessories such as K, m, C, and F. Our quality meets or exceeds OEM requirements. At the same time, the alloy coating surface treatment technology has been applied to the pin parts of the chain. Chains with surface alloy-coated pins can withstand the worst environmental tests. The company also provides customers with low-maintenance Agricultural Machinery chains with O-rings and x-rings.

Agricultural Chain Supplier

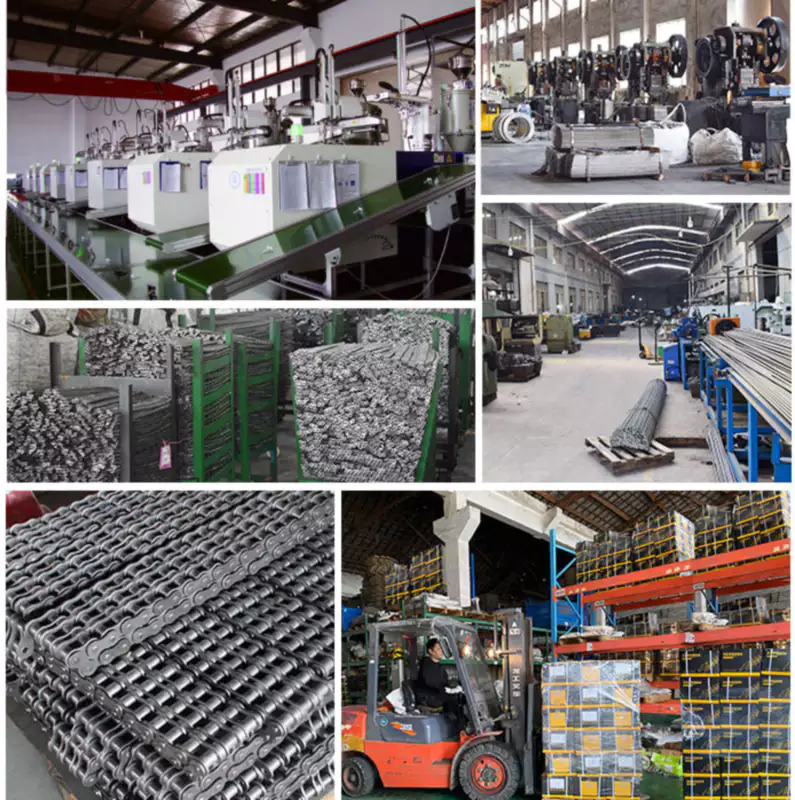

Raydafon is located in Zhejiang high-tech Development Zone. China's first company to develop and produce chain, sprocket drive parts, and a complete machine shallow groove sorter. After continuous development, it is a large-scale enterprise integrating the research and development, production, sales, and technical service of chain drive components.The company has muscular technical strength and self-developed automatic production and product assembly lines. The material heat treatment line adopts the salt pin isothermal quenching technology, with a tensile strength of more than 1250MPa and excellent performance. Material microstructure metallographic analyzer, tensile testing machine, and other testing equipment are complete. Perfect management system and quality system.The main products are roller chains, plate chains, heavy-duty bending chains, NE, NSE, Fu, DS, and other building materials industry chains, mining machine chains, heavy medium shallow groove chains, scraper chains, lifting chains, and various conveying equipment. According to users' particular requirements, we design and develop various mechanical transmission structural accessories; The products cover various industries.The company has passed the GB / t9001:2016 / iso9001:2015 standard quality management system certification. Obtained several patents and scientific and technological achievements.Continuous R & D and meeting customers' needs are our constant pursuits. Kejiang will adhere to the enterprise spirit of seeking truth, innovation, and efficiency and build a professional chain transmission enterprise with confidence and strength.

Inspection equipment

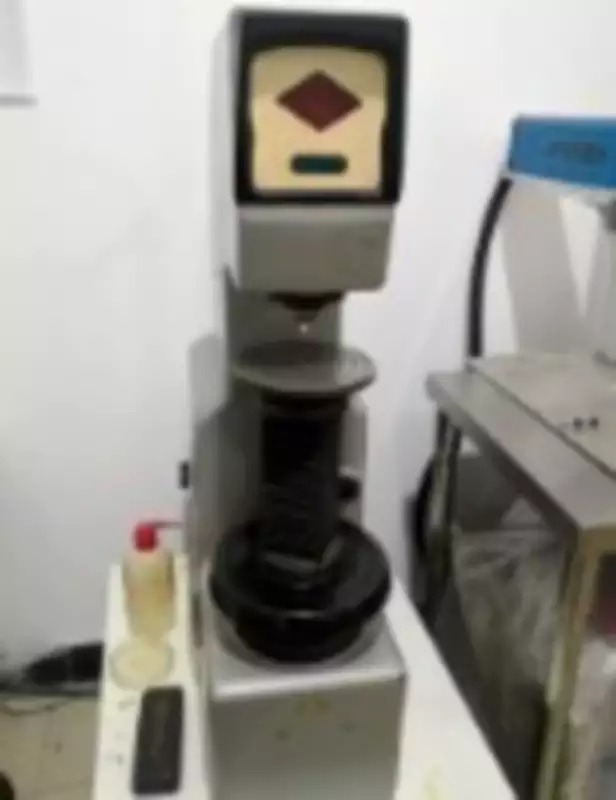

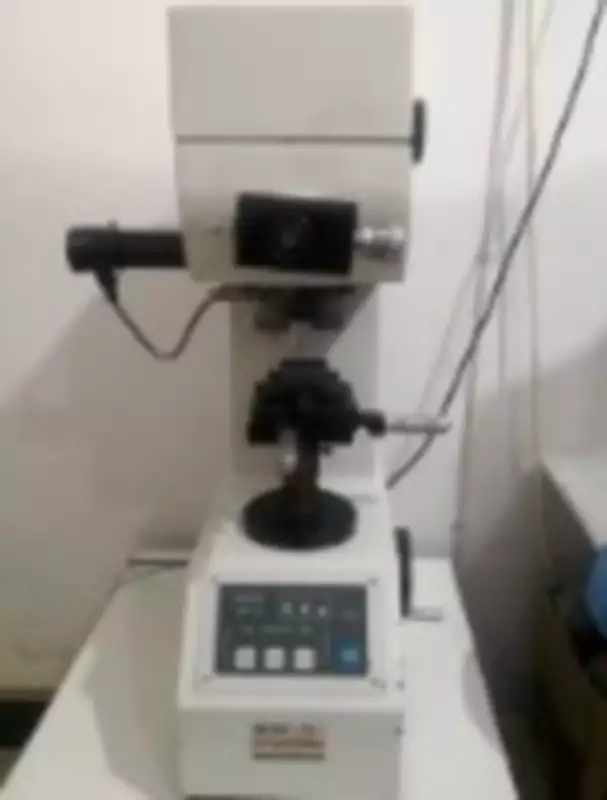

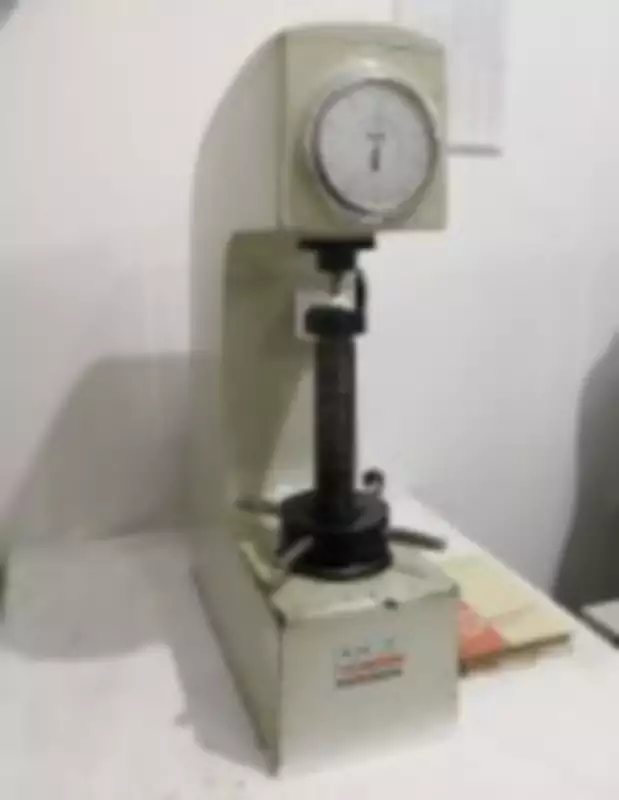

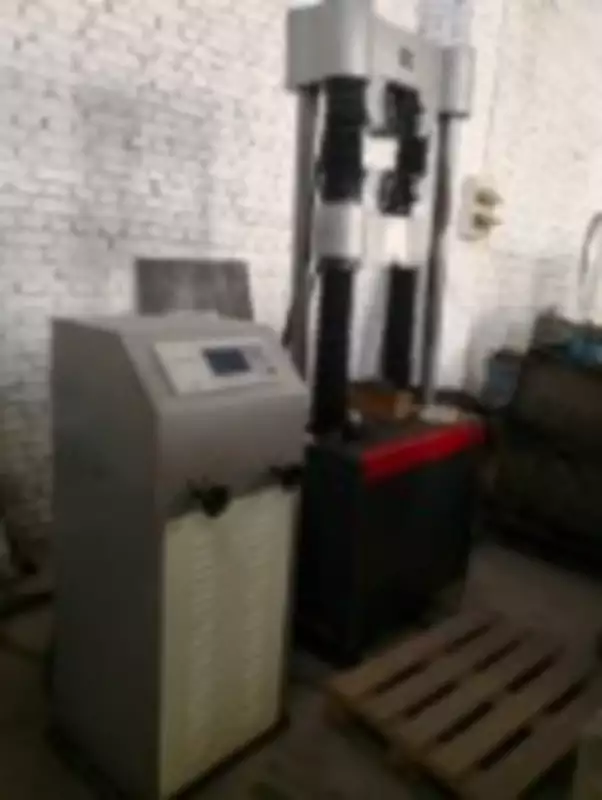

Vickers hardness tester	Rockwell hardness tester	Tensile testing machine

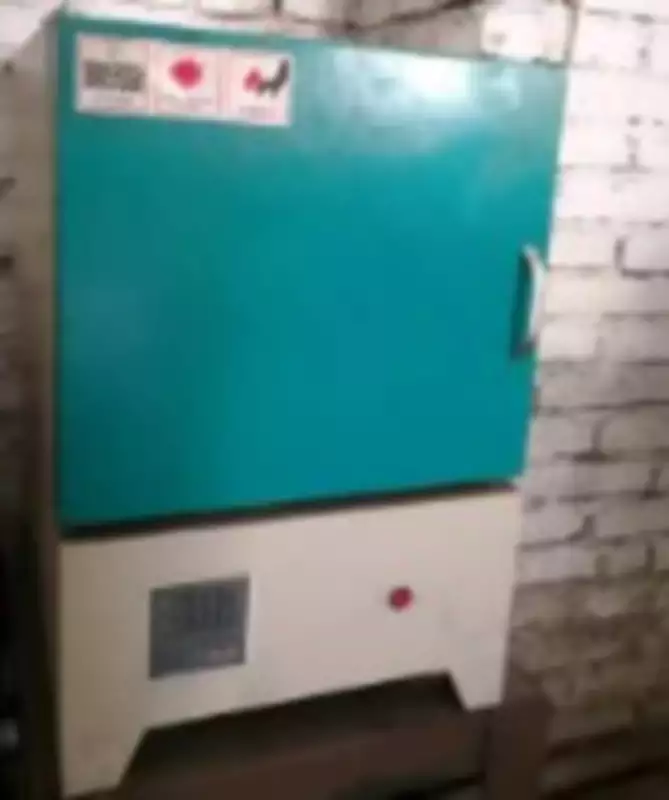

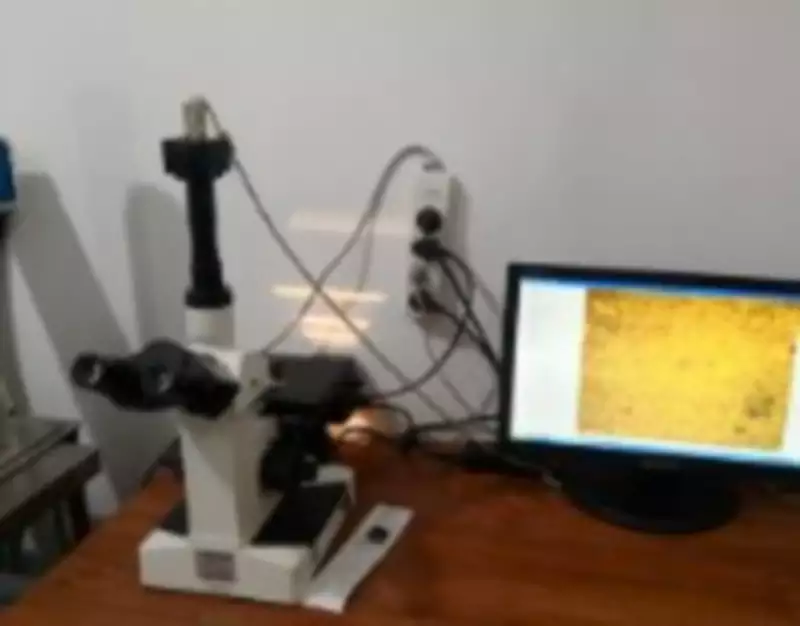

metallurgical microscope	High-temperature test furnace	Brinell hardness tester

Related Sprockets and Chains

Sprockets fit our entire conveyor chain range.The drive chain and the conveying chain are driven by sprockets. The uniform distribution of power depends on the precise transmission between the sprocket teeth and the chain rollers or bushes.Because sprockets significantly impact the chain's life, all challenging sprockets (from casting to precision mechanical cutting) are manufactured according to strict tolerances and quality control. We also recommend that all customers replace the sprocket when replacing the chain to maximize the chain life.
