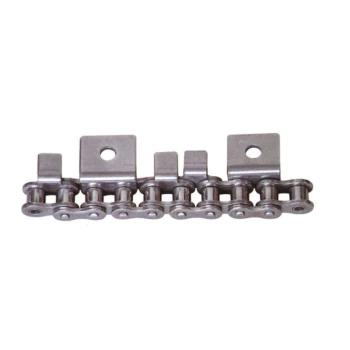

Chain for Jelly Machines

Chain for Jelly Machines

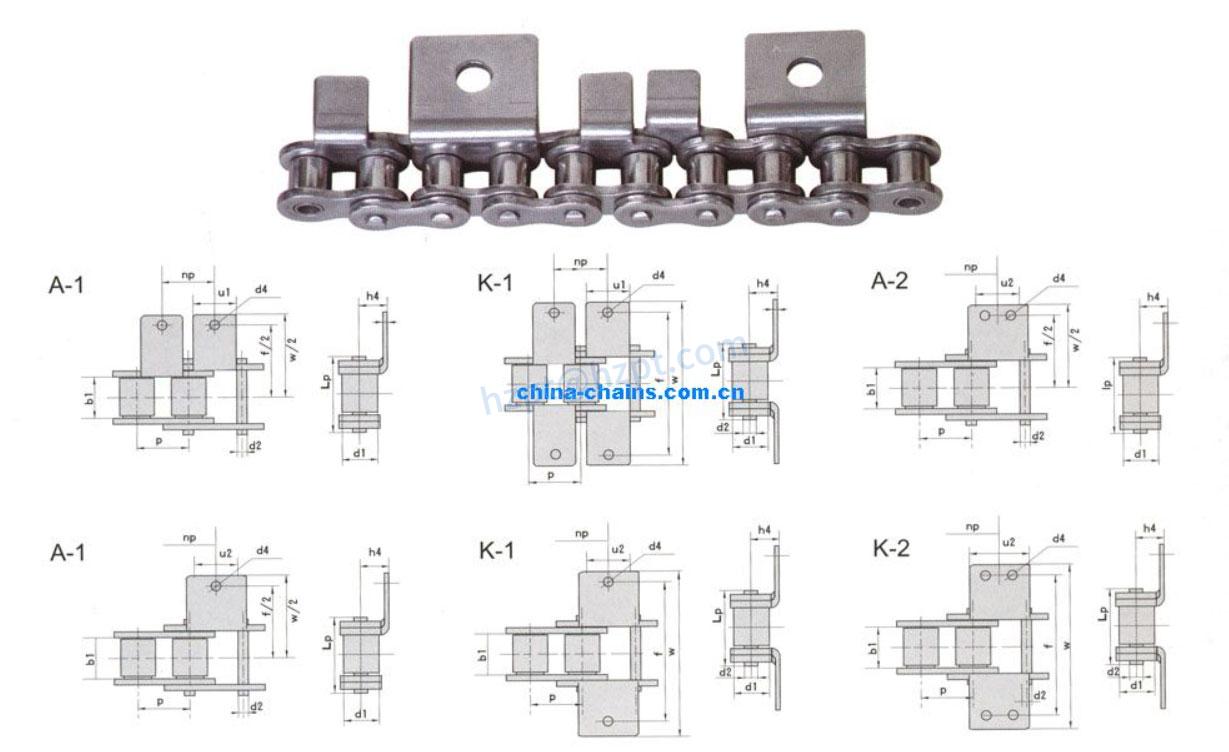

Chain for jelly machines
Chain No.	Pitch	Width between inner plates	Roller dia	Pin dia	Pin length	Pin length	Inner plate depth	Inner plate thickness
	P	b1min	Dmax	d2 max	Lpmax	Lcmax	H2max	Tmax
	mm	mm	mm	mm	mm	mm	mm	mm
08ASS-K1/A10Jn7.9B	12.7	7.85	7.95	3.96	17.8	21.7	12.07	1.5
10ASS-K1/A10Jn10.3B	12.875	9.4	10.16	5.08	21.8	25.9	15.09	2
10ASS-K1/A10Jn10.3C	15.875	9.4	10.16	5.08	21.8	25.9	15.09	2
10HSS-K1/A10Jn12.5DB	15.875	9.4	10.16	5.08	25.8	25.9	15.09	3
12ASS-K1/A2wJn10.75B	19.05	12.57	11.91	5.94	25.6	30.1	18.08	3
12AHSS-K1/A1WJn14B	19.05	12.57	11.91	5.94	25.6	30.1	18.08	3



Chains and Sprockets

• Chains and sprockets are mainly used in all applications such as transportation, machinery and other motor applications.
• Chain and sprockets are maintained with grease and oil spray to provide smoother and better operation.
• It makes the wheels run as the motor rotates and is considered as Rotation Per Minute (RPM).

Chains and sprockets are mainly used in the transport industry and machine building industry to rotate wheels by means of motors or engines. These chains and sprockets both help the wheelbase to run fast according to the engine speed. The chain hangs between the motor and the sprocket, the motor turns the sprocket and the chain is connected to the sprocket teeth, which can turn simultaneously with the motor wheel, thus making the vehicle or machine run smoothly. Raydafon is one of the leading manufacturers and suppliers in China. We can offer various high-quality drive chains and sprockets for sale.
