Combined Needle Roller Bearings

Raydafon Group's Combined Needle Roller Bearings deliver high load capacity and precision in compact designs, ideal for automotive and industrial machinery. Their durability and efficiency boost performance, solving space and wear issues, making them a superior choice for engineers seeking reliable solutions. Elevate your projects with our innovative bearings today!

Send Inquiry

Product Description

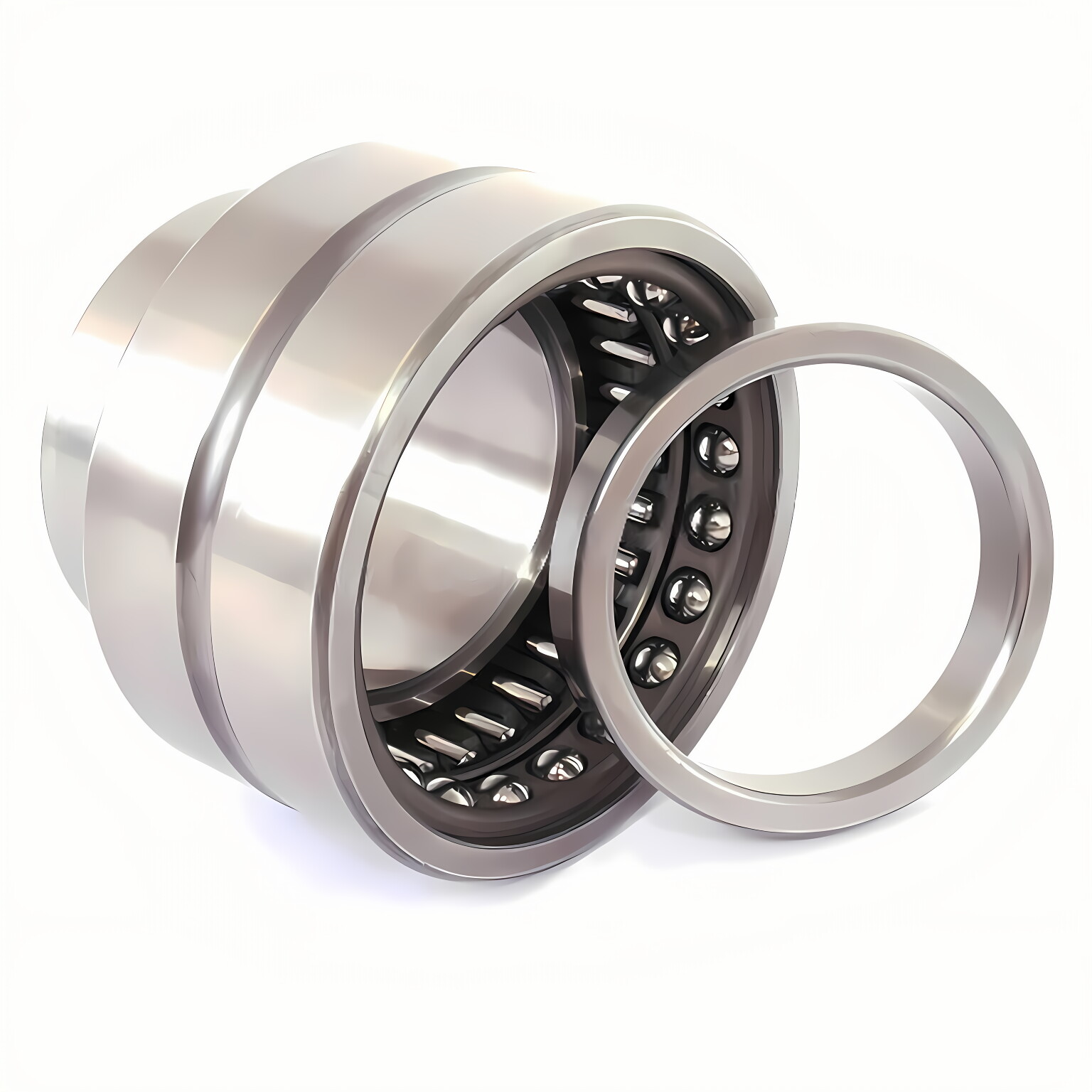

Combined Needle Roller BearingsOur combined needle roller bearings consist of a radial needle roller bearing and a thrust bearing. The combination can be Needle roller & angular contact ball bearings, Needle roller & thrust ball bearings, and Needle roller & cylindrical roller thrust bearings. They can accommodate both radial and axial loads. They are particularly suitable for applications where other types of locating bearing arrangements occupy too much space, the axial loads are too heavy, the speeds are too high, or the lubricant is inadequate for meetings with simple thrust washers.

Product parameter

Hot Tags: Combined Needle Roller Bearings, Combined Needle Bearings Supplier, Needle Roller Bearings Wholesale

Send Inquiry

Contact Info



Address

Luotuo Industrial Area, Zhenhai District, Ningbo City, China


Tel

86-574-87167707


E-mail

[email protected]

Get customized quotes for transmission components, gearboxes, and machinery. Our engineers will respond within 24 hours.

News Recommendations

What is the difference between machine screw jacks and ball screw jacks?View More >>

What Are the Differences Between Hydraulic Accessories and Hydraulic Components?View More >>

What materials are commonly used to manufacture gear racks?View More >>

What are the advantages of using hydraulic tie rod cylinders?View More >>

What safety precautions should I take when replacing machinery parts?View More >>

How do you select the right size and specifications for a welded through hole cylinder?View More >>

Online

Raydafon

We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy

Reject Accept

Bearing NO.	Boundary dimensions(mm)			Basic load rating
Bearing NO.	d	D	B	C	C0
NKIA 5901	12	24	16	8.6	9,46
NKIB 5901	12	24	17.5	8.6	9,46
NKIA 5902	15	28	18	12	14,99
NKIB 5902	15	28	20	12	14,99
NKIA 5903	17	30	18	12.4	15,97
NKIB 5903	17	30	20	11.17	15,97
NKIA 5904	20	37	23	21.17	27.44
NKIB 5904	20	37	25	21.17	27.44
NKIA 59/22	22	39	23	22.83	31.36
NKIB 59/22	22	39	25	22.83	31.36
NKIA 5905	25	42	23	23.72	33.81
NKIB 5905	25	42	25	23.72	33.81
NKIA 5906	30	47	23	24.99	38.22
NKIB 5906	30	47	25	24.99	38.22
NKIA 5907	35	55	27	31.26	52.92
NKIB 5907	35	55	30	31.26	52.92
NKIA 5908	40	62	30	42.04	69.58
NKIB 5908	40	62	34	42.04	69.58
NKIA 5909	45	68	30	44.79	76.44
NKIB 5909	45	68	34	44.79	76.44
NKIA 5910	50	72	30	46.35	83.3
NKIB 5910	50	72	34	46.35	83.3
NKIA 5911	55	80	34	56.06	103.88
NKIB 5911	55	80	38	56.06	103.88
NKIA 5912	60	85	34	59.29	111.72
NKIB 5912	60	85	38	59.29	111.72
NKIA 5913	65	90	34	60.37	117.6
NKIB 5913	65	90	38	60.37	117.6
NKIA 5914	70	100	40	82.52	159.74
NKIB 5914	70	100	50	82.52	159.74
NX 7 TN	7	14	18	2.75	2.7
NX 7 ZTN	7	14	18	2.75	2.7
NX 10	10	19	18	4.85	4.46
NX 10 Z	10	19	18	4.85	4.46
NX 12	12	21	18	5.28	5.1
NX 12 Z	12	21	18	5.28	5.1
NX 15	15	24	28	10.78	13.72
NX 15 Z	15	24	28	10.78	13.72
NX 17	17	26	28	11.86	16.27
NX 17 Z	17	26	28	11.86	16.27
NX 20	20	30	28	12.94	18.91
NX 20 Z	20	30	28	12.94	18.91
NX 25	25	37	30	14.8	24.01
NX 25 Z	25	37	30	14.8	24.01
NX 30	30	42	30	22.44	37.24
NX 30 Z	30	42	30	22.44	37.24
NX 35	35	47	30	24.11	44.1
NX 35 Z	35	47	30	24.11	44.1
NKX 10 TN	10	19	23	5.7	7.6
NKX 10 ZTN	10	19	23	5.7	7.6
NKX 12	12	21	23	8.76	11.4
NKX 12 Z	12	21	23	8.76	11.4
NKX 15	15	24	23	10.56	13.3
NKX 15 Z	15	24	23	10.56	13.3
NKX 17	17	26	25	11.62	15.77
NKX 17 Z	17	26	25	11.62	15.77
NKX 20	20	30	30	15.84	24.23
NKX 20 Z	20	30	30	15.84	24.23
NKX 25	25	37	30	18.24	30.88
NKX 25 Z	25	37	30	18.24	30.88
NKX 30	30	42	30	21.98	36.1
NKX 30 Z	30	42	30	21.98	36.1
NKX 35	35	47	30	23.62	42.75
NKX 35 Z	35	47	30	23.62	42.75
NKX 40	40	52	32	25.34	48.45
NKX 40 Z	40	52	32	25.34	48.45
NKX 45	45	58	32	26.4	54.15
NKX 45 Z	45	58	32	26.4	54.15
NKX 50	50	62	35	36.48	74.1
NKX 50 Z	50	62	35	36.48	74.1
NKX 60	60	72	40	40.13	91.68
NKX 60 Z
