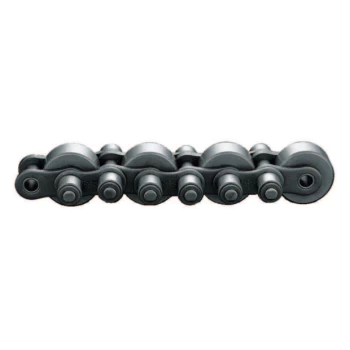

Conveyor Chains with Large Rollers 16BS-65-C24 208BS-35-C24 212BSF2

Conveyor Chains with Large RollersPitch 25.4/38.1/50.8/63.0

A conveyor chain can be made easier by large rollers.?There are two types of large rollers: the R-roller and the S-roller.?For shorter conveyors, the S-roller works best. The R-roller can handle longer conveyors.?Special attachments can also be used to maximize the performance of your conveyor chain.The most popular type of conveyor chain is the double-pitch roller chain.?This type meets the requirements of ANSI B29.?The versatility of double-pitch roller chains is great and they can be retrofitted to most applications.?For long-term durability, this style offers a high strength-to-weight ratio.?You can also purchase a variety of attachments.?You can choose from a standard or large size Double-Pitch Roller Chain.These chains can be used for heavy-duty applications.?These chains are great for manufacturing facilities that have to move large quantities of goods fast.?They can be used to transport crates, bins, and racks.?They are particularly useful in food production and citrus processing.

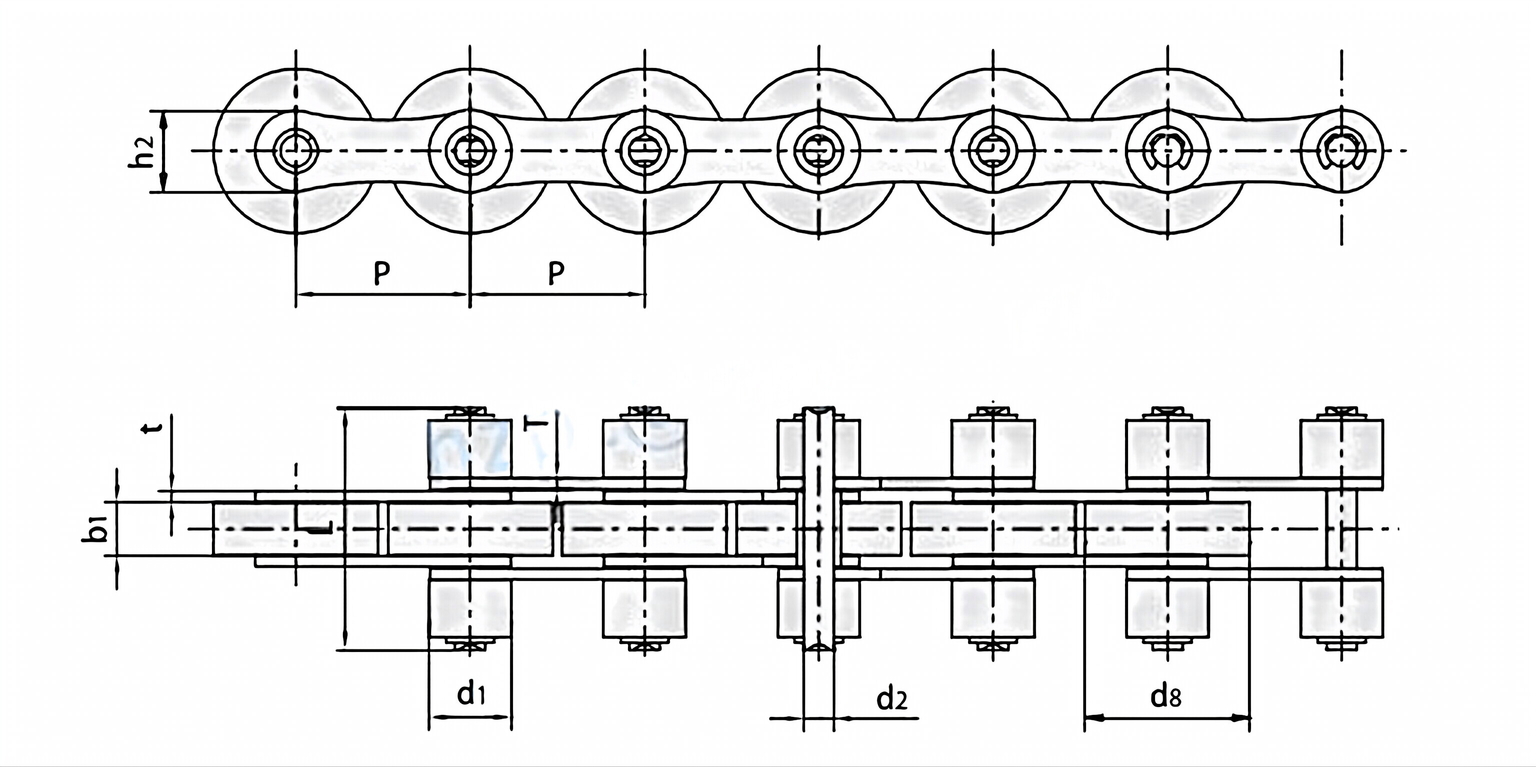

Dimensions of Conveyor Chains with Large Rollers



Chain No.	Pitch	Roller diameter		Width between inner plates	Pin diameter	Pin length	Plate dimension		Ultimate tensile strength	Average tensile strength
	P	d1 max	d8 max	b1min	d2max	Lmax	h2 max	t/Tmax	Qmin	Q0
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN
16BS-65-C24	25.4	15.88	24.0	17.02	8.28	65.0	21.0	4.15/3.10	60.0/13636	72.8
208BS-35-C24	25.4	12.00	24.0	7.75	4.45	35.0	11.8	1.60	18.0/4091	19.8
*208BSF1-35-P24	25.4	12.00	24.0	7.75	4.45	35.0	11.8	1.60	18.0/4091	19.8
212BS-48-C28	38.1	12.07	28.0	11.68	5.72	48.0	16.0	1.85	28.9/6568	31.7
212BSF2	38.1	12.07	28.0	11.68	5.72	43.0	16.0	1.85	28.9/6568	31.7
212BSF3	38.1	12.07	28.0	11.68	5.72	48.0	16.0	1.85	28.9/6568	31.7
*212BSF4	38.1	12.07	24.0	11.68	5.72	48.0	16.0	1.85	28.9/6568	31.7
212BSF5-43-C28	38.1	12.07	28.0	11.68	5.72	43.0	16.0	1.85	28.9/6568	31.7
*216BS-65-P50	50.8	15.88	50.0	17.02	8.28	65.0	21.0	4.15/3.10	60.0/13636	72.8
216BS-65-C38.5	50.8	15.88	38.5	17.02	8.28	65.0	21.0	4.15/3.10	60.0/13636	72.8
216BS-65-C40	50.8	15.88	40.0	17.02	8.28	65.0	21.0	4.15/3.10	60.0/13636	72.8
63PS	63.0	40.00	50.0	24.50	14.00	91.5	35.0	5.10	90.0/20232	135.0
63PSF1	63.0	38.00	46.0	21.60	12.00	84.0	30.0	4.00	66.68/15000	85.0

Note: *means roller made in plastic.

Sprockets for Conveyor Chains with Large Rollers

Sprockets for conveyor chains with large rollers have a variety of performance characteristics. Some of these characteristics are dependent upon the type and style of chain. Some sprockets are double-pitch, while others engage the chain only on alternate pins. The latter are specialty designs that can be custom-fabricated. Several other criteria determine sprocket choice, including type, diameter, and tooth pitch.Sprockets for conveyor chains with large rollers are paired with the appropriate roller chains based on size and type. The size and type of chain are critical for the function of the conveyor. Depending on the application, there may be a specific chain length that is required. The chain length elongates with time due to the friction caused by the chain circling the sprocket. The elongated length of the chain causes the pin and bushing to wear out, increasing the distance between rollers.Ensure the sprockets are properly lubricated. This prevents excessive wear and tear. If not, consider replacing them. Regular manual lubrication is essential. Regular replacement of worn parts can also prevent excessive wear. In addition, check for excessive slack in the chain. This may result in excessive chain movement.Conveyor chain sprockets have different designs. Some sprockets have a hunting tooth arrangement, which distributes wear over two sets of teeth. Another way to identify a sprocket is by its chain size or pitch. Pitch is the distance between pins on a chain, and is usually measured in inches or millimeters.As a mature supplier of chains and sprockets in China, Raydafon also provides highly durable sprockets for sale besides conveyor chains. Contact us now if you are interested.
