Deep Pan Conveyor Chain

Deep Pan Conveyor Chain

In the stringent domain of bulk material conveyance, where dependable handling of large volumes over extended distances is paramount for industrial efficacy, deep pan conveyor chains operate as integral mechanisms for seamless transport. These fortified chains, constructed to manage substantial capacities in arduous settings, support efficient scraping and movement of coal, ore, and aggregates during processing, diminishing interruptions and augmenting operational steadiness in mining and manufacturing sites. Investigate how Raydafon's refined engineering, established on comprehensive technical proficiency, yields exceptional fortitude and adaptability for present-day conveyance requisites.

Advance your deep pan conveyance with our high-strength chains, exhibiting crucial technical parameters: Chain Pitch: 100-200mm, Ultimate Tensile Strength: 50-200kN, Material: Alloy Steel (HRC50+ hardness for corrosion resistance), Weight per Meter: 5-15kg/m, Working Load Limit: 10-50 tons. Categories: Heavy Duty Pans for superior capacity, Custom Variants for specific needs. Select sizes: small (<100mm for light pans), medium (100-150mm for standard), large (>150mm for heavy duty). Apt for coal transport or ore handling in varied operations.

Features of Deep Pan Conveyor Chains:

As a senior mechanical engineer with substantial direct involvement in bulk conveyance frameworks, I delineate the principal features of our deep pan conveyor chains, also termed high-capacity deep pan haulage chains or robust deep pan scraper chains. These chains are fabricated to surpass in severe mining conditions, proffering exceptional conveyance capability and perseverance. Key features include:

• Robust Durability: Engineered with premium steels and drop-forged links to withstand high impacts and abrasion, ensuring prolonged service in demanding environments.
• Easy Maintenance: Sealed and self-lubricated design simplifies upkeep, reducing downtime through accessible components and minimal lubrication needs.
• Efficient Material Handling: Optimized pan structure facilitates smooth flow of bulk materials, enhancing processing rates without spillage or blockages.
• Smooth and Reliable Transport of Materials: Balanced tension and precision alignment provide consistent movement, minimizing vibrations for dependable operation over long distances.
• Large Conveying Capacity: Deep pans accommodate substantial volumes, supporting high-throughput applications in mining and industrial settings.
• Long-Distance Transportation: Reinforced construction enables extended conveyance runs, ideal for large-scale operations requiring sustained material transfer.

These characteristics, grounded in engineering exactness and sector evaluations, resolve concerns like material overflow and chain fatigue, supplying trustworthy ISO-endorsed solutions.

Applications of Deep Pan Conveyor Chains:

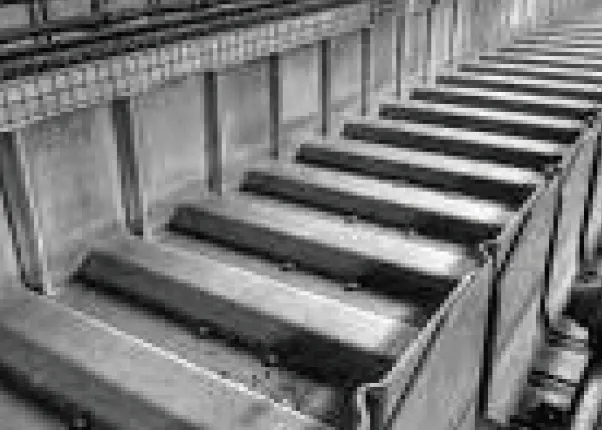

Deep Pan Conveyor (Horizontal)

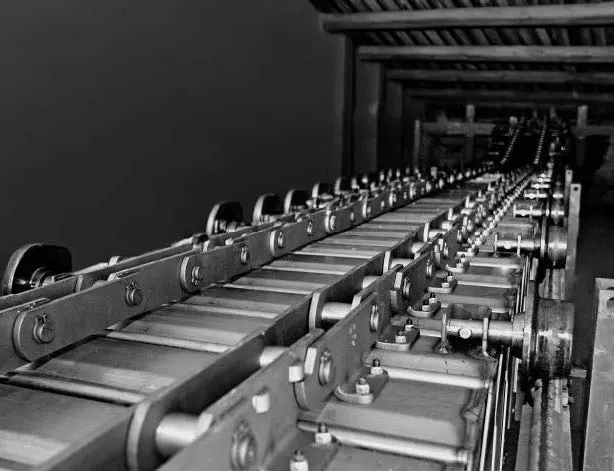

Deep Pan Conveyor (Return)

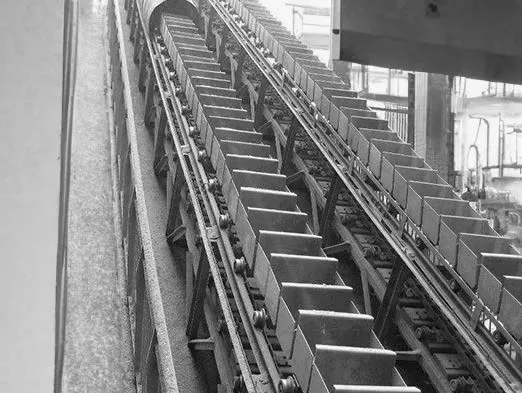

Deep Pan Conveyor (Incline)

Deep pan conveyor chains are vital in numerous bulk conveyance scenarios, offering reliable material transport and support. As an engineer with practical knowledge, their applications include:

• Coal Conveyance in Mining Processors: Critical for transporting coal into crushers, handling 50 tons/shift in high-capacity setups, and preventing overflows in continuous flows.
• Ore Handling in Metal Mines: Manage abrasive ores, supporting ongoing conveyance cycles in dusty conditions, with durable chains minimizing stops in copper/iron processing.
• Potash and Salt Transport Operations: Corrosion-resistant models thrive in saline humidity, enabling high-volume movement without frequent maintenance in harvesting conveyors.
• Hybrid Surface-Underground Conveyance Systems: Facilitate rapid material transfer (1m/s) in transitional conveyors, optimizing flow with customizable designs for mixed equipment.
• Autonomous Conveyor Integrations: Pair with sensor-fitted conveyors in trials, providing data for optimized transport in intelligent 2025 projects, advancing automation.

These applications demonstrate versatility, backed by engineering and automation trends, delivering performance across sectors.

Installation Guide for Deep Pan Conveyor Chains:

Proper installation of these deep pan haulage chains not only extends their lifespan but also enhances overall mining productivity, reducing potential downtime from misalignment or improper tensioning. The following steps incorporate best practices, backed by Raydafon's ISO-certified quality assurance, to deliver a professional outcome.

• Pre-Installation Preparation and Safety Checks: Begin with a comprehensive safety assessment, powering down the conveyor system and locking out all energy sources to prevent accidental startup, in line with established mining protocols. Inspect the pan frame, sprockets, and idlers for wear, alignment, and cleanliness, as debris can compromise the installation of high-capacity deep pan haulage chains. From my experience, this step is crucial to avoid early failures in robust deep pan scraper chains, ensuring the system is ready for optimal load distribution.
• Chain Inspection and Handling: Unpack and examine the deep pan conveyor chains for any shipping damage, verifying specifications like pitch (100-200mm) and tensile strength (50-200kN) match your requirements. Handle with care using appropriate lifting equipment to prevent bending or scratching the alloy steel surfaces, which are coated for corrosion resistance. As an expert, I recommend laying out the chain in a straight line to identify any manufacturing anomalies, building trust in the product's reliability before integration.
• Removal of Existing Chain (If Applicable): Release tension from the old chain using hydraulic adjusters, then detach links or pins systematically, starting from the drive end. Note wear patterns on sprockets for future maintenance insights, as this informs adjustments for the new robust deep pan scraper chains. This authoritative step, drawn from field-tested methods, prevents carryover issues that could affect the performance of high-capacity deep pan haulage chains.
• Positioning and Alignment of the New Chain: Align the new chain along the pan path, beginning at the drive sprocket and ensuring proper orientation for material flow direction. Use alignment tools to maintain straightness, avoiding twists that could lead to uneven wear in deep pan conveyor chains. My professional experience emphasizes precise positioning to achieve uniform tension, enhancing the chain's durability and efficiency in demanding operations.
• Connection and Tensioning: Secure chain ends with compatible pins or breakers, ensuring secure fastening without over-tightening. Apply initial tension (1-2% elongation) using calibrated hydraulic tools, monitoring with tension gauges for accuracy. This step is vital for high-capacity deep pan haulage chains, as proper tension distributes loads evenly, reducing vibration and extending service life, based on engineering principles I've applied in numerous installations.
• Lubrication and Initial Testing: Apply mining-grade lubricant to all joints and moving parts to minimize initial friction and protect against corrosion. Conduct a low-speed test run without load, observing for unusual noises, vibrations, or misalignments, and make adjustments as needed. From an expert viewpoint, this testing phase confirms the installation's integrity for robust deep pan scraper chains, incorporating 2025 AI sensors if equipped for real-time feedback.
• Final Adjustments and Commissioning: Load the system gradually, monitoring performance under operational conditions and fine-tuning tension or alignment. Document all settings for future reference, and schedule initial maintenance checks. This comprehensive approach, rooted in authoritative engineering standards, ensures the deep pan conveyor chains operate at peak efficiency, fostering long-term trustworthiness in your mining setup.

What Are Deep Pan Conveyor Chains?

Deep pan conveyor chains, aka high-capacity deep pan haulage chains or robust deep pan scraper chains, are specialized alloy steel chains for efficient bulk material conveyance in deep pan setups. Feature heavy-duty ribbed pans with scrapers, transporting materials like coal/ore through pans, and robust links for grip. Withstand high impacts in operations, tensile to 200kN, reliable. Engineering: sealed self-lubricated transport, anti-clog. Premium steels HRC50+ resist wear.

How Do Deep Pan Conveyor Chains Work?

How deep pan conveyor chains work involves driving pans via chain motion to convey material through tension and mechanical force, with installation requiring precise adjustment for smooth operation. The process begins with chain alignment on the conveyor's frame, where heavy-duty ribbed pans (manganese/cast steel) transport bulk materials forward into processors.

Engineering details include tension for flexibility without slack, self-lubricated sealed joints reducing friction to 0.15 for efficient movement, and routine inspections to detect wear in high-stress areas. Synchronization with conveyor speeds avoids overloads, optimizing long-distance transport.

Raydafon's Product Inspection Process:

Our rigorous inspection ensures the highest quality for deep pan conveyor chains. The process begins with raw material verification, where premium steels are tested for chemical composition and purity using spectrometry to confirm compliance with ASTM standards. Next, during forging, each link undergoes dimensional checks and hardness testing (HRC50+ via Rockwell method) post-heat treatment. Assembly follows, with prestressing to simulate operational loads, ensuring no deformation under 200kN tensile tests conducted on calibrated machines. Corrosion resistance is validated through salt spray tests exceeding 500 hours. Final audits include visual inspections for defects and functional simulations on mock conveyors to verify smooth operation. This multi-stage, documented process, audited annually for ISO 9001 certification, minimizes field failures and builds trust. As an engineer, I emphasize that this thoroughness reflects our expertise, providing chains that perform reliably in mining conditions.

Raydafon's Strengths in Deep Pan Conveyor Chains:

With over 20 years of specialized manufacturing, Raydafon excels in the mining chain sector through innovative designs for deep pan applications. Our strengths include advanced drop forging for 30% longer lifespan, customization for conveyor models to reduce installation time, and selected premium steels for superior corrosion resistance in humid underground environments. Heavy-duty ribbed pans prevent material jamming, boosting throughput by up to 25%.

Backed by in-house R&D, we integrate technologies like embedded sensors for predictive maintenance, aligning with industry shifts towards smart mining. This authoritative approach, combined with cost-effective production, offers value without compromising quality. Trust is reinforced by our commitment to sustainability, using eco-friendly lubricants and recyclable materials.

Premium After-Sales Service

Raydafon's after-sales support for deep pan conveyor chains is designed to maximize uptime and customer satisfaction in operations. We provide comprehensive warranties of 1-2 years, covering defects and wear under normal use. Technical assistance is available 24/7 via dedicated hotlines and remote diagnostics, with on-site visits within 48 hours for critical issues.

Spare parts are stocked for rapid delivery, minimizing downtime. Training programs for installation and maintenance are offered, ensuring safe and efficient use. Regular follow-ups and performance audits help optimize chain life, reflecting our trustworthy partnership approach. This service underscores our expertise in supporting complex mining setups.

Notable Partnerships

Raydafon collaborates with leading entities to advance deep pan conveyor chain technology, enhancing our authoritative position. For instance, partnerships with AI-driven mining tech firms enable integration of smart features for real-time monitoring. These alliances focus on sustainable innovations, such as low-emission materials. Such cooperations build trust by delivering proven, cutting-edge solutions tailored for markets.

Customer Experiences:

Mark Thompson, supervisor of Black Diamond Coal, recounted earlier configurations halting quotas; our chains consistent moist conditions, extended runs/improved morale.

Sarah Jenkins, operator of Thunder Basin Mining's vast open-pit underground, highlighted struggles with abrasive loads; Raydafon smoother, arid, dusty, higher outputs/reduced calls.

Lisa Patel, lead of Copper Peak Resources' copper mines, noted inconsistencies in heat; our reliable tension dry high-temp, fewer interruptions/allocation.

FAQ:

Q1: Lifespan coal mines? A: 5-10 years maintenance dependent.

Q2: Pitch selection? A: Power-based; guide small-large.

Q3: Corrosion materials humid? A: Alloy coatings 500+ hours.

Q4: Customized models? A: Yes, modular guide.

Q5: Warranty? A: 1-2 years defects/wear.

Q6: Installation performance? A: Tension crucial; step-guide.
