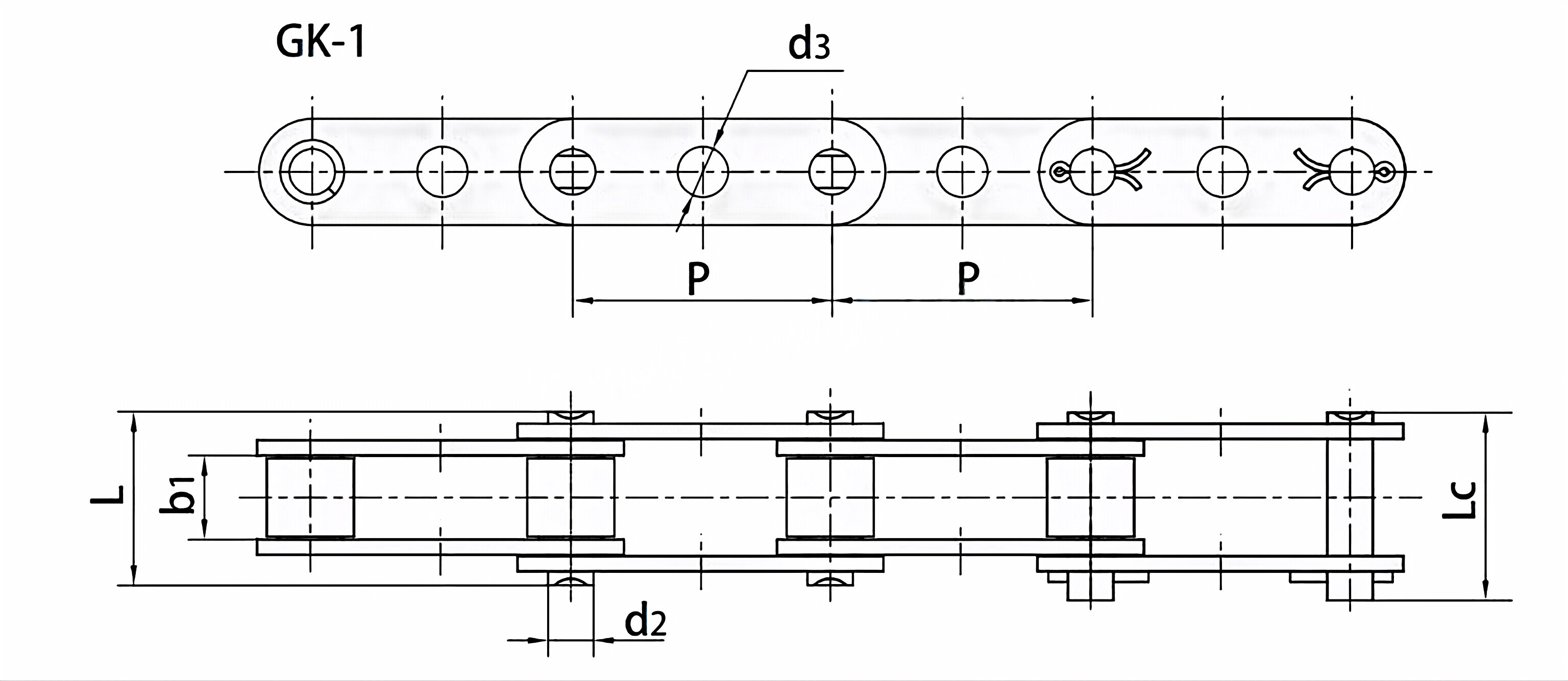

Double Pitch Conveyor Chain Special Attachments GK-1

Double Pitch Conveyor Chain Special Attachments GK-1

ISOChain No.	ANSIChain No.	Pmm	b1mm	d2mm	d3mm	Lmm	Lcmm
C208A C208AL	C2040 C2042	25.40	7.85	3.96	4.1	16.6	18.8
C210A C210AL	C2050 C2052	31.75	9.40	5.08	5.1	20.7	23.3
C212A C212AL	C2060 C2062	38.10	12.57	5.94	6.1	25.9	28.3
C212AH C212AHL	C2060H C2062H	38.10	12.57	5.94	6.1	29.2	31.6
C216A C216AL	C2080 C2082	50.80	15.75	7.92	8.1	32.7	36.5
C216AH C216AHL	C2080H C2082H	50.80	15.75	7.92	8.1	36.2	39.4
C220A C220AL	C2100 C2102	63.50	18.90	9.53	10.1	40.4	44.7
C220AH C220AHL	C2100H C2102H	63.50	18.90	9.53	10.1	43.6	46.9



Raydafon GK-1 Double Pitch Conveyor Chain Special Attachment

RaydafonChain No.	P	b1	d2	d3	L	Lc
	mm	mm	mm	mm	mm	mm
C2040GKF6	25.40	7.85	3.96	6.10	16.6	18.8
C2050GKF2	31.75	9.40	5.08	8.10	20.7	22.2
C2050GKF3	31.75	9.40	5.08	8.10	20.7	22.2
C2050GKF4	31.75	9.40	5.08	7.00	20.7	22.2
C2050GKF5	31.75	9.40	5.08	7.10	20.7	22.2
C2050GKF6	31.75	9.40	5.08	6.00	20.7	22.2
C2050GKF7	31.75	9.40	5.08	6.10	20.7	22.2
C2050GKF8	31.75	9.40	5.08	8.30	20.7	22.2
C2050HGK	31.75	9.40	5.08	8.20	22.1	23.4
C2050HGKF1	31.75	9.40	5.08	7.00	22.1	23.4
C2052HGKF3	31.75	9.40	5.08	6.00	22.1	23.4
C2050HGKF4	31.75	9.40	5.08	8.10	22.1	23.4
C2060GKF1	38.10	12.57	5.94	8.00	25.9	27.7
C2060GKF2	38.10	12.57	5.94	8.10	25.9	27.7
C2060GKF3	38.10	12.57	5.94	6.20	25.9	27.7
C2060GKF8	38.10	12.57	5.94	8.80	25.9	27.7
C2060HGKF3	38.10	12.57	5.94	8.20	29.2	31.6
C2060HGKF4	38.10	12.57	5.94	8.30	29.2	31.6
C2060HGKF5	38.10	12.57	5.94	6.00	29.2	31.6
C2060HGKF6	38.10	12.57	5.94	8.30	29.2	31.6
C2060HGKF7	38.10	12.57	5.94	10.00	29.2	31.6
C2060HGKF10	38.10	12.57	5.94	8.80	29.2	31.6
C2060HF9	38.10	12.57	5.94	7.95	29.2	31.6
C2060HF69GK	38.10	12.57	5.94	8.33	28.7	30.8
C2080HGKF2	50.80	15.75	7.92	7.90	36.2	39.4
C2080HGKF6	50.80	15.75	7.92	11.00	36.2	39.4
C2080HGKF12	50.80	15.75	7.92	10.97	36.2	38.9
C220AGK	63.50	18.90	9.53	8.00	40.4	44.7
C208BGKF1	25.40	7.75	4.45	6.00	16.7	18.2
C208BGKF3	25.40	7.75	4.45	4.50	17.7	20.1
C208BGKF4	25.40	7.75	4.45	6.10	16.7	18.2
C208BGKF6	25.40	7.75	4.45	6.00	16.7	19.3
C210BF2GK	31.75	7.00	5.08	5.97	16.5	-

Sprockets for Double Pitch Conveyor Chains

Many manufacturing companies have standard issues of sprockets for double pitch conveyor chain chains.?These sprockets have a higher number of teeth and a longer wear life than single pitch ones.?Double pitch sprockets are available in single- or double-toothed designs.?Double pitch conveyor chains are wider in pitch and can be used for precise positioning.Double pitch conveyor chain sprockets are made of flame-cut steel and precision machined.?There are two types of them: the A Type and the B Type.?The B Type is cheaper and has one hub, while the C Type uses two.Double pitch roller chains look similar to single pitch ones, but their link plates are larger than usual.?This reduces chain weight, making it more suitable for power transmission applications.?Transport rollers are also included in double pitch roller chains. These reduce friction and tensile force during transport.Raydafon has a wide range of?sprockets for sale?at competitive prices. Contact us and get more!

Packaging of Conveyor Chains

Our chain is most commonly supplied in 10ft boxes, including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability, please contact us at any time.
