DR270-2.65 6-Axis Articulated Robotic Arm for Automation Cutting/Assembly/Handling/Marking/Grinding

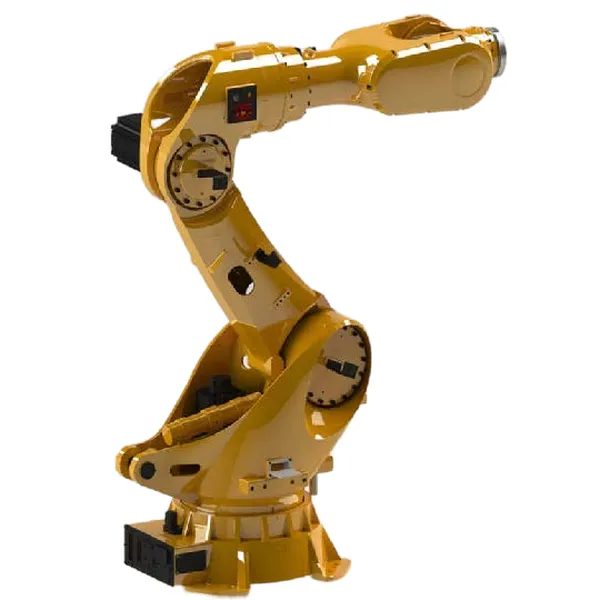

DR270-2.65 6-Axis Articulated Robotic Arm

The DR270-2.65 6-axis articulated robotic arm is designed for various industrial applications. It is a versatile and high-performance robotic arm that offers precision, flexibility, and reliability in automation tasks. The robotic arm is designed to achieve precise and accurate movements. It is equipped with high-quality motors, sensors, and control systems that enable it to perform tasks with repeatability and positional accuracy. The DR270-2.65 6-axis articulated robotic arm can automate packaging and palletizing tasks, improving efficiency and reducing manual labor requirements in industries like food and beverage, pharmaceuticals, and logistics.

DR270-2.65 6-Axis Articulated Robotic Arm Features:

1. 2.65 meters arm span, strong load capacity, large working range and high flexibility.2. Fast running speed, high repeat positioning accuracy, suitable for loading and unloading, handling, sorting, assembly and other applications, wide range of applications.3. The body cable adopts the special cable for flexible robot.4. The small arm adopts double cantilever cast aluminum parts, is light in weight, and is strong in rigidity.5. New control algorithm, kinematics and dynamics combination. New design, drive algorithm, control algorithm, according to the mechanical parts characteristics, load conditions, to achieve automatic planning, to ensure that the mechanical life while the robot in the maximum allowable capacity range of work, the robot life is longer, the robot to achieve a high-speed response, running faster, more flexible, more stable, faster work beat.6. with collision detection function, better protection of the robot body and peripheral equipment; with gravity compensation function, the robot is more accurate, to meet the higher precision of the scene application, to broaden the application scene.7. Three-phase filter is installed inside, effectively isolating external interference and preventing internal interference output.

DR270-2.65 6-Axis Articulated Robotic Arm Technical Parameters

Models	DR270-2.65
Arm form	Vertical multi-joint (6-axis)
Maximum loads	270KG
Maximum stroke	J1	±185°
	J2	-65°～+88°
	J3	-165°～+80°
	J4	±360°
	J5	±125°
	J6	±360°
Maximum speed	J1	100°/s
	J2	90°/s
	J3	90°/s
	J4	140°/s
	J5	110°/s
	J6	180°/s
Allowable torque	J4	1300N.M
	J5	1300N.M
	J6	870N.M
Repeat Positioning Accuracy	±0.08
Maximum coverage area	2922.6
Body weight	1250KG
Installation Methods	Floor
Installation Environment	Environmental temperature	0-45℃
	Relative humidity	20-80% (no condensation)
	vibratory	Below 0.5G
	other	The robot must be installed away from: flammable or corrosive liquids or gases Electrical interference sources.
IP rating	Wrist IP67, rest IP54
Characteristic	Compact, high speed, high accuracy, high expandability, easy to operate
Application scenario	Cutting, assembly, handling, marking, grinding

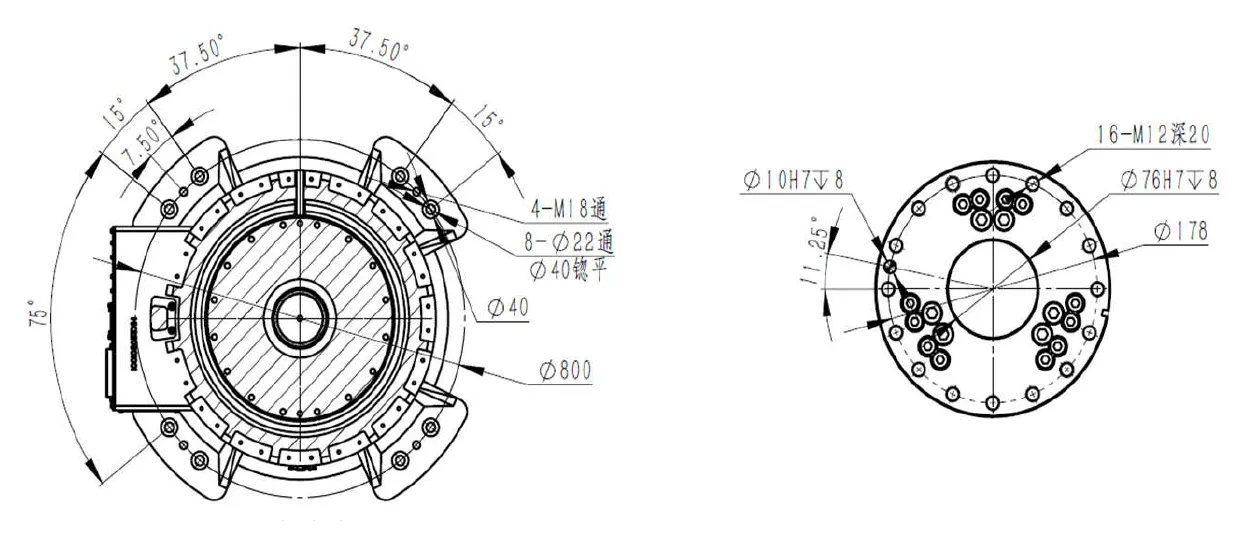

DR270-2.65 6-Axis Articulated Robotic Arm?Mounting Interface Diagram

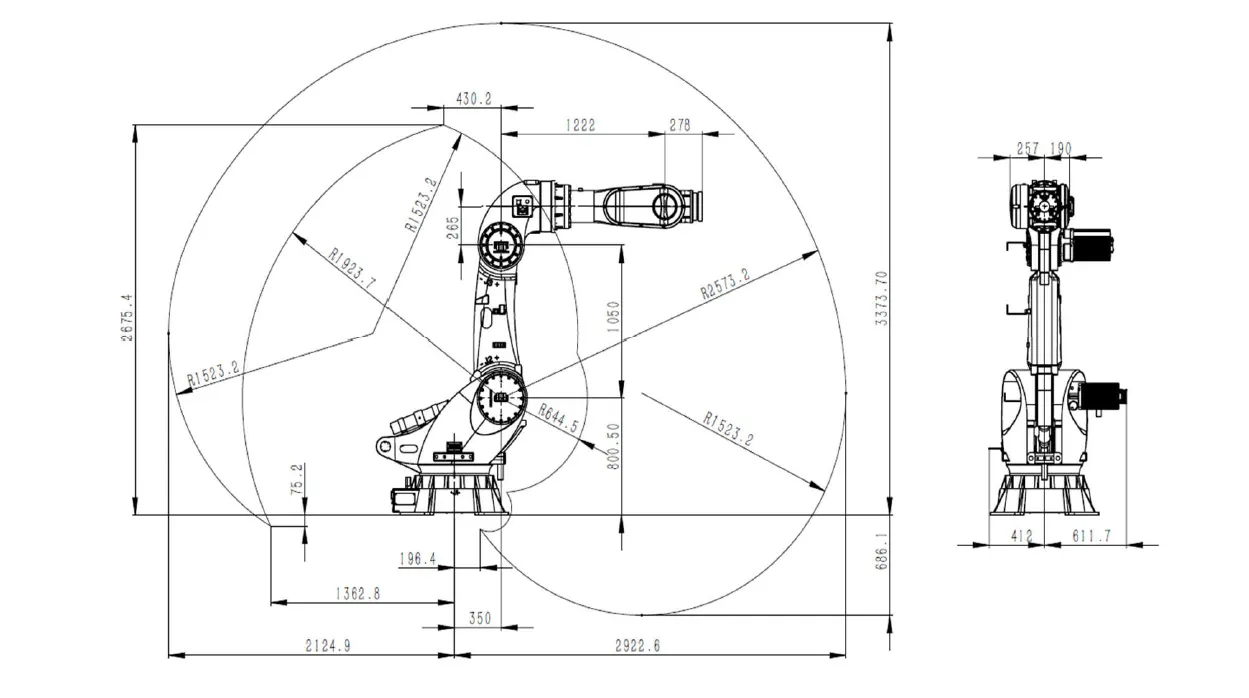

DR270-2.65 6-Axis Articulated Robotic Arm Scope of Work Diagram

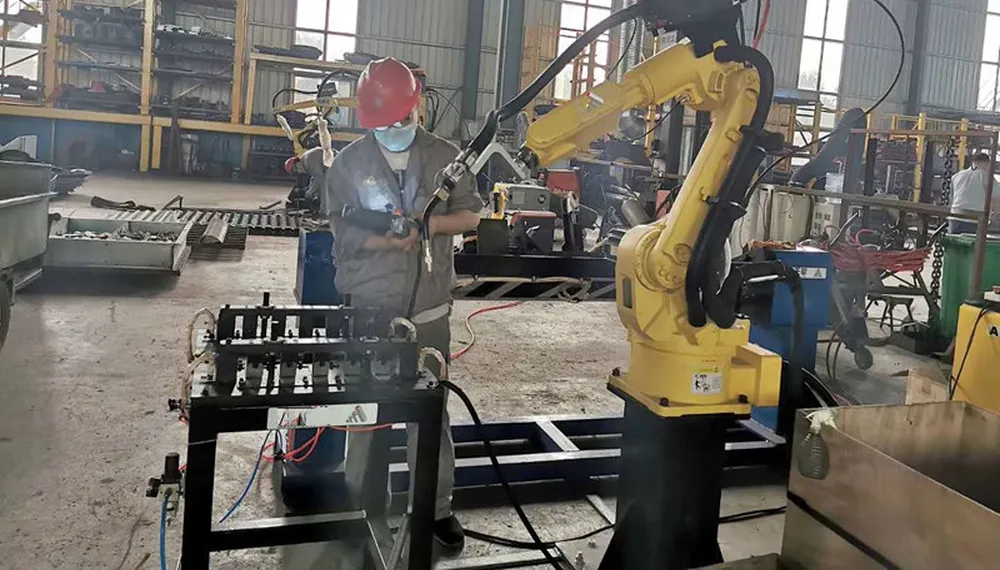

Advantages of DR270-2.65 6-Axis Articulated Robotic Arm:

The DR270-2.65 6-Axis Articulated Robotic Arm offers several advantages that make it a highly desirable solution for industrial automation. Here are some key advantages of the DR270-2.65:1. Versatility and Flexibility: The 6-axis design of the DR270-2.65 6-axis articulated robotic arm provides a wide range of motion, allowing it to reach and manipulate objects in complex and confined spaces. This flexibility enables the robot to perform various tasks and adapt to different production requirements.2. Precise and Accurate Movements: The DR270-2.65 6-axis robotic arm is designed to achieve precise and accurate movements. It is equipped with high-quality motors, sensors, and control systems that ensure repeatability and positional accuracy. This precision is crucial for tasks that require delicate handling or tight tolerances.3. Increased Productivity: By automating repetitive and labor-intensive tasks, the DR270-2.65 6-axis articulated robotic arm significantly increases productivity. The robot can work continuously without getting fatigued, leading to improved cycle times and higher throughput. Its efficiency helps businesses meet production demands more effectively.4. Improved Safety: The DR270-2.65 6-axis robotic arm prioritizes safety with built-in features that protect both operators and the robot itself. Collision detection systems can sense obstacles or unexpected contact, triggering the robot to stop or adjust its path to avoid accidents. These safety features minimize the risk of injuries and protect equipment from damage.5. Adaptability and Scalability: The DR270-2.65 6-axis articulated robotic arm offers adaptability and scalability, allowing it to evolve with changing production requirements. It can be reprogrammed to perform different tasks or reconfigured to work in different workspaces.

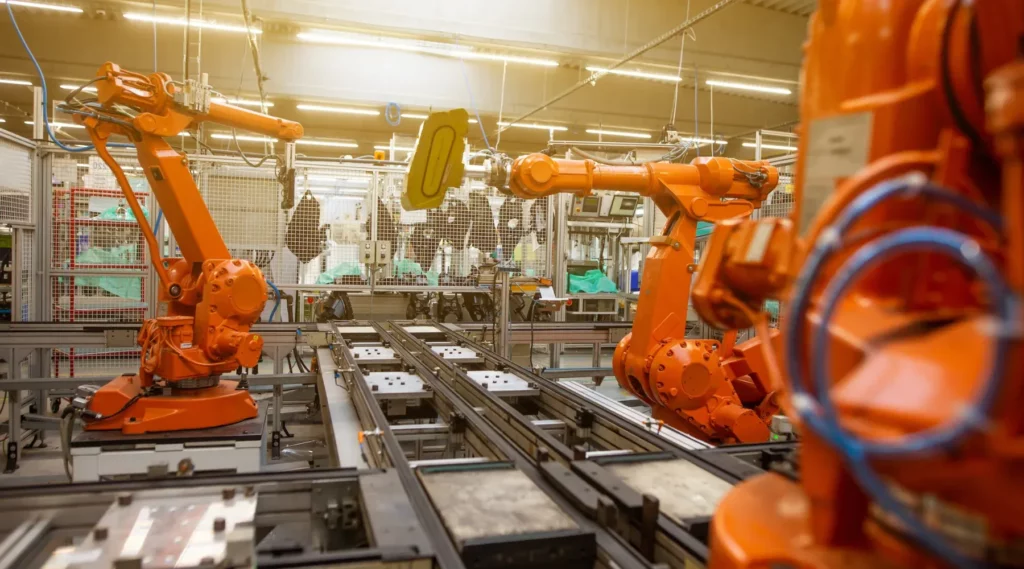

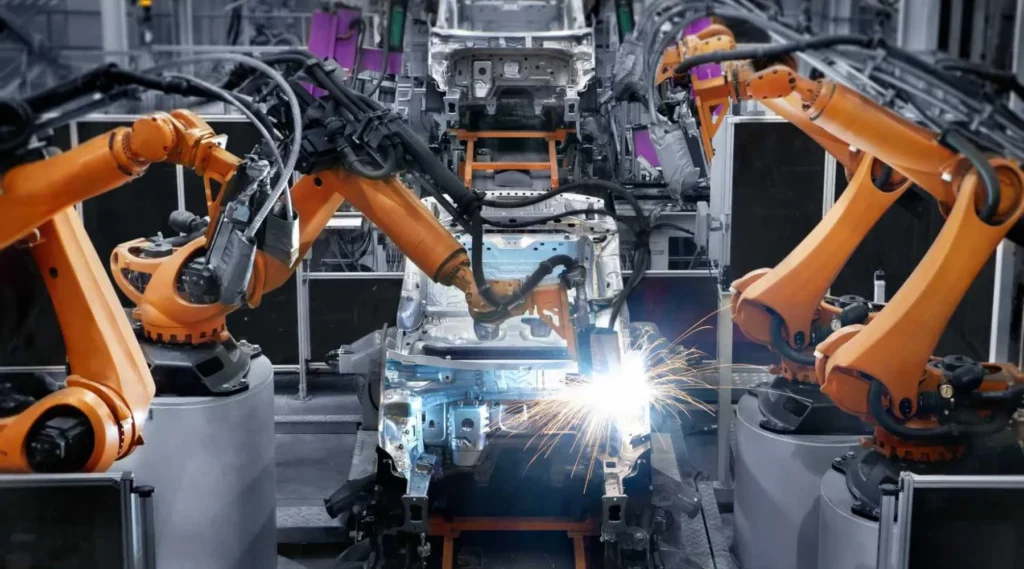

Applications of DR270-2.65 6-Axis Articulated Robotic Arm:

The DR270-2.65 6-Axis Articulated Robotic Arm finds applications in various industrial sectors. Here are some common applications where the DR270-2.65 6-Axis Robotic Arm can be utilized:(1) Material Handling: The DR270-2.65 6-Axis Robotic Arm is well-suited for material handling tasks in manufacturing facilities, warehouses, and logistics operations. It can efficiently pick, place, and transfer objects of different shapes, sizes, and weights. This includes loading and unloading materials, organizing inventory, and moving products along assembly lines.(2) Assembly Operations: With its flexibility and precision, the DR270-2.65 6-Axis Robotic Arm is ideal for assembly operations. It can handle delicate components and perform intricate assembly tasks with accuracy. This makes it valuable in industries such as electronics, automotive, and appliances, where precise assembly is crucial.(3) Packaging and Palletizing: The robotic arm can automate packaging and palletizing tasks in industries like food and beverage, pharmaceuticals, and logistics. It can efficiently package products, arrange them on pallets, and stack them for transportation or storage. This improves efficiency, reduces labor costs, and ensures consistent packaging quality.(4) Quality Inspection: The DR270-2.65 6-Axis Articulated Robotic Arm can be integrated with vision systems to perform quality inspection tasks. It can accurately position products for inspection, capture images, and analyze them for defects, inconsistencies, or quality parameters. This application ensures consistent product quality and reduces the need for manual inspection.(5) Other Applications: The versatility of the DR270-2.65 6-Axis Robotic Arm allows it to be applied in many other areas, such as lab automation, medical device manufacturing, sample handling, and more. Its capability to handle different objects and perform precise movements makes it adaptable to a wide range of tasks.

6-Axis Articulated Robotic Arm Manufacturer

Raydafon Precision Technology Co., Ltd. was established in April 1995, and the factory is located in the center of the city. Raydafon integrates ISO-9001, TS-16949, ISO14001:2004, OHSAS18001:2007 management system; it has been awarded as High and New Technology Enterprise, Intellectual Property Advantageous Enterprise, Provincial Enterprise Technology Center, Intellectual Property Advantageous Cultivating Enterprise, and Typical Manufacturing Informatization Demonstration Enterprise.Raydafon has been actively promoting its own automation application for many years. Raydafon has been actively promoting its own automation application for many years, fully utilizing Raydafon's R&D, casting, machining and assembly capabilities to develop DR series industrial 6-axis articulated robots and supporting automation peripheral equipments such as silos and tilting tables.The industrial 6-axis articulated robots developed by Raydafon are firstly used for the automation application transformation of the existing new and old equipments in the factory, and there are nearly 100 groups of various automated machining cells and automated intelligent manufacturing production lines within the company. In promoting the company's automation development, accumulation of a large number of automation application experience at the same time, Raydafon also actively promote their own automation experience, to provide from the processing process design, tooling design, equipment selection, automation program design, automation project implementation and application of maintenance of one-stop service. The service involves machine loading and unloading, welding, packing and blocking, and so on.
