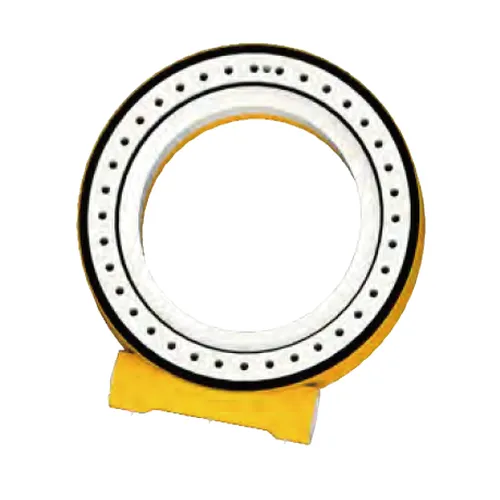

EGE25 Series Slewing Drive

The slewing drive device is also called a slewing reducer, a gear reducer, a turntable reducer, a slewing mechanism, and a slewing drive pair. All types of reducers use slewing bearings as the direct support, and the auxiliary drive source uses gears or worms as the driving parts to achieve deceleration and full-circle rotation functions. The composition of the slewing drive mainly includes gears (or worms), slewing bearings, motors, housings, and bases. The slewing drive can be divided into single worm drive, slewing drive, double worm drive, slewing drive, and the particular type of slewing drive.

Performance Parameters

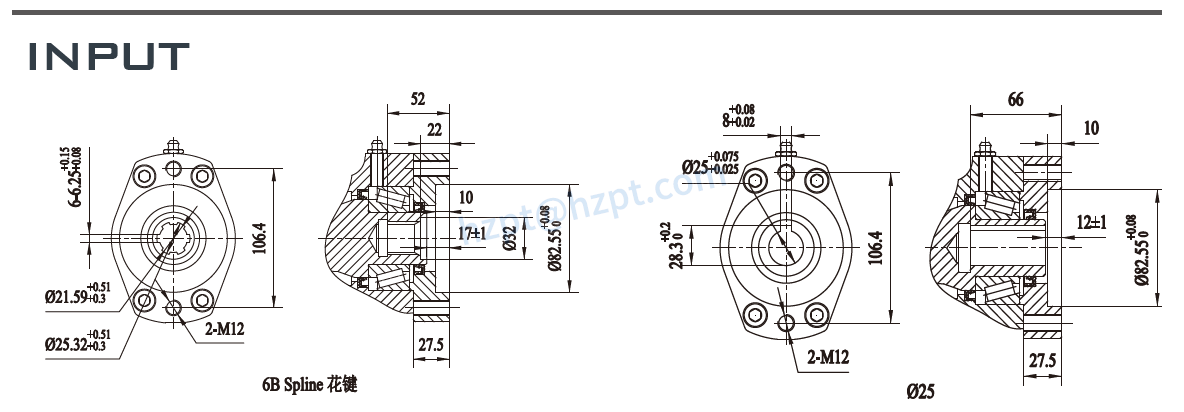

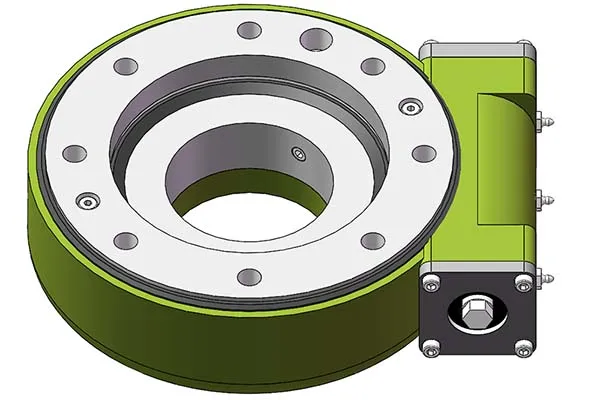

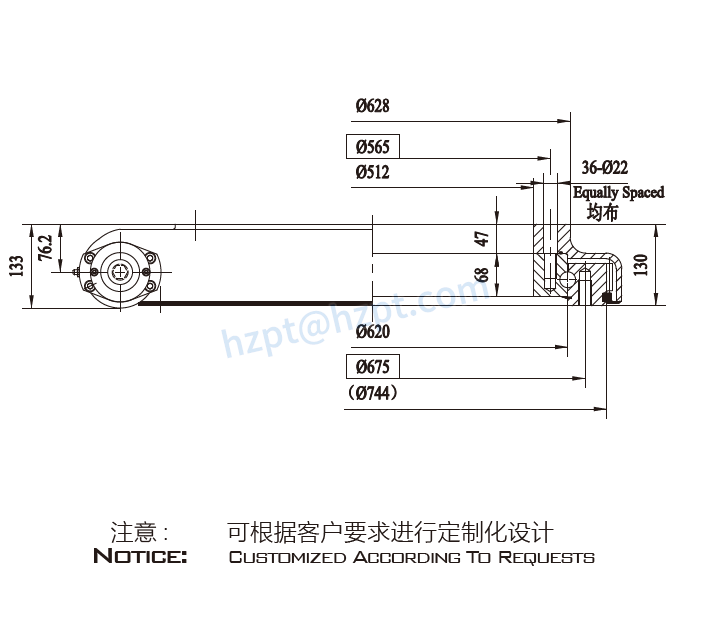

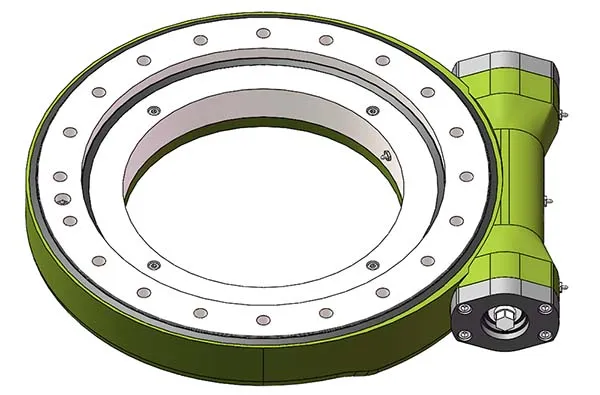

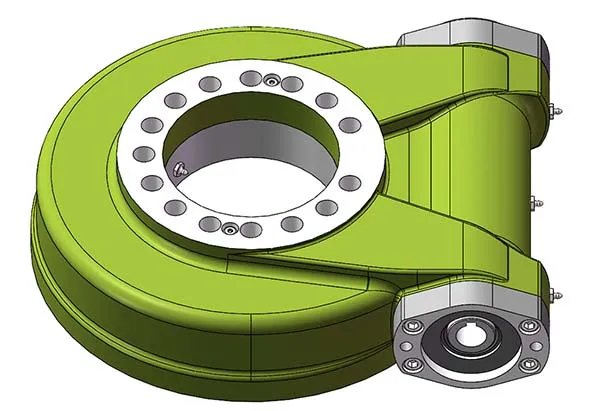

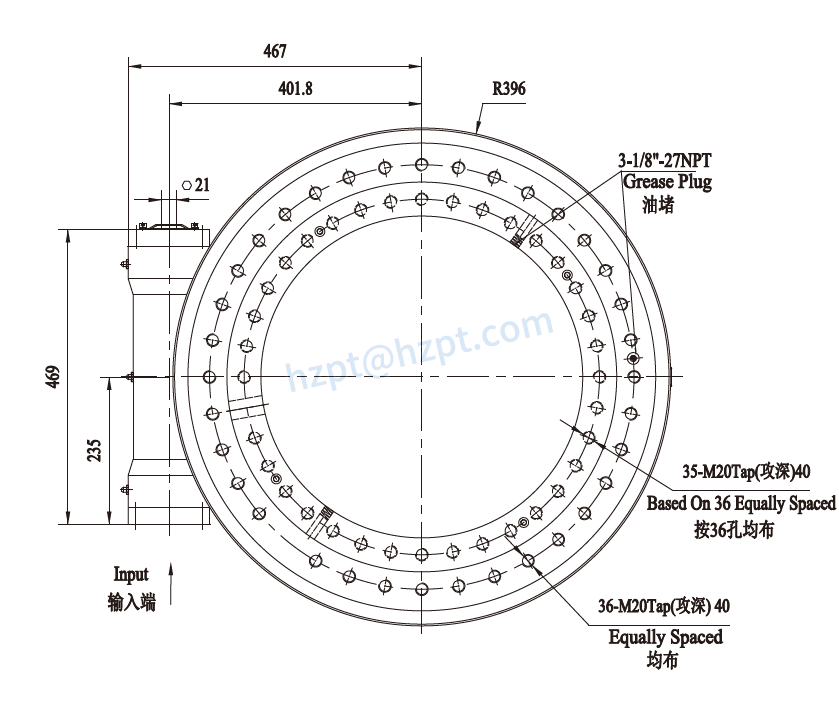

Front View	Top View

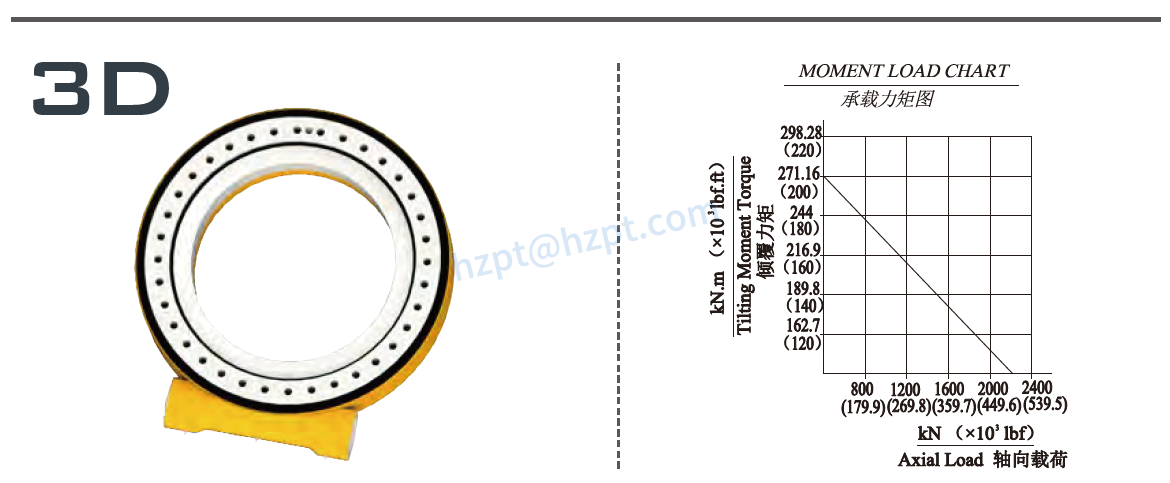

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
18 kN.m	271 kN.m	159  kN.m	2400 KN	950 KN	150:1	<= 0.15 °	205Kg
13300 Lbf.ft	200000 Lbf.ft	117300 Lbf.ft	539500 Lbf	213600 Lbf

Classification of Slewing Drives

1. Classification according to the transmission form

According to the variable transmission form of slewing drive, it can be divided into gear slewing drive and worm gear slewing drive, inheriting the characteristics of gear drive and worm gearing. These two slewing drives can be adapted to medium-high and low-speed applications. In terms of carrying capacity, the performance of the worm gear type is better than that of the tooth type. When the envelope worm transmission is adopted, its carrying capacity, anti-deformation ability, and transmission rigidity are further improved. Still, the worm gear type slewing drive is more efficient in terms of efficiency. Inferior to the gear type slewing drive, the gear type slewing drive is divided into a straight tooth type slewing drive, a helical tooth type slewing drive, and a volute type slewing drive.

2. Classification according to the openness of the slewing drive

According to the openness of the slewing drive transmission mechanism, the slewing drive can be divided into open and closed. Generally, the open structure is primarily used in applications where the environment is too harsh and the maintenance and maintenance cycle is short. The available design is more convenient for parts. The product's inspection, maintenance, and maintenance are also more suitable for replacement. However, the closed structure can provide a long maintenance life cycle when the environmental conditions have not changed much, and the environmental pollution level is below the medium level.

3. Classification according to the driving power

According to the structure operation type of the slewing drive, it can be divided into light slewing drive, medium slewing drive, and heavy slewing drive. According to the slewing drive's power, size, dead weight, and application in different fields and machines to achieve its functions, the light-duty slewing drive is light in weight, and its load and deceleration capabilities are suitable for high-speed (≥10rpm), vibration, impact loads, etc. Working conditions: The medium-sized slewing drive is ideal for high-speed (≥10rpm), vibration, impact load, and other working conditions, and the heavy-duty slewing drive is suitable for high-speed (≤3rpm) heavy-duty, and intermittent working conditions.

4. Classification according to the structure of the drive composition

According to the design of the drive device, it is divided into vertical drive and horizontal slewing drive. Vertical slewing drive means that the traction motor and the traveling wheel are vertical, and the traction motor is upright above the traveling wheel. It has the advantages of a small gyration radius, high protection level, convenient maintenance, etc., but high manufacturing cost; horizontal drive means that the traction motor and the traveling wheel are parallel, and the traction motor is mostly coaxial with the traveling wheel and is horizontal. It has the advantages of compact structure, simplicity, and low installation height.

Application of Slewing Drive

After understanding what the slewing drive is, let's take a look at its specific application. The slewing reducer can be used on occasions that require full-circle rotation and variable speed requirements. When it is necessary to achieve more significant torque power transmission, higher precision motion transmission, or the selection of a mechanism with a compact body structure and a higher requirement for integration, the slewing drive Is a good solution.

1. The field of beam transport vehicles

The core components of the traditional beam truck slewing assembly mostly use traditional slewing ring products. Compared with the slewing drive, the slewing ring does not have an outer shell, the corrosion resistance is not ideal, and hydraulic cylinders are used to drive the steering of the tires. In terms of the system, the rotation angle range of the tire is also greatly restricted. The selection of a slewing drive device as a slewing component can improve the element's corrosion resistance and increase the steering angle of each group of tires.

2. The field of aerial work vehicles

Aerial work trucks are an important application area of ​​slewing drive. Generally, high-altitude work trucks require the host to have a higher safety factor. The increased safety of slewing drive (self-locking of worm gears) is the majority of users choose it as an aerial work platform accessory. On the other hand, the worm gear transmission has a more extensive transmission speed ratio, so that while improving the safety factor of the main engine, a set of worm gear reducers can also be omitted for the main engine, thereby reducing the manufacturing cost of the main engine.

3. The field of photovoltaic power generation

Photovoltaic power generation is an important application field of slewing drive. Solar photovoltaic modules with slewing drive as a rotating part can accurately adjust the host's rotation and elevation angle according to the sun's different positions during the day. The solar panels are always in good condition. We are receiving angle.

4. Wind power generation

Similar to photovoltaic power generation, the slewing drive can be applied to the wind generator's yaw part to realize the mechanism's horizontal 360° rotation to better adjust the receiving angle.

5. The field of construction machinery claws

Construction machinery auxiliary equipment is a new application field of slewing drive. The slewing drive is used as the rotating mechanism's claw, making the design structure more concise and more conducive to use and maintenance. At the same time, the worm gear drive has a more significant reduction ratio, which makes the claws, etc. The positioning accuracy of construction machinery aids has also been greatly improved.

6. The field of industrial robots

Due to the compact structure and short transmission chain, the slewing drive is easier to achieve higher accuracy and carry out digital control, so it is also widely used in industrial robots. Recently, robots derived from AGV (mobile robots), spot welding robots, welding robots, arc welding robots, laser processing robots, vacuum robots, clean robots, and other varieties have slewing drive applications.
