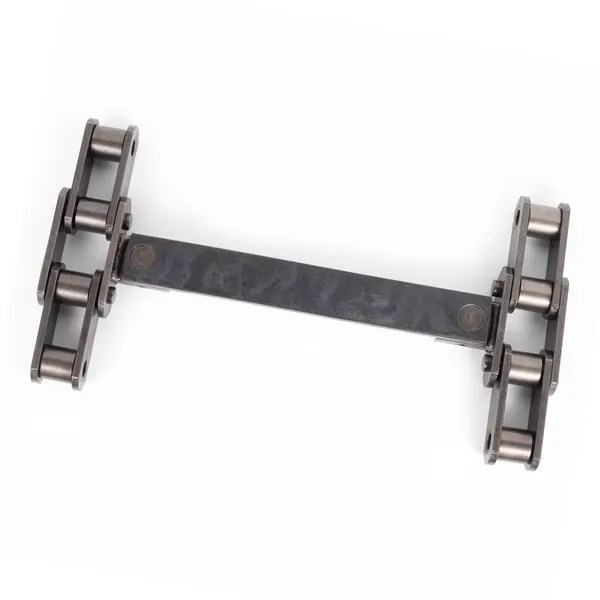

EPG66A Asphalt Paver Chain

EPG66A Asphalt Paver Chain

The EPG66A asphalt paver chain is a specific type of conveyor chain used in asphalt paving machines. It is designed to convey and distribute asphalt mix from the hopper to the screed in the paver machine. The EPG66A asphalt paver chain is made up of a series of interlocking links that are made from high-strength steel and are heat-treated to provide increased durability and wear resistance.EPG66A asphalt paver chains are typically used in heavy-duty paving applications where the chain is subjected to high loads and abrasive materials. The scraper pave chain is designed to operate at high speeds and provide smooth, consistent movement of the asphalt mix. The EPG66A asphalt conveyor chain is manufactured to exact specifications to ensure reliable performance and long service life.Overall, the EPG66A asphalt paver chain plays a crucial role in the operation of asphalt paving machines, helping to ensure that asphalt is distributed evenly and accurately, resulting in a smooth and even surface.

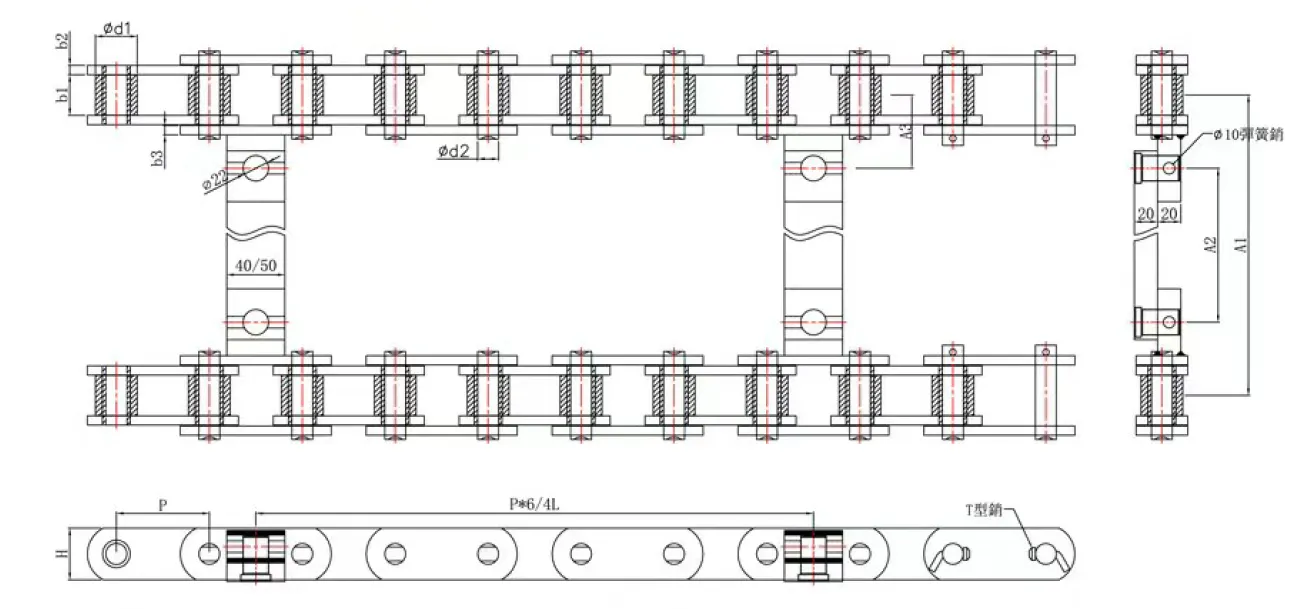

▍EPG66A Asphalt Paver Chain Dimensions:

Chain No.	Pitch(P)	Roller diameter(d1)	Pin diameter(d2)	Width between inner plates(b1)	Scraper Link	Scraper Pitch to Roller Center Distance(A3)	Inner Chain Links (b2)	External Chain Links		Chain Plate Height(H)
								External Links (b3)	Scraper Link(b4)
EPG66A Chain	66.27	22	11.1	27	6	45.5	6	6	6	28.6

▍EPG66A Asphalt Paver Chain Features:

The EPG66A asphalt paver chain is a high-performance chain designed for use in asphalt paving machines. It is made of high-strength steel and is heat-treated to increase its strength and wear resistance. The conveyor chains for crawler asphalt paver are also designed to be easy to install and maintain.Here are some of the features of the EPG66A asphalt paver chain:1. High-strength steel construction: The EPG66A asphalt paver chain is made of high-strength steel that is heat-treated to increase its strength and wear resistance. This makes it ideal for use in harsh conditions.2. Easy to install and maintain: The EPG66A asphalt paver chain is designed to be easy to install and maintain. The pins and bushings are easily replaceable, and the chain can be easily cleaned and lubricated.3. Smooth operation: The EPG66A asphalt paver chain is designed to operate smoothly and quietly. This helps to reduce noise pollution and vibration.4. Long service life: The EPG66A asphalt paver chain is designed to have a long service life. With proper care and maintenance, it can last for many years.

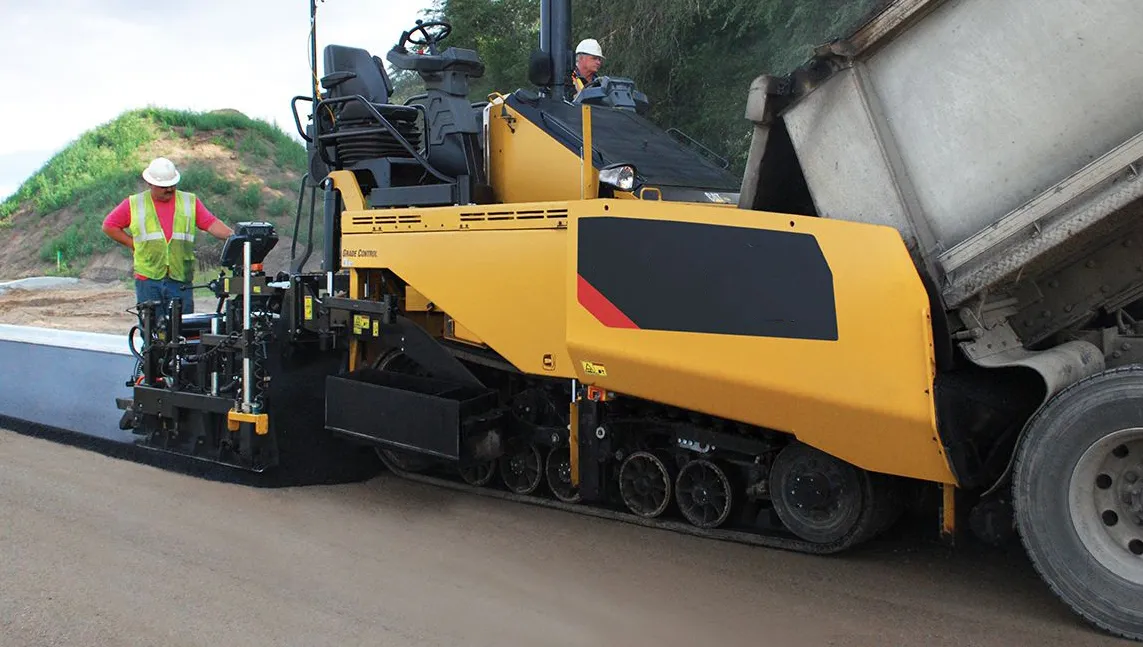

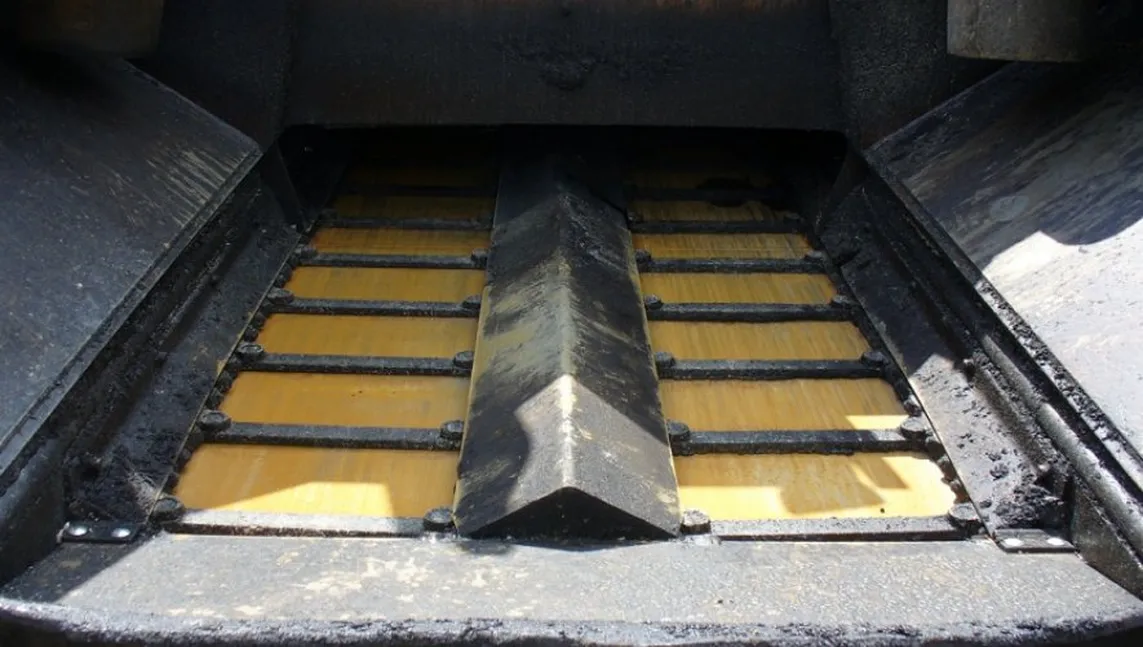

▍EPG66A Asphalt Paver Chain Applications:

The EPG66A asphalt paver chain is a high-performance chain designed for use in a variety of asphalt paving applications. It is ideal for use in asphalt plants, as well as on construction sites.Here are some of the applications of the EPG66A asphalt paver chain:(1) Asphalt plants: The EPG66A asphalt paver chain can be used to transport hot asphalt from the mixer to the paver. This ensures that the asphalt is evenly distributed and spread, resulting in smooth, durable pavement.(2) Construction sites: The EPG66A asphalt paver chain can be used to transport hot asphalt from the paver to the work area. This ensures that the asphalt is quickly and easily distributed, saving time and money on construction projects.The EPG66A asphalt paver chain is a versatile and reliable chain that can be used in a variety of applications. It is made of high-strength steel and is heat-treated to increase its strength and wear resistance. The chain is also designed to be easy to install and maintain. If you are looking for a high-quality, long-lasting asphalt paver chain for your asphalt plant or construction site, the EPG66A scraper conveyor chain is the perfect choice.

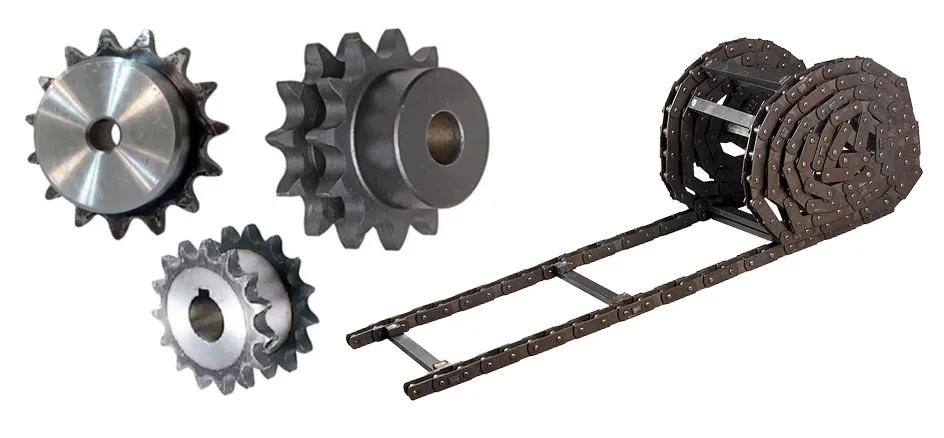

▍Asphalt Paver Chain Sprockets for Asphalt Paver Chain

Asphalt paver chain sprockets are designed to work with asphalt paver chains to transport hot asphalt from the hopper to the screed. The sprockets are made of high-strength steel and are heat-treated to increase their strength and wear resistance. The chain sprockets are also designed to be easy to install and maintain.There are two main types of asphalt paver chain sprockets:

• Drive sprockets: Drive sprockets are used to drive the asphalt paver chain. They are typically made of a harder material than other types of sprockets, such as hardened steel or alloy steel.
• Idler sprockets: Idler sprockets are used to support the asphalt paver chain. They are typically made of a softer material than drive sprockets, such as cast iron or ductile iron.

The size of the sprockets will vary depending on the size of the asphalt paver chain. The asphalt paver chain sprockets must be sized to match the pitch of the chain. The pitch of the chain is the distance between the pins of the chain. The asphalt paver chain sprockets must also be aligned properly with the chain. The sprockets should be aligned so that the teeth of the sprockets mesh with the links of the chain.The asphalt paver chain sprockets should be lubricated regularly to prevent wear and tear. The lubricant will help to keep the sprockets working smoothly and prevent them from rusting. If the asphalt paver chain sprockets become worn or damaged, they should be replaced. Worn or damaged sprockets can cause the asphalt paver chain to skip or jump, which can damage the asphalt paver chain and the paver.Here are some additional tips for choosing and using asphalt paver chain sprockets:

• Choose sprockets that are made from a high-quality material that is heat-treated to increase its strength and wear resistance.
• Choose sprockets that are the correct size for the asphalt paver chain.
• Align the sprockets properly with the chain.
• Lubricate the sprockets regularly.
• Replace worn or damaged sprockets immediately.

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains,?agricultural chains, silent chains, PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
