EPG70B Asphalt Paver Chain

EPG70B Asphalt Paver Chain

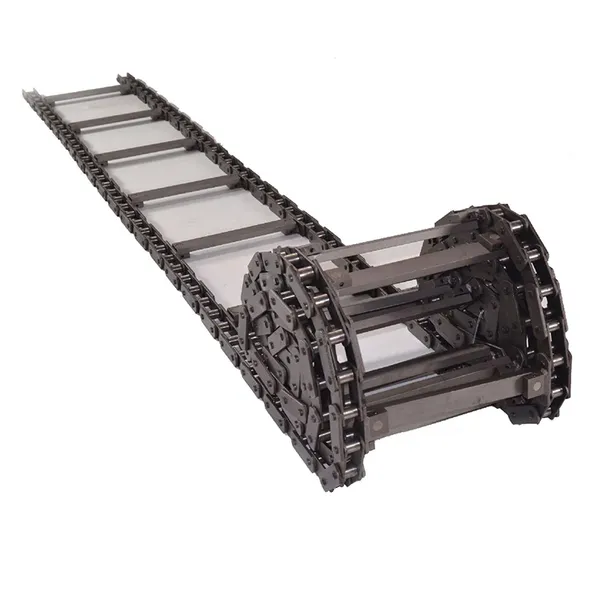

The EPG70B asphalt paver chain is a type of conveyor chain that is specifically designed for use in asphalt paving machines. The chain is used to move material, such as asphalt, from the hopper to the screed on the paver. The EPG70B asphalt paver chain is a heavy-duty chain that is made from high-quality materials to ensure durability and long life. It is designed to withstand the harsh conditions encountered during asphalt paving, such as high temperatures, abrasive materials, and heavy loads. The EPG70B asphalt paver chain features a series of links that are connected together to form a continuous chain, which is driven by the paver's engine.

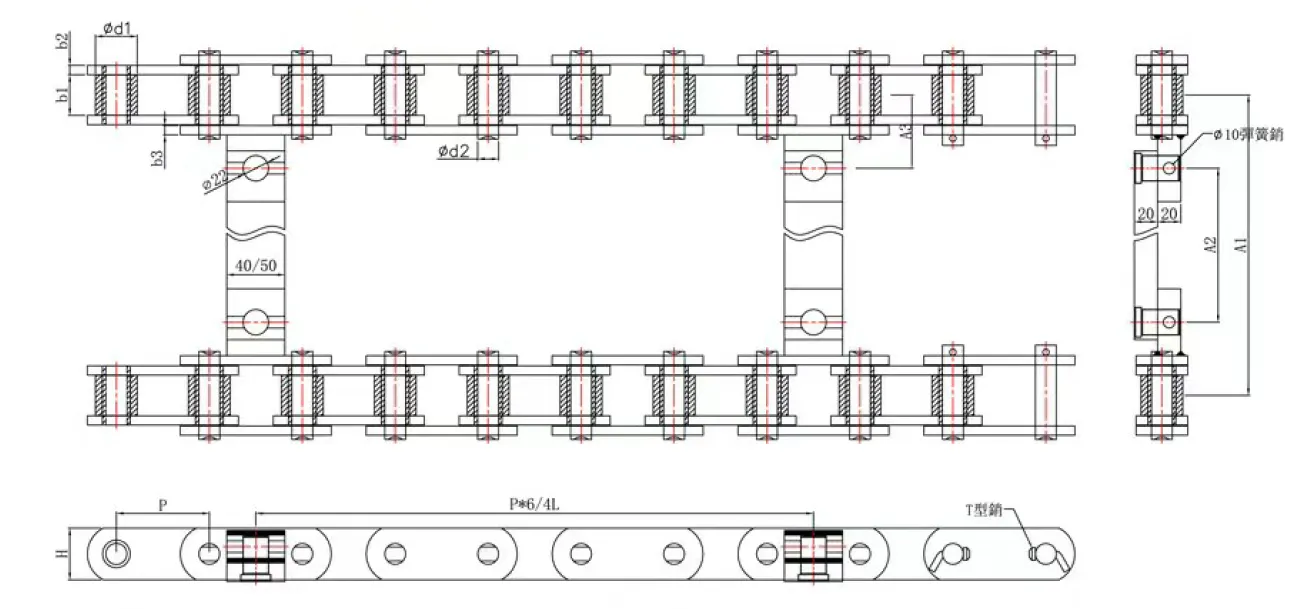

▍EPG70B Asphalt Paver Chain Dimensions:

Chain No.	Pitch(P)	Roller diameter(d1)	Pin diameter(d2)	Width between inner plates(b1)	Scraper?Link	Scraper Pitch to Roller Center Distance(A3)	Inner Chain Links?(b2)	External?Chain?Links		Chain Plate Height(H)
								External Links (b3)	Scraper Link(b4)
EPG70B Chain	70	26	12.7	28	4	51	6	6	6	30

▍Advantages of EPG70B Asphalt Paver Chain:

There are many advantages to using the EPG70B asphalt paver chain.1. Durability: The EPG70B asphalt paver chain is made of high-strength steel and is heat-treated to increase its strength and wear resistance. This makes it ideal for use in harsh conditions, such as those found in asphalt paving applications.2. Efficiency: The EPG70B asphalt paver chain helps to ensure that the hot asphalt is transported and spread evenly, resulting in a smooth, durable pavement. This can save time and money on construction projects.3. Safety: The EPG70B asphalt paver chain helps to prevent accidents by keeping the hot asphalt contained. This is important for the safety of workers and the public.4. Easy to install and maintain: The EPG70B asphalt paver chain is designed to be easy to install and maintain. The pins and bushings are easily replaceable, and the chain can be easily cleaned and lubricated. This can save you time and money in the long run.5. Increased productivity: The EPG70B asphalt paver chain helps to ensure that the hot asphalt is transported and spread evenly, resulting in smooth, durable pavement. This can save time and money on construction projects.6. Improved safety: The EPG70B asphalt paver chain helps to prevent accidents by keeping the hot asphalt contained. This is important for the safety of workers and the public.7. Reduced maintenance costs: The EPG70B asphalt paver chain is designed to be easy to maintain. The pins and bushings are easily replaceable, and the chain can be easily cleaned and lubricated. This can save you time and money in the long run.

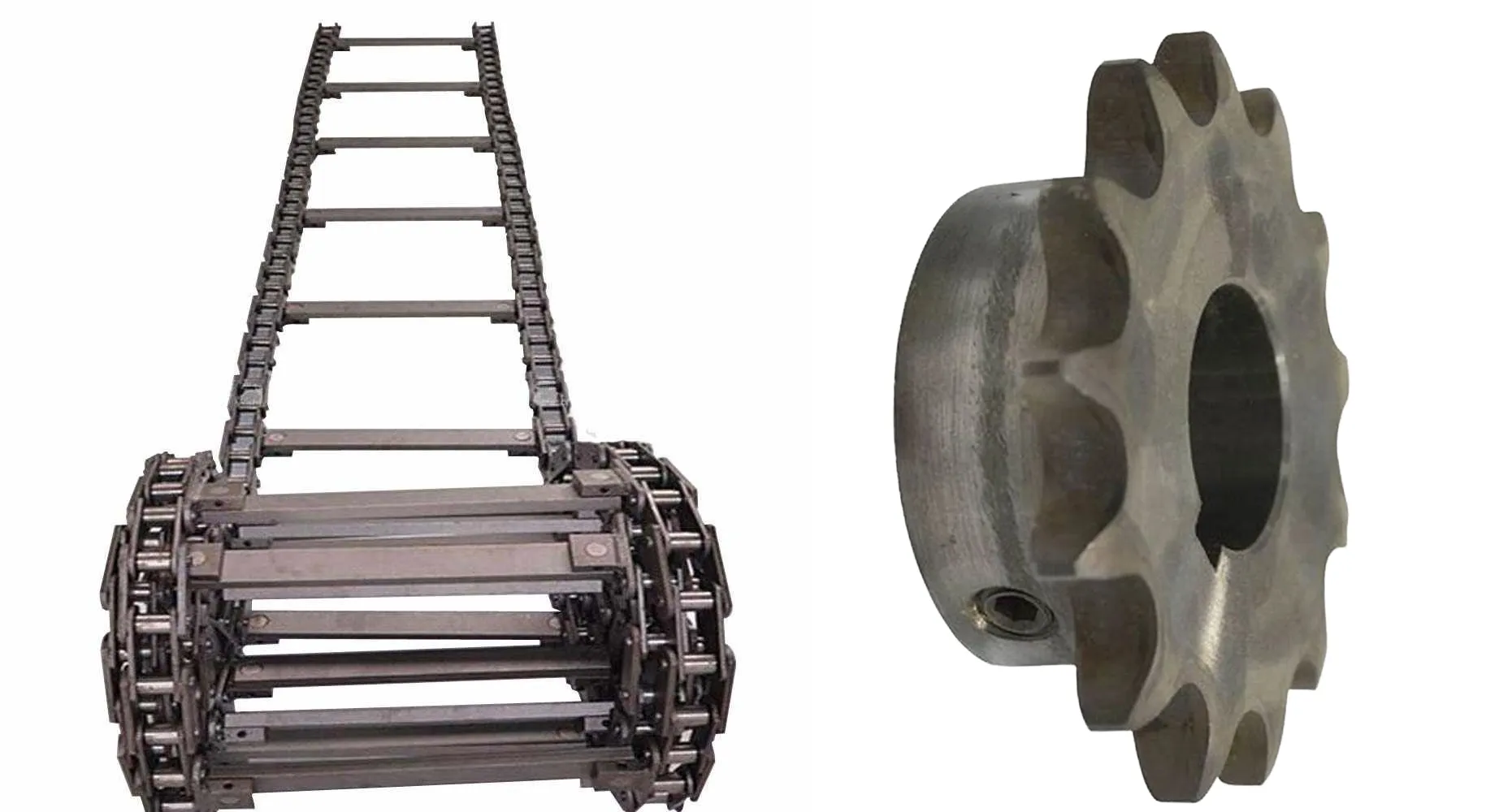

▍Asphalt Paver Chain Sprockets and Asphalt Paver Chains

Asphalt paver chain sprockets and asphalt paver chains are important components in the construction of roads, highways, and other paved surfaces. They are used in asphalt paving machines to lay down hot mix asphalt and other paving materials.Asphalt paver chain sprockets are toothed wheels that mesh with the asphalt paver chain to drive the conveyor system that moves the asphalt mix from the hopper to the screed. These asphalt paver chains sprockets are typically made of steel and are designed to withstand the high loads and stresses that are generated during the paving process. They come in various sizes and configurations depending on the type of paving machine and the application.Asphalt paver chains are heavy-duty chains that are used to move the conveyor system in the asphalt paving machine. They are made of high-quality steel and are designed to withstand the high loads and stresses that are generated during the paving process. The asphalt paver chains are typically made up of a series of links that are connected by pins and bushings. The links are usually heat-treated to increase their strength and durability.Both asphalt paver chain sprockets and asphalt paver chains are critical components in the asphalt paving process. It is essential that they are properly maintained and replaced when necessary to ensure that the paving machine operates efficiently and effectively.

▍China Asphalt Paver Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains, CA550 roller chains,?S55 roller chains, silent chains, X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
