EPP Series Planetary Gearboxes
  • EPP Series Planetary GearboxesEPP Series Planetary Gearboxes

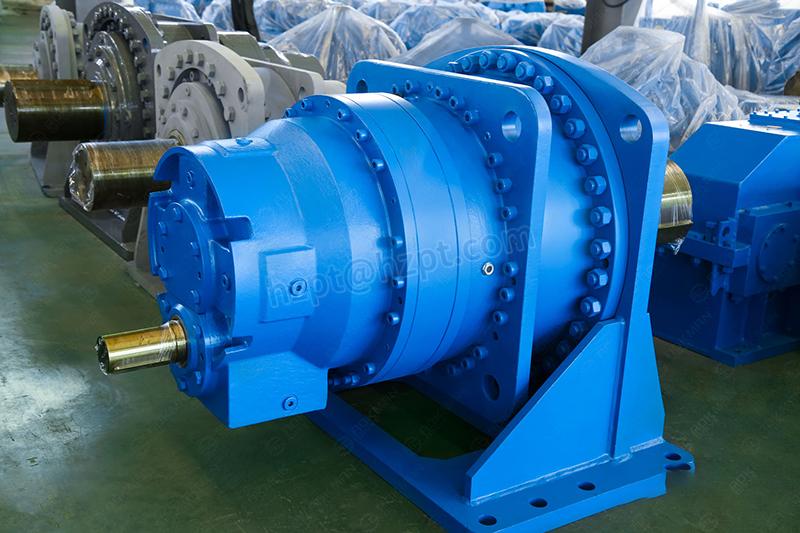

EPP Series Planetary Gearboxes

Discover the EPP Series Planetary Gearboxes by Raydafon Group, engineered for precision and durability in demanding industrial applications. This high-performance product excels with robust materials and advanced design, delivering seamless power transmission and extended lifespan. Ideal for machinery manufacturers and automation systems, it solves reliability issues and enhances operational efficiency, ensuring users experience unmatched reliability and long-term value. Differentiated by its compact efficiency and superior build, Raydafon Group offers trusted quality that stands out in the market.
Send Inquiry
Product Description

Components:

1. Housing: Nodular Cast Iron / Ductile Iron2. Gearset: Planetary Gear Set (Epicyclic Gearing)3. Input Configurations:Integrated with Electric Motors (AC Motors, Hydraulic Motors, Geared Motors)IEC-normalized Motor Flange & Motor AdaptorKeyed Solid Shaft Input4. Output Configurations:Keyed Solid Shaft OutputInvolute Splined Solid Shaft Output (GB or DIN Standard)Involute Splined Hollow Shaft Output (GB or DIN Standard)Hollow Shaft Output with Shrink Disc5. Optional Accessories:
  • Gear Unit Base for Horizontal Mounted
  • Torque Arm, Torque Shaft Support
  • Motor Mounting Bracket
  • Dip Lubrication Compensation Oil Tank
  • Forced Lubrication Oil Pump
  • Cooling Fan, Auxiliary Cooling Devices

Models:

  • EPP2N – 2 Stage Planetary Gear Set, Coaxial
  • EPP2L – 2 Stage Planetary Gear Set Integrated with Spiral Bevel Gear Pair, Right Angle
  • EPP2S – 2 Stage Planetary Gear Set Integrated with Helical Gear Pair, Parallel Shaft
  • EPP2K – 2 Stage Planetary Gear Set Integrated with Helical Gear Pair & Bevel Gear Pair, Right Angle
  • EPP3N – 3 Stage Planetary Gear Set, Coaxial
  • EPP3S – 3 Stage Planetary Gear Set Integrated with Helical Gear Pair, Parallel Shaft
  • EPP3K – 3 Stage Planetary Gear Set Integrated with Helical Gear Pair & Bevel Gear Pair, Right Angle
Frame Sizes: 9, 10, 11, … 34, 35, 36 (exclude 15)

Features:

1. EPP series planetary gear units/(epicyclic gearboxes) have various options from 7 types and 27 frame sizes, and can ensure up to 2600kN.m torque and 4,000:1 ratio2. High efficiency, high output torque, suitable for heavy-duty working conditions and applications3. High reliability, low noise4. Highly modular design5. Optional accessories6. Easily combined with other gear units, such as helical, worm, bevel or helical-bevel gear units

Parameters:

TypesRatioTypesRatio
EPP2N (2 Stage)25, 28, 31.5, 35.5, 40EPP3N (3 Stage)140, 160, 180, 200, 225, 250, 280
EPP2L (2 Stage)31.5, 35.5, 40, 45, 50, 56, 63, 71, 80, 90, 100--
EPP2S (2 Stage)45, 50, 56, 63, 71, 80, 90, 100, 112, 125EPP3S (3 Stage)280, 315, 355, 400, 450, 500, 560, 630, 710, 800, 900
EPP2K (2 Stage)112, 125, 140, 160, 180, 200, 225, 250, 280, 320, 360, 400, 450, 500, 560EPP3K (3 Stage)560, 630, 710, 800, 900, 1000, 1120, 1250, 1400, 1600, 1800, 2000, 2240, 2500, 2800, 3150, 3550, 4000

Applications:

  • Roller Presses
  • Bucket Wheel Drives
  • Running Mechanism Drives
  • Slewing Mechanism Drives
  • Mixers/ Agitators Drives
  • Steel Plate Conveyors
  • Scraper Conveyors
  • Chain Conveyors
  • Rotary Kilns Drives
  • Pipe Rolling Mill Drives
  • Tube Mill Drives

Installation:

Horizontal MountedVertical Mounted

Lubrication:

Oil Immersion and Splash LubricationForced Lubrication

Cooling:

Natural CoolingCooling Fan, Auxiliary Cooling Devices
