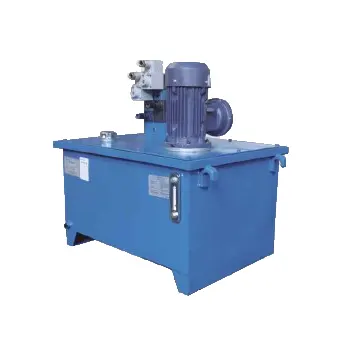

Explosion-Proof Hydraulic System For Lifting Platform

Explosion-Proof Hydraulic System For Lifting Platform

The Explosion-Proof Hydraulic System for Lifting Platform is a state-of-the-art solution designed to provide safe and reliable vertical mobility in hazardous environments where the risk of explosions or flammable substances is present. This specialized hydraulic system ensures optimal performance while prioritizing the safety of operators and equipment. Let's explore the key features, usage method, maintenance, and other essential aspects of the Explosion-Proof Hydraulic System for Lifting Platform.

Hydraulic System For Lifter Parameter:

Motor Power:1.5KWOil Tank:150L

Characteristics of the Explosion-Proof Hydraulic System For Lifting Platform:

1. Compliance with Safety Standards:

• Certified Explosion-Proof Components: The hydraulic system has explosion-proof components that meet stringent safety standards, ensuring reliable operation in hazardous environments.
• Classifications and Ratings: The system adheres to defined types and ratings, such as ATEX or IECEx, to ensure compliance with industry-specific regulations for explosion protection.

2. Robust Construction:

• Durable Materials: The system uses high-quality, durable materials that withstand harsh operating conditions, including exposure to flammable gases, vapors, or dust.
• Reinforced Sealing: Special sealing mechanisms and gaskets are employed to prevent the ingress of hazardous substances into the hydraulic system, maintaining the integrity of the equipment.

3. Enhanced Safety Measures:

• Overpressure Protection: The hydraulic system incorporates overpressure protection mechanisms to prevent excessive pressure build-up, reducing the risk of system failure or explosions.
• Leak Detection: Advanced leak detection systems are integrated into the hydraulic system, providing early warning for potential leaks and minimizing the risk of flammable substances escaping into the environment.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed based on a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

What Are The Main Components Of A Hydraulic System?

A hydraulic system comprises several vital components that generate, control, and transmit hydraulic power. The main features of a hydraulic system include:

1. Hydraulic Fluid:
   • The hydraulic fluid, often oil-based, is the medium for transmitting power in the system. It provides lubrication, heat dissipation, and sealing properties.
2. Hydraulic Pump:
   • The hydraulic pump is responsible for converting mechanical power into hydraulic power. It generates flow and pressure to move the hydraulic fluid through the system.
3. Reservoir:
   • The reservoir, also known as the hydraulic tank, stores the hydraulic fluid. It provides a pool of liquid to compensate for volume changes due to temperature variations and acts as a settling point for contaminants.
4. Hydraulic Motor or Actuator:
   • The hydraulic motor or actuator converts hydraulic energy back into mechanical energy. It receives pressurized fluid from the pump and uses it to generate rotary or linear motion, enabling the system to perform work.
5. Control Valves:
   • Control valves regulate the flow and pressure of hydraulic fluid within the system. These valves direct the fluid to specific actuators, allowing precise control over the movement and speed of hydraulic components.
6. Hydraulic Cylinder:
   • Hydraulic cylinders are mechanical devices that convert fluid power into linear motion. They consist of a cylindrical barrel, a piston, and a rod. When pressurized fluid is directed into the cylinder, it extends or retracts the piston, creating linear force.
7. Hydraulic Lines and Hoses:
   • Hydraulic lines and hoses transport the pressurized hydraulic fluid between various system components. They are designed to withstand high pressures and are usually made of reinforced rubber or steel.
8. Accumulator:
   • An accumulator stores hydraulic energy in the form of pressurized fluid. It helps maintain system pressure, absorb shocks, and provide additional power when required.
9. Filters:
   • Hydraulic filters remove contaminants from the hydraulic fluid, such as dirt, debris, and particles. They prevent damage to components and maintain the cleanliness and performance of the system.
10. Pressure Relief Valve:
    • The pressure relief valve protects the hydraulic system from excessive pressure by diverting excess fluid back to the reservoir. It ensures the system operates within safe pressure limits.
11. Heat Exchanger:
    • In some hydraulic systems, a heat exchanger is used to manage the temperature of the hydraulic fluid. It helps dissipate excess heat and maintain the fluid within the optimal operating range.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
