Factory Wholesale Electric Bicycle 250W 30V New Motor with High Quality

Introducing the factory wholesale Electric Bicycle 250W 30V new motor with high quality. This product comes with a brushless design and is available in stylish black and silver colors. With a rated power of 250W and a 30V voltage, it also includes a battery inside the motor. The motor comes securely packaged in a carton box with bubble wrap protection. It is shipped from various ports including Shanghai, Ningbo, and Shenzhen. This product is produced by the award-winning Zhejiang Chaoji Electric Technology Co., Ltd, a recognized National High-Tech Enterprise. The product parameters table below provides more detailed specifications.

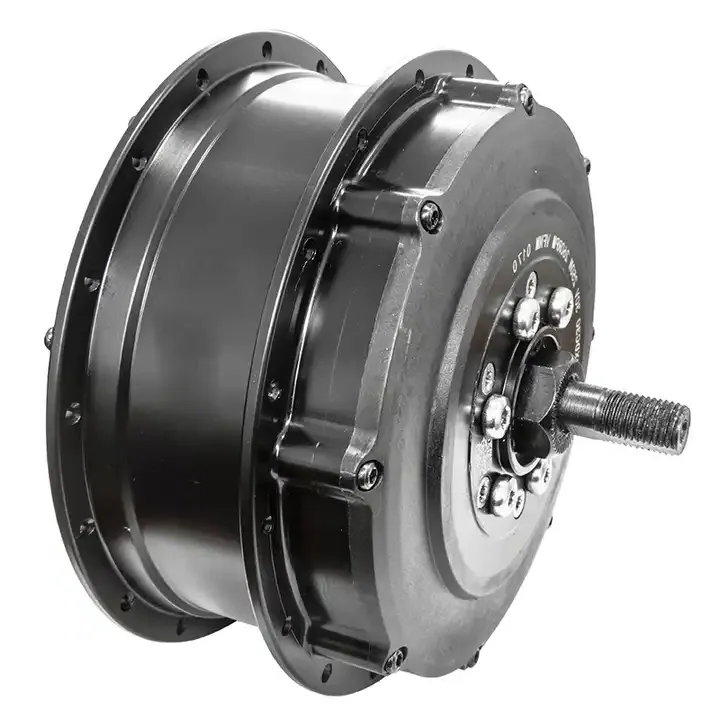

P130 ALL-IN-ONE Front Hub Motor Specification:

Item No.	P130SWXDC30/P130SWXC30
Diameter	143mm??1mm
Width	100??2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Spoke no.	20H??24H??28H??32H??36H
Spoke types	14g
Controller	Internal
Sensor	Wireless pedal sensor
Battery	7Ah
Rated power	250W
Max. power	300W
Max. torque	30N??m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	??20%
Efficiency	??90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	??50dB
Operation temperature	-20-45??
Storage temperature	-20-45??
Waterproof & Dust-proof	IP65
Weight	2.6KGS

P130 ALL-IN-ONE Front Hub Motor Dimension:

Why Choose Our Electric Bicycle Motor?

Our Electric Bicycle 250W 30V new motor comes packed with numerous benefits such as:

1. Built-in 7Ah battery and controller
2. Wireless pedal sense
3. Support for extended-range battery
4. Light weight for easy transportation
5. Wireless control for convenient operation
6. Easy to install and disassemble

With these advantages, we can assure you of a high-quality product that meets your electric bicycle needs. The motor is not only efficient, but also designed to give you a seamless cycling experience. Plus, we can produce this product at scale, ensuring you get the quantity you need when you need it.

Applications of the Electric Bicycle Motor

The ALL-IN-ONE Front Hub Motor system for e-bikes has a wide range of applications:

1. Commuting: Effortlessly navigate through traffic, tackle hills, and cover longer distances without getting fatigued. It's also easy to install, making it a convenient choice for commuters.
2. Urban Transportation: An eco-friendly alternative to traditional modes of transportation. With the assistance of the motor, navigate city streets efficiently and evade the hassle of parking.
3. Recreation and Leisure: Ideal for exploring scenic trails, off-road adventures, or simple leisurely rides. The electric assistance enhances the overall experience, allowing for longer rides without excessive physical exertion.
4. Delivery Services: Cover more ground, navigate through congested areas quickly, and make multiple deliveries in a shorter time with the help of our motor.
5. Bike-Sharing Programs: The compact and user-friendly nature of our motor system makes it suitable for bike-sharing programs, reducing traffic congestion and promoting a healthier lifestyle.

How Does the Ebike System ALL-IN-ONE Front Hub Motor Work?

The ALL-IN-ONE front hub motor system for e-bikes combines several components into a single unit, including the motor, battery, and controller. Here's a general overview of how it works:

1. Motor: Located in the front wheel hub. It consists of a brushless electric motor that generates torque to propel the bicycle forward.
2. Battery: Integrated into the system and located in the downtube of the bicycle frame. The battery supplies power to the motor.
3. Controller: Manages the flow of electricity between the battery and the motor. It receives input from the rider, such as throttle or pedal-assist settings, and adjusts the motor's power output accordingly.
4. Power delivery: When the rider activates the electric assistance, a signal is sent to the controller which then determines the level of assistance required and sends the appropriate amount of current from the battery to the motor.
5. Propulsion: As the current flows into the motor, it creates a magnetic field that interacts with the magnets in the motor. This interaction generates rotational force (torque), which propels the bicycle forward.
6. Control settings: Offers different control settings to suit the rider's preferences. These can include throttle-only mode or pedal-assist mode.

Choosing the Right ALL-IN-ONE Front Hub Motor for Your Ebike System

When choosing the right ALL-IN-ONE front hub motor for your e-bike system, consider the following factors:

1. 1. Power and torque: Consider your riding needs and terrain. Higher power and torque may be required for hilly or steep terrain.

1. Battery capacity: Consider the distance you typically ride and choose a battery capacity that meets your requirements.
2. Voltage and current: Ensure that the motor and battery voltage and current specifications match for proper operation.
3. Wheel size: Check the compatibility of the front hub motor with your e-bike's wheel size.
4. Weight and balance: Consider the weight of the front hub motor system. A lighter system will help maintain good balance and handling.
5. Installation compatibility: Check the compatibility of the front hub motor system with your bike's fork and dropout spacing.

Maintenance of the Electric Bicycle Motor

Proper maintenance is essential to ensure longevity and optimal performance. Here are some maintenance tips to keep in mind:

1. Regular cleaning: Clean the front hub motor and the surrounding area regularly to prevent the buildup of dirt, dust, and debris.
2. Battery maintenance: Keep the battery charged within the recommended voltage range and avoid overcharging or deep discharging.
3. Check electrical connections: Periodically inspect the electrical connections between the motor, controller, and battery.
4. Tire pressure and wheel alignment: Maintain the appropriate tire pressure as recommended by the tire manufacturer and ensure wheel alignment.
5. Brake system maintenance: Regularly inspect and adjust the brakes to ensure they are functioning properly.
6. Lubrication: Apply lubricant to the moving parts of the front hub motor system, such as the bearings and gears.
7. Protect from moisture: Avoid exposing the front hub motor and electrical components to excessive moisture. If you ride in wet conditions, consider using fenders and protective covers to shield the motor from water.

Why Choose Raydafon's ALL-IN-ONE Front Hub Motor for Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life," adhere to the business philosophy of "Credit First, Quality First," and constantly develop new products to meet customer needs and market changes. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, All-IN-ONE motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
