Fertilizer Spreader Gearbox - Replacement of Comer Code L-25J

Fertilizer Spreader Gearbox - Replacement of Comer Code L-25J

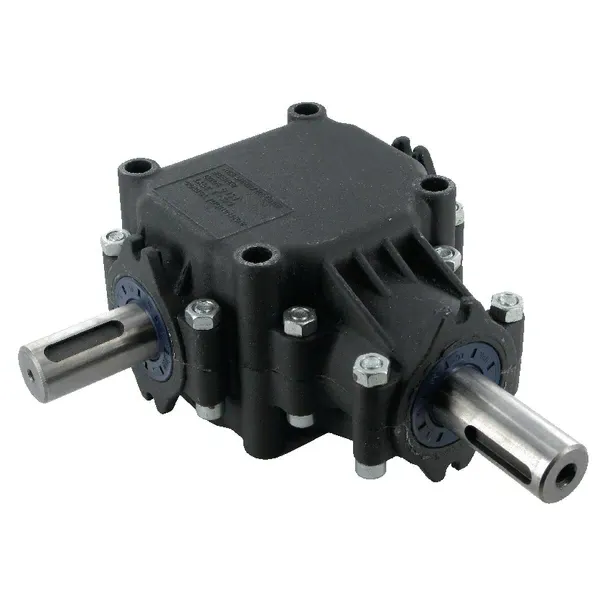

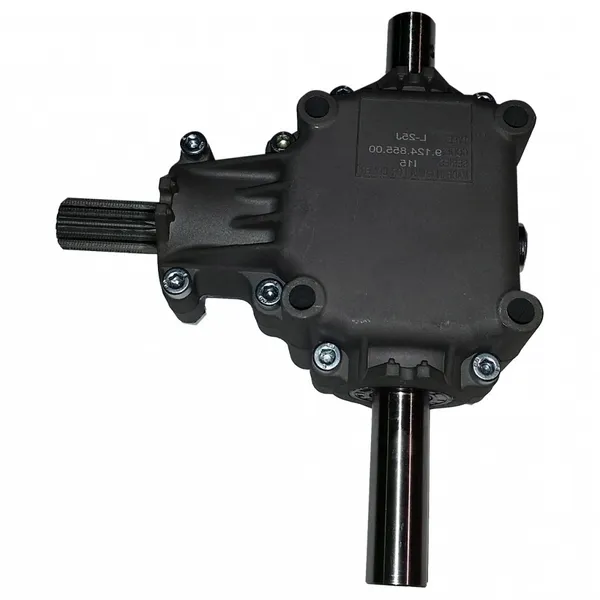

The fertilizer spreader gearbox L-25J is a type of agricultural gearbox designed specifically for use in fertilizer spreaders. It is a high-quality and durable gearbox that is designed to provide a smooth and efficient operation and is capable of handling a wide variety of fertilizer materials. The fertilizer spreader gearbox L-25J is typically made of high-strength metal materials such as cast iron, which provides excellent durability and resistance to wear and tear. It is designed with a gear ratio that is optimized for fertilizer spreading operations, which helps to ensure the accurate application of the fertilizer.Additionally, the fertilizer spreader gearbox L-25J is typically designed with a built-in oil-filled chamber and oil seals, which help to maintain a stable oil level and prevent lubrication issues that can cause gearbox failure or damage. This fertilizer spreader gearbox also typically includes a protective shield or guard to prevent debris or other materials from entering the gearbox and interfering with its operation.Overall, the fertilizer spreader gearbox L-25J is a high-quality and reliable component that is designed to meet the demands of fertilizer spreading operations. It is an essential part of any fertilizer spreader system, and its proper maintenance and regular inspection will help to ensure smooth operation and long service life.

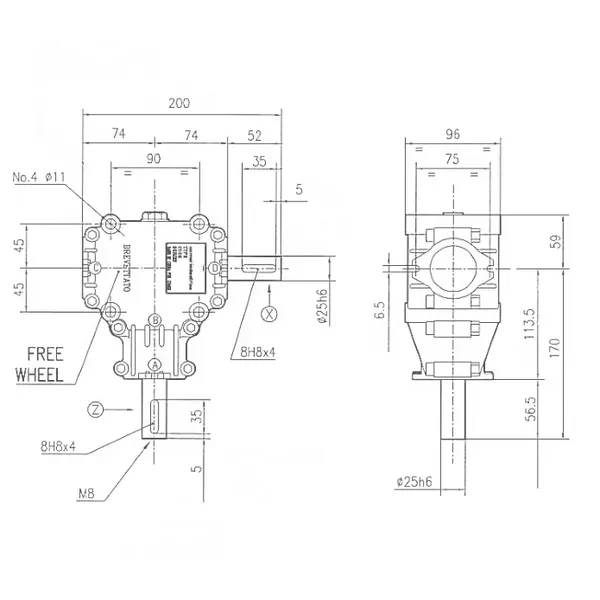

Specifications of Fertilizer Spreader Gearbox L-25J

Description	Fertilizer Spreader Gearbox - Replacement of Comer Gearbox L-25J
Application	Various (agricultural) applications Mowers Chemical fertilizer spreaders Band saws
Consists of	Gearbox Without oil
Technical information	If you have any questions regarding performance at different speeds, please do not hesitate to contact us. When using it for the first time, replace the oil after 50 operating hours.
Max. output torque	22.7 daNm
Contains oil	No
Max. oil capacity	0.35 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Aluminium
Weight	4.1 kg

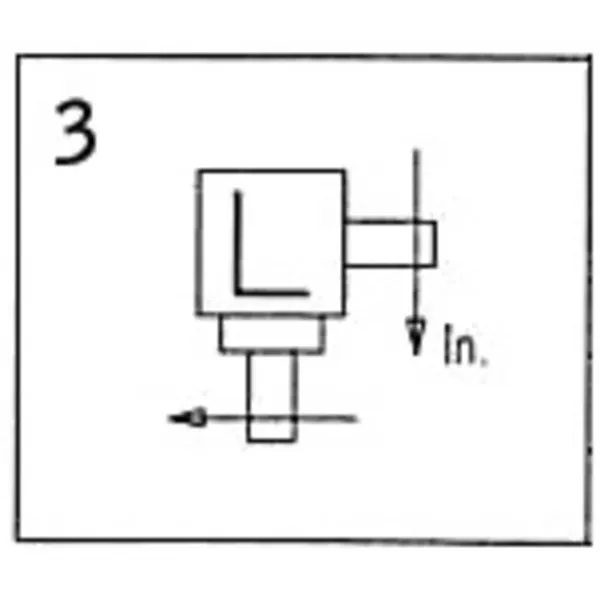

Gear arrangement Reducing	3 - 4
Input power kW / HP Increasing	11 / 15 kW/HP
Input shaft Increasing	X
Input shaft Reducing	Z
Input power KW / HP Reducing	7 / 9.5 kW/HP
Output Torque DaNm Increasing	9.9 daNm
Ratio Increasing	1: 1,9
Ratio Reducing	1.9: 1
Shaft X	1 3/8" (6) (A)
Shaft Z	22 (D)

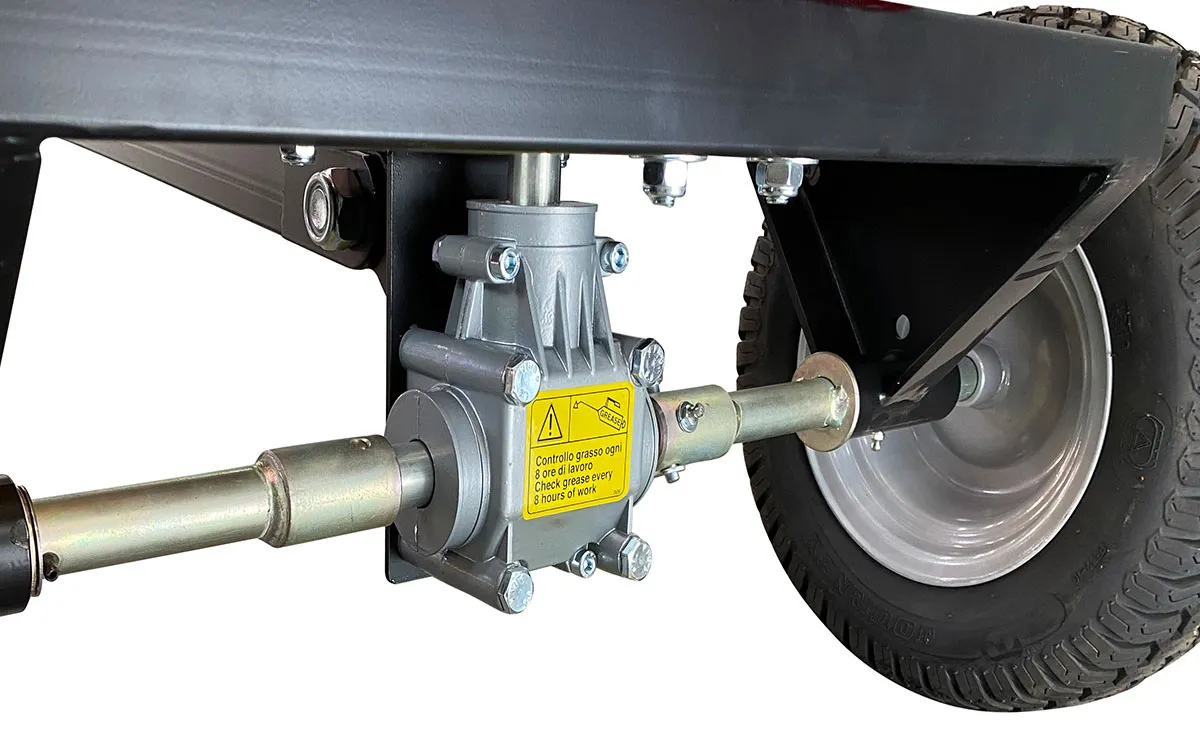

Characteristic of Fertilizer Spreader Gearbox L-25J

The fertilizer spreader gearbox L-25J is designed to have many features and characteristics that make it an ideal choice for use in a fertilizer spreader system. Here are some of the fertilizer spreader gearbox key characteristics:1. High Gear Ratio: The fertilizer spreader gearbox L-25J is designed with a high gear ratio that allows the fertilizer spreader to operate at low engine speeds while still achieving accurate application rates.2. Durable Construction: The fertilizer spreader gearbox is constructed with high-quality and durable materials such as cast iron, which helps to ensure its longevity and resistance to wear and tear.3. Built-in Lubrication: The fertilizer spreader gearbox L-25J is typically designed with a built-in oil-filled chamber and seals, which help to maintain a stable oil level and prevent lubrication issues that can cause gearbox failure or damage.4. Protective Shield: The fertilizer spreader gearbox typically includes a protective shield or guard to prevent debris or other materials from entering the gearbox and interfering with its operation.5. Accurate Application: The high gear ratio and accurate metering system of the L-25J fertilizer spreader gearbox allow for the precise application of fertilizer materials.6. Wide Compatibility: The fertilizer spreader gearbox L-25J is compatible with a wide range of fertilizer materials and can handle different types and textures with ease.Overall, the fertilizer spreader gearbox L-25J is designed with the purpose of providing reliable and accurate performance in a fertilizer spreading system. Its high-quality construction, and innovative design features make it an ideal choice for professionals in the agricultural industry.

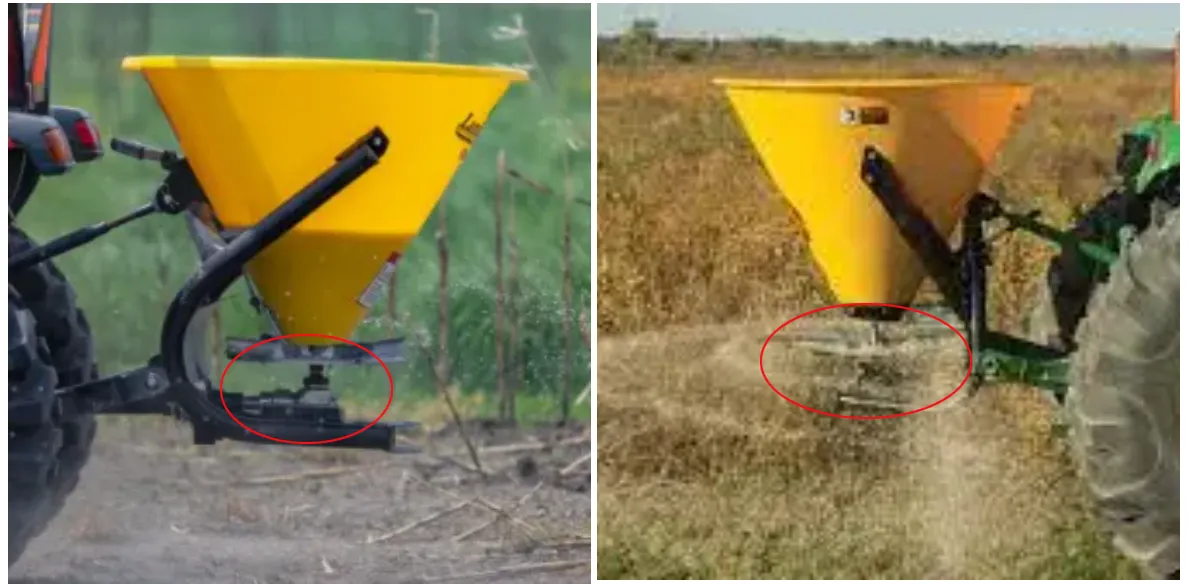

Applications of Fertilizer Spreader Gearbox L-25J

The fertilizer spreader gearbox L-25J has a variety of applications and benefits for those in the agricultural industry. Here are some examples of how it can be used:Fertilizer Spreader: The fertilizer spreader gearbox L-25J is designed to be used in fertilizer spreaders, allowing for the accurate and efficient application of fertilizer materials.Seeder: The high gear ratio of the fertilizer spreader gearbox L-25J makes it an ideal component for use in seeders, which require a high level of precision and accuracy.Agriculture Machinery: The fertilizer spreader gearbox L-25J is a versatile component that can be used in a variety of agricultural machinery, such as plows, cultivators, and other tillage equipment.Lawn and Garden Equipment: In addition to agricultural machinery, the fertilizer spreader gearbox L-25J can also be used in lawn and garden equipment such as lawn tractors, garden tillers, and sprayers.Overall, the fertilizer spreader gearbox L-25J can be used in a wide range of agricultural applications and equipment, providing reliable and accurate performance in many different industries. It is high-quality construction and innovative design makes it an essential component for professionals in the agricultural sector.

How to Install a Fertilizer Spreader Gearbox?

Installing a fertilizer spreader gearbox like the L-25J gearbox can be quite simple, but it's important to follow the proper steps to ensure that it's installed correctly and functions properly. Here are some general steps for installing a fertilizer spreader gearbox:(1) Prepare your equipment: Before installing the fertilizer spreader gearbox, make sure your equipment is properly secured, and any old gearbox or parts has been removed.(2) Align the gearbox: Make sure that the fertilizer spreader gearbox is properly aligned with the equipment and that the mounting surfaces are level and free of debris. Use shims or other means to ensure a proper fit.(3) Install the mounting bolts: Use the provided mounting bolts to attach the gearbox to the equipment. Tighten the bolts evenly and securely to ensure that the fertilizer spreader gearbox is held firmly in place.(4) Connect the power source: Depending on your equipment, you may need to connect the fertilizer spreader gearbox to a power source such as a tractor PTO shaft or hydraulic motor. Follow the manufacturer's instructions for safely and securely connecting the power source.(5) Install the drive shaft: If necessary, connect the drive shaft to the fertilizer spreader gearbox and a power source. Ensure that the drive shaft is properly aligned, and use a torque wrench to tighten the mounting bolts to the manufacturer's specifications.(6) Fill with lubricant: Before using the fertilizer spreader gearbox, fill it with the appropriate lubricant as recommended by the manufacturer. Check the oil level regularly to ensure that it remains at the proper level.It's important to note that the exact steps for installing a fertilizer spreader gearbox may vary depending on the product and equipment you're using. Be sure to carefully read and follow the manufacturer's instructions for proper installation and operation.

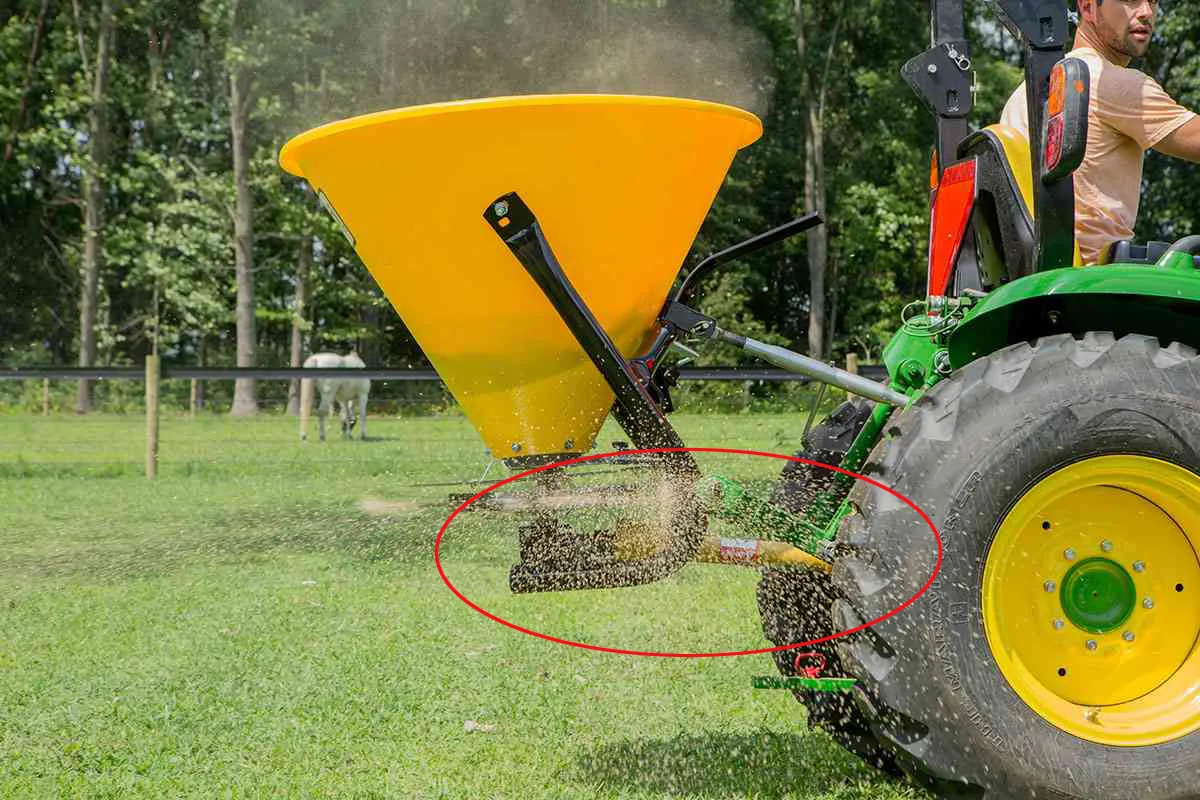

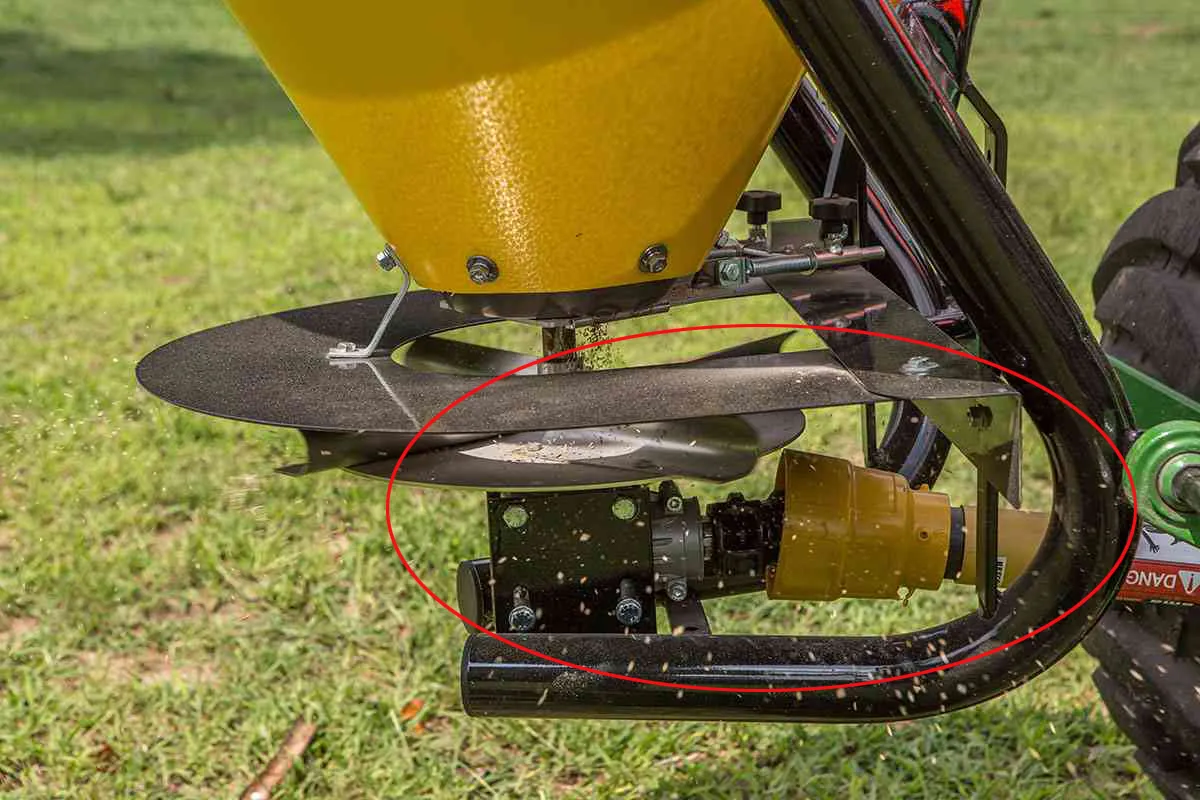

PTO Shafts for Agricultural Fertilizer Spreader Gearbox

PTO shafts are an important component of many agricultural machinery systems, including those used in fertilizer spreading. When selecting a PTO shaft to use with an agricultural fertilizer spreader gearbox, there are several factors to consider.First, it's important to ensure that the PTO shaft is the appropriate size to match the output of your tractor or other power sources. Check the manufacturer's specifications for the fertilizer spreader gearbox to determine the necessary PTO horsepower and speed.Another important consideration is the length of the PTO shaft. It should be the right length to accommodate the distance between the tractor and the gearbox. Measure the distance accurately and purchase a PTO shaft that is the correct length.In addition, check the compatibility of the PTO shaft with both the tractor and the fertilizer spreader gearbox. Both the spline and the yoke sizes should be a proper fit to ensure smooth and efficient operation.To prevent the PTO shaft from disconnecting accidentally, consider using a locking system. Several locking systems are available, including spring-loaded locking pins and mechanical locking collars.Quality is also an essential factor when selecting a PTO shaft. It's important to choose a high-quality PTO shaft designed for agricultural use that will be durable and reliable for long-term use.Finally, safety guidelines should be followed to prevent accidents and injuries when operating your equipment. Always make sure the PTO shaft is properly connected and locked in place before operating your machinery. By following these guidelines, you can help protect yourself and ensure the efficient and reliable operation of your equipment.

Fertilizer Spreader Gearbox Suppliers

Raydafon is a prominent manufacturer of high-performance fertilizer spreader gearboxes for a variety of agricultural applications. Our technical staff can reconfigure an existing design or assist you in designing a custom fertilizer spreader gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing a fertilizer spreader gearbox.We are one of the reputable fertilizer spreader gearbox manufacturers and suppliers with years of expertise in farm equipment manufacturing and distribution. Raydafon provides high-quality agricultural fertilizer spreader gearbox wholesale at a reasonable price. In addition, we also offer agricultural PTO shafts! Contact us now!
