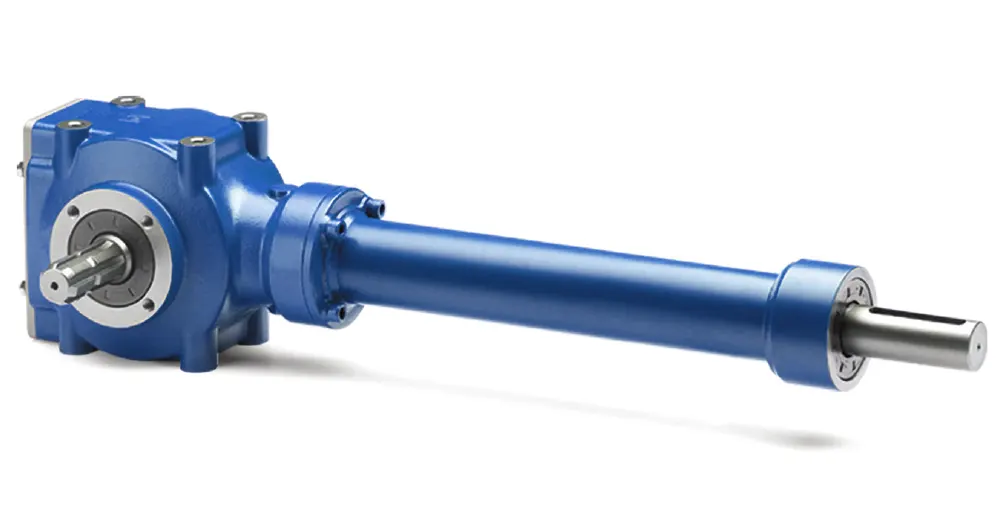

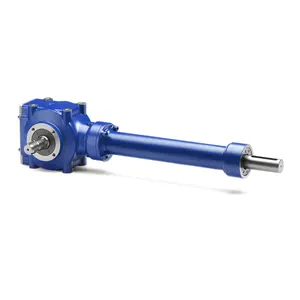

Flail Mower Gearboxes – Replacement of Comer Code LL-5L

Flail Mower Gearboxes – Replacement of Comer Code LL-5L

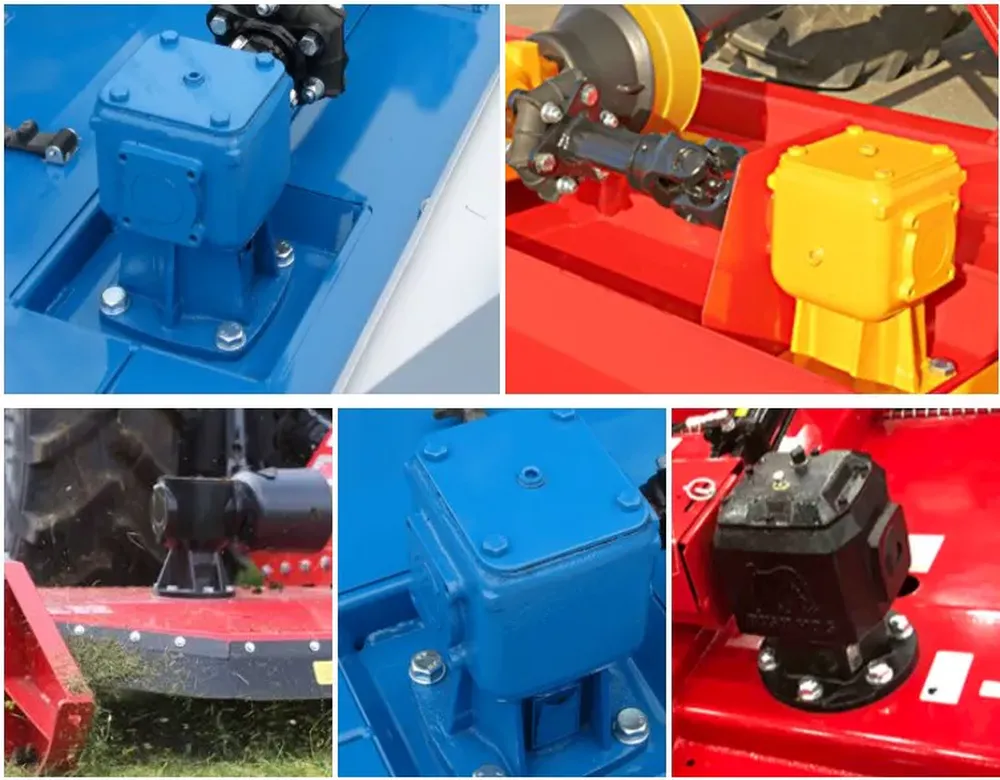

A flail mower gearbox is a component in a flail mower that transmits power from the tractor to the flail blades. The gearbox houses a system of gears that transfer the rotational energy from the tractor's power take-off (PTO) shaft to the flail mower's rotor.The gearbox typically includes a housing, input and output shafts, bearings, and a system of gears. The input shaft is connected to the tractor's PTO shaft, while the output shaft is connected to the rotor. As the input shaft rotates, the gears inside the gearbox transmit power to the output shaft, which turns the rotor and the flail blades.Flail mowers are commonly used for cutting grass, weeds, and other vegetation, and are often used in landscaping, agriculture, and road maintenance. The flail mower gearbox is an important component in the overall design of the mower, and its quality and durability are crucial for ensuring effective and efficient mowing operations.

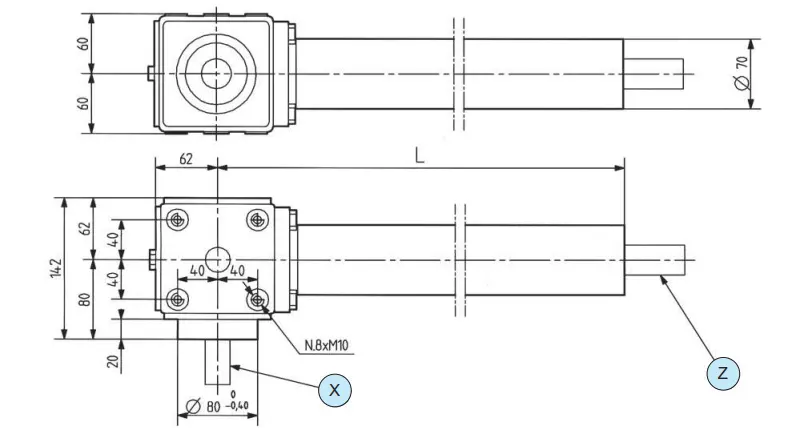

Flail Mower Gearbox LL-5L Specification

i	1.9
N1[rpm]	540
P1[kW]	11
M2[Nm]	99
Shaft X	1'' 3/8 Z6
Shaft Z	L60 Φ25
Input	X



Flail Mower Gearbox Features

The features of a flail mower gearbox include a durable housing, high-quality bearings, and a reliable system of gears that transfer power from the tractor's PTO shaft to the flail blades. Many gearboxes also include a safety feature that automatically disengages the blades if the mower strikes a foreign object, reducing the risk of damage to the mower or injury to the operator. Additionally, some gearboxes have adjustable settings that allow for customization of the cutting height and intensity, providing greater versatility in mowing operations. Overall, a high-quality flail mower gearbox is essential for efficient and effective vegetation management in a variety of settings.

PTO Shafts and Agricultural Gearboxes

A PTO shaft is an integral part of any agricultural gearbox. These are used in all types of agricultural machinery and are designed to transmit power to the wheels. Different kinds of shafts have different functions and are designed to support a variety of power outputs. Domestic PTO shafts are the most common, and come in a variety of sizes and shapes. They are designed to withstand pressure, impact, and tension. Moreover, they feature a slip clutch and shear pin, which protect them from common obstacles.In order to determine the right size of the shaft, measuring the existing shaft's closed position is essential. This way, he will be able to choose the right series. It is important to know whether the shaft is equipped with clutches or shear pins. If the shaft is equipped with implement ends, he should also know the length of the shaft. If the shaft is a universal type, the length should be identical to the width of the shaft.As a professional agricultural machinery parts supplier, we also offer a wide range of PTO drive shafts for sale. Contact us now to get more info!
