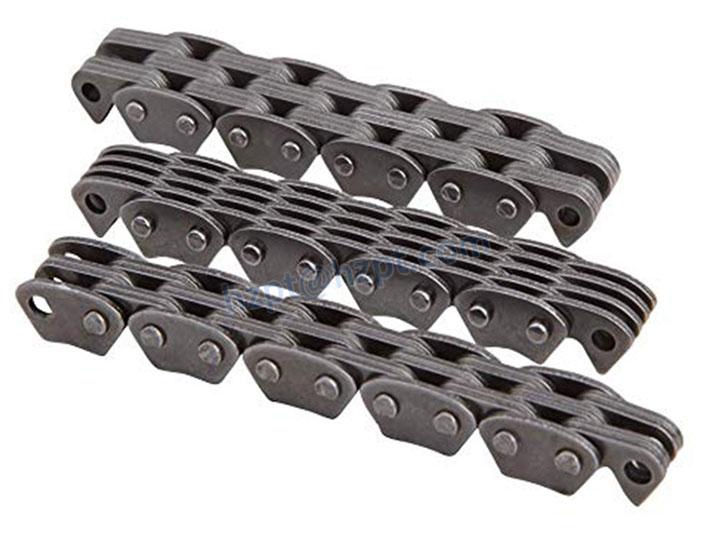

Flank Contact Silent Chains SC3 SC4 SC5 SC6 SC8 SC10

Flank Contact Silent Chains SC3 SC4 SC5 SC6 SC8 SC10

A flank contact silent chain consists of interleaved rows of bifurcated link plates connected by connecting pins. The teeth of each row overlap the teeth of the adjacent row. The inner flanks of each tooth protrude beyond the outer flanks of the overlapping teeth. When engaged under tension, these flanks engage the sprocket teeth. The effect is to suppress noise and vibration produced by the chain transmission.A typical flank contact silent chain comprises links connected by a connecting pin. The inner flank of each link carries two teeth. Each tooth has a corresponding outer and inner flank. The outer flank of each link is shaped to accommodate the outer flank. The outer flank is shaped like a ball. This shape is important because the engagement point must be stable for the chain to be stable. The outer flank can also be bent or twisted to meet the other teeth.

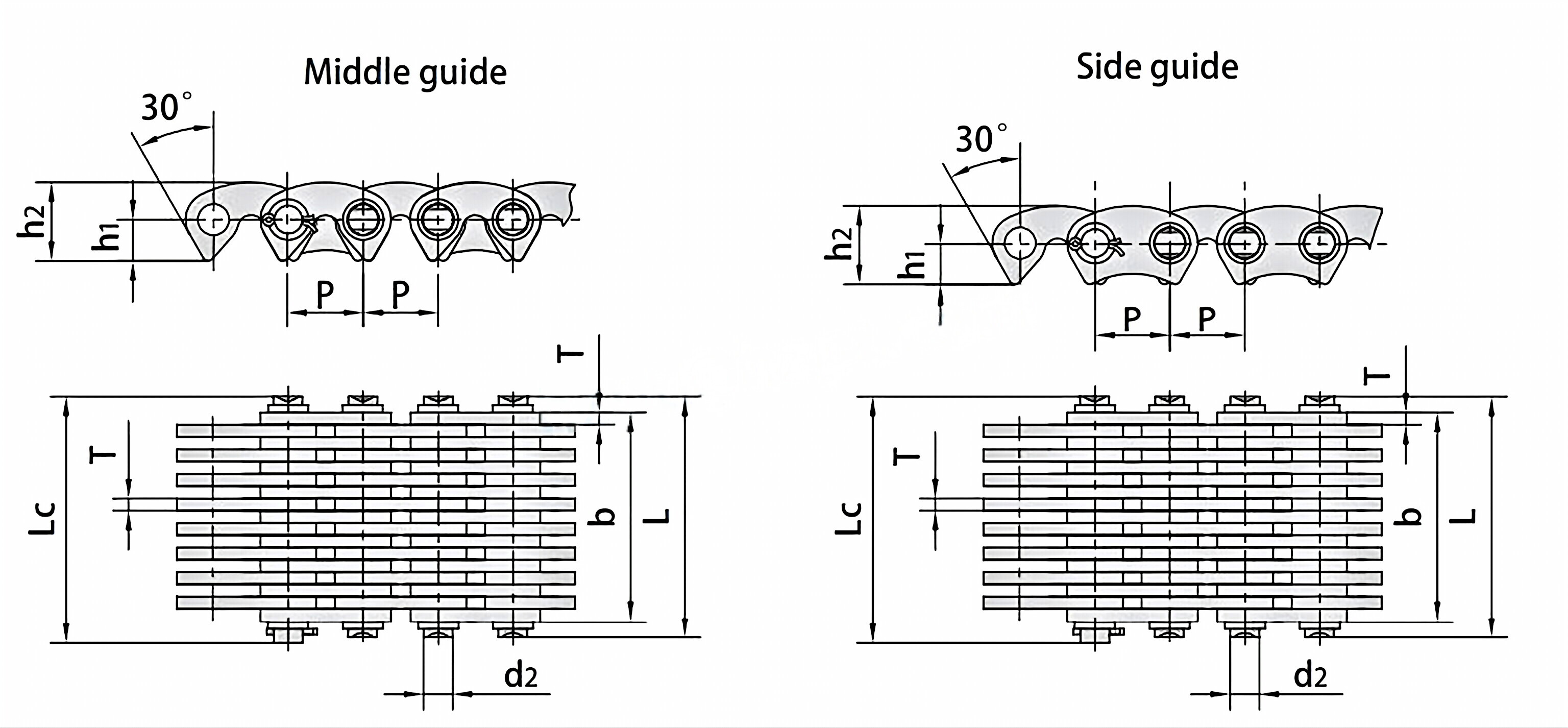

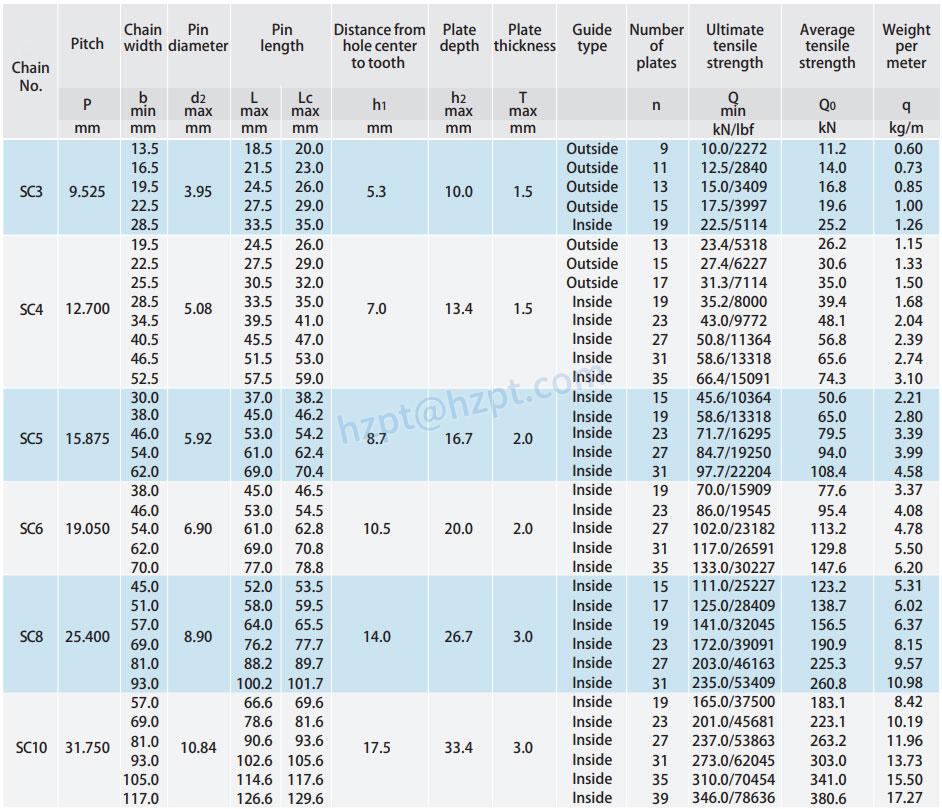

Flank Contact Silent Chains Parameters

Flank Contact Silent Chains Features

A key feature of flank contact silent chains is the low resonance noise. This is achieved by varying the contact surface occupancy rate of link plates in a row. Link plates in a row may also be arranged in a random manner to minimize resonance noise. These features make the passive design of silent chains ideal for applications where low-resistance noise is important. Listed below are some of the key characteristics of this type of passive design.First, a silent chain's power-transmitting area is highly resistant to wear and fatigue. As a result, its service life is long. This is also a key feature to ensure safety. Since the flank surface of a silent chain is the most sensitive part of a chain, it is important to consider the flank surface in your design. This will ensure that the chain remains silent while working. It is important to remember that the surface of the chain will be in contact with various parts of the machine.The second characteristic is a high mesh-surface-to-sprocket contact area. This feature reduces the noise generated by collisions when the two surfaces are in contact. In addition, the mesh-transmitting area is relatively smooth and free of wear. As a result, the mesh starts to mesh with the tooth flank of the sprocket at an area adjacent to its tip. When this part of the chain is engaged by the sprocket, it makes for a low-noise operation.

Flank Contact Silent Chains Benefits

There are many benefits of using a Flank contact silent chain. Listed below are a few of those benefits. If you are considering purchasing a silent chain for your bicycle, you should know about these advantages and how they can help you. In addition, these flank contact silent chains are more durable than traditional chains. And if you are looking for a new chain for your bike, you may want to consider a Flank contact silent chain.A silent chain is usually made up of multiple links that form an endless loop around a pair of sprockets. These links are interlocking and are designed so that the teeth on the flank side engage with the teeth on the sprocket. This helps transfer power from the driving sprocket to the driven sprocket. It's important to know how to properly maintain a silent chain in order to enjoy its full benefits.Another benefit of using a Flank Contact Silent Chain is that you won't have to worry about the chain shifting while it's engaging. This is because of the way the pins engage with the sprockets. Because the pins are convex, they will not shift or crack. And because you can use a Flank Contact Silent Chain for any type of bike, since the chain is safe and reliable.

Sprockets For Flank Contact Silent Chains

When using flank contact silent chains, the sprocket on the rear link is engaged with the upper part of the inner flank of the chain. This engagement is achieved by making the sprocket tooth contact with the second part of the inner flank. The two sprocket surfaces have the same contour. As a result, the sprockets engage the chain in a symmetrical fashion, resulting in optimal operation.The sprocket teeth engage the outer flank of the link plate at the point where they meet or are "in the vicinity." The distance between the engagement endpoint and the engagement transfer point is relatively small when viewed in a transverse direction. The longer the distance between the engagement point and the engagement transfer point, the greater the force of the sprocket teeth' collision and the more noise the engagement produces.Besides these drive chains, Ever power also provides you with high-quality sprockets for sale. Contact us now!
