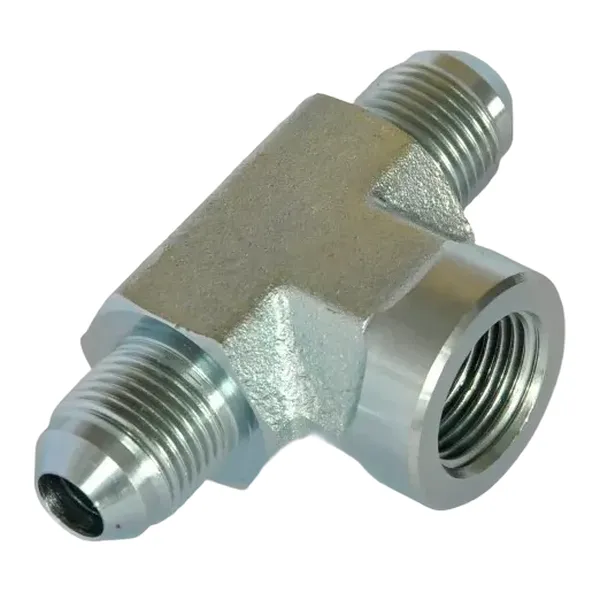

A flared tube female branch tee fitting is a type of plumbing or hydraulic fitting used to connect three pipes or tubes together at a right angle, with one tube branching off from the main line. This type of fitting is commonly used in various applications, including industrial processes, fluid systems, and HVAC (heating, ventilation, and air conditioning) systems.Here are the features of a flared tube female branch tee fitting:1. Flared Ends: The fitting typically has three ends, with two of them having a flared design. Flared ends facilitate a tight and leak-resistant connection when paired with compatible flared fittings or components.2. Female Threads: The third end of the fitting is usually equipped with female threads. These threads are designed to connect with a male-threaded pipe or fitting, allowing for a secure connection.3. Branch Design: The branch of the tee fitting extends at a right angle from the main line. This allows for the connection of a separate pipe or tube to the fitting, creating a branching pathway for the fluid or gas flow.4. Materials: Flared tube female branch tee fittings are commonly made from materials such as brass, stainless steel, or other corrosion-resistant metals. The choice of material depends on the specific application requirements, including the type of fluid or gas being conveyed and the environmental conditions.5. Flare Fittings: Flared tube female branch tee fittings are typically used in conjunction with flared fittings, such as flared nuts and sleeves. These fittings feature a cone-shaped end that matches the flared design of the fitting, ensuring a proper seal and preventing leaks.Flared tube female branch tee fittings are known for their reliability, durability, and ease of installation. They are often used in applications that require a secure and leak-free connection, especially in systems that handle high-pressure fluids or gases. It is important to ensure compatibility between the fitting, tubing, and other components to maintain the integrity of the system and prevent leaks or failures.

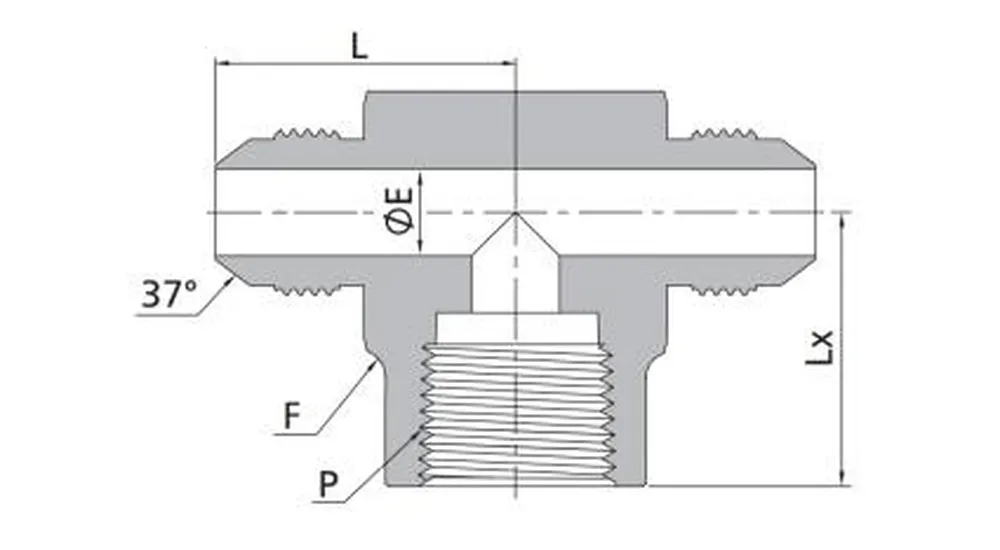

Flared Tube Female Branch Tee Fittings Size Chart:

T-Tube O.D		P-NPTSize	Basic Ordering Number	Dimension, in. (mm)
In.	mm			L	E	F (Flat)	Lx
1/8	3	1/8	-FBT-AN2-FN2	1.00 (25.4)	0.06 (1.6)	0.56 (14.3)	0.66 (16.8)
3/16	4	1/8	-FBT-AN3-FN2	1.03 (26.2)	0.13 (3.2)	0.56 (14.3)	0.66 (16.8)
1/4	6	1/8	-FBT-AN4-FN2	1.08 (27.4)	0.17 (4.4)	0.56 (14.3)	0.66 (16.8)
1/4	6	1/4	-FBT-AN4-FN4	1.22 (30.9)	0.17 (4.4)	0.81 (20.6)	0.88 (22.4)
5/16	8	1/8	-FBT-AN5-FN2	1.08 (27.4)	0.24 (6.0)	0.56 (14.3)	0.66 (16.8)
5/16	8	1/4	-FBT-AN5-FN4	1.22 (30.9)	0.24 (6.0)	0.81 (20.6)	0.88 (22.4)
3/8	10	1/8	-FBT-AN6-FN2	1.06 (26.9)	0.30 (7.5)	0.63 (15.9)	0.66 (16.8)
3/8	10	1/4	-FBT-AN6-FN4	1.23 (31.2)	0.30 (7.5)	0.81 (20.6)	0.88 (22.4)
3/8	10	3/8	-FBT-AN6-FN6	1.31 (33.2)	0.30 (7.5)	0.94 (23.8)	1.02 (25.9)
1/2	12	1/4	-FBT-AN8-FN4	1.24 (31.6)	0.39 (9.9)	0.81 (20.6)	0.88 (22.4)
1/2	12	3/8	-FBT-AN8-FN6	1.42 (36.1)	0.39 (9.9)	0.94 (23.8)	1.02 (25.9)
1/2	12	1/2	-FBT-AN8-FN8	1.42 (36.1)	0.39 (9.9)	1.06 (27.0)	1.23 (31.2)
5/8	16	1/2	-FBT-AN10-FN8	1.64 (41.7)	0.48 (12.3)	1.06 (27.0)	1.23 (31.2)
3/4	18	1/2	-FBT-AN12-FN8	1.66 (42.1)	0.61 (15.5)	1.25 (31.8)	1.23 (31.2)
3/4	18	3/4	-FBT-AN12-FN12	1.89 (48.0)	0.61 (15.5)	1.37 (34.9)	1.36 (34.5)
7/8	22	3/4	-FBT-AN14-FN12	1.86 (47.2)	0.72 (18.3)	1.37 (34.9)	1.42 (36.1)
1	25	1	-FBT-AN16-FN16	2.17 (55.1)	0.85 (21.5)	1.69 (42.9)	1.62 (41.1)
1 1/4	32	1 1/4	-FBT-A20-FN20	2.33 (59.2)	1.08 (27.5)	2.00 (50.8)	1.70 (43.2)
1 1/2	38	1 1/2	-FBT-AN24-FN24	2.89 (73.4)	1.30(33.0)	2.50 (63.5)	2.08 (52.8)
2	50	2	-FBT-AN32-FN32	3.30 (83.8)	1.77(45.0)	2.50 (63.5)	2.39 (60.7)

Benefits of Flared Tube Female Branch Tee Fittings:

Flared tube female branch tee fittings offer several benefits that make them popular in various applications. Here are some advantages of using these flared tube fittings:(1) Leak Resistance: Flared tube female branch tee fittings provide a tight and reliable seal, minimizing the risk of leaks. The flared ends, when paired with compatible flared fittings, create a strong connection that can withstand high-pressure applications without compromising the integrity of the system.(2) Easy Installation: These flared tube fittings are relatively easy to install, requiring minimal tools and expertise. The flared design allows for simple and straightforward assembly, reducing installation time and labor costs. Additionally, the use of flared fittings eliminates the need for soldering or welding, making the process even more convenient.(3) Versatility: Flared tube female branch tee fittings are versatile and can be used with various types of pipes or tubes, including metal and rigid plastic. They are compatible with different materials such as brass, stainless steel, and copper, making them suitable for a wide range of applications in plumbing, hydraulic systems, and HVAC installations.(4) Durability: These flared tube fittings are typically constructed from robust materials such as brass or stainless steel, which offer excellent durability and corrosion resistance. This ensures that the fittings can withstand harsh environments, temperature variations, and chemical exposures, making them long-lasting and reliable.(5) Flexibility: Flared tube female branch tee fittings provide flexibility in system design and layout. They allow for the branching of pipes or tubes at a right angle, enabling the creation of complex plumbing or fluid systems with multiple connections. This flexibility makes them suitable for applications where space constraints or specific routing requirements exist.(6) Compatibility: Flared tube female branch tee fittings are designed to be compatible with a wide range of flared fittings and components. This compatibility ensures that users have a variety of options when it comes to selecting and connecting other parts of the system, providing convenience and flexibility during installation and maintenance.(7) High-Pressure Applications: These flared tube fittings are particularly well-suited for high-pressure applications. The flared design, combined with the secure connection provided by flared fittings, allows for reliable operation even under significant pressure conditions. This makes them suitable for systems that handle fluids or gases at elevated pressures, such as hydraulic systems or industrial processes.
