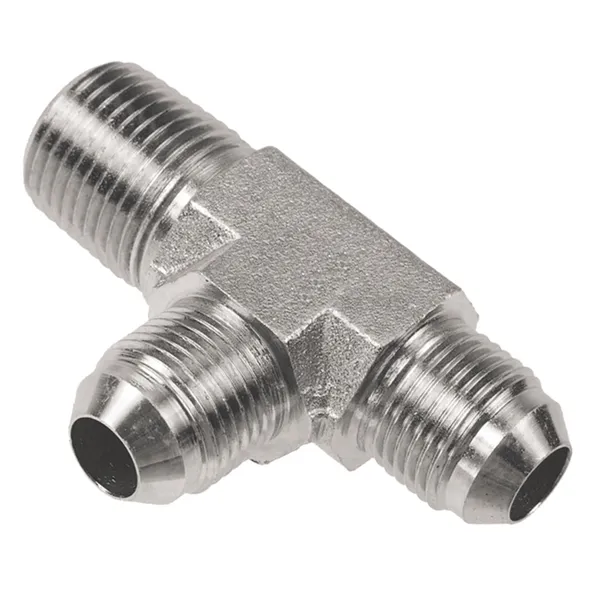

Flared Tube Male Run Tee fittings are a type of plumbing fitting used to connect three tubes or pipes together in a tee configuration. These fittings are commonly used in hydraulic and pneumatic systems, as well as in the transportation of fluids and gases.The key feature of a Flared Tube Male Run Tee fitting is the flared end on one side, which allows for a strong and reliable connection with flared tubing. The flared end is designed to create a leak-proof seal when connected to a compatible flared tube. The other two ends of the fitting are male threads, which can be connected to other female-threaded fittings, valves, or equipment.The flared end of the flared tube fittings is typically connected to a flared tube using a flaring tool, which shapes the tube end into a cone shape. The cone-shaped end of the tube is then inserted into the flared end of the fitting, and a nut is tightened to secure the connection. This flared connection provides excellent resistance to vibration and high-pressure applications.Flared Tube Male Run Tee fittings are available in various materials such as brass, stainless steel, and other metals, depending on the application requirements. They come in different sizes to accommodate different tube diameters and thread sizes.These flared tube fittings are widely used in industries such as automotive, aerospace, refrigeration, and plumbing. They offer advantages such as easy installation, resistance to leakage, and durability in demanding environments.

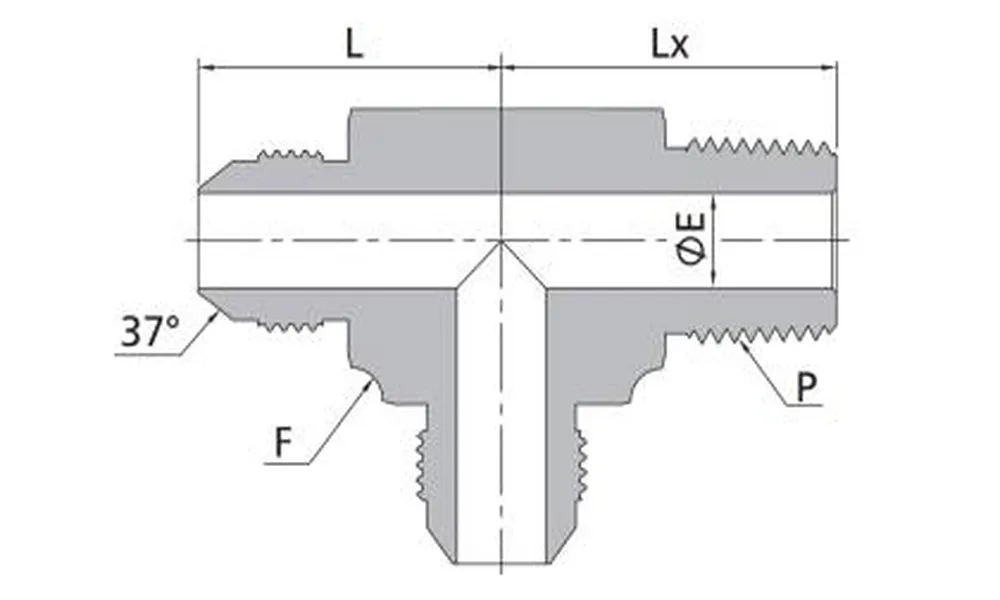

Flared Tube Male Run Tee Fittings Size Chart:

T-Tube O.D		P-NPTSize	Basic Ordering Number	Dimension, in. (mm)
In.	mm			L	E	F (Flat)	Lx
1/8	3	1/8	-MRT-AN2-MN2	0.77 (19.6)	0.06 (1.6)	0.44 (11.1)	0.72(18.3)
3/16	4	1/8	-MRT-AN3-MN2	0.83 (21.1)	0.13 (3.2)	0.44 (11.1)	0.72(18.3)
1/4	6	1/8	-MRT-AN4-MN2	0.89 (22.6)	0.17 (4.4)	0.50 (12.7)	0.78(19.8)
1/4	6	1/4	-MRT-AN4-MN4	1.06 (26.9)	0.17 (4.4)	0.56 (14.3)	1.09(27.7)
5/16	8	1/8	-MRT-AN5-MN2	0.95 (24.1)	0.19 (4.8)	0.56 (14.3)	0.78(19.8)
5/16	8	1/4	-MRT-AN5-MN4	1.06 (26.9)	0.24 (6.0)	0.56 (14.3)	1.09(27.7)
3/8	10	1/8	-MRT-AN6-MN2	1.06 (26.9)	0.19 (4.8)	0.56 (14.3)	0.90(22.8)
3/8	10	1/4	-MRT-AN6-MN4	1.06 (26.9)	0.28 (7.1)	0.56 (14.3)	1.09(27.7)
3/8	10	3/8	-MRT-AN6-MN6	1.14 (29.0)	0.30 (7.5)	0.69 (17.5)	1.22(31.0)
3/8	10	1/2	-MRT-AN6-MN8	1.23 (31.2)	0.30 (7.5)	0.81 (20.6)	1.47(37.3)
1/2	12	1/4	-MRT-AN8-MN4	1.25 (31.8)	0.28 (7.1)	0.81 (20.6)	1.22(31.0)
1/2	12	3/8	-MRT-AN8-MN6	1.25 (31.8)	0.39 (9.9)	0.81 (20.6)	1.22(31.0)
1/2	12	1/2	-MRT-AN8-MN8	1.33 (33.7)	0.39 (9.9)	0.81 (20.6)	1.47(37.3)
1/2	12	3/4	-MRT-AN8-MN12	1.42 (36.0)	0.39 (9.9)	1.00 (25.4)	1.59 (40.4)
5/8	16	3/8	-MRT-AN10-MN6	1.45 (36.8)	0.39 (9.9)	0.81 (20.6)	1.30(33.0)
5/8	16	1/2	-MRT-AN10-MN8	1.45 (36.8)	0.48(12.3)	0.81 (20.6)	1.47(37.3)
5/8	16	3/4	-MRT-AN10-MN12	1.53 (38.9)	0.48(12.3)	1.00 (25.4)	1.59(40.4)
3/4	18	3/4	-MRT-AN12-MN12	1.66 (42.2)	0.61(15.5)	1.06 (27.0)	1.59(40.4)
3/4	18	1	-MRT-AN12-MN16	1.66 (42.2)	0.61(15.5)	1.25 (31.8)	1.98(50.4)
7/8	22	3/4	-MRT-AN14-MN12	1.80 (45.7)	0.72(18.3)	1.25 (31.8)	1.69(42.9)
1	25	3/4	-MRT-AN16-MN12	1.81 (46.0)	0.72 (18.3)	1.37 (34.9)	1.78(45.2)
1	25	1	-MRT-AN16-MN16	1.81 (46.0)	0.85 (21.5)	1.37 (34.9)	1.97(50.0)
1 1/4	32	1	-MRT-AN20-MN16	2.06 (52.3)	0.94 (23.8)	1.69 (42.9)	2.35(59.6)
1 1/4	32	1 1/4	-MRT-AN20-MN20	2.06 (52.3)	1.08 (27.5)	1.69 (42.9)	2.38(60.5)
1 1/2	38	1 1/2	-MRT-AN24-MN24	2.33 (59.2)	1.30 (33.0)	2.00 (50.8)	2.64(67.1)
2	50	2	-MRT-AN32-MN32	3.06 (77.7)	1.77 (45.0)	2.50 (63.5)	3.00(76.2)

Applications of Flared Tube Male Run Tee Fittings:

Flared Tube Male Run Tee fittings find applications in various industries and systems where the branching of fluid or gas flow is required. Some common applications include:1. Hydraulic Systems: Flared Tube Male Run Tee fittings are commonly used in hydraulic systems, where they allow the connection of multiple hydraulic lines or hoses. They are often used in applications such as hydraulic power units, cylinders, and control valves.2. Pneumatic Systems: These flared tube fittings are also widely used in pneumatic systems, which use compressed air or gas to transmit power. Flared Tube Male Run Tee fittings enable the branching of airlines, allowing for the connection of various pneumatic components such as actuators, valves, and air tools.3. Refrigeration and Air Conditioning: Flared Tube Male Run Tee fittings are utilized in refrigeration and air conditioning systems for connecting refrigerant lines. They enable the branching of the refrigerant flow between different components, such as compressors, condensers, and evaporators.4. Plumbing Systems: In plumbing applications, Flared Tube Male Run Tee fittings can be used to connect multiple water or gas supply lines. They are commonly employed in residential, commercial, and industrial plumbing systems for creating branch connections to fixtures, appliances, or distribution points.5. Automotive Industry: Flared Tube Male Run Tee fittings are found in various automotive systems, including fuel lines, brake systems, and power steering systems. They provide reliable connections for fluid flow and help in routing lines efficiently within the vehicle.6. Fluid Transfer Systems: These flared tube fittings are used in fluid transfer applications such as fuel delivery systems, lubrication systems, and chemical processing plants. They allow for the branching of fluid lines, facilitating the transfer of liquids or gases to multiple destinations.7. Instrumentation and Control Systems: Flared Tube Male Run Tee fittings are commonly employed in instrumentation and control systems, enabling the connection of various sensors, gauges, and control devices. They are often used to create branch connections for pressure, temperature, or flow measurement instruments.
