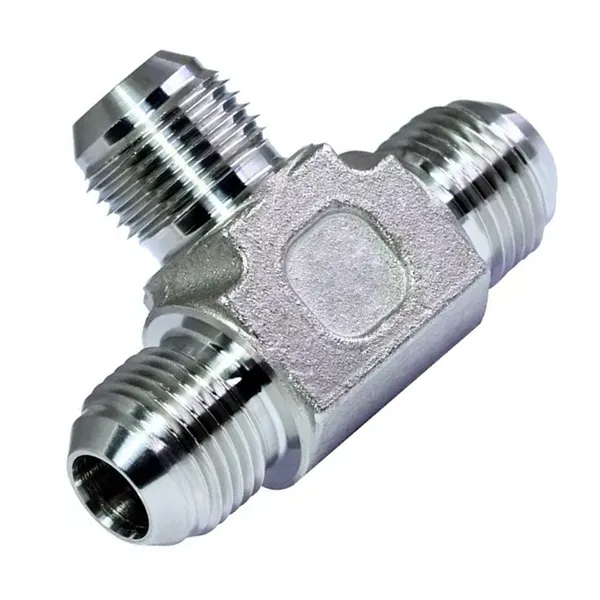

Flared tube union tee fittings are a type of plumbing or hydraulic fitting used to join three tubes together in a T-shaped configuration. They are commonly used in fluid systems where the flow needs to be divided or redirected. The design of flared tube union tees allows for easy installation and disassembly without the need for special tools, making them a popular choice in various industries.Here's a breakdown of the key features and components of flared tube union tee fittings:1. Tee Shape: Flared tube union tee fittings are named after their T-shaped configuration. They have three openings, with two of them aligned in a straight line and the third one perpendicular to the other two.2. Flared Ends: The ends of the flared tube union tee fittings are designed to accommodate flared tubes. Flaring involves expanding the end of a tube to create a conical shape, which helps create a secure and leak-resistant connection when inserted into the fitting.3. Union Nut: The union nut is a threaded component that connects the three tubes together. It is typically made of a durable material like brass or stainless steel. The union nut is tightened to create a strong and watertight seal between the tubes and the fitting.4. Ferrules: Ferrules are small metal rings that are placed on the flared ends of the tubes before they are inserted into the fitting. When the union nut is tightened, it compresses the ferrules against the fitting, creating a tight seal.5. Compression Fittings: Flared tube union tee fittings are classified as compression fittings because they use compression to create a secure connection. The compression fitting design allows for easy assembly and disassembly without damaging the tubes or the fitting.6. Versatility: Flared tube union tee fittings are available in various sizes and materials to accommodate different types of tubing and system requirements. They can be used with metal tubes, such as copper, stainless steel, or brass, as well as plastic tubes.7. Applications: Flared tube union tee fittings are commonly used in plumbing, HVAC (heating, ventilation, and air conditioning), hydraulic systems, and other fluid handling applications. They are particularly useful in situations where frequent disconnection and reconnection of tubes are required.When using flared tube union tee fittings, it's important to ensure that the tubes are cut cleanly and evenly and the flared ends are properly formed. This will help ensure a reliable and leak-free connection. Additionally, proper tightening of the union nut is crucial to prevent leaks and maintain the integrity of the system.

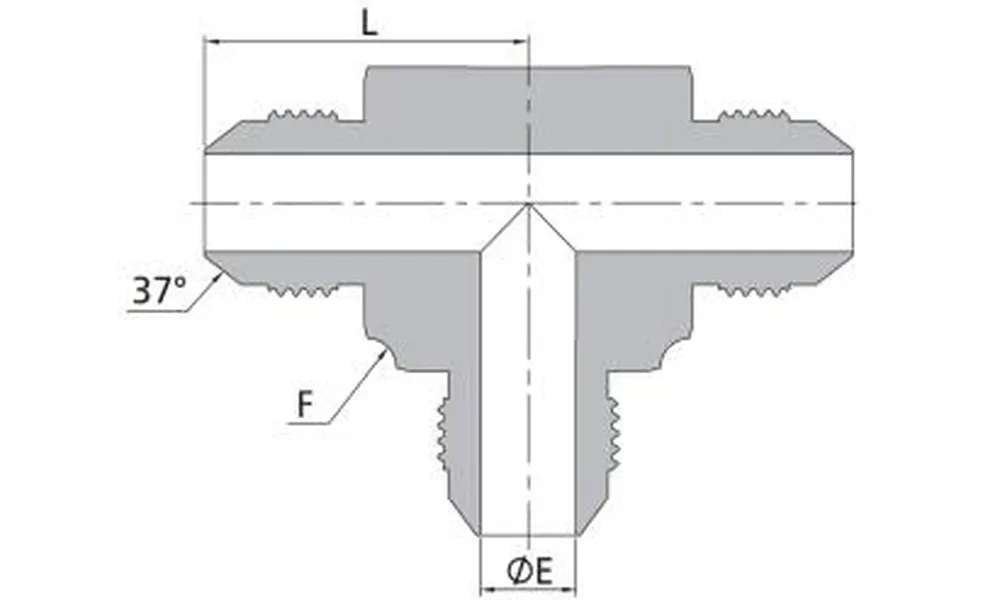

Flared Tube Union Tee Fittings Size Chart:

Tube O.D.		Basic Ordering Number	Dimensions, in. (mm)
in.	mm		L	E	F (Flat)
1/8	3	-JUT-AN2	0.77 (19.6)	0.06 (1.6)	0.44 (11.1)
3/16	4	-JUT-AN3	0.83 (21.1)	0.13 (3.2)	0.44 (11.1)
1/4	6	-JUT-AN4	0.89 (22.6)	0.17 (4.4)	0.50 (12.7)
5/16	8	-JUT-AN5	0.95 (24.1)	0.24 (6.0)	0.56 (14.3)
3/8	10	-JUT-AN6	1.06 (26.9)	0.30 (7.5)	0.56 (14.3)
1/2	12	-JUT-AN8	1.25 (31.8)	0.39 (9.9)	0.81 (20.6)
5/8	16	-JUT-AN10	1.45 (36.8)	0.48 (12.3)	0.81 (20.6)
3/4	18	-JUT-AN12	1.66 (42.2)	0.61 (15.5)	1.06 (27.0)
7/8	22	-JUT-AN14	1.80 (45.7)	0.72 (18.3)	1.25 (31.8)
1	25	-JUT-AN16	1.81 (46.0)	0.85 (21.5)	1.37 (34.9)
1 1/4	32	-JUT-AN20	2.06 (52.3)	1.08 (27.5)	1.69 (42.9)
1 1/2	38	-JUT-AN24	2.33 (59.2)	1.30 (33.0)	2.00 (50.8)
2	50	-JUT-AN32	3.06 (77.7)	1.77 (45.0)	2.50 (63.5)

Typical Applications of Flared Tube Union Tee Fittings:

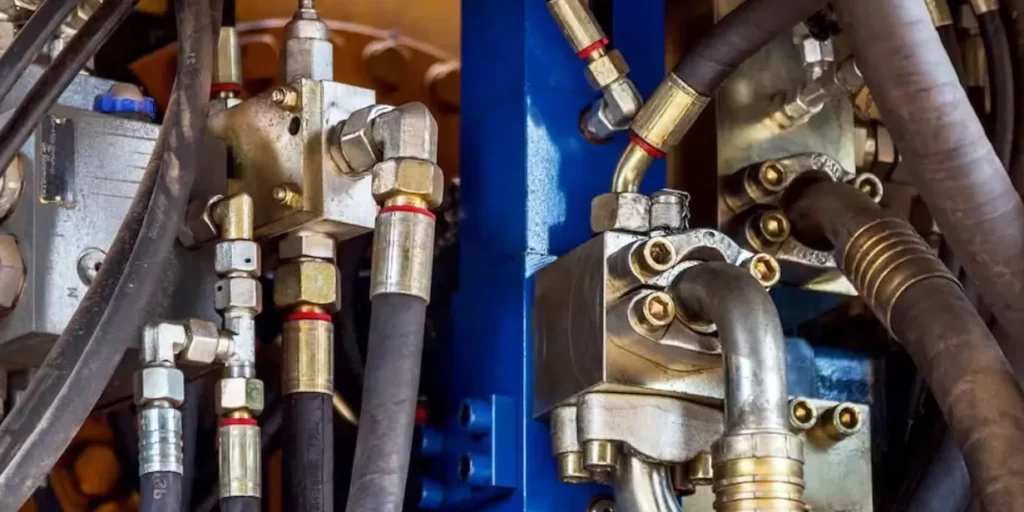

Flared tube union tee fittings find applications in various industries and systems where fluid flow needs to be divided or redirected. Some common applications include:(1) Plumbing Systems: Flared tube union tee fittings are widely used in plumbing systems to connect and divide fluid flow in water supply lines, drainage systems, and irrigation systems. They allow for easy installation and disassembly, making repairs and modifications more convenient.(2) HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems often require the distribution of fluids, such as refrigerants or water, to different components. Flared tube union tee fittings can be used to split fluid flow to multiple sections of the system, facilitating efficient heat transfer and temperature control.(3) Hydraulic Systems: In hydraulic systems, which use pressurized fluids to transmit power, flared tube union tee fittings can be used to merge or separate fluid lines. They are commonly found in industrial machinery, construction equipment, and automotive applications, enabling efficient fluid distribution and control.(4) Fuel Systems: Flared tube union tee fittings are utilized in fuel systems, such as those in automobiles, aircraft, and marine vessels. They enable the connection of fuel lines, allowing for the proper distribution of fuel to different components, such as engines, generators, and fuel tanks.(5) Process Industries: Flared tube union tee fittings are employed in various process industries, including chemical plants, refineries, and pharmaceutical facilities. They play a crucial role in process piping systems, facilitating the distribution of fluids, gases, and chemicals to different stages of production or treatment processes.(6) Laboratory and Research Applications: Flared tube union tee fittings are commonly used in laboratory setups and research facilities where precise fluid control is required. They allow for the integration of different fluid lines and instruments, enabling the manipulation and distribution of fluids for experimentation or analysis.(7) Instrumentation and Control Systems: Flared tube union tee fittings are utilized in instrumentation and control systems to split or redirect fluid flow for measurement, analysis, or control purposes. They are often found in industrial automation systems, where accurate fluid distribution is essential for process monitoring and optimization.
