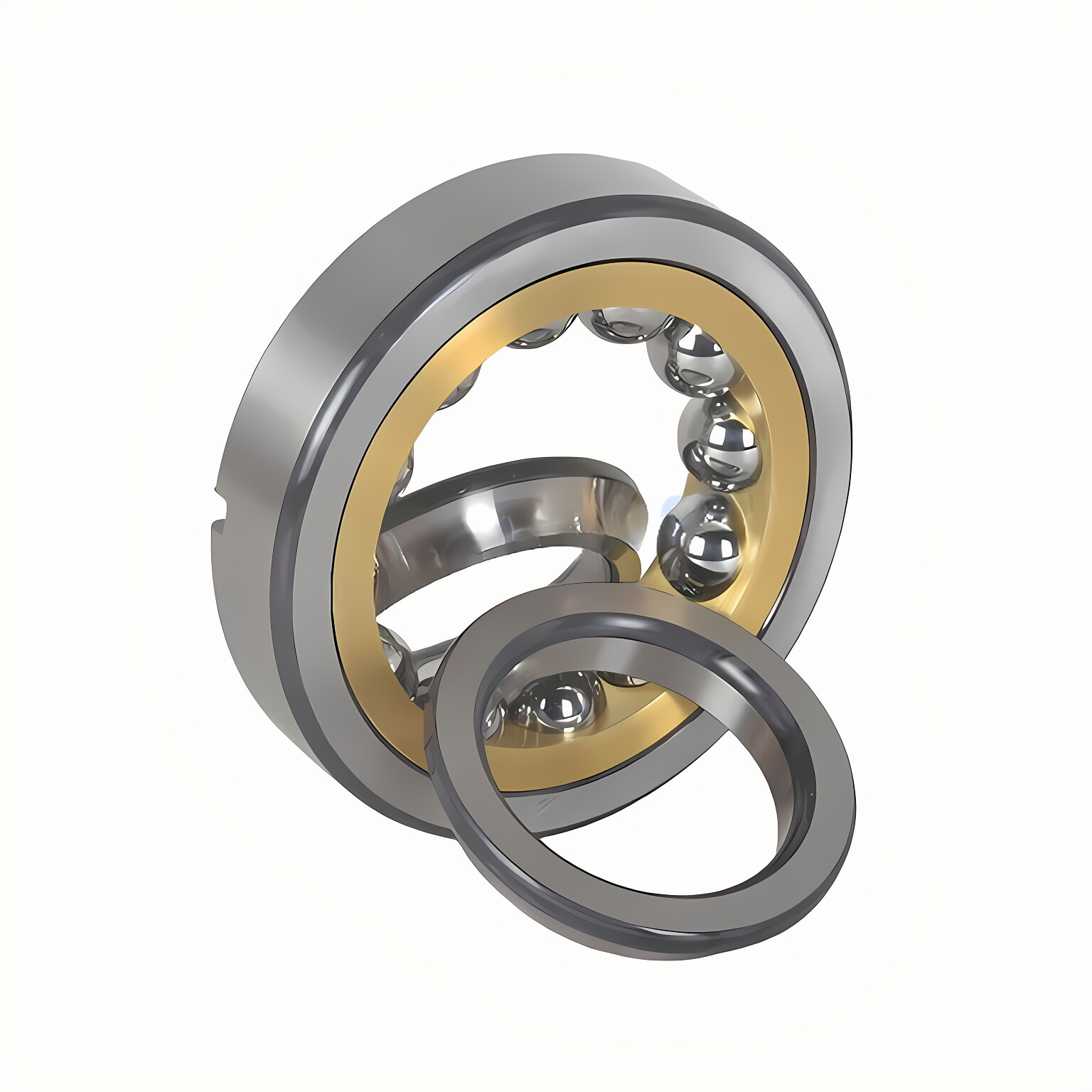

Four-point Angular Contact Ball Bearings

Four-point Angular Contact Ball BearingsFour-point angular contact ball bearings are radial single-row angular contact ball bearings with raceways that are designed to support axial loads in both directions. For a given axial load, a limited radial load can also be supported (Load ratio). The bearings are separable, i.e. the outer ring with ball and cage assembly can be mounted separately from the two inner ring halves. Both inner ring halves of four-point contact ball bearings have a recessed shoulder. This improves oil flow when the bearing is used in combination with a cylindrical roller bearing. In addition, these recesses can be used to facilitate dismounting.

Product parameter

Boundary dimensions(mm)			Mass(kg)	Bearing NO.
d	D	B		Raydafon
15	35	11	0.062	QJ202
17	40	12	0.082	QJ203
17	47	14	0.14	QJ303
20	52	15	0.18	QJ304
25	52	15	0.16	QJ205
25	62	17	0.29	QJ305
30	62	16	0.26	QJ206
30	72	19	0.48	QJ306
35	72	17	0.36	QJ207
35	80	21	0.58	QJ307
40	80	18	0.45	QJ208
40	90	23	0.85	QJ308
45	85	19	0.52	QJ209
45	100	25	1.05	QJ309
50	90	20	0.59	QJ210
50	110	27	1.35	QJ310
55	100	21	0.77	QJ211
55	120	29	1.75	QJ311
60	110	22	1	QJ212
60	130	31	2.15	QJ312

Features of Four-point Angular Contact Ball Bearings

-Accommodates axial loads in both directions-Less axial space-These bearings take up considerably less axial space than double row bearings.-High load-carrying capacity-A large number of balls are incorporated, giving the bearing its high load-carrying capacity.Separable design-The split inner ring leads to easier mounting and dismounting of the bearing.Improved oil flow-Limited inner ring deformation when subjected to high clamping forces

Applications of Four Point Angular Contact Ball Bearings

A four-point angular contact ball bearing simplifies machine designs that combine radial, thrust, and moment loads because it can handle all three simultaneously. They are primarily used for slow to moderate-speed applications or where oscillatory movement is predominant.Four-point angular contact ball bearings are used in various applications, for example:- Agricultural machinery;- Earthmoving machinery;- Pumps;- Industrial machinery for cleaning and bottling;- Electric motors;- Fitness machines;- Machining equipment (steel, glass, marble, wood);- Automatic opening systems;- Others.
