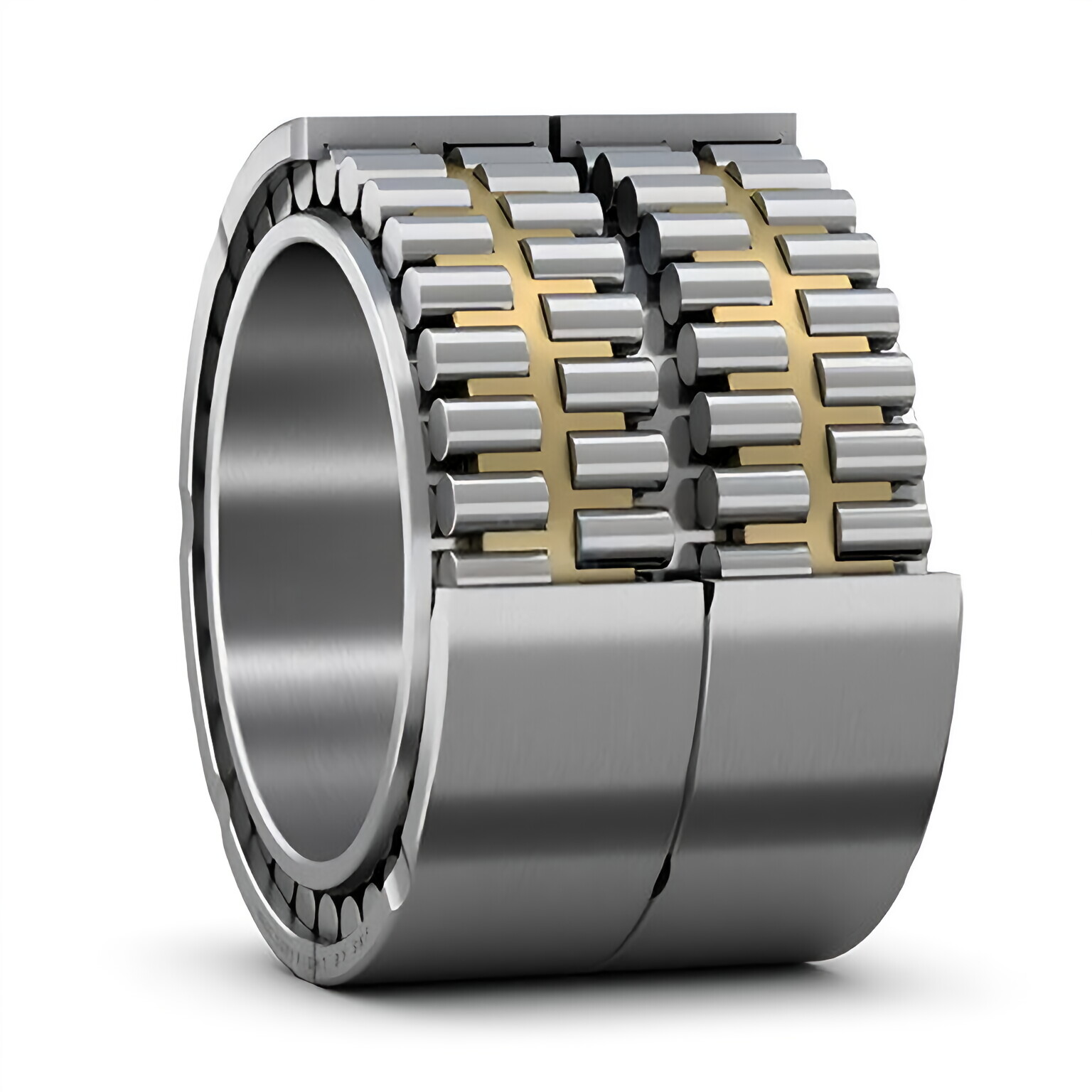

Four-row Cylindrical Roller Bearings

Discover Raydafon Guoup's Four-row Cylindrical Roller Bearings, engineered for extreme stability and durability in heavy-duty industrial applications like construction and mining. With precision design and high-load capacity, they reduce downtime and enhance efficiency for engineers and operators. Feel the confidence of reliable performance that sets us apart, backed by quality assurance. Choose innovation—choose Raydafon Guoup.

Send Inquiry

Product Description

Four-row Cylindrical Roller BearingsMulti-row or four-row cylindrical roller bearings are primarily designed and used as roll-neck bearings in rolling mills. The four rows of rollers lend themselves to carrying large radial loads for the bearing cross-section. These four-row cylindrical roller bearings can be open or sealed. Because they are usually mounted with an interference fit on the roll neck, four-row cylindrical roller bearings are well suited for rolling mill applications where the rolling speed is high. Because four-row cylindrical roller bearings can accommodate only radial loads, they are mounted together with deep groove or angular contact ball bearings or tapered roller bearings (either radial or thrust design), which accommodate the axial loads.

Product parameter

Boundary dimensions						Basic load ratings		Designations		Installation dimension					Mass
mm						kN		Designations		mm					Mass
d	D	B	FW	rmin	r1min	Cr	Cor	Current	Original	damin	Damin	Damax	ramax	rbmax	kg
90	140	70	105	1.5	1.1	222	454	FC 182870	672718	98	126	132	1	1	4.4
100	140	70	111	1.5	1.1	194	416	FC 202870	672820	108	129	135	1	1	3.5
110	150	80	122	1.5	1.1	241	602	FC 223080	-						4.4
120	180	92	137	2	2	375	820	FC 243692	-	128	165	169	2	1	8.7
130	200	104	149	2	2	478	1006	FC 2640104	-	141	183	189	2	2	12.5
140	210	100	158	2	2	503	1096	FC 2842100	-	151	192	199	1.5	1.5	12.8
145	210	155	166	2	2	720	1560	FC 2942155	-	154	196	201	1	1	20
150	225	120	169	2	2	788	1586	FC 3045120	-	161	207	216	1.5	1.5	17.5
160	230	130	180	2	2	781	1384	FC 3246130	-	171	214	219	1.5	1.5	22.7
170	230	130	188.5	2	2	680	1720	FC 3446130	-	181	215	219	2	2	16.3
180	250	120	200	2.1	2.1	609	1583	FC 3650120	-	191	234	239	2	2	19
180	260	124	202	2.1	2.1	718	1668	FC 3652124	672736K	192	242	248	2	2	22.6
190	260	168	212	2.1	2.1	1020	2600	FC 3852168	-	202	244	248	2	2	27.9
200	270	120	222	2.1	2.1	615	1626	FC 4054120	-	212	254	258	2	2	20.8
200	290	130	226	2.5	2.1	840	1975	FC 4058130	-	212	268	278	2	2	29.9
210	290	192	236	2.1	2.1	1300	3400	FC 4258192	-	223	274	277	2	2	40.6
220	300	192	242	2.1	2.1	1085	3310	FC 4460192	-						41.5
230	330	170	260	2.1	2.1	1142	2974	FC 4666170	-	243	306	317	2	2	50.2
240	330	220	264	2.1	2.1	1373	3789	FC 4866220	672748	253	308	317	2	2	58.4
250	340	170	274	3	3	1141	3281	FC 5068170	-						47.9
260	360	192	287	3	3	1274	3468	FC 5272192	-	273	335	347	2	2	62.3
270	380	230	298	3	3	1725	4598	FC 5476230	672754	283	354	367	2	2	85.3
280	375	200	307	3	3	1480	4311	FC 5675200	672956	293	356	367	2	2	65.1
	390	240	312	3	3	1763	5235	FC 5678240	-	294	362	376	2.5	2.5	93.4
	390	275	308	3	3	2250	6500	FCD 5678275	-	293	363	377	2	2	105.1
290	410	240	320	4	4	2070	5670	FC 5882240	672758	304	380	396	3	3	105
300	420	218	332	4	4	2060	5695	FC 6084218	-	314	390	406	2.5	2.5	97
	420	240	332	4	4	2225	5750	FCD 6084240	-	314	392	406	3	3	107
	420	300	332	3	3	2305	6565	FCD 6084300	-	314	392	406	2.5	2.5	134.7
320	440	240	351	3	3	2120	6101	FC 6488240	-	335	411	425	2.5	2.5	113.9
	440	300	352	3	3	2530	7660	FCD 6488300	-	335	409	425	2.5	2.5	142.3
	450	240	355	4	4	2145	5860	FCD 6490240	-	335	419	435	2.5	2.5	125.3
	460	240	355	4	4	2980	7340	FCD 6492240	-	335	428	445	2.5	2.5	140
330	460	340	365	4	4	3760	8265	FCD 6692340	-	344	428	446	2	2	175
340	450	250	368	3	3	2299	6312	FC 6890250	-	354	424	436	2	2	111.2
	450	250	368	3	3	2045	6134	FCD 6890250	-	354	424	436	2	2	112.6
	480	350	378	4	4	3790	10500	FCD 6896350	-	355	446	465	2.5	2.5	207
	500	370	385	4	4	5350	12000	FCDP 68100370	-						263
350	500	380	389	5	5	4290	11700	FCD 70100380	672770	363	464	487	2	2	242

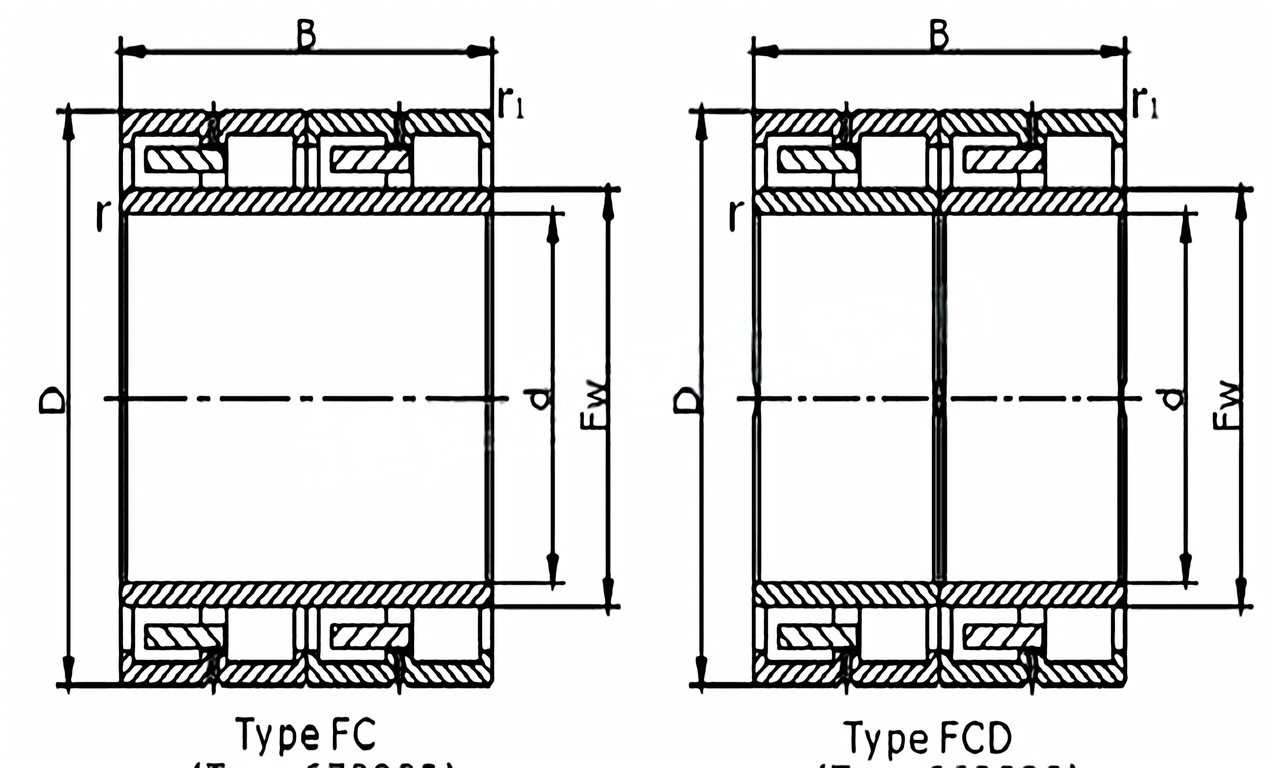

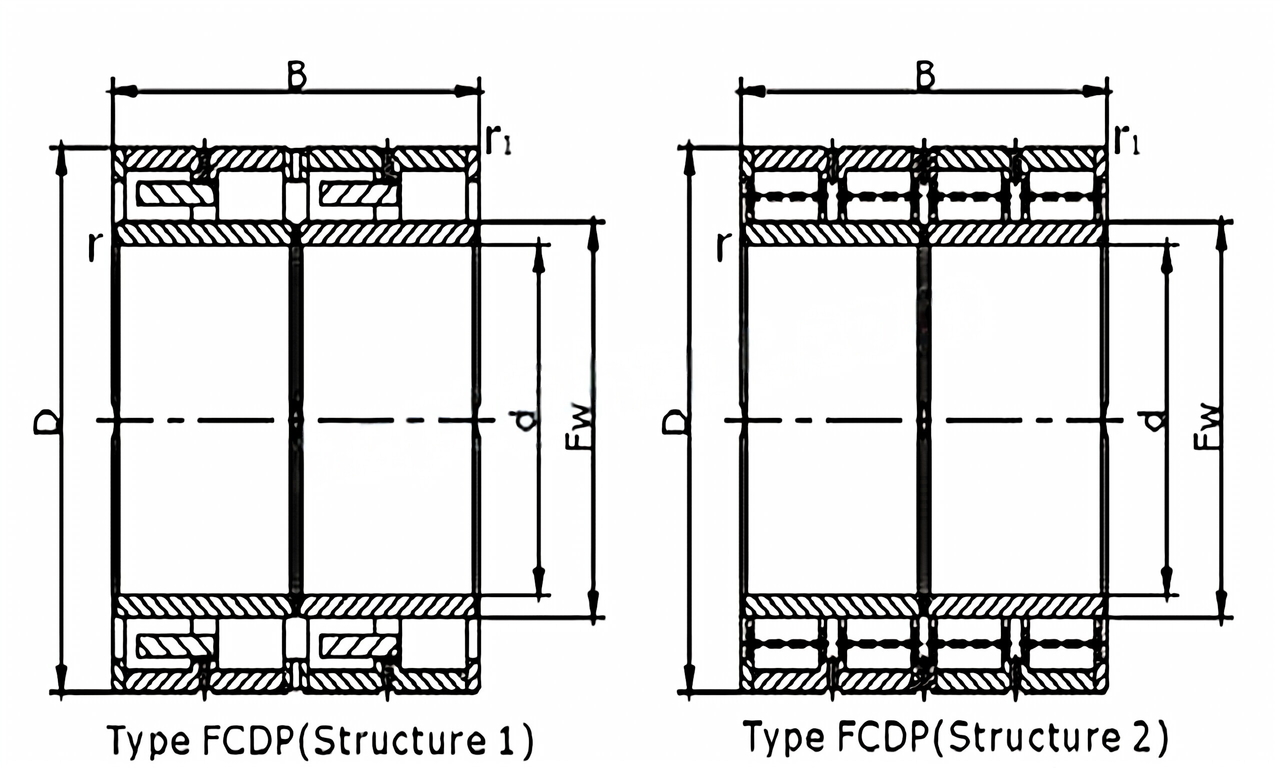

Series of four-row cylindrical roller bearings

Our preliminary design of four-row cylindrical roller bearings is available in several methods. The primary design differences between the bearings are the number of inner and outer rings, the ring designs (flange configurations), and the cage design and material.
