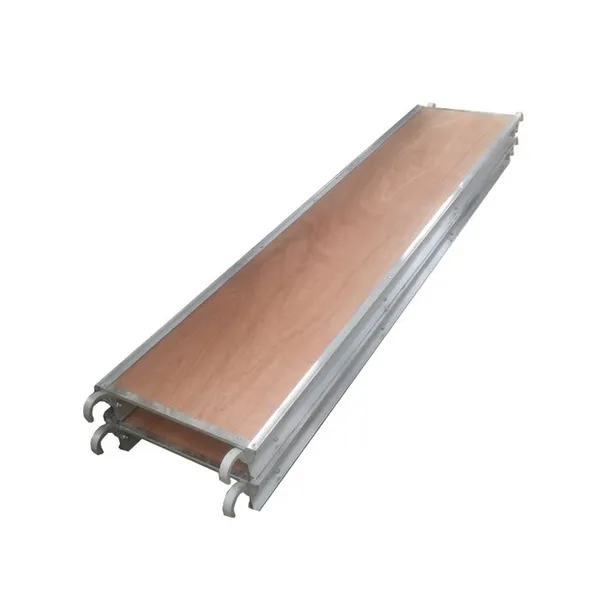

Frame Scaffolding Alu-Plywood Plank Decks for Building Construction

Alu-plywood plank decks are a type of plank with plywood and aluminum alloy cladding.Plywood is a three-layer or multi-layer board-like material made by turning wood segments into veneers or by planing veneers into thin wood and then gluing together with adhesive, usually with odd-numbered veneers, and making the fiber direction of adjacent veneers mutually perpendicular to each other. Plywood can improve the utilization rate of wood and is the primary way to save wood.Alu-plywood plank decks are convenient for construction, not accessible to warping, and have good tensile resistance.

Product Specification

1. Length: 10', 7' also available
2. Width: 19", 19.25"
3. Unit weight: 17.5 kg/ 38.5 LBS
4. The hook is made to fix on 48.3mm tubes or frame horizontal tube diameter
5. The plywood is high-quality material to make sure long time usage
6. Package: steel pallet or bulk packaging
7. Fast delivery

* Material: Aluminium Alloy grade 6061-T6.* Plywood Panel: t=1/2" (12.7mm), WBP glue, fireproofing.

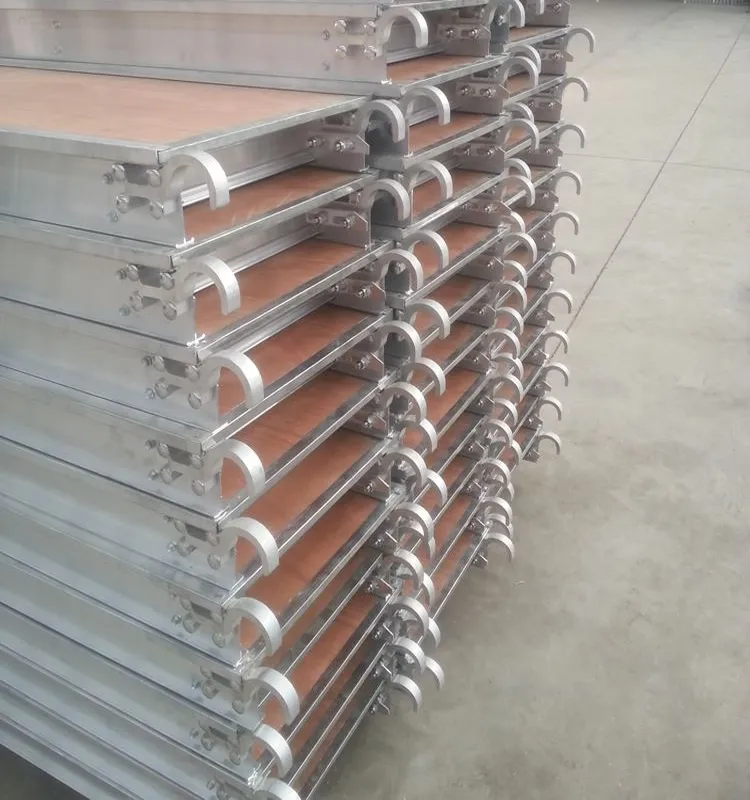

Product Display

Product Advantage:

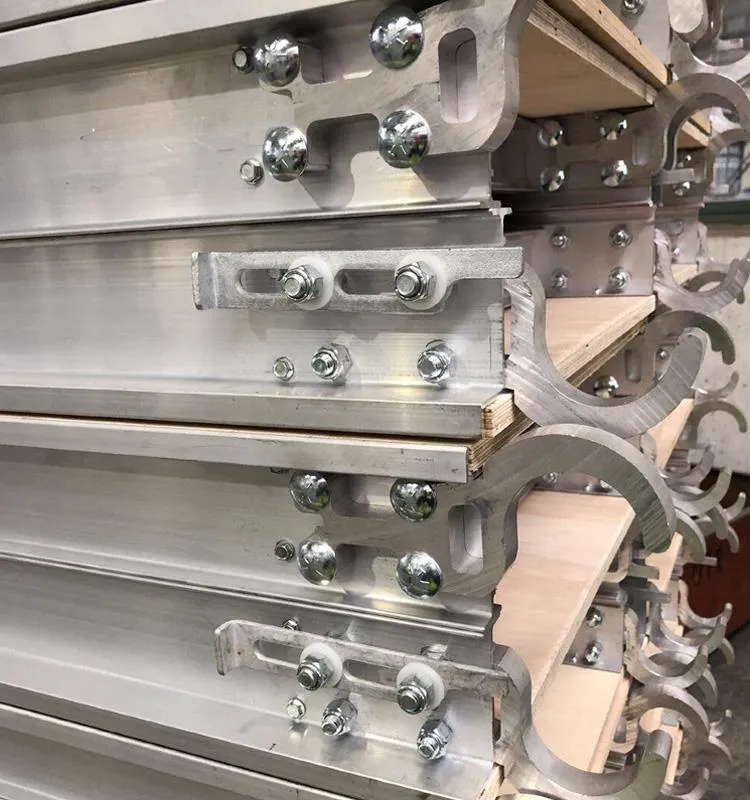

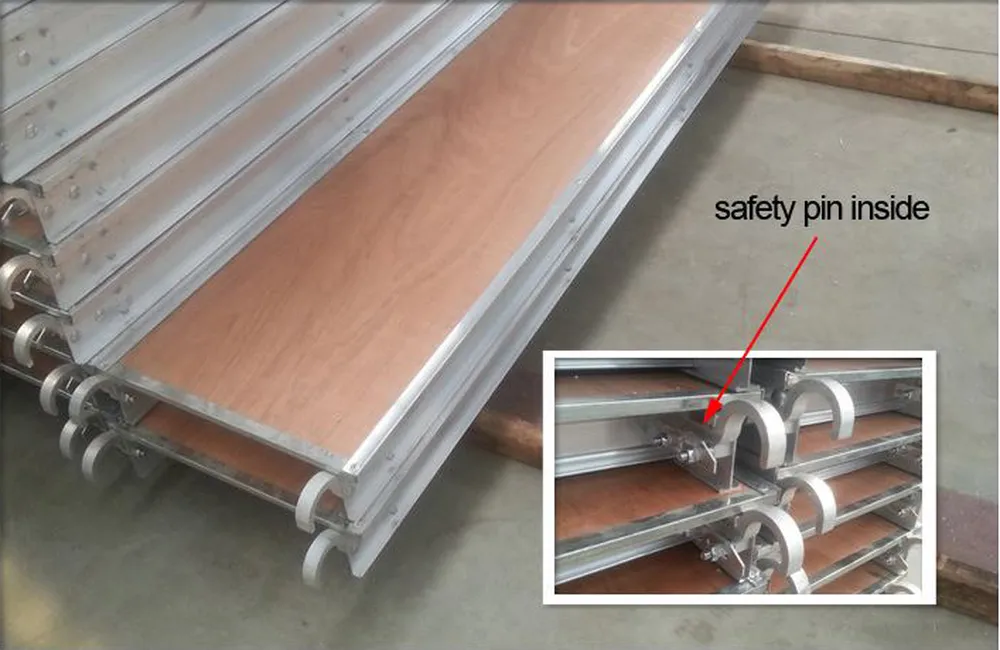

1. Strong Hook with a suitable thickness can firmly catch on the scaffolding to offer a very high capacity to keep the user sate. Every hook has four big rivets to fix the plank's beam firmly. This feature makes this board safer when used on prominent objects. A unique pin on every hook can keep the project safer with a high loading capacity.2. We have tested to exceed 11,000 lbs. You probably weigh a bit less than that. It's incredible. This year we have sent our product, one whole this type of aluminum plywood plank, to the test company to check if our product can satisfy the EN1004 standard. The result is impressive that we have beyond the measure of about 500LBS. This is good news for us because when Customers from European need some certificates, we can show this to them and tell them how safe our product is. We will concentrate more on improving the outcomes to make the projects safer and safer.
