GFB Series Swing Drive Planetary Gearbox Replace Replacement of Bosch Rexroth GFB09T2 GFB17T2 GFB17T3 GFB24T3 GFB26T2 GFB36T3 GFB40T2 GFB50T3 GFB60T2 GFB60T3 GFB80T3 GFB110T3 GFB110T4

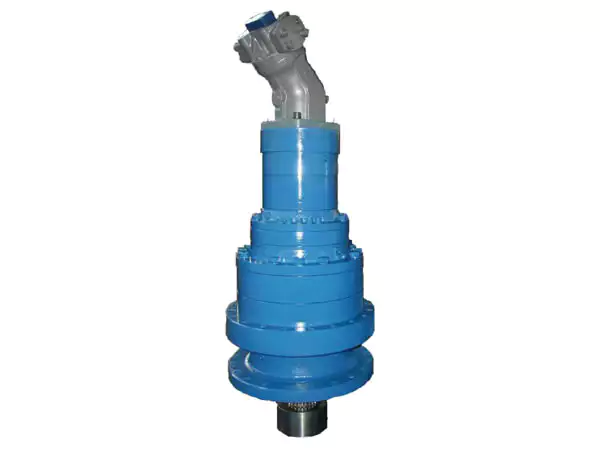

GFB Series Swing Drive

• For the swing drive of the superstructure, e.g., excavators, cranes, forestry machines, ship unloaders
• For use in all applications where precise positioning is necessary
• Two- or three-stage planetary gearboxes
• For attachment of Rexroth fixed motors in space-saving plug-in design
• Torque output 4000 … 68300 Nm
• Compact, space-saving two or three-stage planetary design
• Easy mounting, Convenient oil change
• Integrated multiple parking device
•  Low-noise operation
•  High efficiency
•  Long service life

Parameters of GFB Series Swing Drive

Type/VersionGFB	Output Torque ExcavatorT2 maxNm	Output Torque CraneT2 maxNm	Gear Ratiofrom/toi
GFB 9 T2	4,000	7,000	33.4
GFB 17 T2	7,700	12,700	32.5 - 45.7
GFB 24 T2	10,600	17,500	149.1
GFB 26 T3	10,000	16,500	43.9 - 51.5
GFB 36 T3	17,500	28,500	117.6 - 153.6
GFB 50 T2	22,000	38,000	32.3
GFB 50 T2	22,000	38,000	147.4
GFB 80 T3	38,200	68,300	186.4
GFB 84 T2	38,200	68,300	35.1

LubricationThe gear teeth and bearings are splash lubricated. Aside from periodic oil changes, the drive units are maintenance-free. Oil changes are easy to do. The oil brands recommended in the operating manual shall be exclusively used.The operating manual also gives the change intervals for the relevant application conditions. The pinion-side antifriction bearing of the output shaft is grease-lubricated for life.Hydraulic MotorsThe gearbox is designed for direct flange attachment of a variable or fixed displacement motor (preferably a hydraulic motor).Multiple Parking DeviceThe standard supply scope includes a spring-loaded, hydraulically released multiple parking device arranged on the input side. The multiple parking device is not a service brake.
