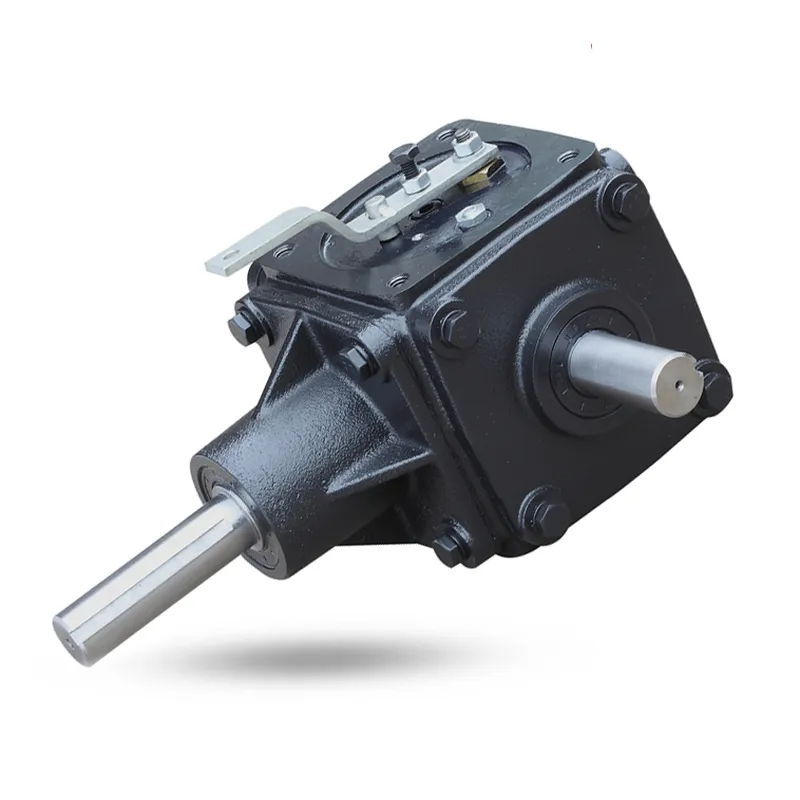

Grain Transportation Gearbox RDF-1001 for Agricultural Grain Transportation

The grain transportation gearbox is an essential mechanical component designed specifically for use in agricultural machinery involved in the movement and handling of grain. This type of gearbox plays a pivotal role in the efficient operation of equipment such as grain conveyors, elevators, and augers, which are used to transport grain from storage silos to processing areas, or for loading onto transport vehicles.Constructed to withstand the rigors of farm operations, these gearboxes are engineered to convert the high-speed rotation of the power source, typically a tractor or electric motor, into a lower speed with higher torque. This conversion is crucial because grain moving equipment requires substantial torque to handle the heavy loads of grain without compromising speed or efficiency. The gearboxes are built with durable materials and are designed to be robust, with features that protect against the ingress of dust, debris, and moisture, common in agricultural environments. Additionally, they often include specialized seals and gaskets to prevent contamination and ensure long-term reliability and performance under challenging conditions.

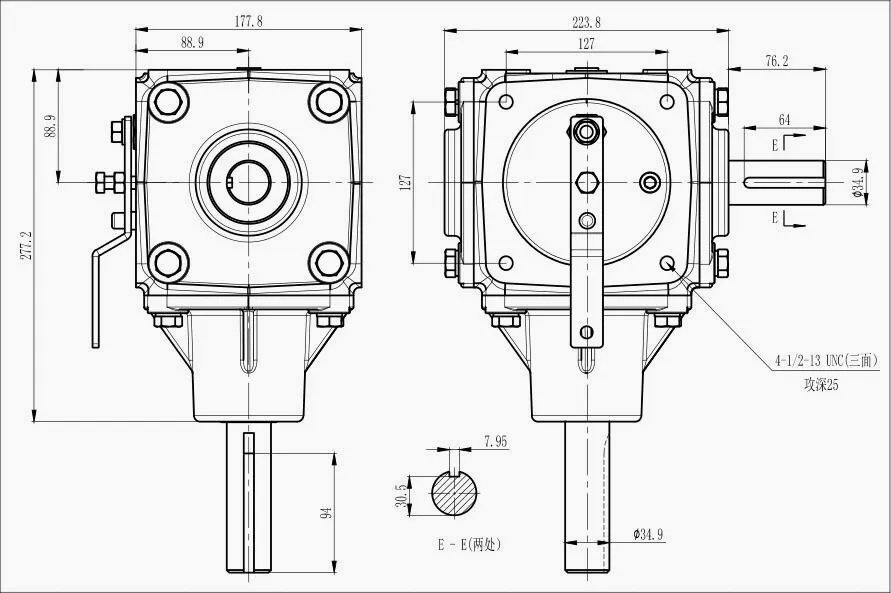

Grain Transportation Gearbox RDF-1001 Dimension

Grain Transportation Gearbox RDF-1001 Specifications

Product Name	Grain transportation gearbox
Model	RDF-1001
Color	Customization
Material	HT250 for housing, 20CrMnTi for gear shaft.
Used	Grain transportation transmission

Advantages of Using Grain Transportation Gearbox RDF-1001

Using a grain transportation gearbox in agricultural operations offers several significant benefits that enhance efficiency, reliability, and productivity in grain handling. Here are the key advantages:

1. Increased Efficiency: Grain transportation gearboxes are designed to optimize the transfer of power from the motor to the machinery. By effectively converting high-speed, low-torque input into low-speed, high-torque output, these gearboxes enable machinery to handle large volumes of grain more efficiently. This efficiency is crucial for maintaining the flow of grain, especially during peak harvest times.
2. Enhanced Durability: Constructed from robust materials, grain transportation gearboxes are built to withstand the harsh conditions of agricultural environments. They are designed to resist wear, corrosion, and contamination from dust and debris, ensuring a longer service life even under continuous use. This durability reduces the need for frequent repairs and replacements, saving costs over time.
3. Improved Torque Management: One of the primary functions of a grain transportation gearbox is to provide sufficient torque to move heavy loads of grain. These gearboxes ensure that equipment like augers, conveyors, and elevators can operate smoothly without straining the motor, even when processing dense, heavy grain loads. Effective torque management prevents equipment fatigue and breakdowns, enhancing operational reliability.
4. Flexibility in Application: Grain transportation gearboxes come in various configurations and sizes, which means they can be tailored to specific needs and applications. Whether it’s moving grain vertically through an elevator or horizontally along a conveyor, there is a gearbox suited for every type of grain transportation machinery.
5. Reduced Energy Consumption: By maximizing the mechanical efficiency of grain handling equipment, these gearboxes can help reduce overall energy consumption. Efficient power transmission means that less energy is wasted, which not only lowers operational costs but also minimizes the environmental impact of farming operations.
6. Safety Improvements: Gearboxes also contribute to the safety of grain transportation machinery by providing stable and controlled operation. This control is crucial to prevent sudden surges or stalls that could lead to accidents. Additionally, many modern gearboxes include built-in safety features like overload protection, which helps to avoid mechanical damage and ensures safe operation.
7. Ease of Maintenance: Many modern grain transportation gearboxes are designed with maintenance in mind. Features like easy-access panels and self-lubricating systems make regular maintenance tasks simpler and less time-consuming, which helps ensure the longevity and reliability of the machinery.

Common Applications of Grain Transportation Gearbox RDF-1001

The Grain Transportation Gearbox finds applications in various agricultural grain transportation systems and equipment. Here are some common applications:

• Grain Carts: Grain carts are widely used in farming operations to transport harvested grains from the field to storage facilities or trucks. The gearbox is an integral component of grain carts, providing the necessary power transmission to move large volumes of grain efficiently.
• Grain Augers: Grain augers are used for loading and unloading grain from storage bins, trucks, or other containers. The gearbox in a grain auger facilitates the rotation of the auger screw, which moves the grain along the length of the auger tube. It provides the torque and speed required to effectively transport the grain.
• Grain Conveyors: Grain conveyors are automated systems used for bulk grain handling and transportation. The gearbox is utilized to drive the conveyor belt or chain, allowing the grain to be moved from one location to another smoothly and continuously. It ensures reliable and efficient grain transfer along the conveyor system.
• Grain Elevators: Grain elevators are facilities designed for the storage and handling of grain. Gearboxes are employed in various components of grain elevators, including bucket elevators and belt conveyors. They enable the vertical lifting and horizontal movement of grain within the elevator, facilitating grain storage and transfer processes.
• Grain Handling Equipment: The Grain Transportation Gearbox is also utilized in other grain handling equipment such as grain loaders, grain spreaders, and grain baggers. These equipment types require reliable power transmission to efficiently move, spread, or bag the grain.
• Grain Processing Machinery: In grain processing plants, the gearbox plays a vital role in equipment such as grain cleaners, seed treaters, and grain dryers. It ensures the smooth operation of these machines by providing the necessary power transmission for the processing and handling of grains.

How Does the Grain Transportation Gearbox Work?

The grain transportation gearbox is a fundamental component in agricultural machinery, facilitating efficient grain movement. Its operation is based on several mechanical principles:

1. Power Input: The gearbox begins its operation with the input of mechanical power, typically from a tractor or a standalone motor. This power is transferred through a drive shaft that connects directly to the input shaft of the gearbox, initiating the mechanism's action.
2. Gear Reduction: Inside the gearbox, a series of gears engage to modify the power received from the input shaft. This process is known as gear reduction. It typically involves multiple gears of varying sizes that decrease the speed of the input rotation while simultaneously increasing the torque. The arrangement of these gears (often in stages of gear sets) determines the output speed and torque based on the requirements of the agricultural machinery.
3. Torque Transmission: As the speed is reduced, the torque (or rotational force) increases. This transformation is crucial for machinery that requires high torque at lower speeds, which is typical in grain transportation systems where heavy loads need to be moved slowly and steadily.
4. Output Delivery: The transformed power with adjusted speed and increased torque is then transmitted to the output shaft of the gearbox. The output shaft delivers this power to the machinery components that actually move the grain, such as conveyor belts or auger systems. This shaft must be robust and well-aligned to handle the torque and maintain efficient power transmission.
5. Load Handling: Grain transportation gearboxes are designed to handle varying loads, adapting to the resistance encountered from different quantities of grain. The gearbox maintains consistent torque output to ensure smooth grain flow, regardless of the load. This capability is vital for preventing jams and ensuring continuous operation.
6. Control and Adjustment: Many modern gearboxes are equipped with features that allow operators to adjust settings such as torque output and operational speed. These adjustments can be manual or automated, based on the gearbox design. Such control mechanisms are essential for optimizing the performance of the grain transportation process, accommodating different types of grain and varying environmental conditions.

Proper Maintenance of the Grain Transportation Gearbox for Agriculture

Maintaining a grain transportation gearbox in agricultural settings is crucial for ensuring its efficiency, longevity, and reliability. Here’s a comprehensive maintenance guide:

1. Regular Lubrication: The gearbox should be regularly lubricated according to the manual's specifications. Check the oil level and the condition of the lubricant frequently, as proper lubrication reduces friction, wear, and overheating. Change the oil at prescribed intervals and immediately if it becomes contaminated with debris or begins to degrade.
2. Routine Inspections: Conduct periodic inspections of the gearbox for any signs of wear, leaks, or damage. Pay special attention to seals and gaskets to ensure they are intact and functioning properly to prevent lubricant leaks and contamination. Regularly check for loose bolts and components, which can lead to misalignment and inefficient operation.
3. Cleanliness: Keep the gearbox and its surrounding area clean. Remove any accumulated dirt, dust, or debris, as these can enter the system and cause abrasion or clogging. This is particularly important in the agricultural industry where exposure to elements and contaminants like grain dust is common.
4. Temperature Monitoring: Monitor the operating temperature of the gearbox during use. An overheating gearbox is an early indicator of potential problems such as overloading or lubrication issues. Install temperature sensors if they are not already integrated, and establish a protocol for monitoring and responding to high temperature readings.
5. Vibration Analysis: Implement regular vibration analysis to detect any abnormal movements or noises that could indicate internal issues like bearing failure or gear misalignment. Early detection of such issues can prevent costly repairs and downtime.
6. Preventive Replacements: Have a schedule for the preventive replacement of wearable parts like bearings and seals. Even if they do not show immediate signs of failure, replacing these components at regular intervals can prevent unexpected breakdowns and maintain gearbox performance.
7. Alignment Checks: Periodically check and correct the alignment between the gearbox and the connected machinery. Misalignment can cause excessive wear and tear, reducing the efficiency and lifespan of the gearbox.

Grain Transportation Gearbox Manufacturers

Raydafon is a prominent manufacturer of high-performance grain transportation gearboxes for a variety of applications. Our grain transportation gearboxes are a powerful replacement option for Replacement of Comer Industries, John Deere, Bush Hog, Replacement of Bonfiglioli, Case IH, New Holland, Claas, Kubota, Land Pride, Kuhn, and other brands. Our technical staff can reconfigure an existing design or assist you in designing a custom grain transportation gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing a grain transportation gearbox.We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, cutting bar gearboxes, gearbox for hay tedders, etc. If you want to buy a grain transportation gearbox, please get in touch with us.
