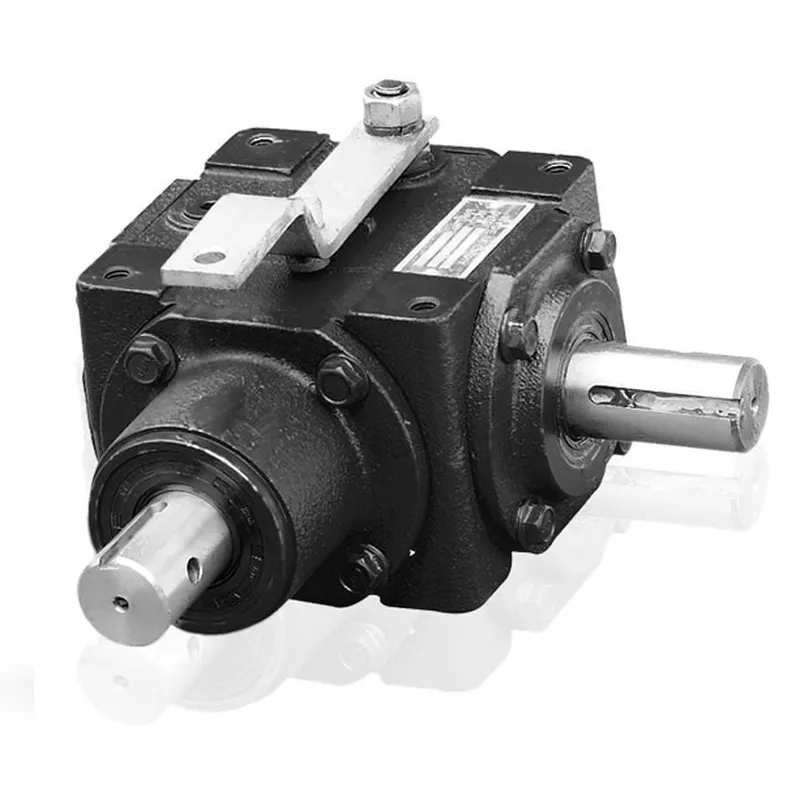

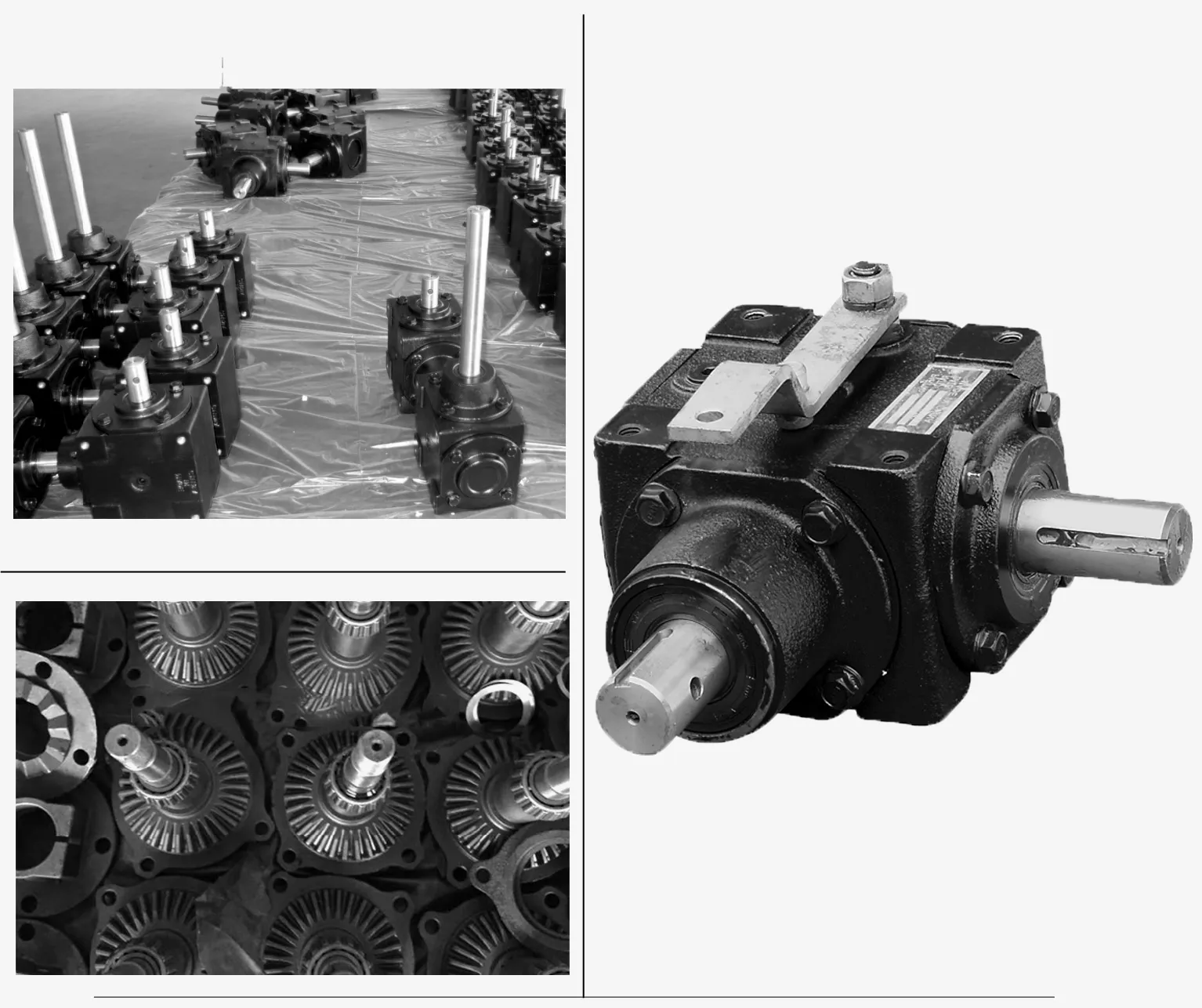

Grain Transportation Gearbox RDF-1002 for Agricultural Grain Transportation

The grain transportation gearbox is a specialized mechanical device designed for use in agricultural machinery that handles the transfer and movement of grain. This type of gearbox is crucial for machines like grain conveyors, elevators, and augers, which require reliable and efficient mechanisms to transport grain from storage areas to processing units or loading zones. The gearbox functions by converting the engine’s power into the necessary torque and speed needed to operate the grain moving equipment, optimizing the flow and minimizing the risk of blockages or mechanical failures.Constructed from durable materials like heavy-duty steel, these gearboxes often feature high resistance to wear and corrosion, ensuring longevity under harsh working conditions. They come in various sizes and configurations, each tailored to support specific loads and operational speeds. Essential components of these gearboxes include gears, shafts, and bearings, which are precisely engineered to handle the substantial stress and loads imposed by grain transportation. Additionally, they may incorporate advanced design elements like cooling systems to prevent overheating during extended use. This specialized gearbox is pivotal in maintaining the efficiency and continuity of agricultural operations, particularly in large-scale farming environments.

Grain Transportation Gearbox RDF-1002 Specifications

Product Name	Grain transportation gearbox
Model	RDF-1002
Color	Customization
Material	HT250 for housing, 20CrMnTi for gear shaft.
Used	Grain transportation

Key Components of Grain Transportation Gearbox RDF-1002

The Grain Transportation Gearbox for agricultural grain transportation includes several key components, each critical to its operation and performance:

1. Housing: The gearbox housing is typically made from high-strength materials like cast iron or steel, designed to protect internal components from external elements and mechanical stress. It provides structural support, ensuring that all parts remain aligned and operate smoothly under load. The housing is also responsible for heat dissipation, crucial in maintaining optimal temperatures during prolonged operation.
2. Gears: Inside the gearbox are multiple gears, including spur, helical, or bevel types depending on the specific design and application requirements. These gears are precisely machined for smooth engagement and efficient power transfer. They are typically made from hardened steel to resist wear and tear, ensuring longevity and consistent performance. The gears determine the torque and speed output by altering the rotation speed between the input and output shafts.
3. Bearings: Bearings support the rotational shafts and reduce friction between moving parts within the gearbox. They are essential for smooth operation and to bear the load while minimizing wear. High-quality bearings enhance the gearbox's durability and reduce maintenance needs by preventing premature failures and ensuring that the gears align correctly throughout their operational life.
4. Shafts: The input and output shafts are crucial for transferring power from the motor to the conveyor system or other machinery. These shafts are typically constructed from robust materials capable of handling high torque and stress without deforming. Their precision is vital for the proper meshing of gears and overall efficiency of the gearbox.
5. Seals and Gaskets: Seals and gaskets are used to prevent lubricant leaks and to keep contaminants such as dust and moisture out of the gearbox internals. These components are critical for maintaining the lubrication needed for smooth gear and bearing operation, and for protecting the internal components from abrasive particles that can cause wear and tear.
6. Lubrication System: A proper lubrication system is integral to any gearbox, ensuring that all moving parts are adequately oiled to reduce friction and wear. This system typically includes an oil pump, filters, and channels that direct oil to necessary areas. Regular maintenance of the lubrication system is essential for extending the lifespan of the gearbox and ensuring reliable operation under various environmental conditions.

Applications of Grain Transportation Gearbox RDF-1002

Grain transportation gearboxes are essential components in various agricultural machinery, designed to handle the demands of moving grain efficiently. Here are some common applications of grain transportation gearboxes:

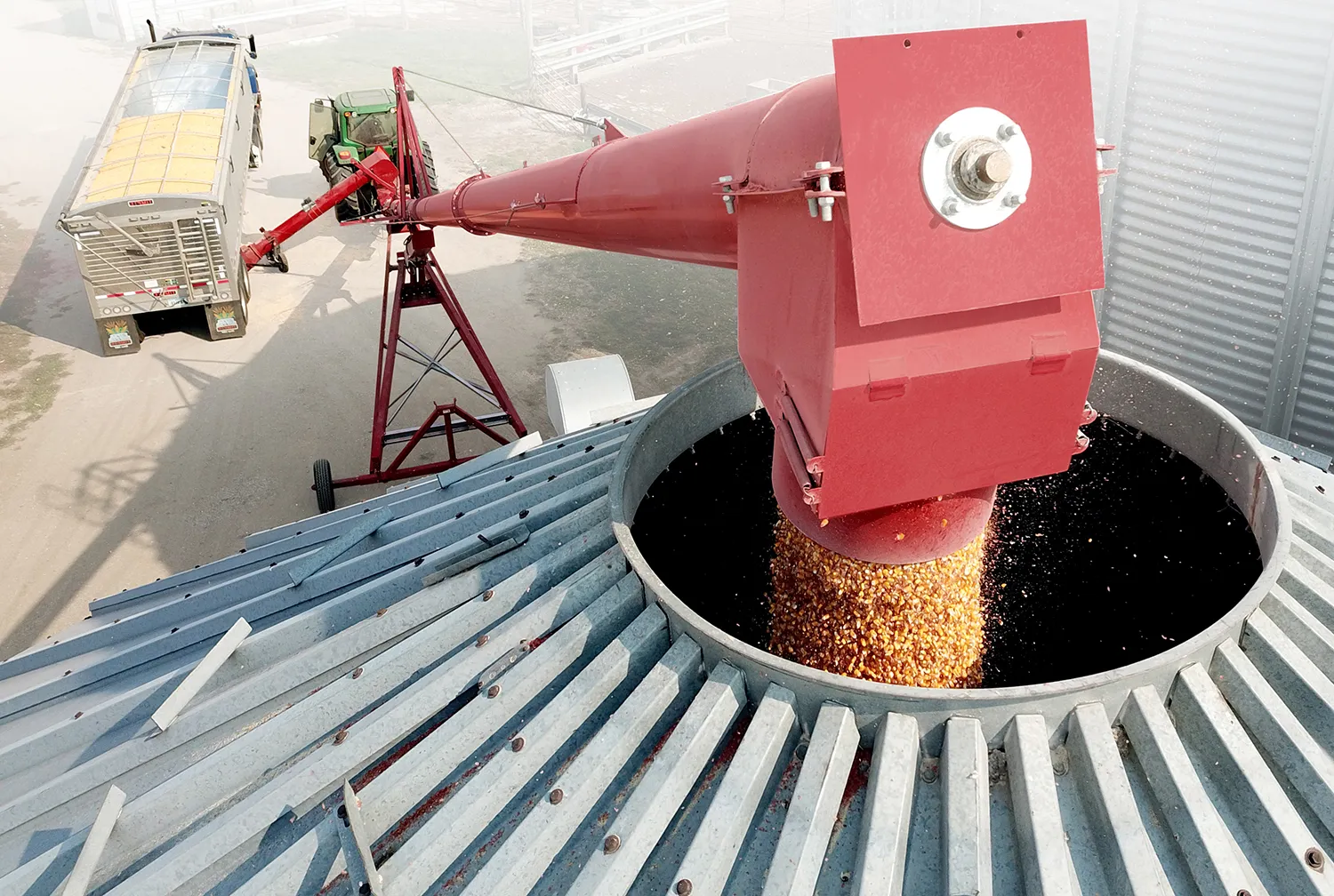

• Grain Conveyors: These are one of the primary applications for grain transportation gearboxes. Conveyors use these gearboxes to drive belts or chains that move grain over long distances, typically within storage facilities or between different stages of processing. The gearbox adjusts the speed and torque to handle varying loads and maintain a steady flow of grain.
• Augers: Augers, both portable and stationary, rely heavily on gearboxes to drive their spiral conveying systems. These are used for moving grain from trucks, carts, or bins to storage or vice versa. The gearbox provides the necessary torque to prevent clogging and ensure continuous movement, even with heavy loads of grain.
• Bucket Elevators: These systems use gearboxes to lift grain vertically for processing or storage. The gearbox drives a series of buckets attached to a belt or chain, efficiently lifting and emptying grain at different heights. The robust torque output of the gearbox is critical for the heavy lifting involved.
• Grain Pumps: Grain pumps, which pneumatically transport grain using blowers or vacuum systems, also utilize gearboxes to drive their mechanisms. The gearbox ensures that the pump operates at the optimal speed for effective and efficient grain movement without damage to the grain itself.
• Grain Loaders and Unloaders: These include specialized equipment used in ports or large storage facilities where bulk handling of grain is required. Gearboxes in these machines manage the speed and torque for loading and unloading grain from ships, trains, or large trucks.

Working Principle and Operation Process

The grain transportation gearbox for agricultural grain transportation plays a crucial role in ensuring efficient and reliable movement of grain within various agricultural machinery like conveyors, elevators, and augers. Here's how it works, broken down into several key operational phases:

1. Power Input: The process begins with the power input, usually provided by the tractor or an external motor. This power is transmitted to the gearbox via a rotating shaft connected to the engine or motor. The gearbox is designed to take this rotational power and adjust its torque and speed to suit the specific needs of the grain transportation machinery.
2. Torque Conversion: Inside the gearbox, the input power encounters a series of gears. These gears are responsible for converting the high-speed, low-torque rotation of the input shaft into lower-speed, higher-torque rotation. This conversion is crucial because grain transportation requires a lot of force but not necessarily high speed.
3. Speed Reduction: The gearbox typically employs a configuration of gears to reduce the speed of the engine’s rotation. This is done through gear ratios, where the size difference between the gears determines how much the speed is reduced. For example, a large gear driving a smaller gear will turn the smaller gear faster but with less force, while a small gear driving a larger gear will increase the torque but reduce the speed.
4. Transmission of Power: After the desired torque and speed are achieved, this power is transmitted through the output shaft of the gearbox. The output shaft then drives the operational parts of the grain transportation machinery, such as the belts in a conveyor or the spiral in an auger, moving the grain as required.
5. Load Handling: The gearbox is designed to handle varying loads. As grain is loaded into the transport machinery, the resistance against the moving parts increases. The gearbox adjusts the torque output to overcome this resistance, ensuring consistent movement of grain without overloading the motor.
6. Control and Safety Features: Modern gearboxes often incorporate advanced control systems that allow operators to adjust the speed and torque according to different operating conditions. Additionally, safety features like overload protection help prevent mechanical failures by reducing or cutting off power transmission when an unexpected load or blockage is detected.

Common Troubleshooting

Troubleshooting a grain transportation gearbox involves identifying and resolving common issues that may impede its performance. Here are some typical problems and their troubleshooting steps:

• Excessive Noise or Vibration: Unusual noises or vibrations often indicate misalignment, loose components, or internal damage such as worn bearings or gears. Check the alignment of the gearbox with the motor and the driven machinery. Tighten any loose bolts or fittings, and inspect internal components for wear or damage, replacing them as necessary.
• Overheating: If the gearbox overheats, it could be due to inadequate lubrication, excessive load, or poor ventilation. Ensure the gearbox is correctly filled with the recommended type of lubricant and that it is not contaminated. Check the operational load to ensure it does not exceed the gearbox’s rated capacity. Additionally, ensure that the cooling mechanisms, such as fans or heat sinks, are clean and functioning properly.
• Leakage of Oil or Lubricant: Leakage can occur from seals or gaskets failing or from overfilling the gearbox. Inspect seals and gaskets for wear or damage and replace if necessary. Also, check the oil level and reduce it if it exceeds the recommended level. Ensure that all fittings and covers are securely tightened.
• Insufficient Torque or Power Transmission: If the gearbox fails to transmit adequate power, check for slipping drive components like belts or couplings, which may need tightening or replacement. Inspect the gears and shafts for wear or damage that could impede effective power transmission. Adjustments or replacements might be required to restore full functionality.
• Jerky or Unstable Operation: This problem can arise from issues like improper gear engagement or mechanical blockages. Check for foreign objects or accumulated debris within the gearbox that might be causing blockages. Ensure that all gears are engaging correctly and smoothly. If necessary, adjust the gear mechanisms or replace damaged gears.
• Rapid Wear of Components: Rapid wear can be caused by incorrect lubrication, improper installation, or operation beyond the design limits. Verify that the correct type and amount of lubricant are used and that the gearbox is operating within the specified limits for speed and load. Check for signs of misalignment or uneven loading and correct these issues to reduce uneven wear.

Grain Transportation Gearbox Manufacturers

Raydafon is a prominent manufacturer of high-performance grain transportation gearboxes for a variety of applications. Our grain transportation gearboxes are a powerful replacement option for Replacement of Comer Industries, John Deere, Bush Hog, Replacement of Bonfiglioli, Case IH, New Holland, Claas, Kubota, Land Pride, Kuhn, and other brands. Our technical staff can reconfigure an existing design or assist you in designing a custom grain transportation gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing a grain transportation gearbox.We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, cutting bar gearboxes, gearbox for hay tedders, etc. If you want to buy a grain transportation gearbox, please get in touch with us.
