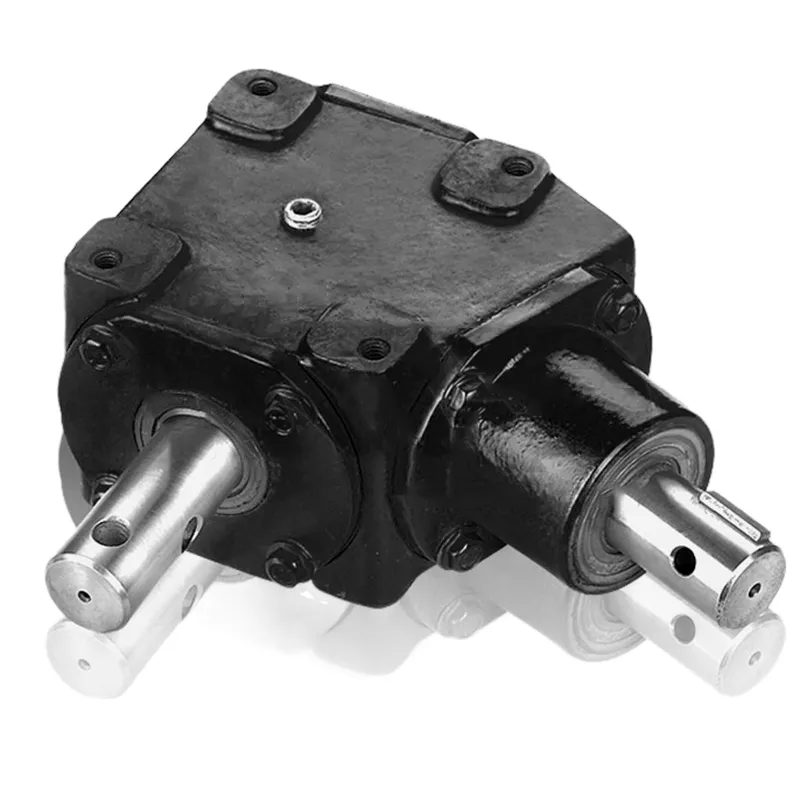

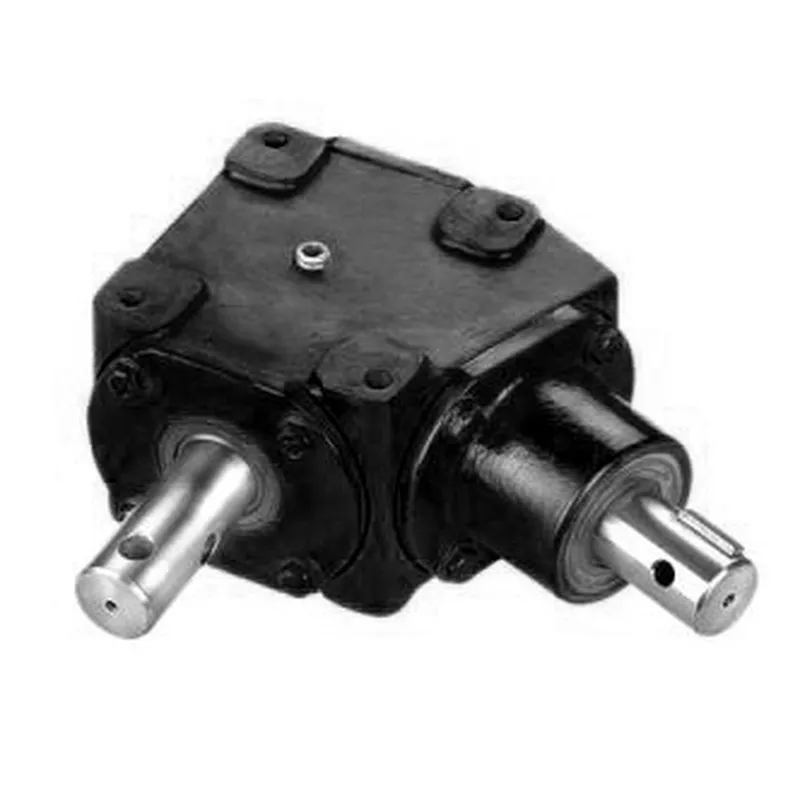

Grain Transportation Gearbox RDF-2168 for Agricultural Grain Transportation

The Grain Transportation Gearbox is a crucial mechanical component designed for use in agricultural machinery involved in the transportation and handling of grain crops. Typically, this gearbox is integrated into conveyor systems or elevators that move grain from storage areas to processing units or transport vehicles. The primary function of the gearbox is to convert the engine's power into the necessary mechanical force to drive belts, chains, or augers that physically move the grain. Constructed from robust materials like steel or aluminum to withstand the abrasive nature of grain and the rigors of farm work, the gearbox features a durable housing that protects its internal gears and bearings. These components are often specially treated for enhanced wear resistance. The design of the gearbox usually allows for varying output speeds and torque adjustments, enabling precise control over the flow rate of grain, which is critical for avoiding damage to the crops during handling. The system is designed for efficiency and reliability, ensuring that large volumes of grain can be transported smoothly and rapidly, thus optimizing the agricultural supply chain.

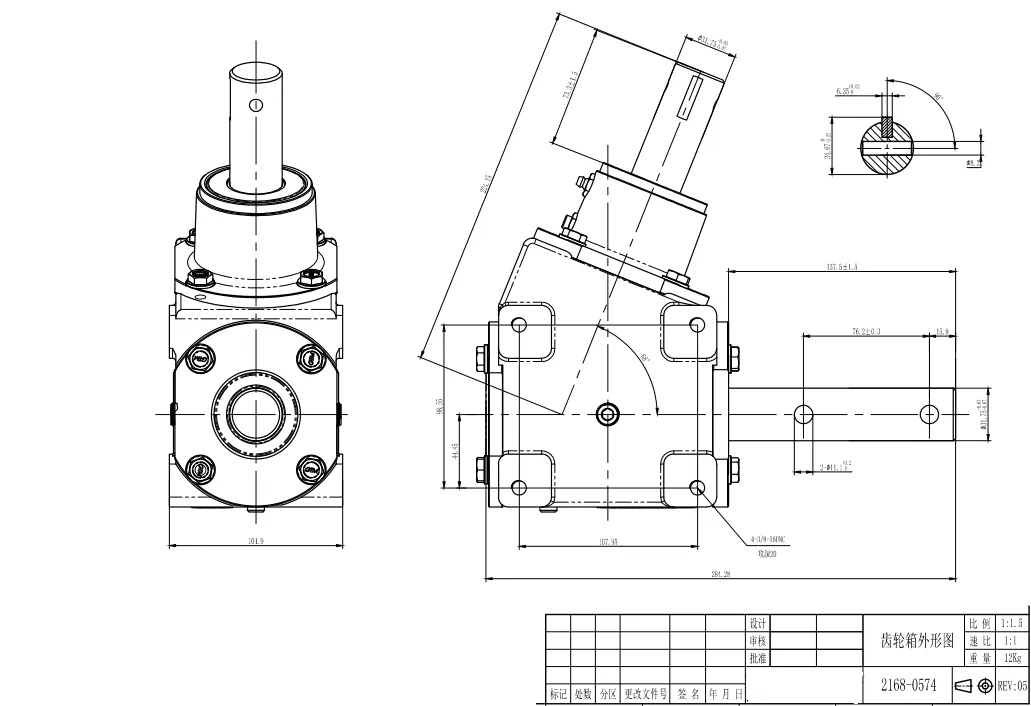

Grain Transportation Gearbox RDF-2168 Dimension

Grain Transportation Gearbox RDF-2168 Specifications

Product Name	Grain Transportation gearbox
Material	HT250 for housing, 40CrMnTi for gear shaft.
Color	Customized
Ratio	1:1
Rate power	24HP
Weight	11.5KG
Used	Grain transportation

Advantages of Using Grain Transportation Gearbox RDF-2168

Using a Grain Transportation Gearbox for agricultural grain transportation offers several advantages that enhance efficiency, productivity, and overall operations. Here are some key advantages:

1. Enhanced Efficiency: The grain transportation gearbox optimizes the speed and torque of conveyor systems, allowing for rapid and consistent movement of grain. This leads to increased throughput and reduced waiting times during loading and unloading. By streamlining the process, these gearboxes help in maximizing the overall efficiency of grain handling operations, thus saving time and increasing productivity.
2. Durability and Reliability: Constructed from high-strength materials such as steel or reinforced composites, grain transportation gearboxes are built to endure the harsh conditions typical in agricultural settings. The robust construction ensures a long service life and minimal downtime due to breakdowns, even under continuous use or when exposed to abrasive materials like grain, which can wear down lesser materials over time.
3. Precise Control: These gearboxes provide precise control over the movement of grain, which is essential for preventing spillage and reducing wastage. Adjustable speed settings allow operators to manage the flow rate of grain according to the specific requirements of the task, whether it’s a gentle stream for filling purposes or a faster flow for bulk transport. This control is crucial for maintaining the quality and quantity of the grain.
4. Versatility: Grain transportation gearboxes are compatible with various types of agricultural machinery, including conveyors, elevators, and augers. This versatility makes them suitable for different phases of grain handling, from initial collection to final storage or loading onto transport vehicles. The ability to use the same gearbox across multiple devices reduces the need for specialized equipment, lowering capital investment costs.
5. Low Maintenance Requirements: The design of grain transportation gearboxes often includes features such as sealed bearings and self-lubricating systems, which minimize the need for regular maintenance. This not only reduces the ongoing cost associated with the gearbox but also enhances its reliability and uptime. Maintenance simplicity ensures that farm operations can continue without significant interruptions for equipment care.

Common Applications of Grain Transportation Gearbox RDF-2168

The grain transportation gearbox finds its use in several key applications within the agricultural sector, primarily aimed at improving the handling and transport of bulk grain. Here are some common applications:

• Conveyors: One of the most prevalent uses of the grain transportation gearbox is in conveyor systems. These gearboxes adjust the speed at which conveyors operate, allowing for the smooth and controlled movement of grain from storage silos to processing areas or transport vehicles. The ability to modulate speed helps in managing the volume of grain being moved, thereby preventing jams and reducing wear and tear on the conveyor belts.
• Bucket Elevators: Gearboxes are essential components in bucket elevators that are used to vertically lift grain. The gearbox provides the necessary torque to drive the pulley system and lift heavy loads of grain upwards. This application is crucial for efficiently moving grain between different levels of a processing facility or storage structure, such as silos.

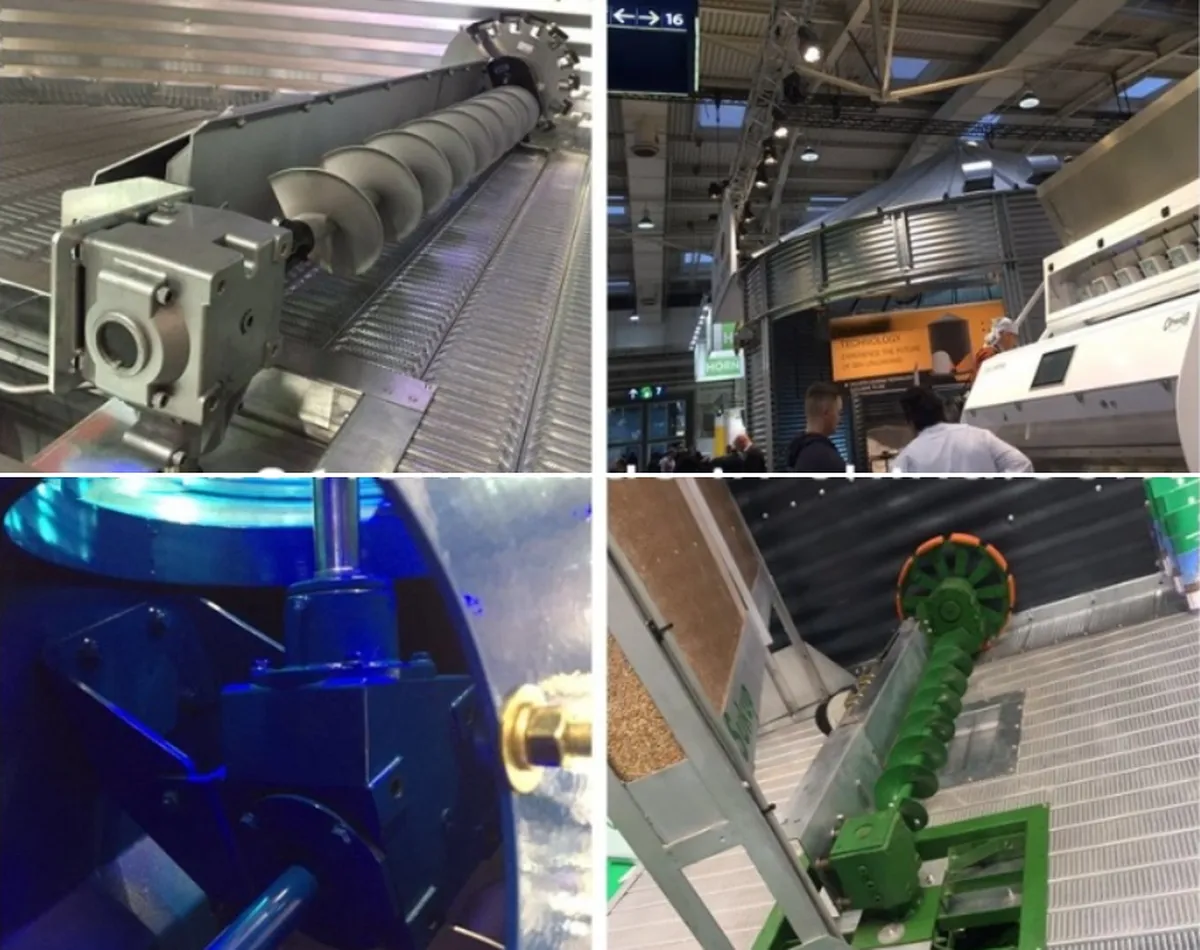

• Augers: Augers are another critical area where grain transportation gearboxes are utilized. These spiral conveyance systems require a reliable and robust gearbox to ensure that the auger can move grain efficiently, whether horizontally or at an angle. The gearbox enables the auger to maintain consistent speed and torque, facilitating the gentle handling of grain to minimize damage during transport.
• Load-out Systems: In grain load-out systems, where grain is loaded into trucks, railcars, or ships, the gearbox plays a pivotal role in controlling the rate of discharge. This precision is vital to avoid overloading and to ensure that vehicles are filled uniformly and safely.
• Air Supported Conveyors: For more delicate grain handling, gearboxes are used in air supported conveyors where grain floats on a cushion of air. Here, the gearbox helps in maintaining a consistent flow rate, crucial for minimizing friction and preventing grain damage.
• Grain Pumps: Grain pumps, which are used to move grain through a circuit of tubes, also rely on gearboxes for their operation. The gearbox manages the speed and force with which grain is pushed through the system, ensuring efficiency and reducing the likelihood of blockages or mechanical wear.

Working Principle:

The grain transportation gearbox for grain transportation plays a critical role in agricultural machinery by facilitating the efficient and controlled movement of grain. Here’s how it typically works:

1. Power Input: The gearbox is connected to a power source, which is usually an electric motor or a tractor’s power take-off (PTO). This connection enables the gearbox to receive mechanical power necessary to drive the movement of grain handling equipment.
2. Gear Reduction: Inside the gearbox are multiple gears that engage with each other to alter the speed and torque of the power received from the motor. The primary function of these gears is to reduce the high-speed rotation of the motor to a lower, more useful speed that is suitable for the equipment being driven. This process is known as gear reduction. By reducing the speed, the gearbox increases the torque output, providing the necessary force to move heavy loads of grain.
3. Transmission of Torque: Once the input speed has been converted into a more usable form, the gearbox transmits this torque through its output shaft to the machinery it’s connected to, such as conveyors, elevators, or augers. The enhanced torque ensures that these devices can move grain efficiently against gravity and other resistances.
4. Speed Control: Many grain transportation gearboxes are equipped with variable speed settings, allowing operators to adjust the speed according to the specific requirements of the task at hand. This feature is crucial for managing the flow rate of grain to avoid damage, prevent jamming of machinery, and maintain operational efficiency.
5. Maintaining Efficiency: The gearbox is designed to maximize the efficiency of power transmission. This means minimizing energy losses that occur due to friction and heat. High-quality gearboxes are built with precision-engineered components and may include cooling systems to dissipate heat effectively, ensuring that the gearbox operates smoothly over prolonged periods.
6. Protection and Durability: Finally, the gearbox is enclosed in a robust casing that protects its internal components from dust, moisture, and debris typical in agricultural environments. This casing helps ensure that the gearbox remains reliable and durable, reducing the need for frequent maintenance and prolonging the life of the equipment.

Proper Maintenance:

Maintaining a grain transportation gearbox is crucial for ensuring long-term reliability and efficiency in agricultural operations. Proper maintenance can prevent breakdowns, extend the life of the gearbox, and maintain its performance. Here are key steps and practices for the proper maintenance of a grain transportation gearbox:

• Regular Inspection: Schedule regular inspections to check for any signs of wear and tear or damage. Look for leaks, loose components, or any unusual noises during operation. Regular checks allow for early detection of potential issues before they lead to major repairs or failures.
• Lubrication: Proper lubrication is essential to reduce friction between the moving parts inside the gearbox. Check the manufacturer’s recommendations for the type and frequency of lubricating oil needed. Regularly check oil levels and quality, and change the oil according to the recommended schedule. Dirty or insufficient lubrication can lead to increased wear and overheating.
• Seal and Gasket Integrity: Ensure that all seals and gaskets are intact and in good condition to prevent dust, dirt, and moisture from entering the gearbox. These contaminants can cause internal components to corrode or wear prematurely. Replace seals and gaskets if they show signs of deterioration or leakage.
• Cleaning: Keep the gearbox and its surrounding area clean. Accumulation of debris and dirt can lead to overheating and contamination of lubricants. Use appropriate cleaning agents that won’t harm the metal or seals, and ensure that the gearbox is dry and free from residues after cleaning.
• Vibration Monitoring: Excessive vibration can be a sign of underlying problems such as misalignment, imbalance, or wear in the gears or bearings. Use vibration monitoring tools to detect abnormalities early. Addressing these issues promptly can prevent further damage and costly repairs.
• Bearing and Gear Check: Periodically check the condition of bearings and gears within the gearbox. Look for signs of wear, pitting, or corrosion. Replacing worn or damaged bearings and gears on time is essential to maintain optimal performance and avoid unexpected breakdowns.
• Alignment and Tension Adjustment: Ensure that the gearbox is properly aligned with the motor and the driven equipment. Misalignment can cause uneven load distribution and premature wear. Also, check belt tension if the gearbox is part of a belt-driven system. Incorrect belt tension can lead to inefficiencies and increased wear.

We Also Offer Other Types of Agricultural Gearboxes

We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, cutting bar gearboxes, gearbox for hay tedders, etc.

Grain Transportation Gearbox Manufacturers

Raydafon is a prominent manufacturer of high-performance grain transportation gearboxes for a variety of applications. Our grain transportation gearboxes are a powerful replacement option for Replacement of Comer Industries, John Deere, Bush Hog, Replacement of Bonfiglioli, Case IH, New Holland, Claas, Kubota, Land Pride, Kuhn, and other brands. Our technical staff can reconfigure an existing design or assist you in designing a custom grain transportation gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing a grain transportation gearbox. If you want to buy a grain transportation gearbox, please get in touch with us.
