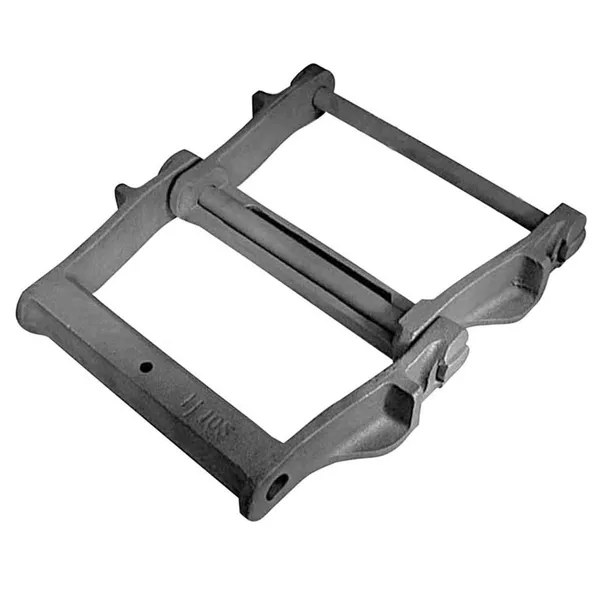

H104 Refuse Drag Chain

H104 Refuse Drag Chain

H104 Chain is an H-Class refuse drag chain that is manufactured with Promal cast links and heat-treated carbon steel pins for added durability. This H104 Refuse Drag Chain is extremely durable, and high quality, and is used for conveying abrasive waste materials through wooden or steel troughs. Due to the large and wide opening area, this H104 Refuse Drag Chain provides a sizable carrying capacity when operated at moderate speeds, even in harsh and demanding applications. When in operation, links should always be run in the direction of the closed barrel. Besides the chain itself, we also have a full line of high-quality H104 chain sprockets.

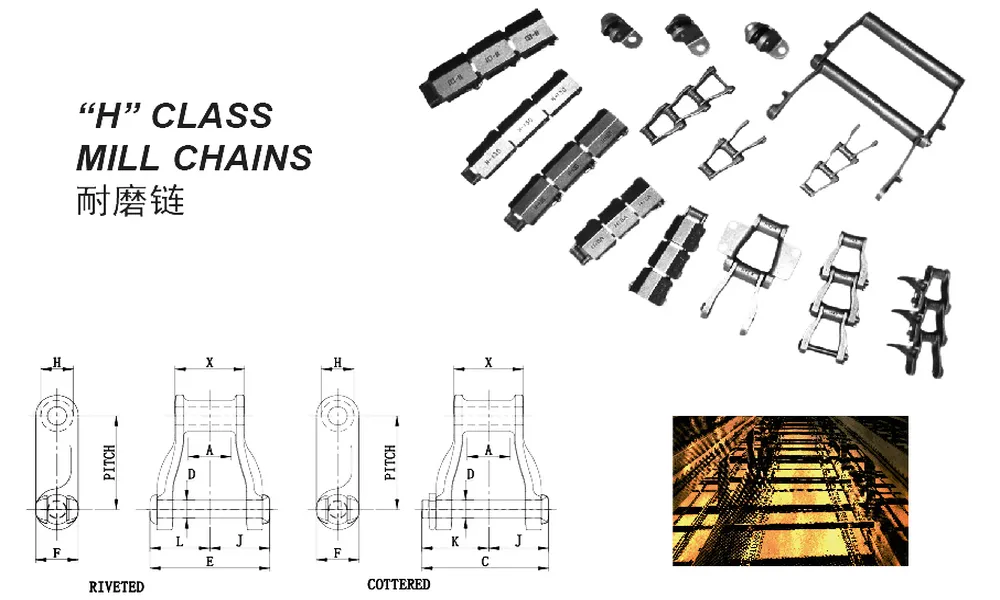

H104 Refuse Drag Chain Dimensions:

H104 Refuse Drag Chain Dimensions in Inches:

Chain No.	H104 Refuse Drag Chain
Pitch in Inches	6.000
Weight Per Foot LBS.	13.50
Average Ultimate Strength LBS.	36400
Maximum Working Load LBS.	6100
A	4.12
D	0.625
E	7.50
F	1.50
Ne	7.50
X	5.31
Available Attachments	None

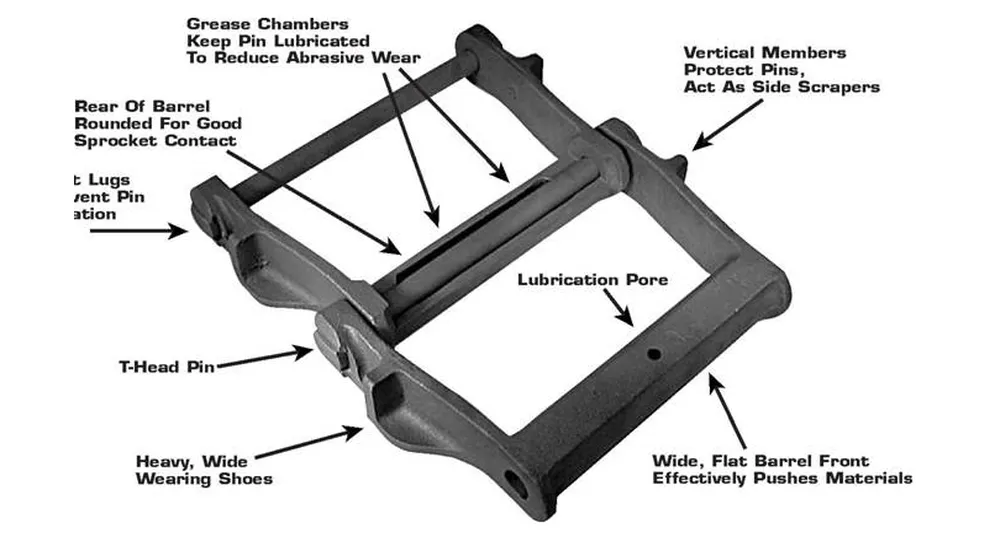

H104 Refuse Drag Chain Advantages:

The H104 Refuse Drag Chain is a specific type of drag chain conveyor designed for handling refuse or waste materials. Here are some advantages of using the H104 Refuse Drag Chain:1. Durability: The H104 Refuse Drag Chain is built to withstand the demanding conditions of refuse and waste handling. It is constructed with heavy-duty materials, such as high-strength steel, that can endure the abrasive nature of the waste materials without significant wear or damage.2. Reliability: This H104 Refuse Drag Chain offers reliable operation, ensuring consistent and uninterrupted material flow. It is designed to handle the tough and irregular shapes of refuse materials, preventing jams and blockages that can disrupt the conveying process.3. Versatility: The H104 Refuse Drag Chain is versatile and can handle a wide range of refuse materials, including municipal solid waste, construction and demolition debris, industrial waste, and more. It is suitable for various industries such as waste management, recycling, and manufacturing.4. Customizability: The H104 Refuse Drag Chain can be customized to fit specific applications and requirements. It can be designed with different chain widths, flight configurations, and chain speeds to optimize the conveying process for different types of refuse materials and production environments.5. Low maintenance: The H104 Refuse Drag Chain requires minimal maintenance. Its robust design and high-quality materials reduce the need for frequent repairs or replacements, resulting in lower downtime and overall maintenance costs.6. Environmental benefits: Using the H104 Refuse Drag Chain in waste management and recycling processes can contribute to environmental sustainability. It helps to efficiently transport and handle refuse materials, allowing for better waste sorting, recycling, and disposal practices.

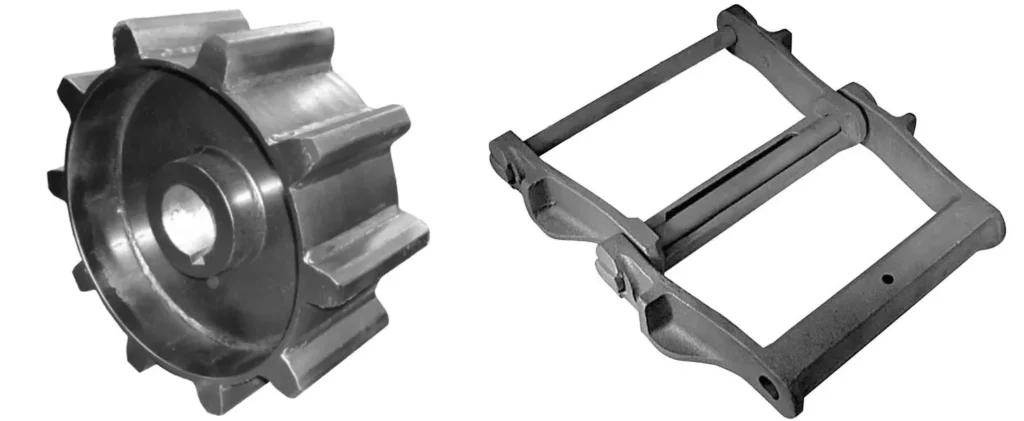

H104 Chain Sprockets and H104 Refuse Drag Chain:

H104 Chain Sprockets are an essential component of the H104 Refuse Drag Chain system. Here's how they are related:(1) Function: H104 Chain Sprockets are toothed wheels that mesh with the links of the drag chain, providing a driving mechanism for the chain to move along the conveyor system. They transmit power from the drive unit to the chain, enabling the movement of the refuse materials.(2) Compatibility: H104 Chain Sprockets are specifically designed to work in conjunction with the H104 Refuse Drag Chain. They are engineered to match the pitch and dimensions of the chain, ensuring a proper fit and smooth operation. The sprockets' teeth are designed to engage securely with the chain links, preventing slippage or disengagement during operation.(3) Material and Construction: H104 Chain Sprockets are typically made from high-strength steel or other durable materials to withstand the heavy loads and abrasive nature of refuse materials. They are precision machined to ensure accurate tooth profiles and smooth interaction with the chain. The sprockets may also undergo surface treatments or coatings to enhance wear resistance and prolong their service life.(4) Sprocket Configuration: The configuration of the H104 Chain Sprockets, including the number of teeth and the tooth profile, is crucial for achieving the desired chain speed and conveying capacity. The selection of sprocket sizes and ratios depends on factors such as application requirements, material properties, and desired conveyor speed. Proper sprocket selection is important for maintaining optimal performance and minimizing wear on both the chain and the sprockets.(5) Maintenance and Replacement: Like any mechanical component, H104 Chain Sprockets require periodic maintenance to ensure their continued performance. This may involve lubrication, inspection for wear or damage, and timely replacement when necessary. Routine maintenance helps prevent premature wear and ensures the smooth operation of the H104 Refuse Drag Chain.
