H110 Refuse Drag Chain

H110 Refuse Drag Chain

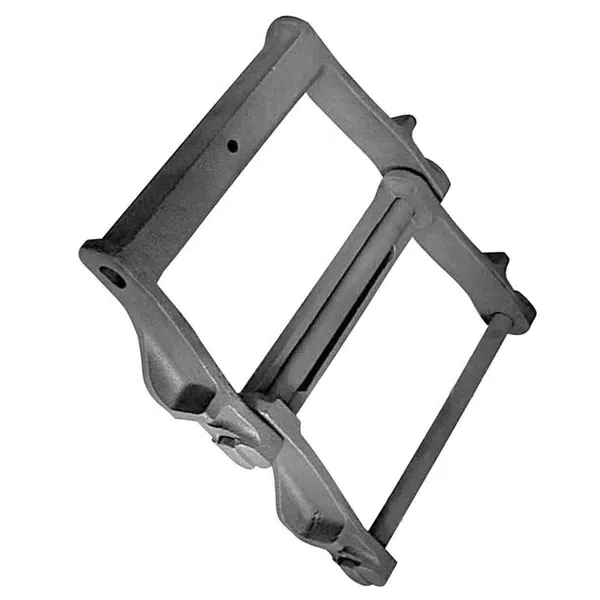

The H110 Refuse Drag Chain is a heavy-duty chain designed for conveying abrasive waste materials through wooden or steel troughs. It is available in a variety of pitches and lengths and can be customized to meet specific application requirements. The H110 chain is made with high-quality materials that can withstand the harshest environments. The links are made of Promal cast iron, which is known for its strength and durability. The pins are made of heat-treated carbon steel, which provides added strength and resistance to wear.

The H110 Refuse Drag Chain has a large, wide opening area that allows it to convey large quantities of material. The flat front face of each barrel helps to keep the chain from riding over the top of the material, and the rounded inner side of the barrel provides excellent sprocket contact. The sidebars of the H110 chain are reinforced with wearing shoes, which provide additional wear resistance. A vertical member on each sidebar helps to add link rigidity and protect the pin from damage. The H110 Refuse Drag Chain is available in riveted construction only. This type of construction is more durable than link-pin construction, and it is less likely to come apart under heavy loads.

Here are some of the key features of the H110 Refuse Drag Chain:

• Large, wide opening area for conveying large quantities of material
• The flat front face of each barrel helps to keep the chain from riding over the top of the material
• The rounded inner side of the barrel provides excellent sprocket contact
• Sidebars reinforced with wearing shoes for added wear resistance
• Vertical member on each sidebar for added link rigidity and protection of the pin
• Available in riveted construction only for added durability

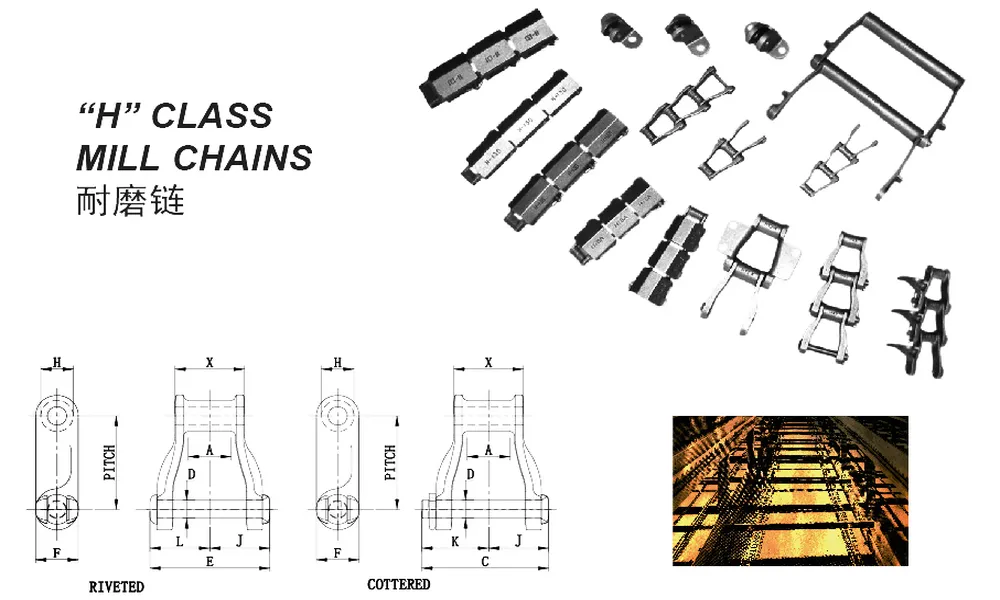

H110 Refuse Drag Chain Dimensions:

H110 Refuse Drag Chain Dimensions in Inches:

Chain No.	H110 Refuse Drag Chain
Pitch in Inches	6.000
Weight Per Foot LBS.	13.20
Average Ultimate Strength LBS.	31000
Maximum Working Load LBS.	6100
A	9.00
D	0.625
E	12.50
F	1.50
Ne	12.50
X	10.62
Available Attachments	None

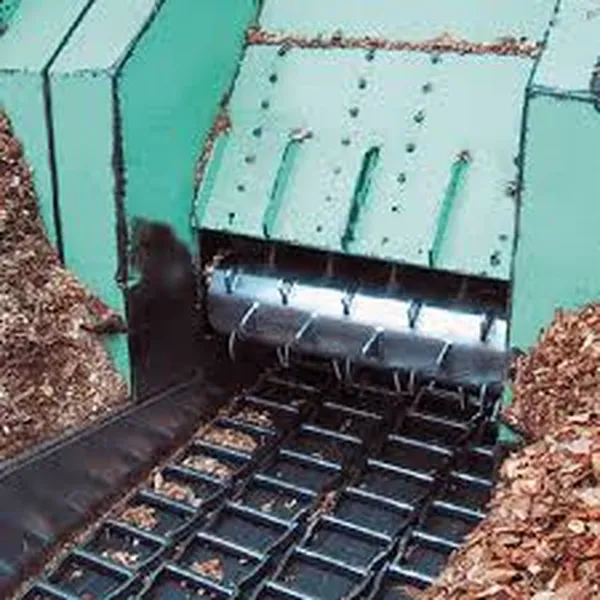

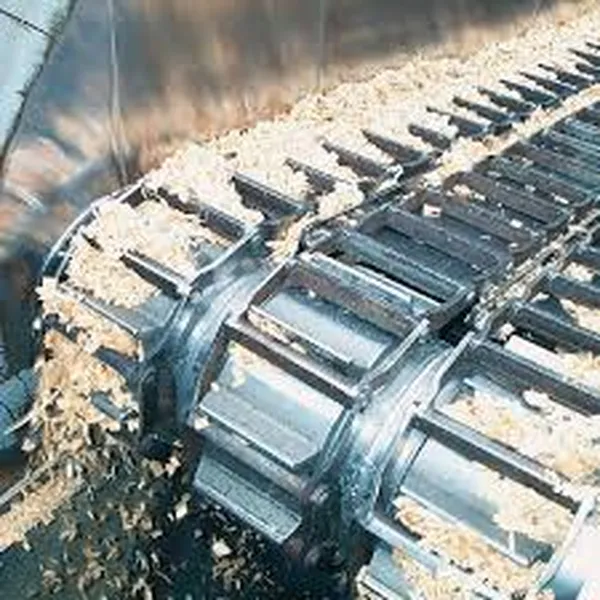

H110 Refuse Drag Chain Applications:

H110 Refuse Drag Chain is a type of conveyor chain specifically designed for handling heavy-duty and abrasive materials, such as refuse or waste. It is commonly used in applications where waste materials need to be transported from one location to another within a facility or process. The H110 Refuse Drag Chain is built to withstand the harsh conditions associated with refuse handling. Here are some common applications where H110 Refuse Drag Chain is used:1. Waste management facilities: The H110 Refuse Drag Chain is used to transport various types of waste, including household garbage, industrial waste, construction debris, and recyclable materials, within waste management plants.2. Recycling centers: H110 Refuse Drag Chain helps move materials through different stages of the recycling process, including sorting, shredding, and separation.3. Power plants: In power generation facilities, the H110 Refuse Drag Chain is employed to handle and transport coal ash, bottom ash, and other combustion by-products.4. Mining operations: The H110 Refuse Drag Chain is used to transport ores, minerals, and other raw materials in mining and extraction processes.5. Cement and aggregate industry: H110 Refuse Drag Chain is utilized to convey materials like limestone, gravel, sand, and cement in cement plants and aggregate processing facilities.6. Heavy manufacturing: The H110 Refuse Drag Chain is employed in industries that deal with heavy and abrasive materials, such as steel mills, automotive manufacturing, and bulk material handling facilities.

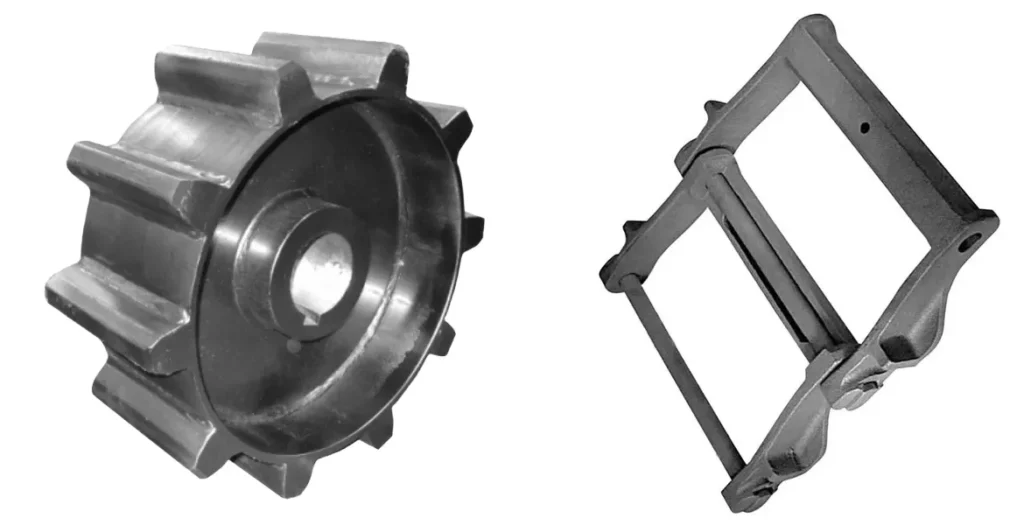

H110 Chain Sprockets for H110 Refuse Drag Chains:

H110 chain sprockets are specifically designed for use with H110 refuse drag chains. They are made from high-quality materials that can withstand the harsh conditions of refuse conveying applications. H110 chain sprockets are available in a variety of sizes and tooth counts to meet the needs of different applications.

Here are some of the benefits of using H110 chain sprockets for H110 refuse drag chains:

• Increased durability: H110 chain sprockets are made from high-quality materials that can withstand the harsh conditions of refuse-conveying applications. They are also built to withstand the high loads and impact forces that can be generated by refuse drag chains.
• Longer life: H110 chain sprockets are designed to last longer than standard chain sprockets. This is due to the high-quality materials they are made from and the way they are built.
• Improved efficiency: H110 chain sprockets can help to improve the efficiency of refuse conveying systems. This is because they are designed to reduce friction and wear.
• Reduced noise and vibration: H110 chain sprockets can help to reduce noise and vibration in refuse conveying systems. This is due to the smooth operation of the sprockets and the way they are designed to reduce friction.

If you are looking for a high-quality, durable, and efficient chain sprocket for your H110 refuse drag chain, then H110 chain sprockets are the perfect choice.
