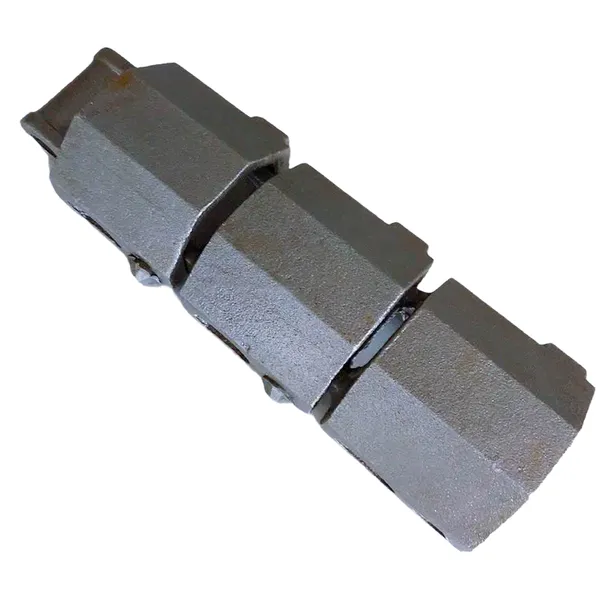

H130 Transfer Rooftop Chains

H130 Transfer Rooftop Chains

The H130 Transfer Rooftop Chain is a strong and durable rooftop transfer chain. It has a tensile strength of 18,200 lbs, making it a solid mid-range chain that has been used for decades and is trusted by many. The sidebars of the H130 chain are strengthened to provide a wear surface that prolongs the chain's service life. The H130 Rooftop Chain is available in riveted construction only. If you are looking for a high-quality, heavy-duty chain for your transfer conveyor, the H130 Transfer Rooftop Chain is a good option to consider. It is a reliable and durable chain that can handle heavy loads and demanding applications.

H130 Transfer Rooftop Chain Dimensions:

H130 Transfer Rooftop Chains Dimensions in Inches:

Chain No.	H130 Transfer Rooftop Chain
Pitch in Inches	4.000
Style of Top	A
Links Per 10 Feet	30
Weight Per Foot LBS.	5.2
Average Ultimate Strength Load LBS.	14000
Recommended Maximum Working Load LBS.	2440
Ar	3.25
Br	1.62
C	1.62
Db	1.00
Dp	0.500
E	1.00
E1	1.62
F	1.06
J	1.16
P	1.69
W	2.81

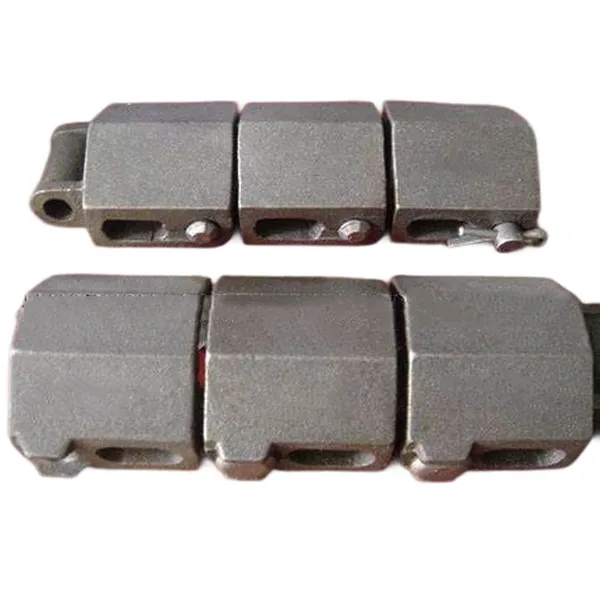

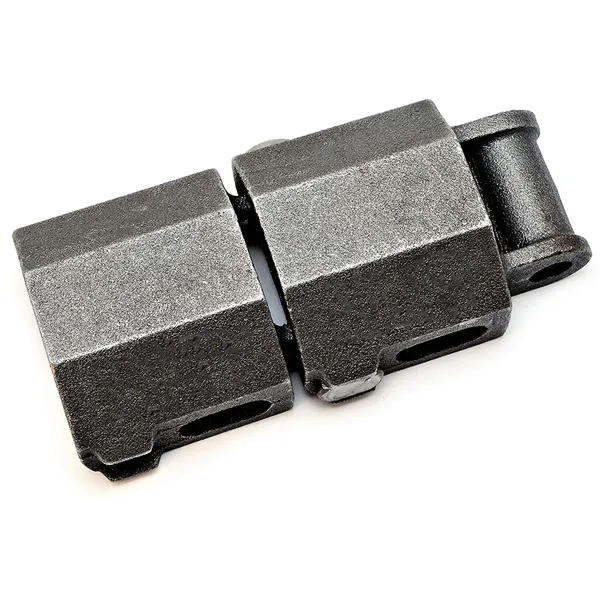

H130 Transfer Rooftop Chain Design Features:

The H130 Transfer Rooftop Chain is a heavy-duty chain that is designed for use in transfer conveyor applications. It is made of pearlitic malleable iron and has a tensile strength of 18,200 pounds. The sidebars of the chain are strengthened to provide a wear surface that prolongs the chain's service life. The H130 chain is available in riveted construction only.

Here are some of the key design features of the H130 Transfer Rooftop Chain:

1. Pearlitic malleable iron construction:?This type of iron is known for its strength and toughness, making it ideal for use in heavy-duty applications.2. Strengthened sidebars: The sidebars of the H130 Rooftop Chain are made thicker than standard chains to provide a larger wear surface. This helps to prolong the chain's life and reduces the need for frequent replacement.3. Riveted construction:?This type of construction is more secure than welded construction, making it less likely to come apart under heavy loads.4. Peaked top: The top of the H130 Transfer Rooftop Chain is peaked to help prevent the chain from derailing from the sprockets.

These design features make the H130 Transfer Rooftop Chain a reliable and durable chain that is well-suited for use in demanding applications.

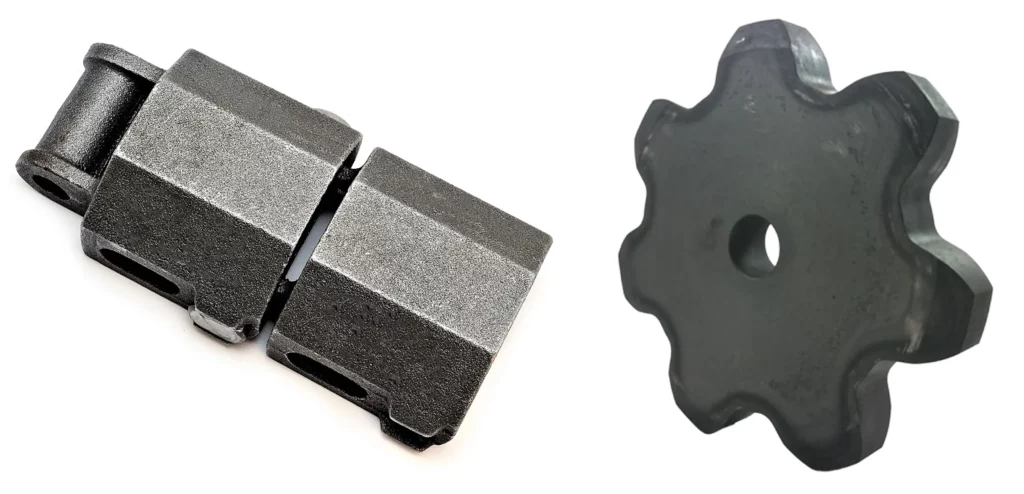

H130 Chain Sprockets for H130 Rooftop Chains:

H130 chain sprockets and H130 rooftop chains are used in a variety of applications, including:

• Conveyors
• Lumber mills
• Material Handling
• Construction
• Mining
• Wastewater treatment

The H130 Transfer Rooftop Chain is a heavy-duty chain that is made of pearlitic malleable iron. It has a tensile strength of 18,200 pounds and a working load limit of 2,440 pounds. The H130 chain is also wear-resistant and can withstand abrasive environments.

H130 chain sprockets are made of steel or cast iron. They are designed to mesh with the links of the H130 chain and transmit power. H130 chain sprockets are available in a variety of sizes and styles to match the specific application.

Here are some of the key features of H130 chain sprockets and H130 rooftop chains:

• High tensile strength: H130 rooftop chain has a tensile strength of 18,200 pounds, making it a strong and durable choice for heavy-duty applications.
• Wear resistance: H130 rooftop chain is wear-resistant and can withstand abrasive environments.
• Wide range of applications: H130 rooftop chain is used in a variety of applications, including conveyors, lumber mills, material handling, construction, mining, and wastewater treatment.
• Available in a variety of sizes and styles: H130 chain sprockets and H130 rooftop chains are available in a variety of sizes and styles to match the specific application.

If you are looking for a heavy-duty chain and sprockets that are wear-resistant and can withstand abrasive environments, then H130 chain sprockets and H130 rooftop chains are good options.
