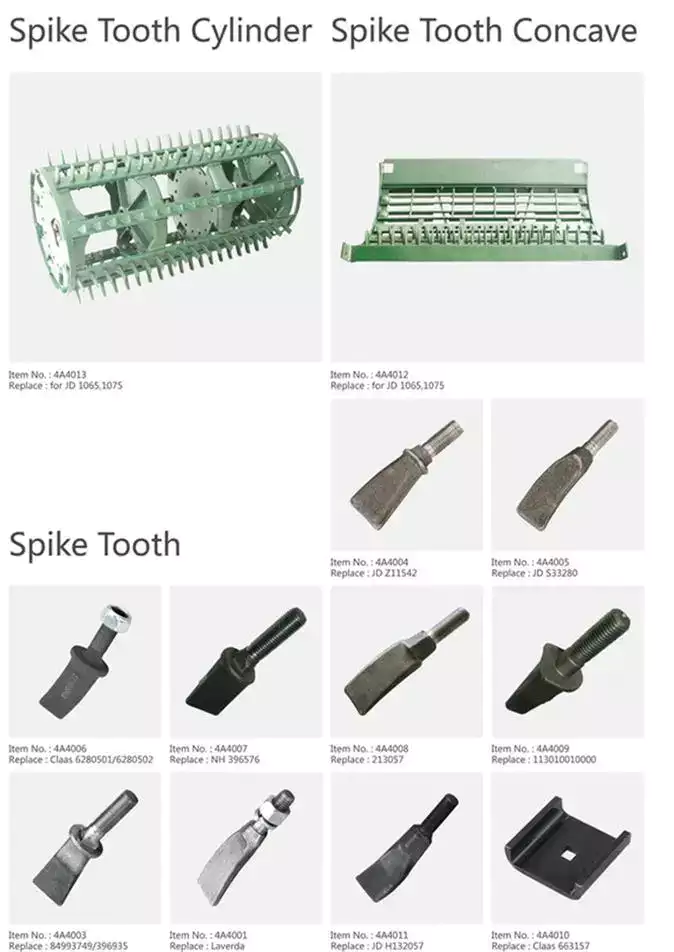

H132057 Cylinder Spike Tooth For Combine Harvesters Concave

H132057 Cylinder Spike Tooth For Combine Harvesters Concave

A Cylinder spike tooth is a part used in agricultural machinery that helps to remove grain from the plant material during the harvesting process. It is typically used in the concave area of combine harvesters.

The H132057 Cylinder Spike Tooth is compatible with various brands and models of agricultural machinery, which are listed below:

In addition to the H132057 Cylinder Spike Tooth, we also offer a wide range of other agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more.

If you notice any of the following signs, it may be time to replace your Cylinder spike tooth:

1. Decreased threshing efficiency: If you notice that the threshing process is not working effectively, resulting in loss of grain or residue in the straw, it may be a sign that the cylinder spike tooth has worn down and is no longer providing sufficient cutting and threshing force.
2. Significant wear: Check the spike teeth on the cylinder directly. If you find that the spike teeth are broken, missing, severely worn and deformed, or the tip is blunt, it means that the cylinder spike tooth has reached the end of its life and needs to be replaced.
3. Foreign object damage: If you inhale stones, metal debris, or other hard foreign objects during operation, causing spike tooth damage or serious damage to the threshing function, damaged spike teeth need to be replaced in time.
4. Abnormal noise: If the threshing part of the agricultural machinery makes abnormal noise during operation, it may be caused by abnormal contact or collision between damaged cylinder spike teeth and other parts.
5. Increase in power consumption: Due to spike tooth wear, the machine may need greater power drive to achieve the same threshing effect, resulting in increased engine load or fuel consumption.

When choosing the appropriate Cylinder spike tooth, consider the following:

1. Crop type: Different types of crops have different requirements for spike teeth. For example, for crops such as wheat or rice with small grains and soft straw, spike teeth that are more suitable for fine threshing can be chosen. For crops like corn with large grains and hard straw, more durable spike teeth with stronger penetrating power are required.
2. Spike tooth shape and arrangement: There are various shapes of spike teeth, including straight teeth, oblique teeth, curved teeth, etc., each of which has a specific application. Arrangement density also affects threshing efficiency and damage to crops. Generally, high-density arrangement is suitable for fine threshing, while low-density arrangement is beneficial to reduce damage to straw.
3. Material and hardness: Spike teeth materials should have wear resistance, corrosion resistance, and certain toughness to ensure stable performance under long-term use. The choice of hardness is also crucial. Excessive hardness may lead to premature wear or crop damage, while excessive softness may accelerate wear and affect service life.

Author: Miya
