H138 Transfer Rooftop Chains

H138 Transfer Rooftop Chains

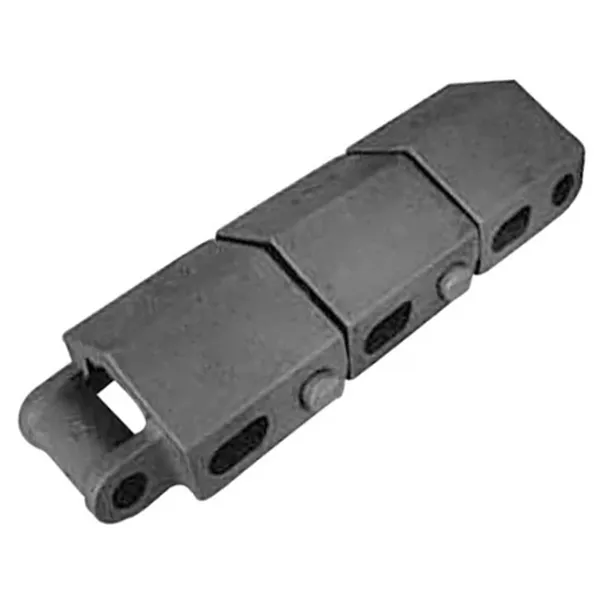

H138 transfer rooftop chains are a type of chain that is designed for use in conveyor applications where heavy loads need to be moved. They are also known as camelback chains or rooftop chains. H138 transfer rooftop chains are made of cast iron and have a pitch of 4 inches. The sidebars of the chain are strengthened to provide a wear surface that helps to prolong the life of the chain. H138 rooftop chains are available in riveted construction only.

Here are some of the features and benefits of H138 transfer rooftop chains:

• High tensile strength: H138 rooftop chains have a tensile strength of up to 19,500 pounds, making them ideal for handling heavy loads.
• Durable construction: H138 rooftop chains are made of cast iron and have a strengthened sidebar design that provides wear resistance.
• Long service life: H138 rooftop chains are designed to last for many years of use in demanding applications.
• Wide range of applications: H138 rooftop chains can be used in a variety of conveyor applications, including the transportation of lumber, boxes, barrels, and crates

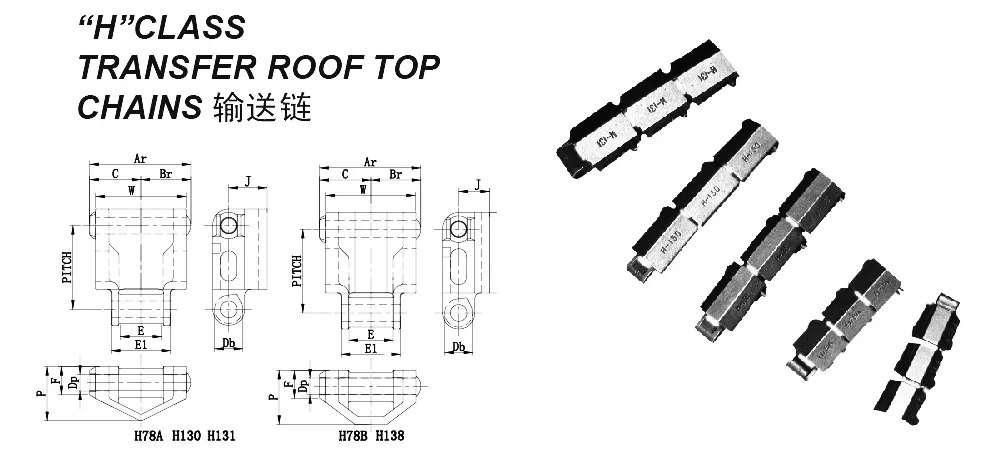

H138 Transfer Rooftop Chain Dimensions:

H138 Transfer Rooftop Chains Dimensions in Inches:

Chain No.	H138 Transfer Rooftop Chain
Pitch in Inches	4.000
Style of Top	B
Links Per 10 Feet	30
Weight Per Foot LBS.	5.8
Average Ultimate Strength Load LBS.	16000
Recommended Maximum Working Load LBS.	2440
Ar	3.25
Br	1.62
C	1.62
Db	1.00
Dp	0.500
E	1.00
E1	1.62
F	1.06
J	1.16
P	1.69
W	2.81

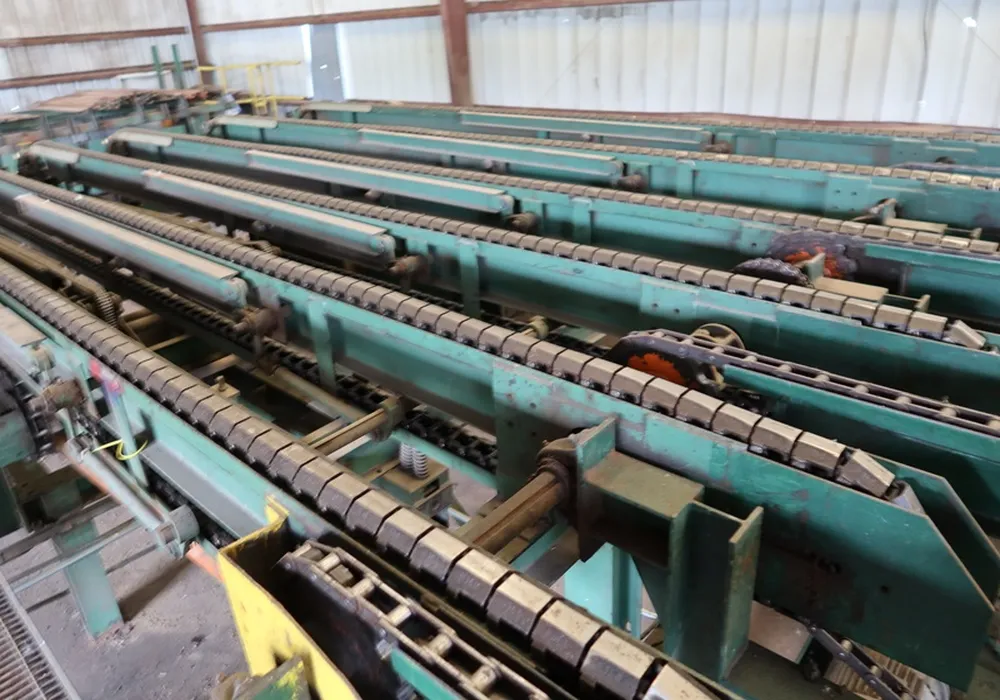

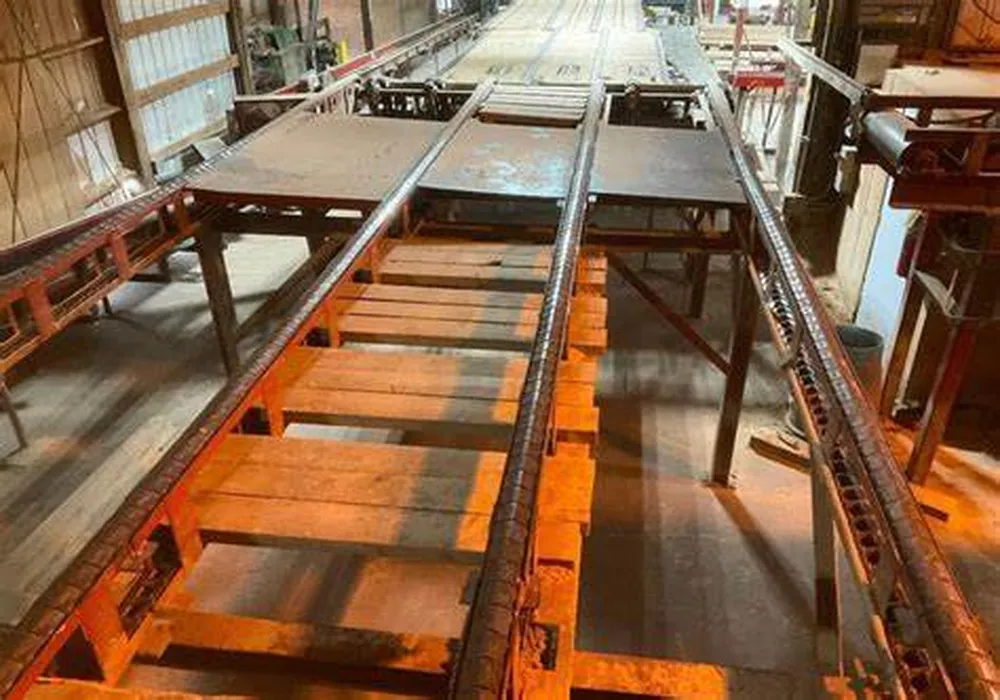

H138 Transfer Rooftop Chain Application Scenarios:

H138 transfer rooftop chains are commonly used in a variety of conveyor applications where heavy loads need to be moved. Here are some specific application scenarios where H138 transfer rooftop chains are used:

1. Aggregate and mining: H138 transfer rooftop chains are used in conveyors that transport rocks, gravel, and other aggregates. They are also used in conveyors that transport coal and other minerals.2. Forestry: H138 transfer rooftop chains are used in conveyors that transport logs and other wood products. They are also used in conveyors that transport sawdust and other wood byproducts.3. Construction: H138 transfer rooftop chains are used in conveyors that transport concrete, bricks, and other construction materials. They are also used in conveyors that transport dirt, sand, and other materials used for grading and excavation.4. Manufacturing: H138 transfer rooftop chains are used in conveyors that transport parts, products, and raw materials. They are also used in conveyors that transport waste materials.5. Material handling: H138 transfer rooftop chains are used in conveyors that transport a variety of materials, including food, beverages, and chemicals. They are also used in conveyors that transport mail and other packages.

In addition to these specific application scenarios, H138 transfer rooftop chains can be used in any conveyor application where heavy loads need to be moved. They are a versatile and durable type of chain that can be used in a wide variety of industries.

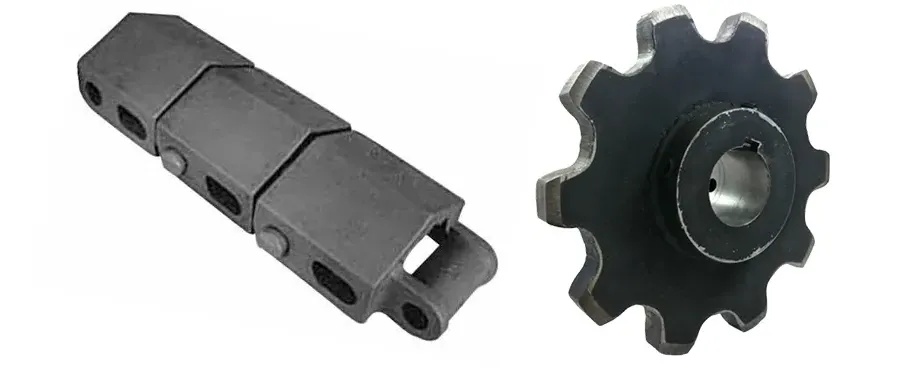

H138 Chain Sprockets for H138 Rooftop Chains:

H138 chain sprockets are designed to work with the H138 rooftop chains. They are typically made of steel or cast iron and have a pitch of 4 inches. The sprocket teeth are designed to mesh with the links of the chain to transmit power. H138 chain sprockets are available in a variety of sizes to match the specific application.

Here are some of the benefits of using H138 rooftop chains and sprockets:

• Heavy-duty construction: H138 rooftop chains and sprockets are designed for heavy-duty applications. They can withstand high loads and are not easily damaged.
• Durability: H138 rooftop chains and sprockets are made from durable materials that can withstand wear and tear. They are also rust-resistant, making them ideal for outdoor applications.
• Efficiency: H138 rooftop chains and sprockets are highly efficient, transferring power with minimal loss. This can save you money on energy costs.
• Long lifespan: H138 rooftop chains and sprockets are built to last. With proper maintenance, they can last for many years.

If you are looking for a heavy-duty chain and chain sprocket system for your application, H138 rooftop chains are a great option. It is durable, efficient, and long-lasting.
