H480 Refuse Drag Chain

H480 Refuse Drag Chain

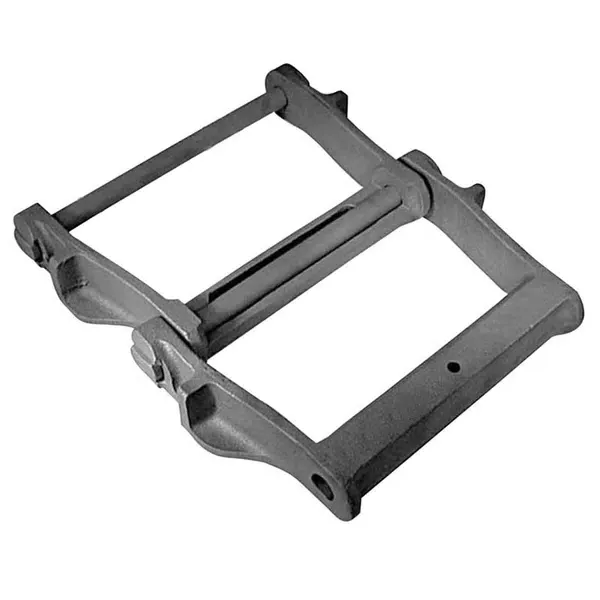

The H480 Refuse Drag Chain is a heavy-duty chain designed for conveying abrasive waste materials through wooden or steel troughs. It is available in Promal or Duramal with a tensile strength range of 36,400 to 52,000 pounds. The H480 Refuse Drag Chain has a large, wide opening area that provides sizeable carrying capacity when operated at moderate speeds. The front face of each barrel is flat, providing a broad area to push material along the trough and to keep the chain from riding over the top of the material. The rounded inner side of the barrel is carefully shaped to make excellent sprocket contact.

Here are some of the key features of the H480 Refuse Drag Chain:

• Large, wide opening area for sizeable carrying capacity
• The flat front face of each barrel for pushing material along the trough
• The rounded inner side of the barrel for excellent sprocket contact
• Reinforced sidebars with wearing shoes for added wear resistance
• Vertical member on each sidebar for added link rigidity
• Grease chambers cored into each link's barrel for lubrication
• Wide-faced sprockets, either of machined or cast steel, are recommended for operation
• Links should always be run in the direction of the closed barrel

The H480 Refuse Drag Chain is a versatile and durable chain that can be used in a variety of applications where abrasive waste materials are conveyed. It is a good choice for use in sawmills, wood chip plants, pulp and paper mills, garbage disposal plants, and other industrial facilities.

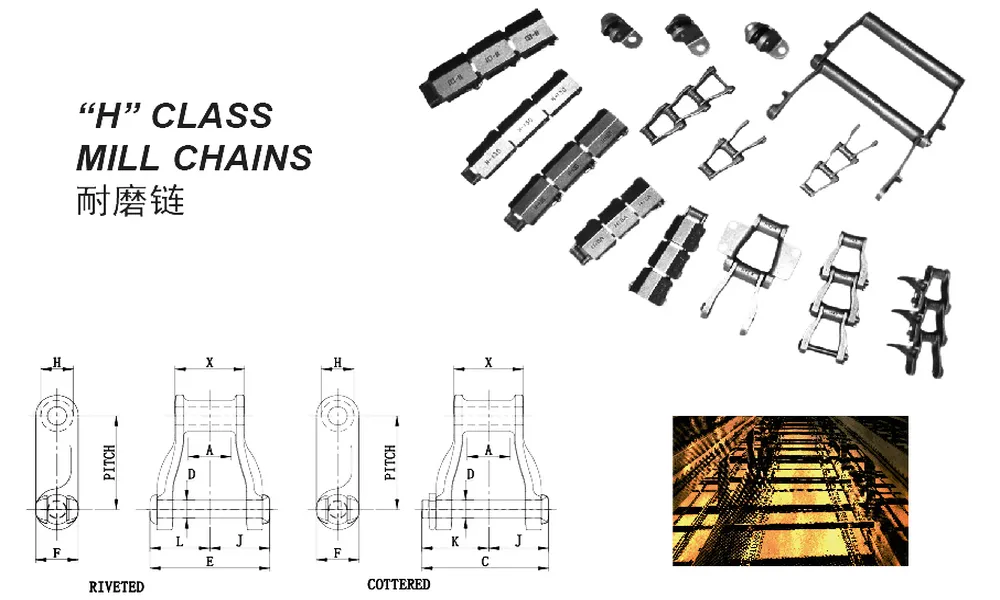

H480 Refuse Drag Chain Dimensions:

H480 Refuse Drag Chain Dimensions in Inches:

Chain No.	H480 Refuse Drag Chain
Pitch in Inches	8.000
Weight Per Foot LBS.	24.00
Average Ultimate Strength LBS.	52000
Maximum Working Load LBS.	8650
A	11.12
D	0.750
E	16.00
F	2.00
Ne	16.00
X	12.69
Available Attachments	None

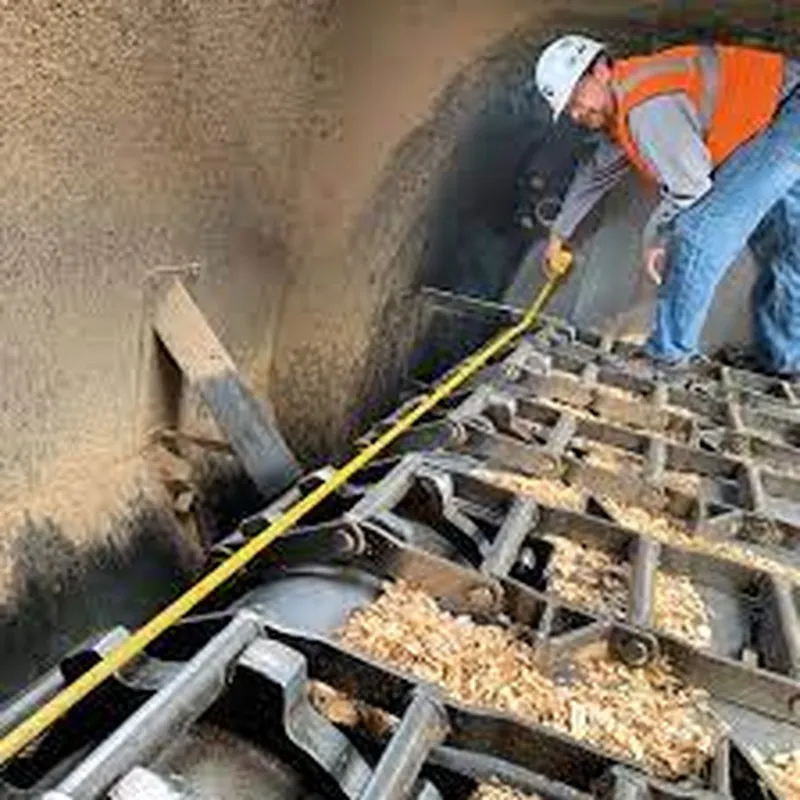

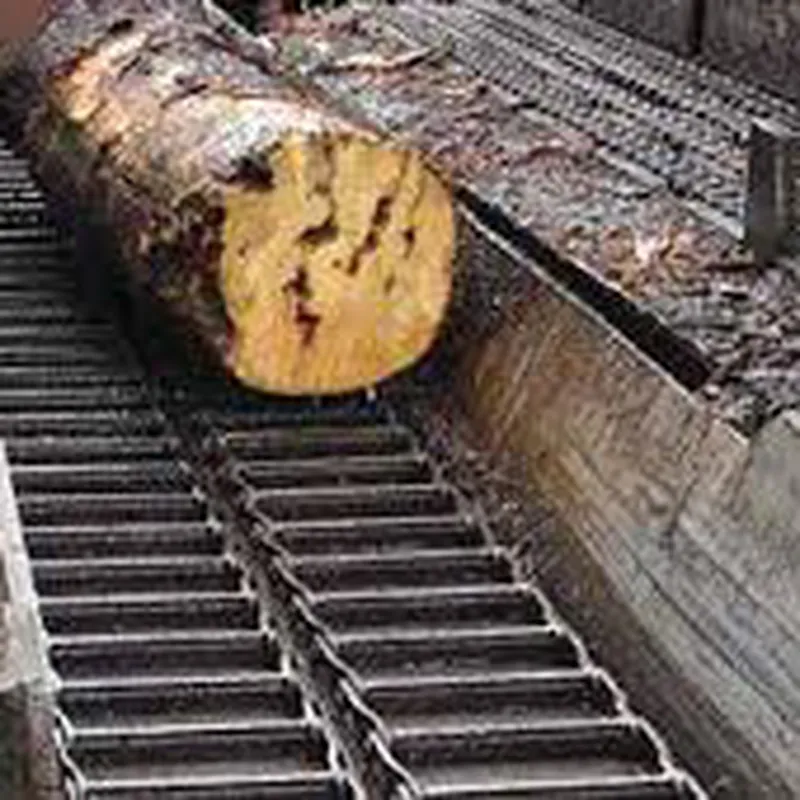

H480 Refuse Drag Chain Application Scenarios:

The H480 Refuse Drag Chain is a heavy-duty chain that is designed to be used in a variety of applications where abrasive waste materials are present. Some of the specific application scenarios where the H480 Refuse Drag Chain is commonly used include:

1. Garbage disposals:?The H480 Refuse Drag Chain is used in garbage disposals to convey food waste and other debris from the disposal unit to the sewer line. The chain's large, wide opening area and flat front face allow it to easily push material along the trough, while the rounded inner side helps to ensure smooth operation and prevents the chain from riding over the top of the material.2. Wastewater treatment plants: The H480 Refuse Drag Chain is used in wastewater treatment plants to convey sludge and other waste materials from one point to another. The chain's durability and ability to handle abrasive materials make it a good choice for this type of application.3. Sawmills:?The H480 Refuse Drag Chain is used in sawmills to convey sawdust and other wood waste from the saws to the collection system. The chain's large opening area allows it to easily handle large quantities of material, while the flat front face helps to push the material along the trough.4. Pulp and paper mills: The H480 Refuse Drag Chain is used in pulp and paper mills to convey wood chips and other materials from one point to another. The chain's durability and ability to handle abrasive materials make it a good choice for this type of application.5. Mining operations: The H480 Refuse Drag Chain is used in mining operations to convey ore and other materials from the mine to the processing plant. The chain's durability and ability to handle abrasive materials make it a good choice for this type of application.6. Construction sites: The H480 Refuse Drag Chain is used on construction sites to convey debris and other materials from one point to another. The chain's durability and ability to handle abrasive materials make it a good choice for this type of application.

These are just a few of the many application scenarios where the H480 Refuse Drag Chain can be used. If you are looking for a heavy-duty chain that can handle abrasive waste materials, the H480 Refuse Drag Chain is a great option. It is made from high-quality materials and is designed to withstand the rigors of harsh environments.

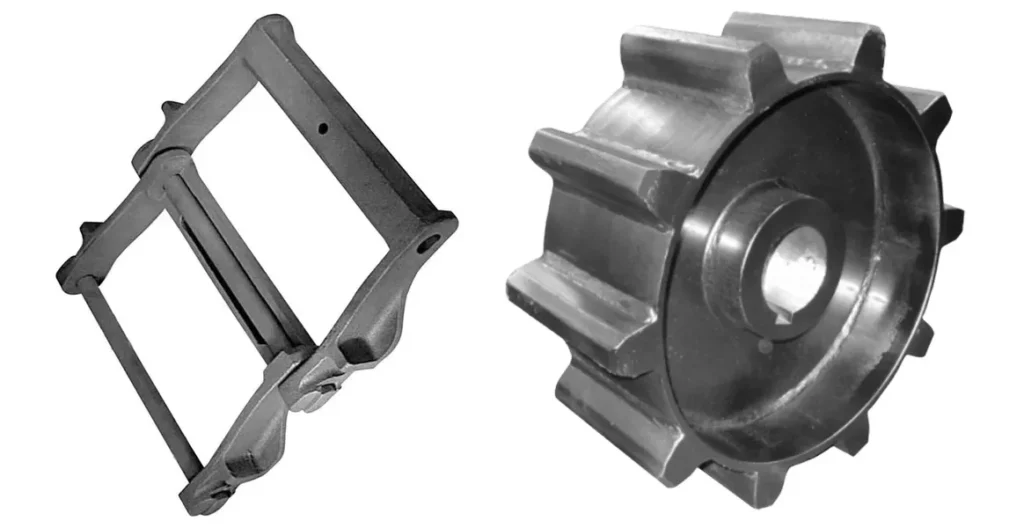

H480 Chain Sprockets for H480 Refuse Drag Chains:

H480 chain sprockets and H480 refuse drag chains are used in a variety of applications where heavy-duty chains are required. These chains are made with high-quality materials and construction methods, making them extremely durable and long-lasting.

H480 chain sprockets are designed to work with H480 refuse drag chains. These sprockets are made with heat-treated steel for added strength and durability. They have a large face width to accommodate the wide-open barrel design of H480 chains. This allows for a high carrying capacity and smooth operation, even in harsh and demanding applications.

H480 refuse drag chains are designed to convey abrasive waste materials through wooden or steel troughs. They are made with Promal cast links and heat-treated carbon steel pins for added durability. The large and wide opening area of these chains provides a sizable carrying capacity when operated at moderate speeds. H480 chains are also designed to be run in the direction of the closed barrel, which helps to extend their life.

Here are some of the key features of H480 chain sprockets and H480 refuse drag chains:

• High-quality materials and construction methods
• Extremely durable and long-lasting
• Designed for heavy-duty applications
• Large face width for high carrying capacity
• Smooth operation in harsh and demanding applications
• Suitable for conveying abrasive waste materials

If you are looking for a high-quality and durable chain for your application, H480 chain sprockets and H480 refuse drag chains are great options. They are made with high-quality materials and construction methods, and they are designed for heavy-duty use. These chains are also available in a variety of sizes and configurations to meet the specific needs of your application.
